In Stock
| Main Features | ||
| Display | 3.5'' TFT Color Screen | |
| Physical Keypad | 4 keys | |
| Detection Zone | 6 / 12 / 18 zones mode adjustable | |
| Sensitivity Level | 500 | |
| Channel | 100 | |
| Smallest Metal Objects Detected | Coin-sized Metals | |
| Maximum Detection Distance | Vertical 20-2000mm |
|
| Detection Sound Alert | 6 types of alarm tones (adjustable) 0-6 levels of volume adjustable (Maximum volume 80 dB) |
|
| Detection Visual Indicator | 2 sets of LEDs (red) are evenly distributed on the left and right door panels LED (Steady red= metal contraband detected) |
|
| Throughput | > 40 persons per minute | |
| Self-diagnosis Program | Yes | |
| Detection Mode | Automatic Detection Mode/ Infrared Detection Mode (default) | |
| Number of IR Groups | 2 | |
| Detected Contrabands | Ferrous and non-ferrous metal weapons | |
| Enclosure Material | Flame Retardant ABS Polymer, Medium Density Fiberboard, PVC | |
| Physical Specification | ||
| Power Supply | AC100V to 240V (DC12V/3A) | |
| Input Voltage | DC12V | |
| Operating Current | 1.5A | |
| Operating Power | 18W | |
| Operating Time (Estimated) | 24/7 operation capability (continuous operation) | |
| Operating Frequency | 5.7KHz ~ 9.6KHz | |
| Operating Temperature | -20°C to 55°C | |
| Storage Temperature | -25°C ~ 60°C | |
| Operating Humidity | <95% RH (non-condensing) | |
| Ingress Protection Rating | N/A (waterproof and dustproof) N/A (vandal-resistant) |
|
| Application Environment | Indoor | |
| Dimensions (L*W*H) | 2226 * 844 * 579 (mm) | |
| Lane Size (L*W*H) | 2011 * 710 * 499 (mm) | |
| Dimensions of Product with Packaging (L*W*H) | 2266 * 660 * 270 (mm) | |
| Net Weight | 44 kg | |
| Gross Weight | 50 kg |
|
| Interface | Relay Output: YES Network Interface: YES |
|
| Remote Control | YES | |
| Certifications | CE, FCC, ISO9001 | |
| Manufacture Warranty | ||
| Warranty | 1 Year | |

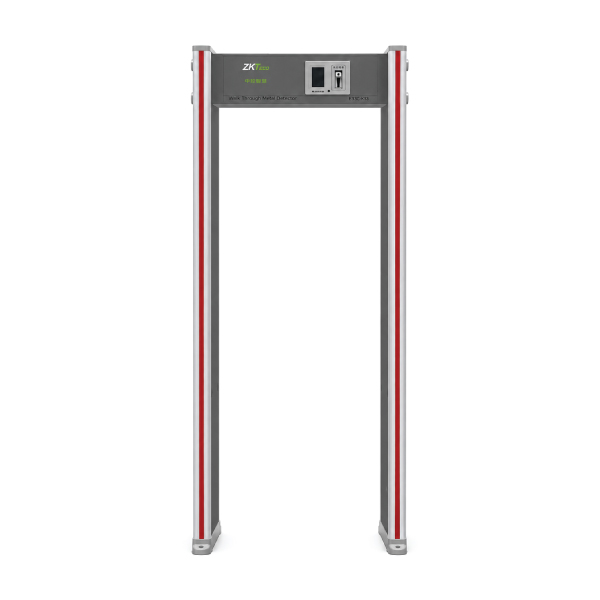

The ZKTeco ZK-D2180 Walk-Through 18-Zone Metal Detector is a professional archway gate for detecting ferrous and non-ferrous metal objects. It combines selectable zones, adjustable sensitivity, sound-and-light alarms, pedestrian counting and network connectivity for commercial, institutional and industrial entrances.
For buyers comparing the ZKTeco ZK-D2180 price in Bangladesh, the current price at Touch IT is ৳69,000. With a 3.5-inch TFT colour screen, 500 sensitivity levels, TCP/IP communication, remote control and throughput above 40 people per minute, this model provides a practical balance of detection capability and integration support. Confirm stock, installation and software requirements before ordering.
The ZK-D2180 is commonly described as an 18-zone detector, but it also supports 6 and 12-zone operation. Two infrared groups detect passage, while separate entry and exit counting helps operators monitor traffic. Automatic sensitivity and channel setting simplify configuration.
Security teams can select 6, 12 or 18 detection zones according to the screening requirement. Red LEDs on both side panels indicate the approximate area where metal is detected, helping staff perform a more focused secondary check. Browse other archway and handheld devices in the Metal Detector category.
The ZK-D2180 provides 500 adjustable sensitivity levels and 100 frequency channels. This allows trained operators to configure performance for the site and reduce interference from nearby electronic equipment or metal structures. ZKTeco identifies coin-sized metal as the smallest published detection reference.
Six selectable alarm tones, six volume levels and a published maximum sound level of 80dB give operators immediate feedback. The 3.5-inch TFT colour display, four physical keys and remote control support convenient configuration and daily operation.
The manufacturer specifies throughput above 40 people per minute under suitable conditions. Automatic or infrared detection modes, two infrared groups and separate in/out counting support orderly entrance management. Explore additional professional screening equipment under ZKTeco Products.
TCP/IP supports compatible ZK Metal Detector software and ZKBio SIS for approved monitoring and data-log applications. Relay output allows linkage with compatible entrance gates. Confirm software licensing and integration logic before deployment. For combined access control and surveillance projects, visit Security System Solutions.
For complete checkpoints combining archway detection and baggage screening, explore the Security Inspection collection.
| Brand and Model | ZKTeco ZK-D2180 |
|---|---|
| Product Type | Walk-through metal detector |
| Detection Zone Modes | 6 / 12 / 18 zones, adjustable |
| Sensitivity and Channels | 500 sensitivity levels; 100 channels |
| Display and Controls | 3.5-inch TFT colour screen, 4 keys and remote control |
| Detection System | Automatic or infrared mode; 2 infrared groups |
| Alarm System | 6 tones; volume 0–6; maximum 80dB; red LEDs |
| Throughput | More than 40 people per minute |
| Communication | TCP/IP network interface and relay output |
| Supported Software | ZK Metal Detector and ZKBio SIS |
| Power | AC 100–240V adapter, DC 12V/3A; 1.5A; 18W |
| Operating Frequency | 5.7–9.6kHz |
| Dimensions and Lane | 2226 × 844 × 579mm; lane 2011 × 710 × 499mm |
| Weight | 44kg net; 50kg gross |
| Operating Environment | Indoor; -20°C to 55°C; below 95% RH |
Verification note: ZKTeco’s June 2025 datasheet lists selectable 6/12/18 zones, 500 sensitivity levels, a 3.5-inch TFT screen and throughput above 40 people per minute. Older Bangladesh pages commonly show 256 levels or a 3.7-inch display. Touch IT’s existing description also mentions 99.9% accuracy, 60 people per minute and outdoor durability; these claims are not supported by the current manufacturer specification. The standard unit is indoor and has no published IP rating.
This model suits organizations needing a network-connected detector with selectable zones. Configurable sensitivity, LED guidance, counters, remote control, software support and relay interface provide greater flexibility than a basic gate.
| Model | Published Zones | Key Difference | Best For |
|---|---|---|---|
| ZK-D2180 | 6 / 12 / 18 | 3.5-inch display, TCP/IP and relay | Networked standard checkpoints |
| ZKTeco ZK-D3180 | 1 / 6 / 12 / 18 / 33 | Higher zone range and 7-inch LCD | Flexible high-traffic screening |
| ZKTeco ZK-D4330 | 12 / 24 / 33 / 46 / 69 | Higher zone detail and touchscreen | Advanced security projects |
| ZKTeco ZK-D1010L | Single zone | Entry-level design and 100 sensitivity levels | Basic entrance screening |
| Hikvision ISD-SMG1118L | Up to 18 zones | 7-inch colour display and Hikvision platform | Hikvision-based projects |
No. The current model supports selectable 6, 12 and 18-zone detection modes.
It provides 500 sensitivity levels and 100 channels for site-specific configuration.
Yes. Red LED indicators on both side panels show the approximate detection area.
Yes. ZKTeco lists support for ZK Metal Detector software and ZKBio SIS.
Yes. Its relay output supports linkage with compatible entrance equipment.
No. ZKTeco specifies indoor use and does not publish an IP protection rating.
Touch IT supplies professional security-inspection equipment in Bangladesh with consultation, site-planning guidance, installation coordination and after-sales support. The team can help confirm lane space, power, calibration, networking and gate-integration requirements.
Improve entrance screening with selectable zones and network-ready management. Order the ZKTeco ZK-D2180 Walk-Through 18-Zone Metal Detector from Touch IT, visit Room 312, Level 3, ECS Computer City Center (Multiplan Center), 69–71 New Elephant Road, Dhaka-1205, or call 01711664030.
