In Stock
| Main Features | ||
| Display | 7'' TFT Color Screen |
|
| Physical Keypad | 5 keys | |
| Detection Zone | 1 / 6 / 12 / 18 / 33 zones mode adjustable | |
| Sensitivity Level | 500 levels | |
| Channel | 100 | |
| Smallest Metal Objects Detected | 22.25*T1.85 mm(Steel-nickel Alloy) | |
| Maximum Detection Distance | Vertical 20-2000mm |
|
| Detection Sound Alert | 16 types of alarm tones (adjustable) 0-100 levels of volume adjustable (Maximum volume 80 dB) |
|
| Detection Visual Indicator | 2 sets of LEDs (red) are evenly distributed on the left and right door panels LED (Steady red= metal contraband detected) | |
| Throughput | > 40 persons per minutef | |
| Self-diagnosis Program | Yes | |
| Detection Mode | Automatic Detection Mode / Infrared Detection Mode(default) | |
| Number of IR Groups | 2 | |
| Detected Contrabands | Ferrous and non-ferrous metal weapons | |
| Enclosure Material | Flame Retardant ABS Polymer, Medium Density Fiberboard, PVC | |
| Physical Specification | ||
| Power Supply | AC100V to 240V (DC12V/3A) | |
| Input Voltage | DC12V, POE (optional) | |
| Operating Current | 1.2A | |
| Operating Power | 14W | |
| Operating Time (Estimated) | 24/7 operation capability (continuous operation) | |
| Operating Frequency | 5.7KHz ~ 9.6KHz | |
| Operating Temperature | -20°C ~ 55°C | |
| Storage Temperature | -25°C ~ 60°C | |
| Operating Humidity | < 95% RH (non-condensing) | |
| Ingress Protection Rating | N/A (waterproof and dustproof) N/A (vandal resistant) |
|
| Application Environment | Indoor | |
| Dimensions (L*W*H) | 2226 * 845 * 580 (mm) | |
| Lane Size (L*W*H) | 2000 * 710 * 498 (mm) | |
| Dimensions of Product with Packaging (L*W*H) | 2280 * 347 * 660 (mm) | |
| Net Weight | 46 kg | |
| Gross Weight | 52kg | |
| Interface | Relay Output: YES Network Interface: YES |
|
| Remote Control | Yes | |
| Certifications | CE, FCC, ISO9001 |
|
| Manufacture Warranty | ||
| Warranty | 1 Year | |

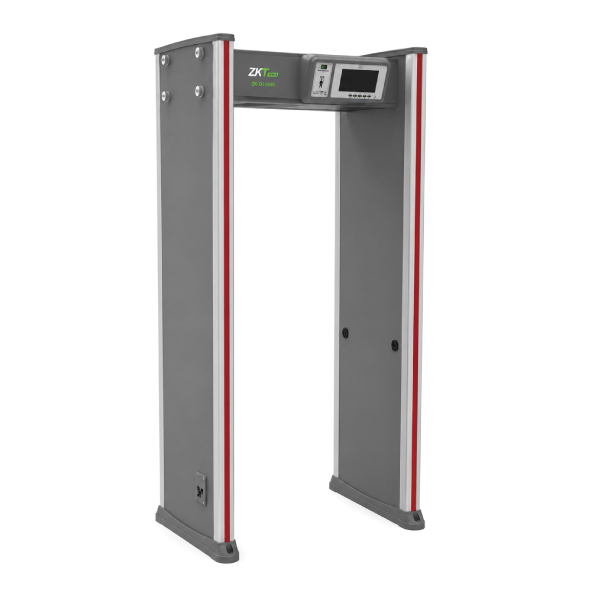

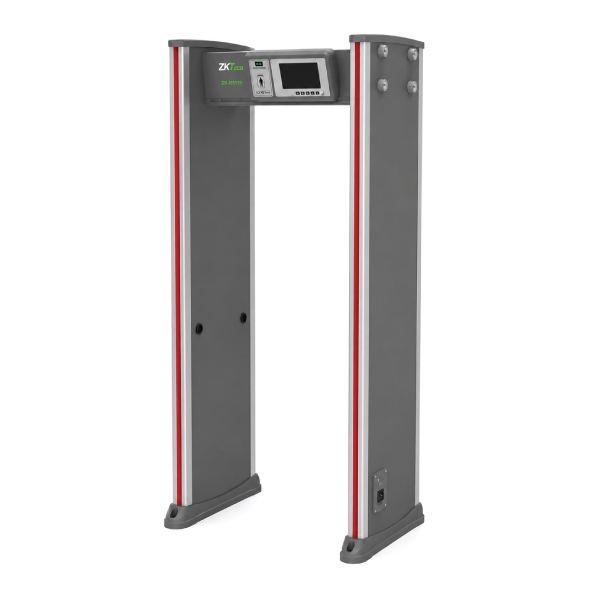

The ZKTeco ZK-D3180 18-Zone Walk-Through Metal Detector Gate is a professional system for detecting ferrous and non-ferrous metal objects. It combines configurable detection zones, sensitivity adjustment, audible and visual alarms, passage counting and network communication in one practical archway detector.
For organizations comparing the ZKTeco ZK-D3180 price in Bangladesh, the current Touch IT price is ৳90,000. Its 7-inch LCD display, 500 sensitivity levels, remote control and published throughput above 40 people per minute make it suitable for offices, factories, banks, schools, hospitals, event venues and other busy facilities. Confirm stock, installation space and integration requirements before ordering.
The ZK-D3180 is commonly sold as an 18-zone detector, while the current specification also permits 1, 6, 12 and 33-zone operation. Two infrared groups detect passage automatically. Separate directional sensitivity, people counts and alarm counts support practical checkpoint management.
Selectable zone modes help teams match the required screening level. Red LEDs on both side panels show the approximate detection area for a more focused secondary check. Browse additional equipment in the Metal Detector category.
The system provides 500 sensitivity levels and 100 channels for site-specific configuration. ZKTeco identifies a Φ22.25 × 1.85mm steel-nickel alloy object as the smallest published test item. Practical performance depends on calibration and interference.
The ZK-D3180 offers 16 selectable alarm tones, volume adjustment from 0 to 100 and a published maximum level of 80dB. Synchronized audible and red LED alerts give operators clear feedback when metal is detected. The 7-inch LCD, five physical keys and remote control make routine configuration more convenient.
ZKTeco specifies throughput above 40 people per minute under suitable conditions. Automatic and infrared modes plus entry-and-exit counting support busy checkpoints. Explore other entrance technologies through ZKTeco Products.
TCP/IP supports compatible ZK Metal Detector software and ZKBio SIS, while relay output enables gate linkage. Confirm software licensing and integration logic before deployment. For coordinated projects, see Security System Solutions.
Organizations planning archway detection, baggage scanning and complete checkpoints can explore the Security Inspection range.
| Brand and Model | ZKTeco ZK-D3180 |
|---|---|
| Product Type | Walk-through metal detector gate |
| Detection Zone Modes | 1 / 6 / 12 / 18 / 33 zones, adjustable |
| Sensitivity and Channels | 500 sensitivity levels; 100 channels |
| Display and Controls | 7-inch LCD, 5 physical keys and remote control |
| Detection System | Automatic or infrared mode; 2 infrared groups |
| Alarm System | 16 tones; volume 0–100, maximum 80dB; red LEDs |
| Throughput | More than 40 people per minute |
| Communication | TCP/IP network interface and relay output |
| Power | AC 100–240V adapter, DC 12V/3A; 1.2A; 14W |
| Operating Frequency | 5.7–9.6kHz |
| Dimensions and Lane | 2226 × 845 × 580mm; lane 2000 × 710 × 498mm |
| Weight | 46kg net; 52kg gross |
| Operating Environment | Indoor; -20°C to 55°C; below 95% RH, non-condensing |
| Certifications | CE, FCC and ISO 9001 |
Verification note: ZKTeco’s September 2025 datasheet specifies adjustable 1/6/12/18/33-zone modes, 500 sensitivity levels and throughput above 40 people per minute. Touch IT currently displays a conflicting 100-plus figure, while older ZK-D3180S pages list 256 levels and a 5.7-inch display. Those figures are not used here. PoE is optional, and no IP rating is published.
This model provides a useful balance between detailed detection, manageable operating costs and integration capability. Adjustable zones, separate directional sensitivity, configurable alarms, counting, TCP/IP connectivity and relay output make it appropriate for professional checkpoints that need more control than a basic standalone archway gate.
Compare the ZKTeco ZK-D3180 with other walk-through metal detector gates available from Touch IT. The right model depends on the required detection-zone detail, connectivity and security-screening environment.
| Model | Published Detection Zones | Key Difference | Recommended Application |
|---|---|---|---|
| ZKTeco ZK-D3180 | Adjustable 1 / 6 / 12 / 18 / 33 zones | 7-inch LCD, TCP/IP and 500 sensitivity levels | Flexible network-connected security screening |
| ZKTeco ZK-D2180 Walk-Through Metal Detector | Adjustable 6 / 12 / 18 zones | Lower maximum zone count with network connectivity | Standard indoor security checkpoints |
| Hikvision ISD-SMG1118L Walk-Through Metal Detector | Up to 18 zones | 7-inch colour display and Hikvision ecosystem | Hikvision-based security projects |
| ZKTeco ZK-D4330 Walk-Through Metal Detector | Adjustable 12 / 24 / 33 / 46 / 69 zones | Higher detection-zone count and touchscreen control | Advanced, high-detail security screening |
No. The current specification supports selectable 1, 6, 12, 18 and 33-zone modes.
It provides 500 adjustable sensitivity levels and 100 channels for site-specific setup.
Yes. Red LEDs on the side panels indicate the approximate detection area.
Yes. ZKTeco lists compatibility with its Metal Detector software and ZKBio SIS, subject to the selected software package.
Yes. A relay output is provided for compatible gate linkage and project integration.
No. The current manufacturer specification identifies the standard ZK-D3180 as an indoor product without a published IP rating.
No temperature-screening function is listed for this standard ZK-D3180 configuration.
Touch IT supplies professional security-inspection equipment in Bangladesh with product consultation, site-planning guidance, installation coordination and after-sales technical support. The team can help confirm lane space, electrical supply, calibration, networking and gate-integration requirements before installation.
Improve pedestrian screening with configurable detection zones, clear sound-and-light alerts and network-ready management. Order the ZKTeco ZK-D3180 18-Zone Walk-Through Metal Detector Gate from Touch IT, visit Room 312, Level 3, ECS Computer City Center (Multiplan Center), 69–71 New Elephant Road, Dhaka-1205, or call 01711664030.
