| Main Features | ||
| Detection Zone | single-zone detection | |
| Channel | 14 mm | |
| Physical Specification | ||
| Power Supply | AC 100V to 240V | |
| Operating Power | 18W | |
| Operating Frequency | 3KHz to 8KHz | |
| Storage Temperature | -20°C to 55°C | |
| Operating Humidity | <95% (non-condensing) | |
| Dimensions (L*W*H) | 2236 x 827 x 380 mm | |
| Dimensions of Product with Packaging (L*W*H) | 2280 x 282 x 560 mm | |
| Net Weight | 33 kg | |
| Manufacture Warranty | ||
| Warranty | 1 Year | |

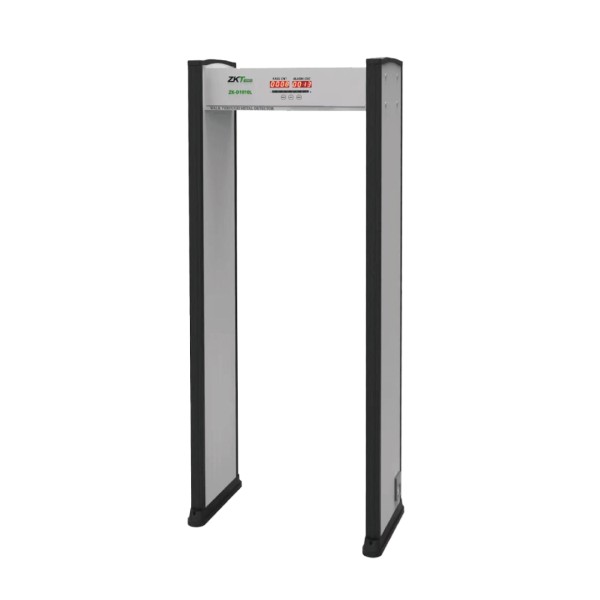

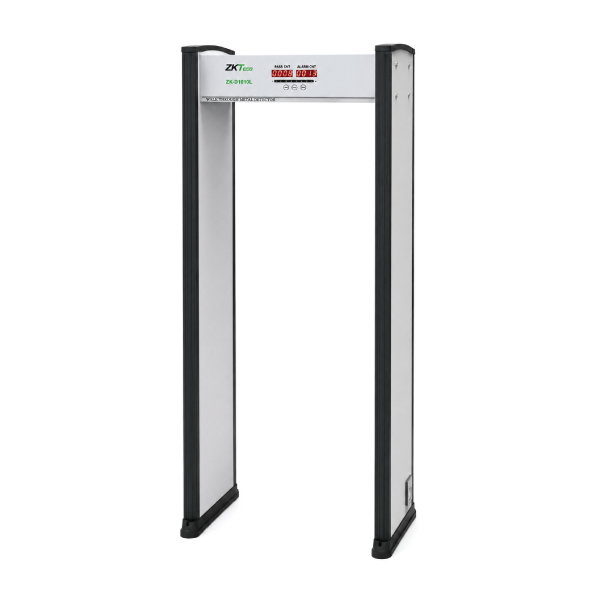

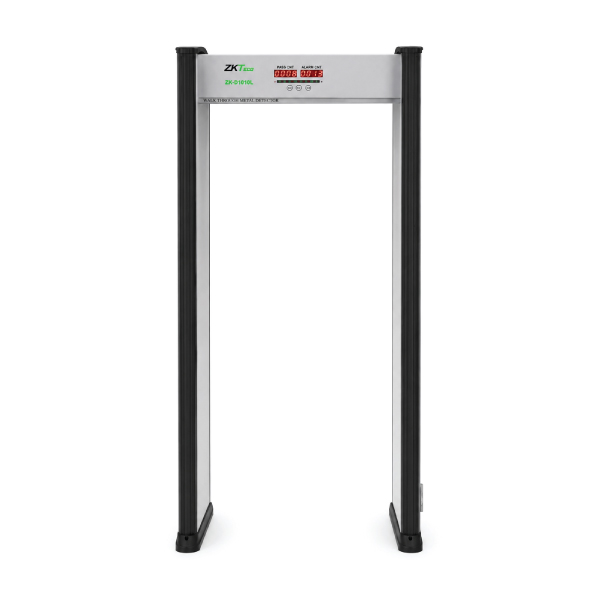

The ZKTeco ZK-D1010L Single-Zone Walk-Through Metal Detector is an entry-level archway security gate for detecting metal objects at controlled entrances. It combines 100 adjustable sensitivity levels, audible threat alerts, people and alarm counting, password-protected settings and a lightweight modular structure for straightforward security screening.
For buyers comparing the ZKTeco ZK-D1010L price in Bangladesh, the current price at Touch IT is ৳34,500. Its compact 2236 × 827 × 380mm body, 33kg net weight and low 18W power consumption make it practical for offices, schools, factories, hotels, shops, clinics and event entrances that need dependable single-zone metal detection without multi-zone complexity.
The ZK-D1010L is designed for locations that need basic pedestrian metal screening rather than precise body-zone identification. When metal exceeding the configured threshold passes through the archway, the unit provides a sound alert. Built-in people and alarm counters help security staff monitor passage activity, while password protection prevents unauthorized changes to operating settings.
Single-zone detection confirms the presence of metal without identifying its exact position on the body. This makes the ZK-D1010L suitable for routine entry checks where straightforward operation and manageable cost are more important than detailed zone mapping. Browse other screening gates in the Metal Detector category.
Operators can adjust sensitivity across 100 levels to match the site’s screening policy. Correct calibration helps balance the detection requirement against interference and everyday personal items. Installation should maintain suitable separation from large metal structures, electrical equipment and other sources of electromagnetic interference.
Built-in counters record pedestrian passages and alarm events, providing basic operational information for the checkpoint. This is useful for offices, educational institutions and commercial entrances that need simple traffic monitoring without networked security-management software.
Password protection restricts access to detector settings, helping prevent accidental or unauthorized changes. A clear sound alarm informs the operator when detected metal exceeds the configured threshold. Explore additional entrance-security equipment through the ZKTeco Products collection.
The detector weighs 33kg and consumes 18W, making it easier to position than larger multi-zone models. Its AC 100–240V power input supports common commercial installations. Organizations planning cameras, access control and screening together can review Security System Solutions.
For projects combining pedestrian detection, handheld screening and X-ray baggage scanning, visit the Security Inspection collection.
| Brand | ZKTeco |
|---|---|
| Model | ZK-D1010L |
| Product Type | Walk-through metal detector |
| Detection Configuration | Single zone |
| Sensitivity | 100 adjustable levels |
| Alarm Indication | Audible threat alert |
| Counting Functions | People count and alarm count |
| Configuration Security | Password protection |
| Power Supply | AC 100–240V |
| Power Consumption | 18W |
| Operating Frequency | 3–8kHz |
| Temperature Range | -20°C to 55°C |
| Operating Humidity | Below 95%, non-condensing |
| Dimensions | 2236 × 827 × 380mm |
| Net Weight | 33kg |
Verification note: The available ZKTeco datasheet identifies a single detection zone, 100 sensitivity levels, sound alert, people/alarm counting and no display. Some retailer copy incorrectly describes multi-zone capability or an LCD interface. Although several Bangladesh listings claim outdoor suitability, no IP protection rating was found in the verified product documentation. Installation environment, warranty and included accessories should therefore be confirmed before purchase.
This model is a practical option for organizations seeking a simple archway metal detector at an accessible cost. It provides adjustable sensitivity, counter functions, protected settings, low power consumption and easier handling without the higher cost of zone indicators, networking or advanced software integration.
| Model | Published Zones | Key Difference | Best For |
|---|---|---|---|
| ZK-D1010L | Single zone | 100 sensitivity levels and lightweight design | Basic entrance screening |
| ZKTeco ZK-D3180 | 1 / 6 / 12 / 18 / 33 | 7-inch LCD, 500 levels and TCP/IP | Flexible networked checkpoints |
| ZKTeco ZK-D4330 | 12 / 24 / 33 / 46 / 69 | Advanced zone detail and touchscreen | High-security screening |
| ZKTeco ZK-D2180 | 6 / 12 / 18 | LED zone guidance and network support | Standard professional checkpoints |
| Hikvision ISD-SMG1118L | Up to 18 zones | 7-inch colour display and Hikvision platform | Hikvision-based projects |
No. It is a single-zone detector and does not identify the exact body area where metal is located.
The detector provides 100 adjustable sensitivity levels for site-specific configuration.
No display is listed in the verified product specification.
Yes. Separate people and alarm counting functions are published for this model.
No TCP/IP interface or monitoring-software support is listed for the ZK-D1010L.
An IP rating could not be verified, so protected indoor installation is the safer documented application.
Touch IT supplies professional security-inspection equipment in Bangladesh with consultation, installation planning, configuration assistance and after-sales support. The team can help assess entrance width, electrical supply, interference and screening requirements before deployment.
Add practical pedestrian screening to your entrance with adjustable sensitivity and straightforward operation. Order the ZKTeco ZK-D1010L Single-Zone Walk-Through Metal Detector from Touch IT, visit Room 312, Level 3, ECS Computer City Center (Multiplan Center), 69–71 New Elephant Road, Dhaka-1205, or call 01711664030.
