In Stock
| Main Features | ||
| LED Indicator | Supports (Status LED) | |
| Visual Indicator | LED indicators (Status light) | |
| Lane Width | 505 mm | |
| Barrier Material | SUS304 Stainless Steel | |
| Barrier Movement | Rotation | |
| Cabinet Material | SUS304 Stainless Steel | |
| Lid Material | SUS304 Stainless Steel | |
| Tripod Rod Material | SUS304 Stainless Steel | |
| Flow Rate | RFID: Maximum 30 persons/minute Fingerprint: Maximum 25 persons/minute |
|
| MCBF | 1 million cycles | |
| Accessories | Counter, SUS316 Cabinet & Lid, Remote Control | |
| Physical Specification | ||
| Power Supply | AC 100V–120V or 200V–240V, 50/60Hz | |
| Power Rating | Running: 18W Standby: 6W |
|
| Footprint (mm*mm) | 785 × 1110 mm | |
| Dimensions ( L*W*H ) | 1110 × 280 × 987 mm | |
| Dimensions of Product Parts with Packaging ( L*W*H ) | 1175 × 370 × 1070 mm | |
| Net Weight (kg) | 42 kg | |
| Weight with Packing (kg) | 48 kg | |
| Security Level | Medium | |
| Operating Temperature | -28°C to 60°C | |
| Operating Humidity | 5% to 80% RH (Non-condensing) | |
| Speed of Throughput | RFID: Max 30/min Fingerprint: Max 25/min |
|
| Safety Features | Emergency mode supported | |
| Manufacture Warranty | ||
| Warranty | 1 Year | |

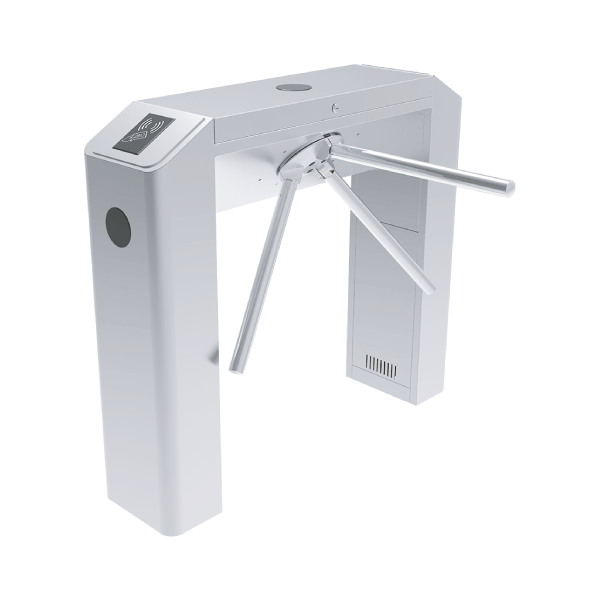

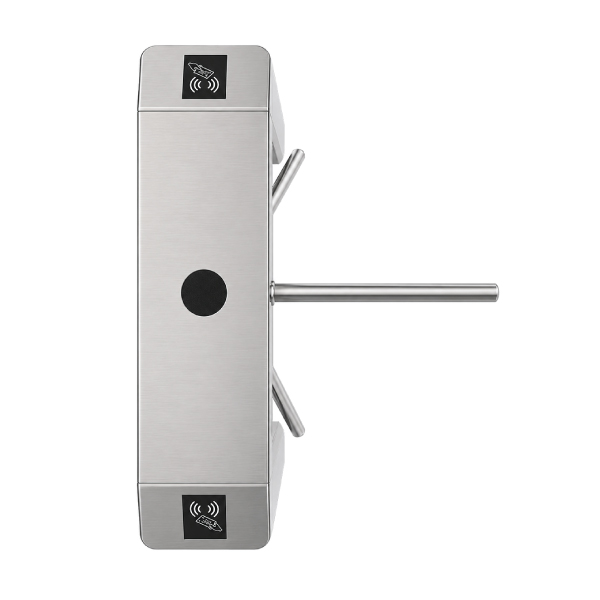

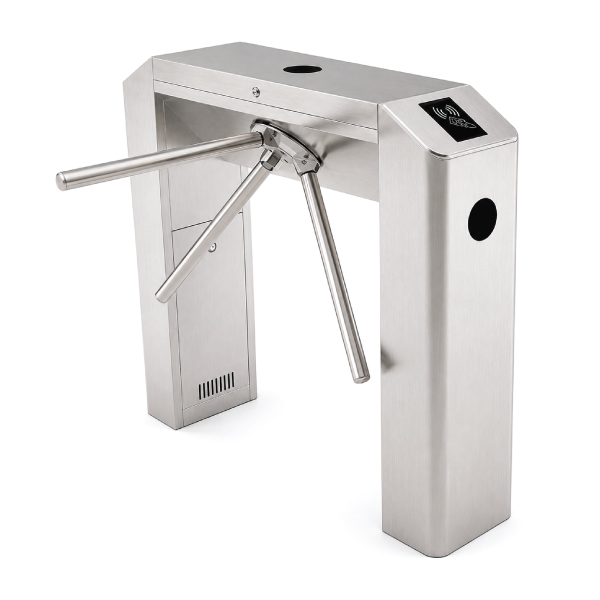

The ZKTeco TS2022 Pro Single-Lane Tripod Turnstile is an integrated pedestrian access control solution for offices, factories, educational institutions and commercial buildings. This TS2000 Pro Series configuration combines a tripod barrier, access controller and fingerprint plus RFID verification, helping organizations regulate entry without selecting the main authentication components separately.
For buyers comparing the ZKTeco TS2022 Pro price in Bangladesh, the current Touch IT price is ৳95,000. Its SUS304 stainless-steel construction, 505mm passage, bidirectional operation, arm-drop function and LED indicators make it practical for controlled indoor pedestrian flow. Confirm stock, software, installation and warranty terms before ordering.
The TS2022 Pro is the fingerprint-and-RFID version of ZKTeco’s TS2000 Pro family. After an enrolled user presents an approved credential, the controller authorizes rotation in the configured direction. The arms return to their locked position after passage, supporting orderly access with less manual supervision. Browse additional barriers in the Tripod Turnstile category.
Unlike the base TS2000 Pro, the TS2022 Pro includes an access controller and fingerprint reader with RFID authentication. The two methods provide flexibility for employees and registered visitors. Credential capacity depends on the installed controller and reader package. Explore compatible devices on the ZKTeco Products page.
The cabinet, lid and tripod arms use SUS304 stainless steel. Its bridge-style body protects internal components while using entrance space efficiently.
The tripod rotates in both directions and can follow site entry and exit requirements. Published throughput reaches 30 people per minute with RFID and 25 with fingerprint authentication; actual results depend on enrollment and site procedures.
During an emergency or approved power-loss configuration, the horizontal arm can drop to create free passage. The final layout must follow the building’s approved evacuation design. For complementary products, visit Security Inspection Solutions.

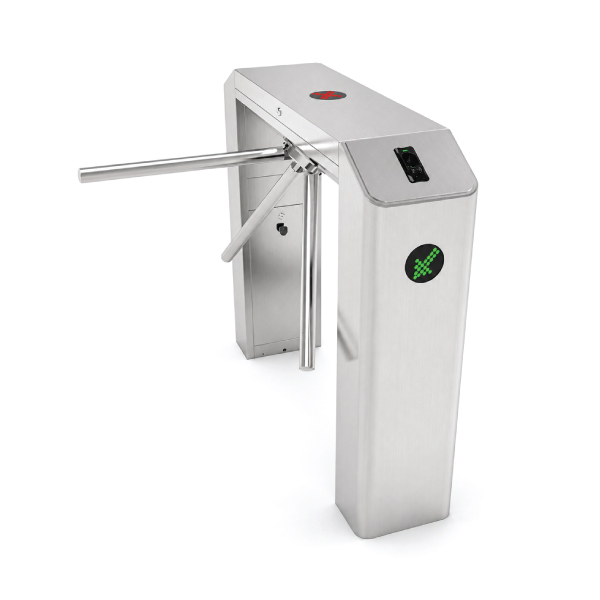

LED pictograms show passage status and permitted direction. Dry-contact input allows the mechanism to receive signals from compatible access equipment.
The current global specification lists 18W running and 6W standby consumption. A published MCBF of one million cycles supports recurring daily traffic when the unit is correctly installed and maintained.
| Product Name | ZKTeco TS2022 Pro Tripod Turnstile |
|---|---|
| Series | TS2000 Pro Series |
| Configuration | Controller with fingerprint and RFID reader |
| Lane Configuration | Single lane, bidirectional rotation |
| Material | SUS304 stainless-steel cabinet, lid and barrier arms |
| Passage Width | 505mm |
| Flow Rate | RFID: maximum 30/minute; fingerprint: maximum 25/minute |
| Indicator | LED pictograms |
| Emergency Mode | Tripod arm-drop function |
| MCBF | 1,000,000 cycles |
| Power Supply | AC 100–120V or AC 200–240V, 50/60Hz |
| Power Consumption | 18W running; 6W standby |
| Operating Environment | -28°C to 60°C; 5%–80% RH, non-condensing |
| Dimensions | 1110 × 280 × 987mm |
| Weight | 42kg net; 48kg packed |
Verification note: Current ZKTeco global information lists a 505mm lane, 18W running power, 6W standby power and 42kg net weight. Older regional documents publish different figures. Fingerprint, card and event capacities, controller model, software, network options and accessories vary by package and were not consistently verified for the Touch IT unit. Confirm them before purchase.
This model suits organizations needing a single-lane gate with biometric and card verification rather than a barrier-only chassis. It combines controlled throughput, durable construction, user guidance and emergency arm drop. For broader entrance protection planning, explore Security System Solutions.
| Model | Configuration | Best For |
|---|---|---|
| TS2022 Pro | Single lane with controller, fingerprint and RFID reader | Integrated biometric entrance control |
| ZKTeco TS2000 Pro | Base single-lane turnstile | Projects using separately selected authentication |
| ZKTeco TS2000 Plus | Bridge-type single lane | Modern indoor pedestrian entrances |
| ZKTeco TS2222 | Dual-lane integrated system | Sites requiring two controlled passages |
The official configuration includes a controller and fingerprint reader with RFID functionality, enabling fingerprint and card verification.
Yes. ZKTeco identifies the TS2022 Pro as the TS2000 Pro configuration supplied with a controller and fingerprint/RFID reader. Confirm the exact controller model in the quotation.
ZKTeco publishes a maximum flow of 30 people per minute using RFID and 25 per minute using fingerprint verification.
The arm-drop function can release the horizontal barrier to provide free passage. Installation must be coordinated with the site’s approved emergency and power-control plan.
Yes. The tripod supports bidirectional rotation and can be configured according to the project’s entry and exit logic.
ZKTeco positions the series for indoor applications. Any semi-outdoor installation requires a suitable shelter and professional assessment of moisture, drainage and power protection.
Software and database functions depend on the supplied controller package. Confirm licensing, supported platform, enrollment capacity and network requirements before deployment.
Touch IT supplies access control products in Bangladesh with consultation, installation planning, configuration assistance and after-sales support. The team can verify the controller, reader, software, cabling, power and civil-work requirements.
Build an organized entrance with fingerprint and RFID authentication, bidirectional passage and stainless-steel construction. Order the ZKTeco TS2022 Pro Single-Lane Tripod Turnstile from Touch IT, visit Room 312, Level 3, ECS Computer City Center (Multiplan Center), 69–71 New Elephant Road, Dhaka-1205, or call 01711664030.
