| Main Features | ||
| Display | 7-inch LCD Display |
|
| Detection Zone | 18 Zones | |
| Sensitivity Level | 0-999 | |
| Smallest Metal Objects Detected | Coin-sized metals | |
| Number of Pre-loaded Settings | 30 pre-loaded settings | |
| Number of Custom Settings | 20 custom settings |
|
| Number of Optional Frequency Band | 20 kinds of working frequency available | |
| Network interface | RJ45 | |
| Alarm Output | 2 Relay alarm outputs | |
| Physical Specification | ||
| Power Supply | 100 VAC to 240 VAC, 50/60Hz | |
| Operating Power | < 25W | |
| Operating Temperature | -20℃─55℃， | |
| Operating Humidity | 10%-95%， | |
| Ingress Protection Rating | IP41 |
|
| Dimensions (L*W*H) | (mm)2000(H)x710(W)x500(D) |
|
| Dimensions of Product with Packaging (L*W*H) | (mm)2200(H)x840(W)x600(D) | |
| Gross Weight | < 75kg | |
| Remote Control | Yes | |
| Configuration Method | Remote controller/website | |
| Manufacture Warranty | ||
| Warranty | 1 Year | |

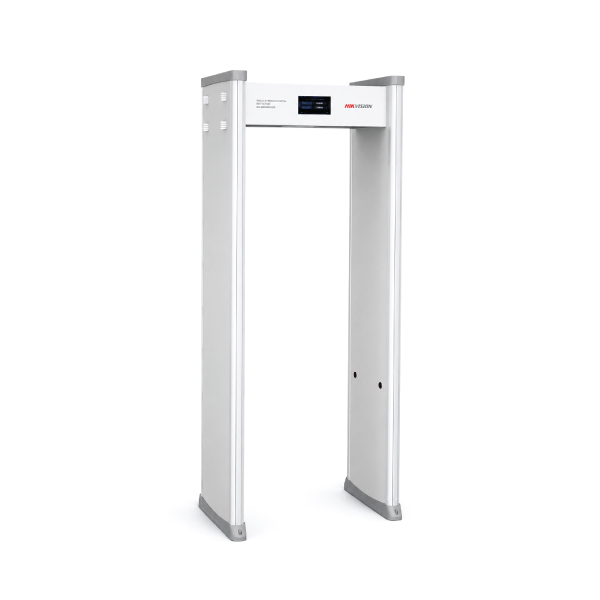

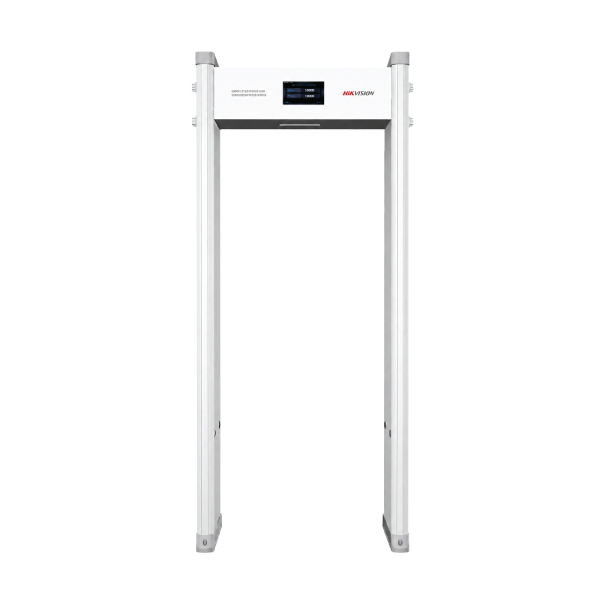

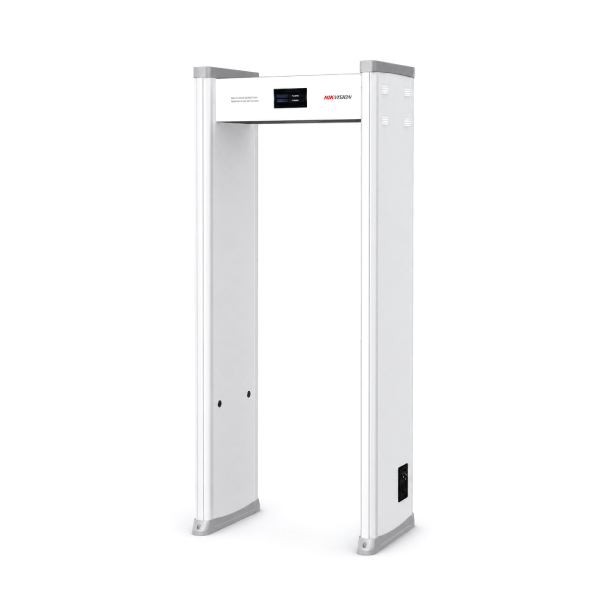

The Hikvision ISD-SMG1118L 18-Zone Walk-Through Metal Detector is a professional archway screening system for detecting metal objects at controlled entrances. It combines detailed zone positioning, a 7-inch colour LCD, passage statistics and network connectivity for commercial, institutional and public-security checkpoints.
For organizations comparing the Hikvision ISD-SMG1118L price in Bangladesh, the current price at Touch IT is Call for price. The final quotation may depend on stock, project quantity, delivery, installation and calibration requirements. Confirm availability, supplied accessories, warranty and site conditions before placing an order.
The ISD-SMG1118L provides more location detail than single-zone or six-zone detector gates. It indicates metal detected in different areas during one passage, helping personnel focus secondary screening. The LCD displays passage count, alarm count and system status. Explore complementary equipment under Security Inspection Solutions.
Eighteen zones provide detailed positioning information. If metal objects are detected in multiple locations, the corresponding indicators can show those areas simultaneously, helping operators focus further inspection.
Sensitivity can be adjusted from 0 to 999 according to the target metal size. Hikvision publishes coin-sized metal detection as a reference. Results vary with object properties, nearby structures, interference and calibration, so professional commissioning is essential.
The colour display provides settings and operating information, including passage numbers, metal-alarm totals and trouble status. Browse Touch IT’s Metal Detector category for related screening devices.
Ultra-low detection supports alarms for metal near floor level, with Hikvision publishing an approximately 3cm reference height. A flying-object alarm also detects metal thrown through the middle of the gate.
An RJ45 port supports network configuration, while two relay outputs provide integration options. Remote-management functions depend on the configured system. View compatible products through Hikvision Access Control.
The detector runs a self-diagnostic check at startup and displays the result. Modular components support transport and maintenance, while consumption below 25W reduces operating demand.
| Brand | Hikvision |
|---|---|
| Model | ISD-SMG1118L |
| Product Type | Walk-through metal detector |
| Detection Zones | 18 zones |
| Sensitivity Adjustment | 0–999 |
| Preset Frequencies | 20 |
| Display | 7-inch colour LCD |
| Displayed Information | Passage count, metal-alarm count and trouble status |
| Network Interface | 1 × RJ45 Ethernet port |
| Alarm Outputs | 2 relay alarm outputs |
| Power Supply | 100–240VAC, 50/60Hz; less than 25W |
| Operating Environment | -20°C to 55°C; 10%–95% RH, non-condensing |
| Protection Rating | IP41 |
| Dimensions | Overall: 2200 × 840 × 600mm; passage: 2000 × 710 × 500mm |
| Weight | Less than 75kg |
Verification note: The specifications above follow Hikvision’s official ISD-SMG1118L datasheet and product documentation. Some retailer pages describe the unit as weatherproof, but the manufacturer publishes an IP41 rating; therefore, waterproof or unrestricted outdoor operation is not claimed. Installation materials, backup power, networking software, calibration, warranty and on-site service depend on the supplied package.
This model is suitable when a checkpoint needs finer alarm localization than an entry-level detector can provide. Its combination of 18 zones, adjustable sensitivity, low-level detection, flying-object alarm, people statistics, LCD operation and network connectivity supports structured security screening. It can form part of wider Security System Solutions alongside CCTV, turnstiles, access terminals and baggage scanners.
| Model | Detection Zones | Best For |
|---|---|---|
| Hikvision ISD-SMG1118L | 18 | Detailed Hikvision zone positioning and networked operation |
| Hikvision ISD-SMG106 | 6 | General-purpose multi-zone screening |
| ZKTeco ZK-D2180 | Adjustable 6, 12 or 18 | Flexible zone configuration |
| ZKTeco ZK-D3180 | Adjustable 1–33 | Higher-zone configurable screening |
Comparison note: Select a detector based on zone detail, passage dimensions, environmental conditions, integration requirements and available project support—not zone count alone.
It provides 18 detection zones and can indicate metal detected in multiple body areas during the same passage.
The device provides a 0–999 sensitivity setting range. Commissioning should be performed according to the site and its screening policy.
The 7-inch LCD can show system menus, passage numbers, metal-alarm numbers and trouble status.
Yes. The detector records the number of people passing through and the number of metal-alarm events.
Yes. Hikvision specifies ultra-low detection capable of alarming for metal approximately 3cm above floor level.
No. It detects metal but does not verify identity. Face, fingerprint, card or PIN authentication requires a separate access-control terminal.
The published protection rating is IP41, which is not waterproof. Any installation must follow Hikvision’s environmental requirements and include suitable protection where necessary.
Touch IT supplies professional security inspection and entrance-management products in Bangladesh with product consultation, site planning, installation coordination and after-sales technical assistance. The team can help confirm power, networking, calibration and checkpoint-integration requirements before deployment.
Improve entrance screening with detailed 18-zone detection, a colour LCD and network-ready management. Order the Hikvision ISD-SMG1118L 18-Zone Walk-Through Metal Detector from Touch IT, visit Room 312, Level 3, ECS Computer City Center (Multiplan Center), 69–71 New Elephant Road, Dhaka-1205, or call 01711664030 for quotation and installation guidance.
