ZKTeco TS2022 Plus Single lane Tripod Turnstile

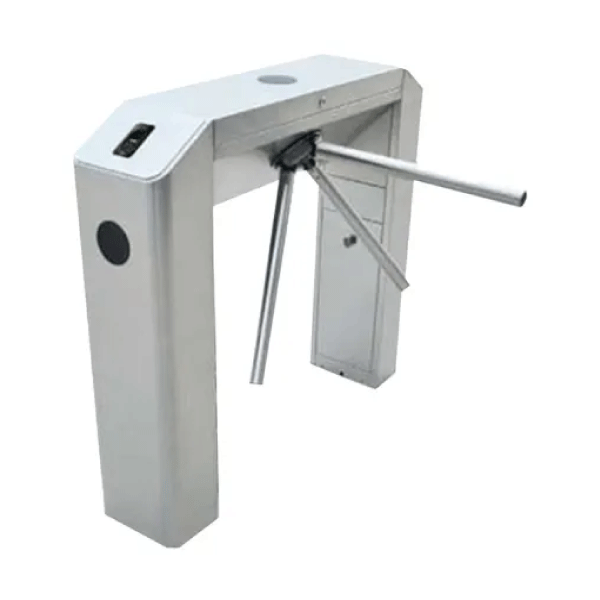

ZKTeco TS2022 Plus Single Lane Tripod Turnstile

The ZKTeco TS2022 Plus Single Lane Tripod Turnstile is a high-performance, bridge-type pedestrian control system designed for smooth, efficient, and secure entry management in high-traffic environments. Built with premium SUS304 stainless steel, the TS2022 Plus offers superior durability, weather resistance, and long-term stability. Its modern under-mount RFID and fingerprint reader design provides a clean verification area and elevates the aesthetic appeal of any facility. With reliable bi-directional passage, automatic drop-arm functionality, and seamless integration with ZKTeco access controllers, this tripod turnstile is ideal for schools, factories, offices, museums, commercial buildings, and sheltered outdoor applications across Bangladesh.

Premium Stainless-Steel Construction for Long Durability

The TS2022 Plus is engineered using a robust SUS304 stainless steel (1.2mm) chassis that ensures superior durability and corrosion resistance. The high-quality structure delivers stable operation even in demanding indoor or sheltered outdoor environments, making it a long-lasting investment for any access control project.

Sleek Under-Mount Reader Integration

This model features an elegant under-mount design that supports RFID, fingerprint, and QR code authentication modules. Compatibility with popular ZKTeco devices such as ProID Series, KR Series, FR1200, and FR1500S enables fast verification and provides a seamless user experience with minimal space consumption.

Bi-Directional Access for Smooth People Flow

The TS2022 Plus supports standard bi-directional arm rotation, allowing administrators to set movement direction based on operational requirements. With flow rates of up to 25 users/minute (RFID) and 20 users/minute (fingerprint), it efficiently manages pedestrian traffic in busy environments.

Automatic Drop-Arm for Emergency Situations

For enhanced safety, the tripod turnstile automatically drops its arm during power outages or when a fire alarm signal is triggered. This ensures quick and safe evacuation, making it suitable for facilities requiring strict emergency compliance.

Advanced Access Control Compatibility

The TS2022 Plus integrates effortlessly with ZKTeco access control systems, including C3-200 Pro Plus and InBio260 Pro Plus. It also supports RS485 communication and optional controllers for flexible deployment. This allows easy integration into existing security infrastructures and centralized management through ZKBio CVAccess or ZKBio CVSecurity.

User-Friendly Visual & Audio Indicators

The turnstile includes intuitive status indicators—steady green for access and steady red for barrier closed—along with an internal buzzer for audio alerts. These features guide users through the entry process efficiently and reduce confusion in high-traffic situations.

Optimized for Harsh Environments

With an operating temperature range of -20°C to 70°C and humidity tolerance up to 85%, the TS2022 Plus performs reliably in diverse climates. The IPX4 water-resistant rating ensures durability in sheltered outdoor conditions, making it suitable for a wide range of installations in Bangladesh.

High Reliability, Low Maintenance

Designed for long-term operation, the TS2022 Plus delivers an impressive MCBF rating of 2 million cycles and features a low MTTR of less than 60 minutes. The press-assembled structure allows for easy installation and maintenance, reducing operational downtime.

Secure Anti-Tailgating Protection

The built-in anti-tailgating mechanism prevents unauthorized entry by detecting attempts to bypass the rotating barrier. This ensures controlled access and enhances the overall security of restricted zones.

Buy ZKTeco TS2022 Plus Tripod Turnstile from Touch IT

Purchase the original ZKTeco TS2022 Plus Single Lane Tripod Turnstile from Touch IT for guaranteed authenticity, the best pricing, and professional installation service. Touch IT provides complete access control solutions, expert system design, and nationwide support for tripod turnstiles, flap barriers, and other security automation devices. Whether you are securing a school, office building, factory, or gym, the TS2022 Plus delivers dependable performance, advanced safety, and long-term operational value.
