ZKTeco TS2000 Plus Bridge Type Tripod Turnstile

ZKTeco TS2000 Plus Bridge Type Tripod Turnstile

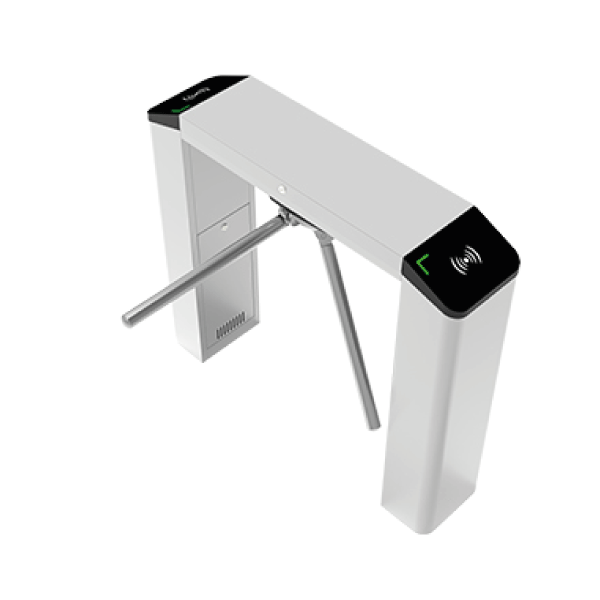

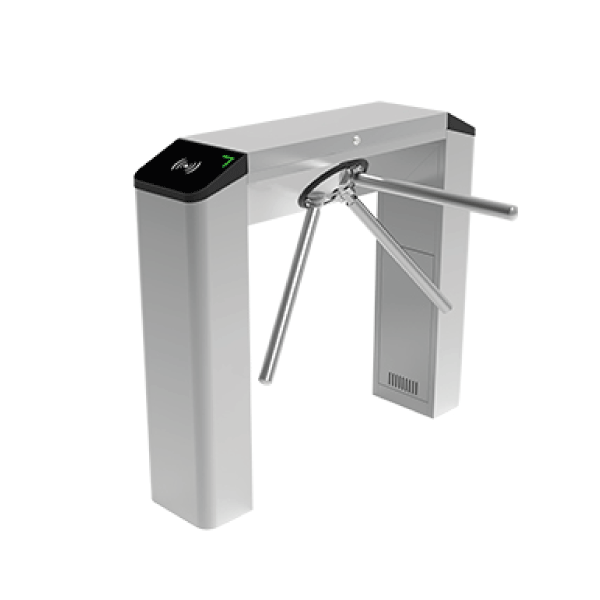

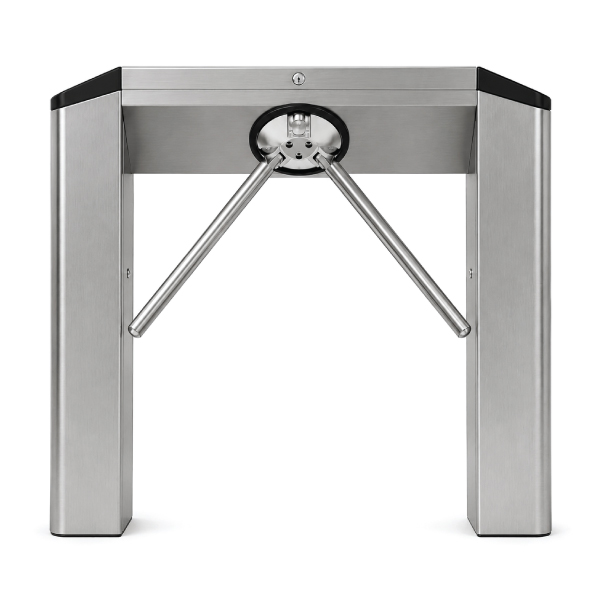

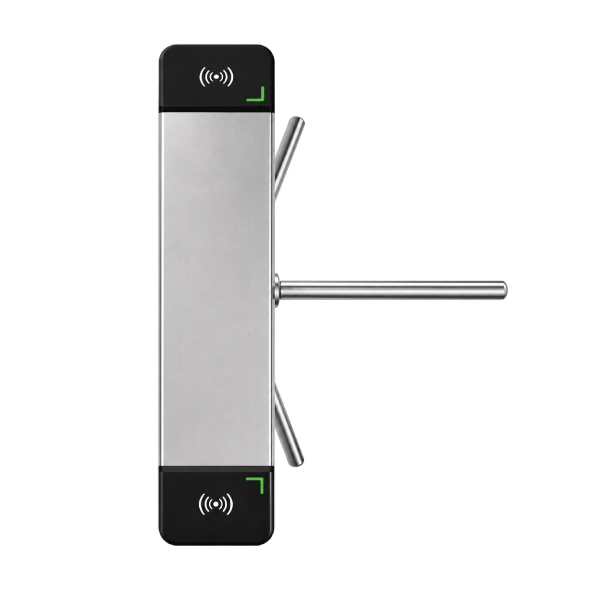

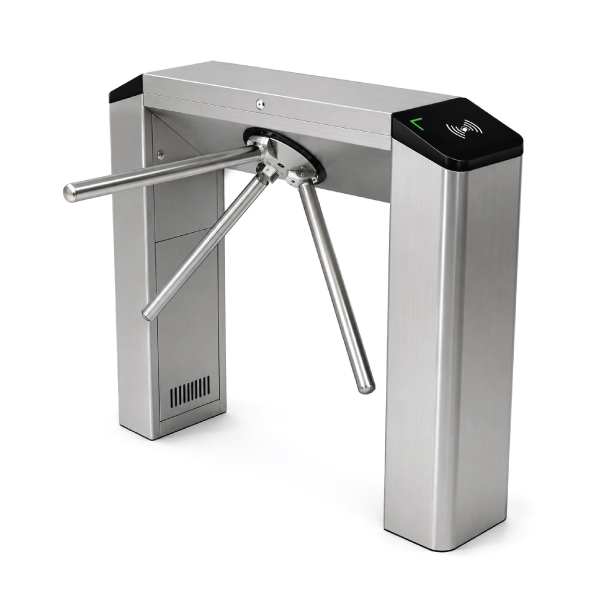

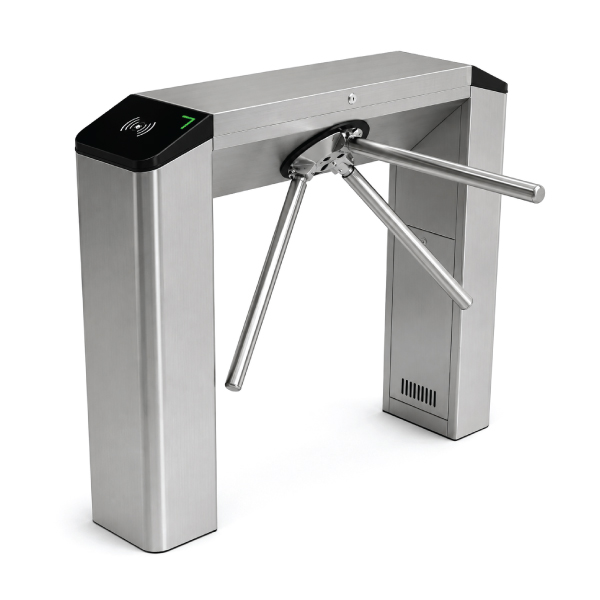

The ZKTeco TS2000 Plus Bridge Type Tripod Turnstile is a single-lane pedestrian gate for offices, factories, schools, museums, gyms and commercial buildings. Its bridge-style cabinet combines a verification area with a rotating barrier, bidirectional operation, status indicators and an automatic emergency drop arm.

For organizations comparing the ZKTeco TS2000 Plus price in Bangladesh, the current price at Touch IT is ৳85,000. Compatible RFID, fingerprint or QR equipment can be configured, but readers, controller, software, remote controls, accessories and civil work depend on the project package. Confirm the complete configuration before ordering.

Quick Highlights

• Model: ZKTeco TS2000 Plus Series
• Design: Bridge-type, single-lane tripod turnstile
• Construction: 1.2 mm SUS304 stainless-steel chassis
• Lane Width: 550 mm
• Barrier Width: 515 mm
• Flow Rate: Up to 25 users/minute with RFID or 20 with fingerprint
• Direction: Bidirectional with configurable access modes
• Emergency Function: Automatic drop arm during power failure or fire-alarm input
• Reliability: Published MCBF of 2 million cycles

ZKTeco TS2000 Plus Overview Summary

The TS2000 Plus connects physical lane control with an approved authentication system. Green indicates normal use, red shows a closed barrier and the buzzer supplies audible feedback. Its 260 × 1110 mm footprint and 550 mm passage suit many entrances. Browse the Tripod Turnstile category.

Key Features & Benefits

Durable Bridge-Type SUS304 Construction

The chassis and barrier use SUS304 stainless steel. ZKTeco specifies a 1.2 mm chassis, while the lid combines PC plastic, tempered glass and stainless steel to create a streamlined area for supported readers.

Flexible Authentication Integration

Under-mount options include ProID or KR RFID readers and FR1200 or FR1500S fingerprint readers. QR integration is also available. ZKTeco recommends C3-200 Pro Plus or InBio260 Pro Plus controllers; other models depend on available space. Explore more security and entrance products under ZKTeco Products.

Efficient Bidirectional Pedestrian Flow

The rotating tripod manages both directions, with modes set independently. ZKTeco specifies up to 25 passengers per minute with RFID and 20 with fingerprint. Actual throughput depends on users and configuration.

Emergency Drop-Arm Safety Function

A voltage-free fire input activates emergency mode, while the arm drops automatically during power failure. Emergency wiring and power arrangements should be planned by qualified installers as part of a complete Security Inspection project.

Reliable and Manageable Operation

ZKTeco publishes two-million-cycle MCBF, noise below 65 dB and repair time below 60 minutes. Wired or wireless remote-control options and compatible-controller support for ZKBio CVAccess or ZKBio CVSecurity assist system management.

Business & Industry Applications

• Corporate offices and commercial buildings
• Factories and employee entrances
• Schools, libraries and museums
• Gyms and membership facilities
• Hospitals and administrative sites
• Managed visitor checkpoints

Technical Specifications

Verification note: The current global datasheet specifies 775 × 1100 × 980 mm, while some Bangladesh listings show different dimensions or flow rates. This page follows ZKTeco’s current data. Readers, controller, software, remote control, base plate, wooden packing and installation are configuration-dependent. Outdoor use requires shelter and a flat, level floor.

Why Choose the ZKTeco TS2000 Plus?

This model combines a stainless-steel bridge cabinet, flexible reader integration, 550 mm lane, bidirectional movement and emergency release. It suits medium-level pedestrian control without a larger flap or swing barrier. Explore Security System Solutions.

Product Comparison

Frequently Asked Questions

Is the TS2000 Plus a single-lane or dual-lane turnstile?

It is a bridge-type single-lane tripod turnstile with a published lane width of 550 mm.

Does it include an RFID or fingerprint reader?

Readers are configuration-dependent. Supported options include selected ProID or KR RFID readers and FR1200 or FR1500S fingerprint readers.

Can it support QR-code access?

Yes. ZKTeco lists a QR reader as an accessibility option, but the reader and integration package must be confirmed separately.

What happens during a power failure?

The automatic drop-arm function releases the passage when power fails. It also supports a voltage-free fire-alarm input.

Can the turnstile control entry and exit?

Yes. Bidirectional movement is standard, and the access mode can be configured independently for each direction.

Is it suitable for outdoor installation?

It has an IPX4 rating and may be installed outdoors only when sheltered. The site requires a flat and level finished floor.

Which software can manage the system?

ZKBio CVAccess or ZKBio CVSecurity is supported when the turnstile is equipped with a compatible access controller.

Why Buy from Touch IT?

Touch IT supplies turnstile solutions in Bangladesh with configuration advice, site planning, installation, commissioning and support. The team can confirm readers, controllers, software, wiring and floor requirements before deployment.

Order the ZKTeco TS2000 Plus Today

Build a controlled pedestrian entrance with durable SUS304 construction, flexible authentication options and emergency drop-arm operation. Order the ZKTeco TS2000 Plus Bridge Type Tripod Turnstile from Touch IT, visit Room 312, Level 3, ECS Computer City Center (Multiplan Center), 69–71 New Elephant Road, Dhaka-1205, or call 01711664030.
