In Stock
| Main Features | ||
| Display | 7-inch HD LCD | |
| Detection Zone | 33 zones (standard) | |
| Sensitivity Level | 500 adjustable levels per zone | |
| Physical Specification | ||
| Power Supply | 20W | |
| Input Voltage | 15V | |
| Operating Frequency | 5.7kHz to 9.6kHz | |
| Operating Temperature | -20℃ ~ 65℃ | |
| Dimensions (L*W*H) | 2220 (H) x 930(W) x 760(D) | |
| Lane Size (L*W*H) | 2010 (H) x 760(W) x 760 (D) | |
| Dimensions of Product with Packaging (L*W*H) | 2300 (H) x 335(W) x 800 (D) | |
| Gross Weight | 70 kg | |
| Interface | RJ45 (TCP/IP) | |
| Manufacture Warranty | ||
| Warranty | 1 Year | |

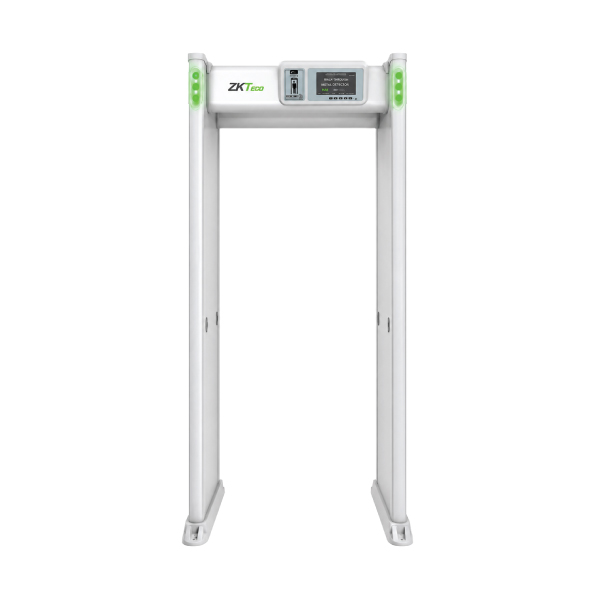

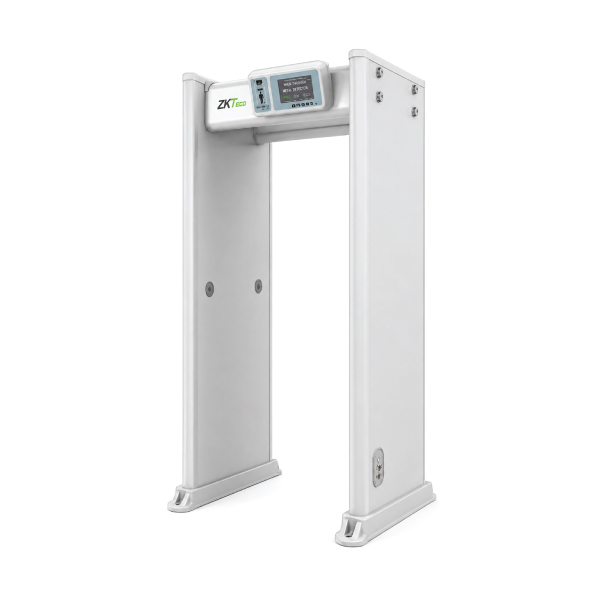

The ZKTeco ZK-D4330 33-Zone Walk-Through Metal Detector is a professional screening gate designed to locate ferrous and non-ferrous metal objects as people pass through. Its configurable zones, high sensitivity and clear alarms support efficient entrance screening at offices, factories, banks, hotels, transport facilities, campuses and event venues.
For buyers comparing the ZKTeco ZK-D4330 price in Bangladesh, the current price at Touch IT is ৳210,000. The system combines a 7-inch touchscreen, remote control, TCP/IP communication, 500 sensitivity levels and a published throughput above 40 people per minute. Confirm stock, installation conditions, optional semi-outdoor protection and project requirements before ordering.
The ZK-D4330 is an archway detector for controlled pedestrian screening. Two infrared groups support automatic passage detection, while pass and alarm counters help operators review traffic. Its modular beam structure, hidden wiring, continuous-operation capability and self-diagnosis support practical daily management.
Although commonly described as a 33-zone metal detector, the current specification allows 12, 24, 33, 46 and 69-zone modes. Zone indicators help operators locate the approximate detection area for a more focused secondary inspection. Explore additional equipment in the Metal Detector category.
The detector provides 500 adjustable sensitivity levels and 100 channels for site-specific configuration. ZKTeco identifies a steel-nickel alloy object measuring Φ22.25 × 1.85mm as the smallest published test object; practical results depend on calibration, placement and surrounding interference.

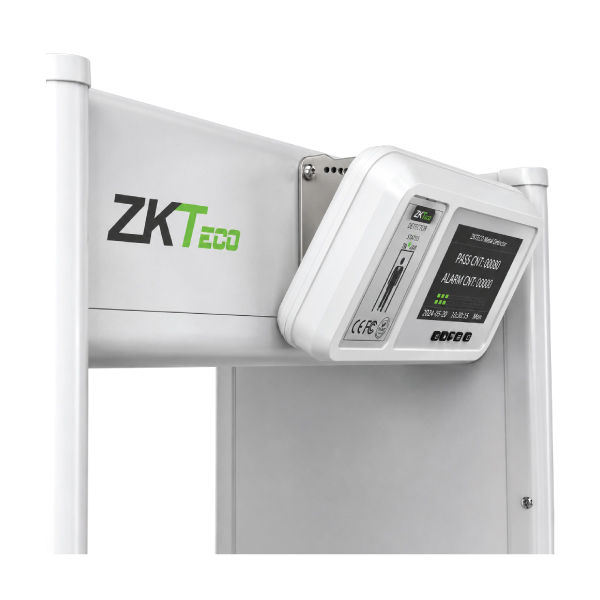

A 7-inch touchscreen, five physical keys and remote control simplify operation. Four sets of red side-panel LEDs indicate detection areas. Green, red and yellow access lights, 16 alarm tones and adjustable volume provide clear feedback.
ZKTeco publishes throughput above 40 people per minute under suitable conditions. Pass, in/out and alarm-count memory help teams monitor entrance activity. For broader projects, browse ZKTeco Products.
TCP/IP enables network communication, while the relay output can link compatible entrance equipment. Confirm software and gate logic before installation. For an integrated project, review Security System Solutions.
For coordinated checkpoint planning, X-ray baggage screening and related entrance solutions, visit the Security Inspection collection.
| Brand and Model | ZKTeco ZK-D4330 |
|---|---|
| Product Type | Walk-through metal detector |
| Detection Zone Modes | 12 / 24 / 33 / 46 / 69 zones, adjustable |
| Sensitivity and Channels | 500 sensitivity levels; 100 channels |
| Display and Controls | 7-inch touchscreen, 5 physical keys and remote control |
| Detection | Ferrous and non-ferrous metal objects; 2 infrared groups |
| Alarm System | 16 tones; volume 0–100, maximum 80dB; LED zone indicators |
| Throughput | More than 40 people per minute |
| Communication | TCP/IP network interface and relay output |
| Power | AC 100–240V adapter outputting DC 15V/4.8A; 20W; 1.3A |
| Operating Frequency | 5.7–9.6kHz |
| Dimensions and Lane | 2220 × 930 × 760mm; lane 2010 × 760 × 760mm |
| Weight | 60kg net; 70kg gross |
| Environment | -20°C to 55°C; below 95% RH, non-condensing; indoor |
| Certifications | CE-EMC, CE-LVD and FCC sDOC |
Verification note: ZKTeco’s January 2026 datasheet lists 500 sensitivity levels, adjustable 12/24/33/46/69-zone modes and an operating range of -20°C to 55°C. Older retailer pages show conflicting figures; the current manufacturer data is used here. PoE and semi-outdoor deployment are optional, and no IP rating is published.
The ZK-D4330 suits organizations needing more location detail than a basic archway detector. Adjustable zone modes, extensive sensitivity control, clear alerts, counters and network connectivity support busy professional checkpoints.
| Model | Zone Modes | Network Interface | Best For |
|---|---|---|---|
| ZK-D4330 | 12 / 24 / 33 / 46 / 69 | Yes | Advanced, high-detail screening |
| ZKTeco ZK-D3180 | 1 / 6 / 12 / 18 / 33 | Yes | Flexible standard checkpoints |
| ZKTeco ZK-D1065 | 6 / 12 / 18 | No | Essential indoor screening |
No. The current manufacturer specification supports selectable 12, 24, 33, 46 and 69-zone modes.
The ZK-D4330 provides 500 adjustable sensitivity levels and 100 channels for site-specific configuration.
ZKTeco specifies a throughput above 40 people per minute under appropriate installation and operating conditions.
Yes. Red LED indicators on both door panels provide visual guidance to the approximate detection zone.
Yes. It provides TCP/IP communication and relay output. Confirm software and gate compatibility during project planning.
The standard application is indoor. ZKTeco lists semi-outdoor deployment as optional, so environmental protection must be confirmed before installation.
No temperature-screening function is listed for the standard ZK-D4330. It is designed for metal-object detection and pedestrian counting.
Touch IT supplies professional security and inspection equipment in Bangladesh with pre-sales consultation, site-planning guidance, installation coordination and after-sales technical support. The team can help confirm lane space, power, network, calibration and entrance-integration requirements before deployment.
Strengthen entrance screening with configurable multi-zone detection, clear alarm guidance and efficient pedestrian flow. Order the ZKTeco ZK-D4330 33-Zone Walk-Through Metal Detector from Touch IT, visit the showroom at Room 312, Level 3, ECS Computer City Center (Multiplan Center), 69–71 New Elephant Road, Dhaka-1205, or call 01711664030.
The latest price of ZKTeco ZK-D4330 Walk-Through Metal Detector in Bangladesh is 210,000৳. You can buy the ZKTeco ZK-D4330 Walk-Through Metal Detector at best price from our website or visit any of our showrooms.
