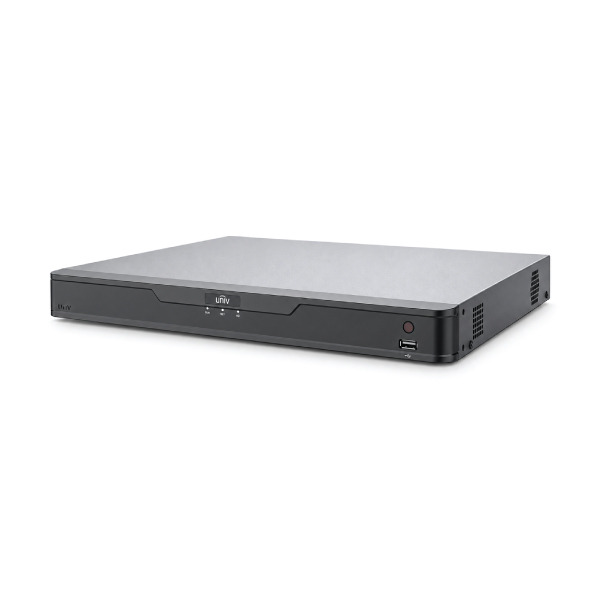

Uniview NVR302-16B-IQ 16-Channel 12MP 2-HDD NVR

Uniview NVR302-16B-IQ 16-Channel 12MP 2-HDD NVR

The Uniview NVR302-16B-IQ brings up to sixteen compatible IP camera feeds into one network video recorder. Two hard-drive bays support a planned recording period, while 4K HDMI serves a local monitor.

Looking for the Uniview NVR302-16B-IQ price in Bangladesh? Touch IT lists this 16-channel NVR at ৳14,900. It supports recording up to 12MP. Plan separate camera power: this model has no built-in PoE ports.

Quick Highlights

• Camera input: Up to 16 IP channels; recording resolutions up to 12MP
• Video bandwidth: 160Mbps incoming and 128Mbps outgoing
• Storage: Two SATA HDD interfaces for surveillance drives
• Compression: Ultra 265, H.265 and H.264
• Display: 4K HDMI and simultaneous Full HD VGA output
• Networking: Two Gigabit Ethernet interfaces; no integrated PoE
• Search tools: Smart events and AcuSearch/AcuTrack with suitable cameras and settings

Product Overview

This network video recorder stores IP camera footage on installed HDDs. It suits a shop, office or apartment building needing live views, playback and event searches. Its two network sockets are not PoE camera ports. Size the external camera power and recording storage together.

Key Features and Benefits

Sixteen Channels with Clear Resolution Limits

Connect up to sixteen supported IP cameras and record up to 12MP, within the combined 160Mbps incoming limit. Recording resolution differs from simultaneous decoding: with smart processing off, Uniview rates two 12MP streams at 30fps or sixteen 720p streams at 30fps. Plan bitrates accordingly.

Two HDD Bays for a Retention Plan

Two SATA interfaces help plan footage retention. Uniview's current specification lists up to 24TB per HDD under stated temperature and drive conditions; older reseller specifications list 10TB. Verify the supplied revision before choosing large drives. Retention depends on camera count, bitrate and recording schedule.

4K Monitoring and Efficient Video Storage

HDMI displays up to 3840 × 2160 at 30Hz, while VGA reaches 1080p at 60Hz; both can run together. Ultra 265 and H.265 can reduce storage demand with compatible streams. Local synchronous playback covers up to sixteen channels for tracing events across cameras.

Smarter Searches with Compatible Cameras

Smart Intrusion Prevention, Ultra Motion Detection and face detection assist review; AcuSearch/AcuTrack requires suitable Uniview cameras. Recorder-side SIP supports up to two ordinary 2MP cameras, and UMD up to four in their respective modes. Analysis modes cannot all run together. Check camera and firmware compatibility.

Network Integration and Recording Recovery

Dual Gigabit LAN, RTSP and supported ONVIF profiles help integrate cameras. Third-party video support does not guarantee smart events. ANR can fill a network recording gap after reconnection when supported cameras have onboard storage and the option is configured.

Recommended Applications

• Viewing entrances, lifts, stairwells and parking areas in a Dhaka apartment building
• Monitoring cash counters, stock rooms and delivery doors at a retail business
• Reviewing reception, corridors and perimeter cameras in an office or school
• Keeping warehouse gates and loading areas searchable from one security desk

Explore CCTV surveillance options and confirm camera, switch and HDD requirements.

Technical Specifications

Before ordering: Confirm HDD inclusion, compatible drive capacity, firmware, warranty and camera power equipment with the seller.

Uniview 16-Channel NVR Product Comparison

Compare Uniview NVR models by drive count and camera power. The P16 version includes PoE; NVR304 adds drive bays.

Frequently Asked Questions

What is the Uniview NVR302-16B-IQ used for?

It records and manages video from up to sixteen compatible network cameras at one location.

Does this 16-channel NVR power IP cameras?

No. This model needs a separate, suitably rated PoE switch or another camera power arrangement.

Can it record sixteen 12MP cameras at once?

Sixteen inputs support up to 12MP recording within 160Mbps combined bandwidth. Simultaneous decoding has lower high-resolution limits.

How many hard drives can I install?

Two SATA drives. Confirm whether drives are included and which capacities the supplied revision supports.

Is the maximum HDD size 10TB or 24TB?

Older specifications say 10TB; Uniview currently lists up to 24TB per drive with conditions, including ambient temperature at or below 40°C. Verify your unit.

Can I use third-party IP cameras?

Compatible RTSP or ONVIF cameras can often provide video. Test codecs, resolutions and smart events before a mixed-brand rollout.

Can I watch footage remotely?

Remote access is available after the network and supported viewing service are configured. Use secure account credentials and check the site's internet connection.

Does it have motion and smart search?

Yes, but available analytics and search results depend on camera support, selected analysis mode and firmware.

Why Buy from Touch IT?

Touch IT serves Dhaka and customers across Bangladesh. Share your camera list and retention target to check switch power, bandwidth and HDD sizing. Browse other Uniview products for your installation.

Order the Uniview NVR302-16B-IQ

Build a central recording point with the Uniview NVR302-16B-IQ 16-Channel NVR. Confirm stock, the supplied hardware revision, HDD compatibility and the separate camera power plan with Touch IT before checkout.
