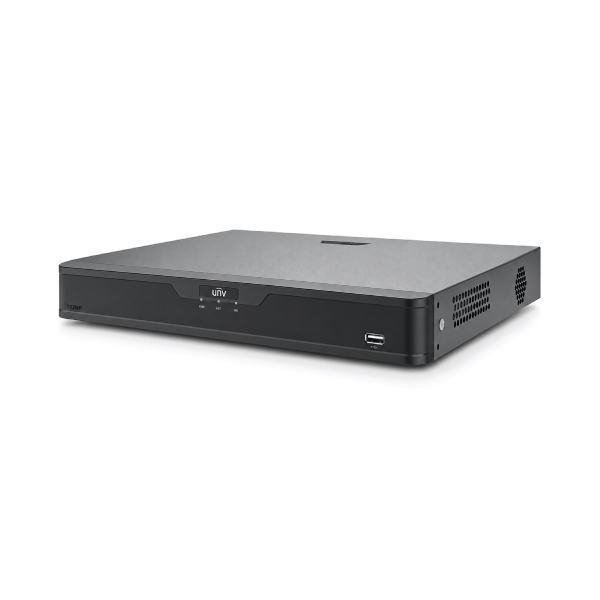

Uniview NVR302-16B-P16-IQ 16-Channel 12MP 2-HDD PoE NVR

Uniview NVR302-16B-P16-IQ 16-Channel 12MP 2-HDD PoE NVR

The Uniview NVR302-16B-P16-IQ 16-Channel 12MP 2-HDD PoE NVR combines recording, sixteen built-in PoE camera ports and two hard-drive bays. It suits offices, apartment buildings, shops and warehouses needing a central IP camera system.

The Uniview NVR302-16B-P16-IQ price in Bangladesh for this offer is ৳15,000. Check the model, stock and included accessories before ordering.

Quick Highlights

• Camera capacity: Up to 16 IP camera channels
• Built-in PoE: 16 ports; 240W shared budget, up to 30W per port
• Recording: Supports compatible streams up to 12MP
• Monitor output: 4K HDMI plus simultaneous Full HD VGA
• Bandwidth: 160Mbps incoming and 128Mbps outgoing
• Storage: Two SATA hard-drive bays
• Compression: Ultra 265, H.265 and H.264
• Smart tools: Supported camera and recorder analytics, with configuration limits

Product Overview

This network video recorder stores IP camera footage on installed drives and makes recordings searchable. Its PoE ports carry data and power over compatible Ethernet cables. A separate Gigabit port connects the recorder to the wider network. Browse Uniview IP cameras to plan lens coverage and power consumption.

Key Features and Benefits

Sixteen PoE Ports with a Shared Power Budget

Connect up to sixteen compatible IEEE 802.3af/at cameras directly. Each port supplies up to 30W, with 240W shared across all ports. Add your cameras' maximum power draw, especially for models with heaters, strong illuminators or PTZ motors. Some layouts may still need an external switch.

12MP Recording with 4K Local Display

Recording supports up to 12MP; HDMI outputs up to 3840 × 2160 at 30Hz, with simultaneous VGA up to 1080p. Sixteen inputs do not mean sixteen 12MP images decode at once: Uniview lists two 12MP streams at 30fps with smart processing off, or sixteen 720p streams at 30fps. Keep combined camera bit rates within 160Mbps.

Two Bays and Network Recording Recovery

Two SATA bays provide more room than a single-drive NVR. Uniview's current page lists up to 24TB per drive if operating temperature does not exceed 40°C; older documentation lists 10TB. Confirm firmware and hardware revision before choosing large HDDs. ANR can recover footage after a network interruption when compatible cameras have local storage and the feature is configured.

Useful Analytics with Clear Limits

Search tools help investigate people or vehicles with supported cameras. The NVR also processes Smart Intrusion Prevention and Ultra Motion Detection for limited ordinary-camera streams: up to two 2MP streams for SIP or four 2MP streams for UMD in the relevant mode. Check camera and firmware support before enabling alerts.

Interoperability and Remote Access

ONVIF, RTSP and P2P support help with camera integration and remote viewing. Third-party video may work while smart events vary by brand. Configure the viewing application, network access and account credentials carefully.

Recommended Applications

• Monitoring entrances, stairwells and parking in a Dhaka apartment building
• Covering shop floors, cash counters and stock rooms
• Recording office reception, corridors and access points
• Connecting warehouse gates, loading areas and perimeter cameras

Explore CCTV surveillance solutions and calculate recording days and PoE load before buying cameras and drives.

Technical Specifications

Package check: Confirm whether HDDs are included, plus drive support and warranty.

Why Choose This Uniview PoE NVR?

Choose it for direct PoE connections, 12MP recording support and two drive bays. Plan around its shared power and bandwidth limits.

Product Comparison

Compare other Uniview NVR models if your layout needs fewer direct PoE connections or different storage.

Frequently Asked Questions

How many IP cameras can this NVR record?

Up to sixteen compatible cameras, within its 160Mbps incoming bandwidth limit.

Do all sixteen PoE ports provide 30W together?

Each port can provide up to 30W, but the combined PoE budget is 240W.

Does 12MP recording mean a 12MP monitor output?

No. Recording input supports 12MP; HDMI output reaches 4K at 30Hz.

What is the maximum HDD capacity?

The current Uniview page lists up to 24TB per bay under specified conditions. Earlier documentation lists 10TB; verify the supplied revision.

Are hard drives supplied?

They are not confirmed in the listing details provided. Ask what is included.

Will ANR work during a network outage?

It can recover footage from compatible cameras with local storage after connectivity returns, when configured. It cannot replace camera power.

Can I use third-party IP cameras?

Many ONVIF or RTSP cameras can supply video. Confirm codecs, PoE needs and smart-event support.

Can I watch the cameras while away from the site?

Yes, after connecting the recorder to the internet and configuring a compatible viewing application. Remote access depends on your network and account settings.
