| System | ||
| Main Processor | Embedded high-performance processor | |
| Operating System | Embedded Linux System | |
| Audio and Video | ||
| IP Camera Input | 16-channel IP input | |
| Two-Way Talk | 1-ch, RCA | |
| Display | ||
| Interface | HDMI ×1, VGA ×1 | |
| Resolution | HDMI: 4K (3840×2160) @30Hz / @60Hz, 1920×1080 @60Hz / @50Hz, 1280×1024 @60Hz, 1280×720 @60Hz, 1024×768 @60Hz VGA: 1920×1080 @60Hz / @50Hz, 1280×1024 @60Hz, 1280×720 @60Hz, 1024×768 @60Hz |
|
| Decoding Capacity | 1 x 4K@30, 2 x 4MP@30, 3 x 3MP@25, 4 x 1080P@30, 8 x 720P@30,16 x D1 |
|
| Multi-Screen Display | 3/4/5/7/9/10/12/16 | |
| OSD | Camera name, time, date, channel number | |
| Recording | ||
| Compression | Ultra265 / H.265 / H.264 | |
| Resolution | 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF | |
| Record Rate | Up to 30 fps per channel (resolution dependent) | |
| Bit Rate | Adjustable | |
| Record Mode | Manual, Schedule, Motion Detection, Alarm | |
| Record Interval | Pre-record, Normal, Post-record | |
| Others | Supports snapshot and event recording | |
| Video Detection And Alarm | ||
| Trigger Event | Motion detection, alarm input, video loss | |
| Video Detection | Motion detection, abnormal behavior detection | |
| Alarm Input | 4-channel alarm input | |
| Relay Output | 1-channel alarm output | |
| Playback And Backup | ||
| Sync Playback | (NVR302-16S-P8 / P16) | |
| Search Mode | Time, event, alarm, motion search | |
| Playback Function | Play, pause, fast forward, slow play, frame-by-frame | |
| Backup Mode | USB backup, network backup | |
| Third Party Support | ||
| Third Party Support | ONVIF compliant | |
| Network | ||
| Interface | 1 × RJ-45 | |
| Ethernet Port | 10M / 100M / 1000M self-adaptive Ethernet | |
| PoE | 16 × PoE ports, max 240W | |
| Network Function | Incoming bandwidth: 160 Mbps Outgoing bandwidth: 96 Mbps |
|
| Maximum User Access | 128 users | |
| Smart Phone | iOS / Android supported | |
| Interoperability | P2P, UPnP, NTP, DHCP, PPPoE | |
| Storage | ||
| HDD Mode | Up to 10TB per HDD | |
| Internal HDD | 2 × SATA interfaces | |
| Auxiliary Interface | ||
| USB | Front panel: 1 × USB 2.0 Rear panel: 1 × USB 2.0 |
|
| Power | ||
| Power Supply | 220V AC | |
| Power Consumption | ≤ 9W (without HDD) | |
| Component Environment | ||
| Operational Conditions | -10°C ~ +55°C (+14°F ~ +131°F), ≤ 90% RH (non-condensing) | |
| Storage Conditions | -20°C ~ +60°C | |
| Construction | ||
| Dimensions | 380 × 315 × 53 mm (15.0" × 12.4" × 2.1") | |
| Net Weight | ≤ 2.4 kg (without HDD) | |
| Gross Weight | Approx. 3.5 kg | |
| Warranty | ||
| Manufacturing Warranty | 1 Year Warranty | |

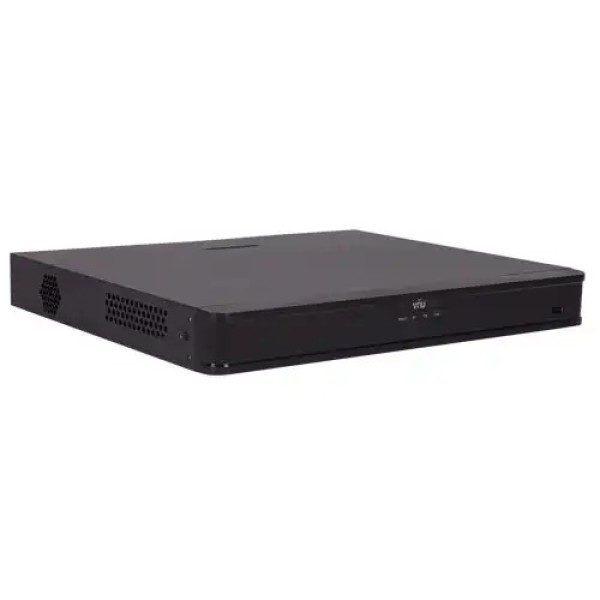

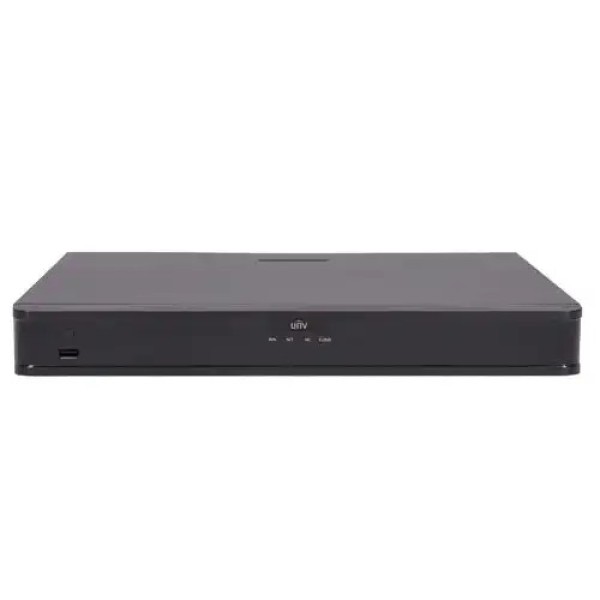

The Uniview NVR302-16S 16 Channel 4K NVR is a powerful and reliable surveillance recording solution designed for modern security systems. Built on a stable Linux operating system, this professional-grade 4K NVR supports advanced AI analytics, ultra-high-definition recording, and seamless remote monitoring—making it ideal for businesses, offices, factories, and high-end residential installations.
This Uniview NVR302-16S 16 Channel 4K NVR supports up to 16 IP cameras with resolutions up to 8MP, delivering crystal-clear video quality for accurate monitoring and evidence capture. With HDMI output up to 3840×2160 @30Hz and full VGA support, the NVR302-16S ensures smooth live view and playback on multiple display types.
The Uniview NVR302-16S 16 Channel 4K NVR is packed with intelligent video analytics to reduce false alarms and improve security efficiency. Features include face detection and search, intrusion detection, cross-line detection, people counting, audio detection, defocus detection, scene change detection, auto tracking, object removed/left behind detection, and behavior analysis. These AI-powered tools make this NVR ideal for smart surveillance applications.
Equipped with a Gigabit Ethernet (10/100/1000 Mbps) interface, this NVR delivers stable data transmission with 112 Mbps incoming and 96 Mbps outgoing bandwidth. It supports up to 128 remote users and enables 16-channel synchronous playback, ensuring smooth access for security teams and administrators.
The Uniview NVR302-16S 16 Channel 4K NVR features 2 SATA interfaces supporting up to 16TB HDD capacity, providing long-term recording for high-resolution cameras. Full ONVIF Profile S, G, C, Q, A, and T compatibility ensures seamless integration with third-party IP cameras. With a compact metal chassis, low power consumption (≤7W without HDD), and wide operating temperature range, this NVR is built for dependable 24/7 operation.
At Touch IT, we deliver 100% genuine Uniview NVR302-16S 16 Channel 4K NVR with official warranty and expert support. When you buy from Touch IT, you get competitive pricing, professional guidance for system design, fast delivery across Bangladesh, and trusted after-sales service. Choose Touch IT for reliable security solutions that protect what matters most.
The latest price of Uniview NVR302-16S 16 Channel 4K NVR in Bangladesh is 13,000৳. You can buy the Uniview NVR302-16S 16 Channel 4K NVR at best price from our website or visit any of our showrooms.
