| System | ||
| Main Processor | Industrial-grade embedded processor | |
| Operating System | Embedded Linux | |
| Audio and Video | ||
| IP Camera Input | Up to 16-channel IP camera input (expandable display layouts up to 36 screens depending on stream) | |
| Two-Way Talk | Supported, 1-channel RCA (using audio input and output) | |
| Display | ||
| Interface | HDMI, VGA | |
| Resolution | HDMI: Up to 4K (3840×2160) @30Hz VGA: Up to 1920×1080 @60Hz |
|
| Decoding Capacity | 2 × 4K@30fps, 4 × 4MP@30fps, 5 × 3MP@30fps, 8 × 1080P@30fps, 16 × 720P@30fps | |
| Multi-Screen Display | 1/4/6/8/9/16 (live view), up to 36 screens supported | |
| OSD | Camera name, time, date, status, alarm indicators | |
| Recording | ||
| Compression | Ultra 265, H.265, H.264 | |
| Resolution | 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF | |
| Record Rate | Up to 30fps per channel (resolution dependent) | |
| Bit Rate | Adaptive bit rate supported | |
| Record Mode | Manual, Schedule, Motion Detection, Alarm, Smart Event | |
| Record Interval | Pre-record and post-record supported | |
| Video Detection And Alarm | ||
| Trigger Event | Motion detection, smart events, video loss, tampering, alarm input | |
| Video Detection | Face detection, intrusion detection, cross-line detection, enter/leave area, people counting, Ultra Motion Detection (UMD) | |
| Playback And Backup | ||
| Sync Playback | 16-channel synchronous playback | |
| Search Mode | Time, event, alarm, motion, smart search (human, vehicle, people counting) | |
| Playback Function | Play, pause, fast forward, rewind, frame-by-frame | |
| Backup Mode | USB device, network download | |
| Third Party Support | ||
| Third Party Support | ONVIF-compliant IP cameras, RTSP stream access | |
| Network | ||
| Interface | RJ45 Ethernet | |
| Ethernet Port | 2 × RJ45 10/100/1000 Mbps self-adaptive ports | |
| Network Function | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv4 | |
| Maximum User Access | 128 users | |
| Smart Phone | iOS & Android supported | |
| Interoperability | Web browsers and VMS software | |
| Storage | ||
| HDD Mode | Manual overwrite, scheduled overwrite | |
| Internal HDD | 4 × SATA interfaces | |
| Auxiliary Interface | ||
| USB | Front: 1 × USB 2.0 Rear: 1 × USB 2.0, 1 × USB 3.0 |
|
| Power | ||
| Power Supply | DC 12V / 5A | |
| Power Consumption | ≤ 15W (without HDD) | |
| Component Environment | ||
| Operational Conditions | Temperature: -10°C to +55°C Humidity: ≤ 90% RH (non-condensing) |
|
| Storage Conditions | Standard indoor storage environment | |
| Construction | ||
| Dimensions | 440 × 344 × 50 mm (17.3" × 13.5" × 2.0") | |
| Net Weight | ≤ 3.15 kg (without HDD) | |
| Gross Weight | ≤ 3.15 kg (without HDD) | |
| Warranty | ||
| Manufacturing Warranty | 1 Year | |

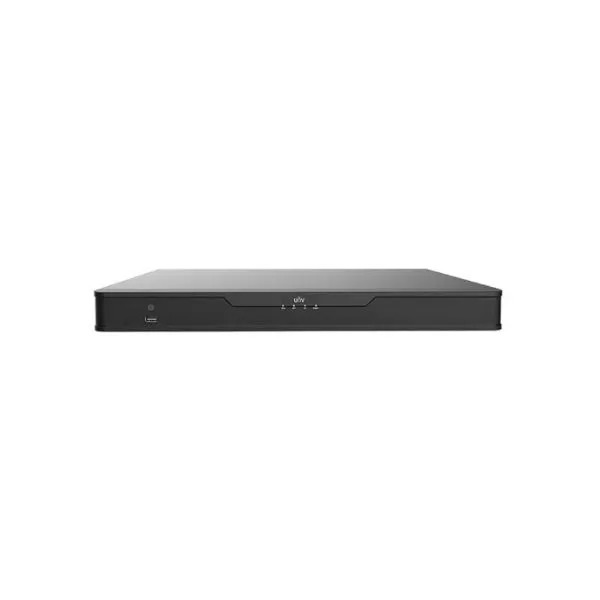

The Uniview NVR304-16S 16-Channel NVR is a powerful, enterprise-grade video surveillance solution designed for businesses that demand reliability, clarity, and advanced smart security. Built with support for 4 HDDs, 4K ultra-high-definition recording, and intelligent video analytics, this NVR is ideal for offices, retail spaces, factories, warehouses, and large residential projects. High-performance 4K recording , Advanced AI-powered analytics, Reliable 24/7 security management
The Uniview NVR304-16S 16-Channel NVR supports Ultra 265, H.265, and H.264 video compression, ensuring superior video quality while reducing bandwidth and storage costs. With decoding capability of up to 2× 4K@30fps and support for resolutions up to 8MP, this NVR delivers crystal-clear live view and playback for up to 16 IP cameras. Its 160 Mbps incoming bandwidth guarantees smooth video streams even in high-traffic surveillance environments.
Designed for modern intelligent surveillance, the Uniview NVR304-16S 16-Channel NVR supports powerful VCA detection by IPC, including face detection, intrusion detection, cross-line detection, people counting, crowd density monitoring, and Ultra Motion Detection (UMD). Smart search functions such as human body search, vehicle search, and people counting reports help you quickly find critical events, saving time and improving security response.
ThisUniview NVR304-16S 16-Channel NVR features 4 SATA interfaces, supporting up to 10TB per HDD (up to 40TB total, environment dependent). This makes it an excellent choice for long-term video retention and large-scale installations. Efficient recording resolutions ranging from 8MP to CIF allow flexible storage management without compromising video clarity.
Equipped with dual Gigabit Ethernet ports, HDMI and VGA outputs, and multiple USB ports, the Uniview NVR304-16S 16-Channel NVR integrates seamlessly into existing networks. It supports 128 remote users and a wide range of protocols including P2P, RTSP, HTTPS, DDNS, and SNMP for secure remote access. Multi-language GUI support (38 languages) and compatibility with major browsers ensure simple operation and deployment.
At Touch IT, we provide only 100% genuine Uniview products with expert guidance to help you choose the right security solution. Our competitive pricing, professional support, and commitment to customer satisfaction make us a trusted destination for surveillance equipment in Bangladesh. When you buy the Uniview NVR304-16S 16-Channel NVR from Touch IT, you’re investing in reliable performance, authentic products, and long-term peace of mind.
The latest price of Uniview NVR304-16S 16-Channel NVR in Bangladesh is 18,500৳. You can buy the Uniview NVR304-16S 16-Channel NVR at best price from our website or visit any of our showrooms.
