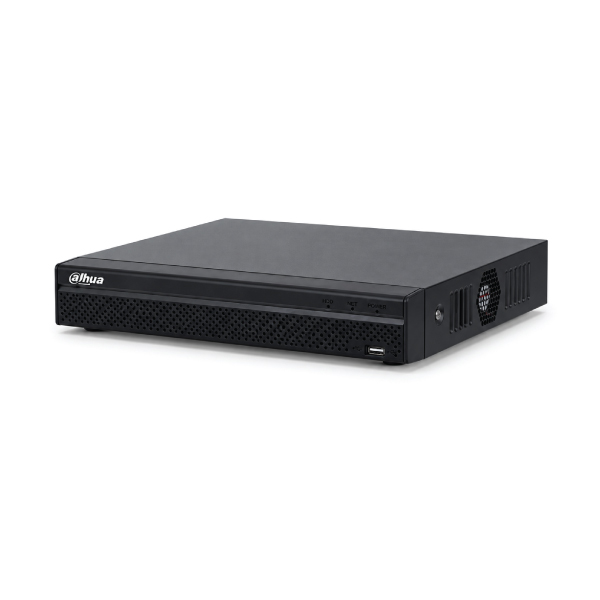

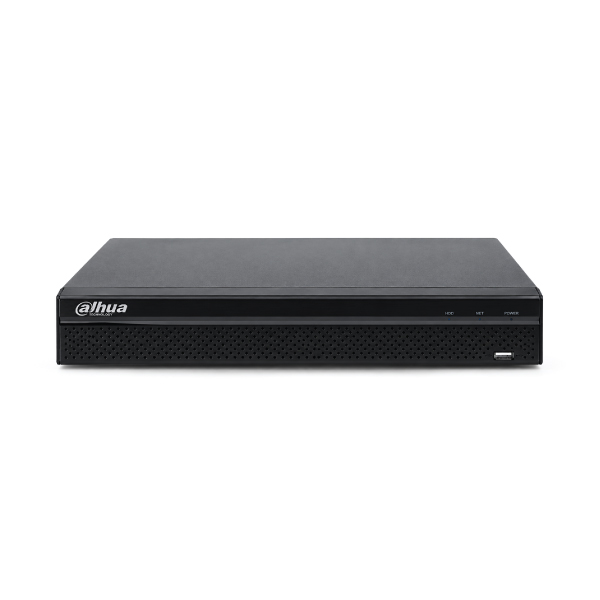

DAHUA DHI-NVR1108HS-8P-S3/H 8-Channel Compact 1U 1HDD PoE NVR

DAHUA DHI-NVR1108HS-8P-S3/H 8-Channel Compact 1U 1HDD PoE NVR

The DAHUA DHI-NVR1108HS-8P-S3/H is an eight-channel recorder with eight integrated PoE ports. It powers compatible IP cameras and receives video through the same Ethernet cables, removing the need for a separate PoE switch.

The current Dahua DHI-NVR1108HS-8P-S3/H price in Bangladesh is ৳12,800 at Touch IT. This compact PoE NVR supports 8MP input, H.265+, 80Mbps recording bandwidth, eight-channel playback and one HDD up to 8TB. Confirm stock and compatibility before purchase.

Quick Highlights

• Camera Capacity: Eight channels, up to 8MP
• Integrated PoE: Eight ports with a 72W budget
• Bandwidth: 80Mbps incoming, 80Mbps recording and 60Mbps outgoing
• Compression: Smart H.265+, H.265, Smart H.264+ and H.264
• Storage: One HDD up to 8TB
• Playback: Up to eight channels synchronized
• Output: HDMI and VGA up to 1080p

Product Overview

This compact PoE NVR combines camera power, recording, playback and remote monitoring. Eight dedicated PoE interfaces simplify cabling, while a separate LAN port links the recorder to a router or local network.

Key Features and Benefits

Eight Built-In PoE Ports with 72W Budget

One Ethernet cable carries power and video for each compatible camera. The ports share 72W, with up to 25.5W on one port. Add every camera's maximum consumption and remain below the shared budget.

8MP Input for Detailed IP Surveillance

The recorder accepts streams up to 8MP. V2.0 decoding reaches one 8MP, 6MP or 5MP channel, two 4MP, four 1080p or eight 720p channels at 25fps. Simultaneous decoding changes with resolution.

80Mbps Recording Bandwidth

Bandwidth is 80Mbps incoming, 80Mbps recording and 60Mbps outgoing. Total all configured camera bitrates and leave headroom for scene changes, playback and mobile viewing to maintain reliable recording.

Smart H.265+ and Up to 8TB Storage

Smart H.265+ can reduce storage demand compared with standard H.264 on compatible cameras. One SATA bay accepts an HDD up to 8TB. Retention varies by resolution, bitrate, schedule and activity; use a surveillance-rated drive.

Eight-Channel Playback and USB Export

Review up to eight channels synchronously with pause, fast, slow, reverse, frame-step and digital zoom controls. Two USB 2.0 ports support mouse control and evidence export.

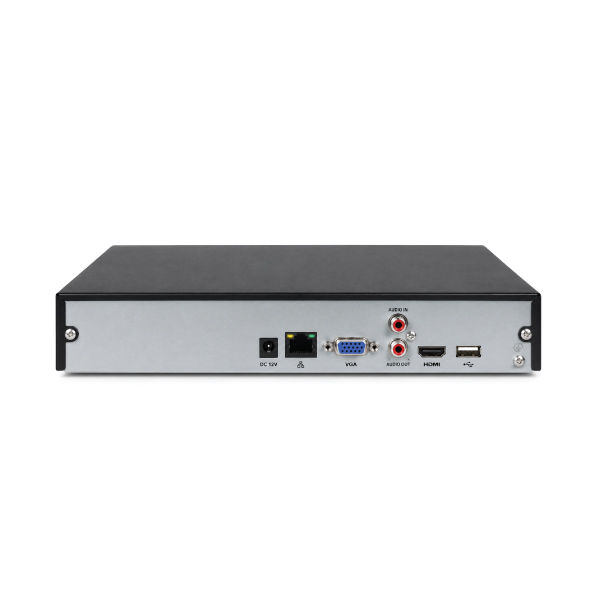

HDMI, VGA and RCA Audio

HDMI and VGA work simultaneously at up to 1080p. RCA audio input and output support compatible audio arrangements. Although the NVR accepts 8MP input, local monitor output remains Full HD.

Mobile Monitoring and ONVIF Compatibility

P2P enables supported web, iOS and Android access. ONVIF Profiles S, G and T plus RTSP, CGI and SDK improve interoperability. Audio, events and configuration remain camera-dependent, so test mixed-brand systems.

Recommended Applications

• Homes, apartments and multi-entry residential properties
• Retail shops, pharmacies, restaurants and showrooms
• Offices, clinics, schools and training centres
• Small warehouses, stockrooms and parking areas
• Eight-camera CCTV surveillance systems requiring direct PoE connections

Technical Specifications

Verification Note

This 8P version has eight PoE ports; do not confuse it with non-PoE or four-port models. Older documents show different adapter and HDD limits, while current V2.0 specifications list up to 8TB. Confirm the label, adapter, firmware and HDD. Wi-Fi, physical alarm I/O and recorder-side AI are not listed.

Why Choose This Dahua 8 Channel PoE NVR?

Choose this model for eight direct PoE camera connections, 8MP input and local storage without an external switch. Explore other Dahua NVR models for more storage, higher display output or recorder analytics.

Product Comparison

Frequently Asked Questions

How many IP cameras can this NVR connect?

It accepts and records up to eight compatible IP camera channels.

Does every camera connect directly to a PoE port?

Yes, up to eight compatible cameras can use the built-in PoE interfaces.

What is the total PoE power budget?

The recorder provides a shared 72W budget, with up to 25.5W on one port.

Can it record an 8MP IP camera?

Yes. It accepts and decodes one compatible 8MP stream at up to 25fps.

What is the maximum supported HDD capacity?

The current V2.0 specification lists one SATA hard drive up to 8TB.

Can users view cameras remotely?

Yes. Supported web, iOS and Android clients provide remote access after secure setup.

Will third-party IP cameras work?

ONVIF and RTSP assist compatibility, but audio, events and configuration must be checked by model.
