Uniview NVR301-16S3 16 Channel 1 SATA NVR

Uniview NVR301-16S3 16 Channel 1 SATA NVR

When a site grows beyond eight cameras, reviewing footage from separate devices becomes a chore. The Uniview NVR301-16S3 16 Channel 1 SATA NVR brings up to sixteen compatible IP camera feeds into one recorder. It suits shops, offices, apartment buildings and warehouses that need a central view without a large equipment rack.

For buyers comparing the Uniview NVR301-16S3 price in Bangladesh, this offer is ৳9,200. The recorder has no built-in PoE ports, so plan a separate switch or camera power supplies.

Quick Highlights

• IP camera input: Up to 16 channels
• Recording: Resolutions up to 8MP, subject to available bandwidth
• Display: 4K HDMI at 30Hz and simultaneous Full HD VGA
• Bandwidth: 64Mbps incoming; 48Mbps outgoing
• Compression: Ultra 265, H.265 and H.264
• Storage: One SATA drive bay; Touch IT lists up to 8TB
• Camera power: No integrated PoE ports

Product Overview

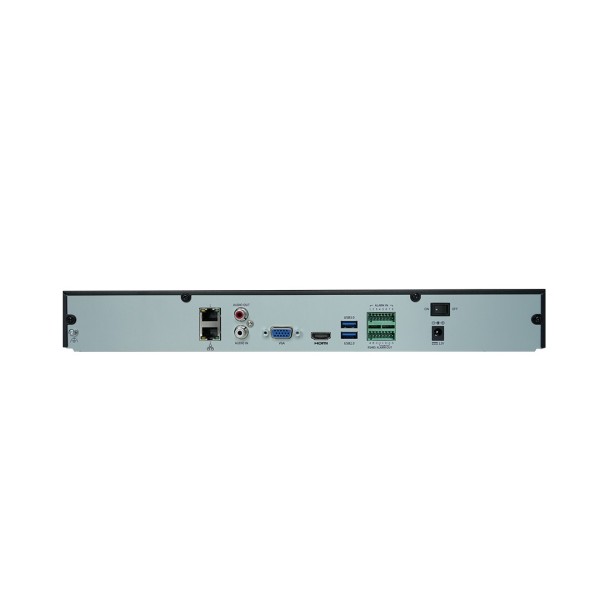

An NVR receives camera video, saves it to an installed hard drive and lets you search recordings. The NVR301-16S3 connects through one RJ45 interface; a switch brings multiple camera streams to that connection. For fewer inputs or more storage, explore the NVR category before selecting cameras and cabling.

Key Features and Benefits

Sixteen Channels for a Growing Site

Allocate views to entrances, stairwells, reception, stock areas and perimeter approaches within one CCTV recording system. A sixteen-channel layout helps a guard review several zones, while 16-channel local synchronous playback helps investigate events across cameras. Sixteen input channels do not mean the recorder can decode sixteen 4K streams at once.

Clear Output with Realistic Decoding Limits

HDMI supports a 3840 × 2160 output at 30Hz, while VGA supports up to 1920 × 1080 at 60Hz. Uniview's current series specification allows recording through 8MP. For local decoding, it lists alternatives such as one 4K stream at 30fps, six 1080p streams at 30fps, eight 720p streams at 30fps or sixteen D1 streams at 25fps. Choose camera bit rates with the 64Mbps incoming limit in mind.

Efficient Video Storage

Ultra 265 and H.265 can reduce storage demand when the cameras and chosen settings support them. This compact NVR holds one SATA hard drive, so retention depends on drive size, frame rate, resolution, bit rate and recording schedule. Touch IT's listing states up to 8TB; Uniview's newer series page states up to 10TB. Confirm the supported capacity of the supplied hardware and firmware before buying a larger drive.

Remote Access and Camera-Based Events

P2P network support enables remote viewing after configuration. The series supports compatible ONVIF or RTSP cameras, although cross-brand smart-event support varies. With suitable Uniview IP cameras, the recorder can handle camera-generated face detection, Smart Intrusion Prevention or Ultra Motion Detection on up to four channels. Behavior search can shorten a footage review; ordinary cameras do not gain these analytics automatically.

Recommended Applications

• Covering entrances, floors and parking areas in a Dhaka apartment building
• Monitoring a retail store's counters, aisles and loading entrance
• Recording office reception, corridors, server rooms and exits
• Managing school, clinic or warehouse cameras from one station

Build the wider installation around camera placement, switch power budget and required recording days. Browse CCTV surveillance equipment for the cameras and supporting network hardware.

Technical Specifications

Before ordering: Confirm the hard drive, adapter, firmware version and warranty supplied with this particular unit. The listing does not establish that a surveillance HDD is included.

Why Choose This Uniview 16 Channel NVR?

It suits sites needing sixteen network camera channels in a compact recorder. A separate PoE switch powers compatible cameras around the property.

Product Comparison

Compare other Uniview NVR models if your project needs integrated PoE or more drive bays.

Frequently Asked Questions

How many cameras does the NVR301-16S3 support?

It accepts up to sixteen compatible IP camera channels, within its combined incoming bandwidth limit.

Does this recorder have built-in PoE ports?

No. Use an appropriately rated PoE switch, injectors or the cameras' supported power supplies.

Does 4K HDMI mean sixteen 4K cameras play simultaneously?

No. 4K describes an output and a supported stream resolution. Simultaneous local decoding has separate limits.

What hard drive capacity does it support?

Touch IT lists one drive up to 8TB; Uniview's newer series specification lists 10TB. Verify the supplied unit before choosing a larger HDD.

Is a hard drive included?

The listing does not clearly specify one. Confirm the package contents before ordering.

Can I use another brand of IP camera?

Many ONVIF or RTSP cameras can provide video. Check codec, firmware and smart-event compatibility first.

Can I view recordings remotely?

Yes, with suitable network, account and viewing-app setup. Remote access requires an internet connection.

Why Buy from Touch IT?

Touch IT serves buyers in Dhaka and across Bangladesh. Share your camera models, site layout and desired retention period to check switch power, recording bandwidth and HDD choice together. Browse Uniview products for cameras and related equipment.

Order the Uniview NVR301-16S3 Today

Bring up to sixteen IP cameras into one recording setup with the Uniview NVR301-16S3 16 Channel NVR. Confirm the offer, stock, drive support and camera power arrangement with Touch IT before checkout.
