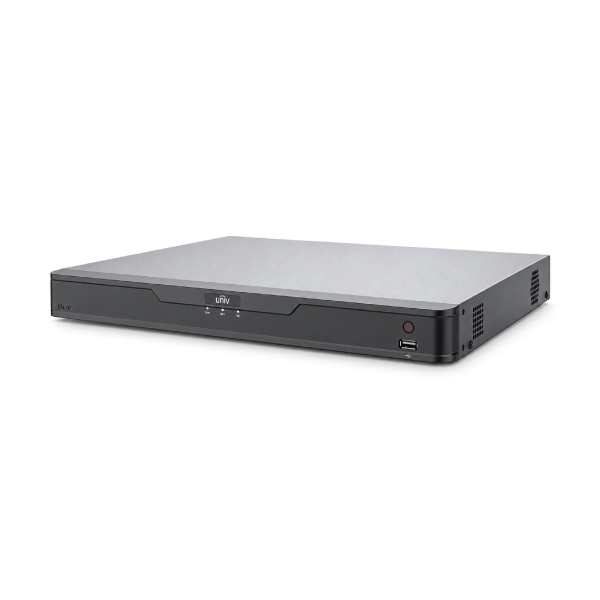

Uniview NVR304-16B-IQ 16-Channel 12MP 4-HDD 1U NVR

Uniview NVR304-16B-IQ 16-Channel 12MP 4-HDD 1U NVR

When a property has cameras on several floors, footage needs one place to land. The Uniview NVR304-16B-IQ records up to sixteen IP camera feeds at resolutions up to 12MP and provides four HDD bays. It suits offices, apartments, shops and warehouses planning longer video retention.

Checking the Uniview NVR304-16B-IQ price in Bangladesh? Touch IT lists this 16-channel NVR at ৳20,800. It has no built-in PoE camera ports; budget for a PoE switch or other camera power. Confirm drive compatibility before choosing large disks.

Quick Highlights

• Camera input: Up to 16 IP channels and 12MP recording resolution
• Network bandwidth: 160Mbps incoming; 128Mbps outgoing
• Storage: Four SATA bays; current Uniview specification lists up to 24TB per drive, subject to conditions
• Display: 4K HDMI at 30Hz and simultaneous Full HD VGA
• Compression: Ultra 265, H.265 and H.264
• Smart tools: SIP, UMD, face analysis and AcuSearch/AcuTrack with compatible cameras and mode limits
• Connections: Two Gigabit LAN ports; no integrated PoE

Product Overview

This network video recorder stores IP camera streams on installed HDDs. Power cameras through a correctly rated external PoE switch; the two LAN interfaces are network ports, not powered camera sockets. Its 1U chassis fits a security room or suitable rack.

Four bays add storage flexibility; confirm drive inclusion and RAID support separately. Explore the Uniview NVR range when comparing power, channels and storage.

Key Features and Benefits

Sixteen Channels and 12MP Recording

Cover entrances, counters, corridors, loading areas and perimeters. Recording reaches 12MP, subject to camera settings and 160Mbps incoming bandwidth. Sixteen inputs do not mean sixteen 12MP decoding windows: with smart analysis off, Uniview lists two 12MP streams at 30fps or sixteen 720p streams at 30fps.

Four Bays for a Planned Retention Period

Uniview's current datasheet lists up to 24TB per HDD, with an environment no warmer than 40°C for that maximum. Some Bangladesh resellers still say 10TB per drive. Confirm the supplied unit and compatible disks. Retention depends on bitrate, schedules and activity.

Useful Search Tools with Clear AI Limits

Smart Intrusion Prevention, Ultra Motion Detection and face analysis can narrow an investigation. NVR-side SIP supports up to two ordinary 2MP cameras; UMD supports up to four, depending on mode and resolution. Face recognition, SIP, UMD and AcuSearch/AcuTrack analyzer modes cannot run simultaneously. All-channel AcuSearch/AcuTrack requires suitable Uniview SIP/UMD cameras.

4K Display, Network Access and ANR

HDMI outputs 4K at 30Hz; VGA reaches 1080p at 60Hz. Both can display together. Two Gigabit Ethernet interfaces support network planning; P2P enables configured remote access. ANR can replenish a recording gap after reconnection when a compatible camera has local storage.

Camera and Audio Integration

Suitable ONVIF Profiles S, G and T or RTSP cameras can supply video; third-party compatibility does not guarantee intelligent events. RCA input and output support one-channel two-way audio. Browse Uniview products for matching smart cameras.

Recommended Applications

• Apartment entrances, lift lobbies and parking approaches in Dhaka
• Retail branches with counters, aisles and stockrooms
• Schools, clinics and offices with multiple monitored zones
• Warehouses needing several recording drives and planned retention

Plan camera placement, PoE wattage, disks and backup power as one CCTV surveillance project.

Technical Specifications

Before ordering: Check HDD inclusion, drive compatibility and warranty for the supplied batch.

Uniview 16-Channel NVR Product Comparison

Compare storage and PoE needs alongside channel count.

Frequently Asked Questions

How many IP cameras can the NVR304-16B-IQ record?

It accepts up to sixteen compatible IP cameras, within its 160Mbps incoming bandwidth and recording limits.

Does this NVR have built-in PoE?

No. Provide a suitable PoE switch, injectors or another supported camera power source.

How much HDD storage does it support?

There are four SATA bays. Uniview's current specification lists up to 24TB per drive under specified conditions; older reseller listings say 10TB. Verify the supplied revision.

Are four hard drives included?

Drive inclusion is not established by the product listing. Confirm the package and purchase surveillance-rated HDDs as needed.

Can it display all sixteen cameras in 12MP at once?

No. Twelve megapixels is a supported recording resolution; simultaneous local decoding has lower limits, especially with smart analysis enabled.

Can AcuSearch work with any IP camera?

All-channel AcuSearch/AcuTrack performance is specified with suitable Uniview SIP/UMD cameras. Check the exact camera and selected analyzer mode.

Can it record if the internet goes down?

Local recording can continue while cameras, NVR and the local network remain connected and powered. ANR addresses a camera-to-recorder interruption when compatible camera storage is available.

Why Buy from Touch IT?

Touch IT serves buyers in Dhaka and across Bangladesh. Share your camera models, expected bitrates and recording days to check the NVR, PoE switch and HDDs as one system.

Order the Uniview NVR304-16B-IQ

Build a centrally managed sixteen-camera installation with the Uniview NVR304-16B-IQ 4-HDD NVR. Confirm the exact unit, compatible drives and installation requirements with Touch IT before checkout.
