In Stock
| System | ||
| Main Processor | Embedded processor | |
| Operating System | Embedded Linux OS | |
| Audio and Video | ||
| IP Camera Input | 40 Channels | |
| Two-Way Talk | 1-ch, 3.5mm audio input | |
| Display | ||
| Interface | 1×HDMI, 1×VGA | |
| Resolution | HDMI up to 3840×2160 (4K); VGA up to 1920×1080 | |
| Decoding Capacity | 16MP×2, 12MP×3, 8MP×5, 6MP×6, 5MP×8, 4MP×10, 3MP×13, 1080P×20, 720P×40, 4CIF×40 (all @30fps) | |
| Multi-Screen Display | HDMI & VGA independent output up to 40 split screens | |
| OSD | Camera title, time, recording status, motion detection, alarm status | |
| Recording | ||
| Compression | S+265 / H.265 / S+264 / H.264 | |
| Resolution | Up to 16MP recording support | |
| Record Rate | Up to 30fps per channel (depending on resolution) | |
| Bit Rate | Supports adjustable bit rate based on stream settings | |
| Record Mode | Manual, Alarm, Schedule | |
| Record Interval | Continuous, motion-triggered, alarm-triggered | |
| Others | Dual stream recording supported | |
| Video Detection And Alarm | ||
| Trigger Event | Motion detection, mask alarm, video loss, network disconnection, disk errors, illegal access, IP/MAC conflict | |
| Video Detection | Motion Detection, Mask Alarm | |
| Alarm Input | 16-ch alarm inputs (IPC & NVR supported) | |
| Relay Output | 4-ch relay outputs (1A, 24VDC) | |
| Playback And Backup | ||
| Sync Playback | 16-channel synchronous playback | |
| Search Mode | Time search, event search, behavior search, heatmap, face search | |
| Playback Function | Play, Pause, Stop, Reverse, Slow, Speed control, 30s forward/backward, Digital Zoom, Instant Replay, Video Clip Backup | |
| Backup Mode | USB storage device, Network backup | |
| Third Party Support | ||
| Third Party Support | ONVIF (Profile S/T/G), RTSP, CGI, SDK integration | |
| Network | ||
| Interface | 2×RJ-45 ports | |
| Ethernet Port | 10/100/1000 Mbps self-adaptive | |
| Network Function | DHCP, DNS, DDNS, NTP, SMTP, FTP, SNMP, HTTPS, QoS, PPPoE, UPnP, IPv4/IPv6, RTSP, RTP, Multicast | |
| Maximum User Access | Multi-user access supported (based on network configuration) | |
| Smart Phone | EasyLive Plus (Android & iOS) | |
| Interoperability | ONVIF, RTSP, P2P, CGI | |
| Storage | ||
| HDD Mode | Disk Group supported (2 disk groups) | |
| Internal HDD | 2×SATA HDD, up to 10TB each | |
| Auxiliary Interface | ||
| USB | 1×USB2.0, 1×USB3.0 | |
| RS232 | 1×RS-232 | |
| RS485 | 1×RS-485 | |
| Power | ||
| Power Supply | DC 12V | |
| Power Consumption | <15W (without HDD, idle) | |
| Component Environment | ||
| Operational Conditions | -10°C to +55°C, 10%–90% RH (non-condensing) | |
| Storage Conditions | -20°C to +60°C | |
| Construction | ||
| Dimensions | 440 × 284 × 48 mm | |
| Net Weight | 2.25 kg | |
| Gross Weight | 3.85 kg | |
| Warranty | ||
| Manufacturing Warranty | 1 Year | |

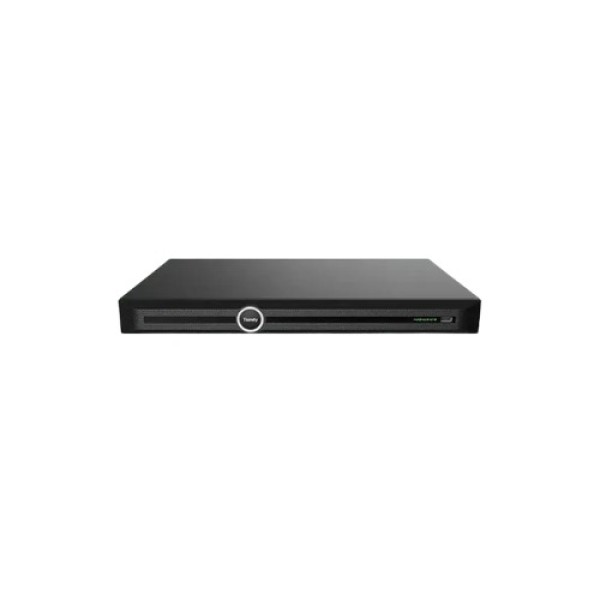

The Tiandy TC-R3240 40 Channel NVR is a powerful and reliable 40 channel network video recorder (NVR) built for professional IP surveillance systems. With advanced H.265 video compression, 4K display output, and massive storage support, this NVR is ideal for offices, factories, shopping malls, warehouses, and large homes that need stable, high-quality security recording.
This Tiandy TC-R3240 40 Channel NVR supports up to 40 IP cameras, making it perfect for large CCTV installations. It ensures smooth video input and stable performance across multiple cameras. The built-in two-way talk feature (via 3.5mm audio input) allows real-time communication when used with compatible audio-enabled cameras, adding an extra layer of interactive security.
Enjoy crystal-clear surveillance with HDMI and VGA outputs supporting up to 4K resolution. The Tiandy TC-R3240 NVR provides flexible multi-screen display modes, allowing you to view multiple camera feeds at once. Whether you need a single full-screen view or split-screen layouts with up to 25 channels, this system delivers smooth and detailed live monitoring.
With support for S+265, H.265, and H.264 compression, the TC-R3240 reduces bandwidth and storage usage without compromising image quality. It features 2 SATA HDD slots, each supporting up to 10TB, giving you plenty of space for long-term video recording. This makes it an excellent choice for businesses that need extended surveillance archives.
This Tiandy TC-R3240 40 Channel NVR includes advanced motion detection, mask alarms, video loss alerts, disk error warnings, and network disconnection notifications to keep your system secure. Intelligent search features like heatmap and behavior search help you quickly find important footage. You can easily back up recordings via USB or network, and monitor your cameras remotely using Android and iOS apps with P2P support. With low power consumption and stable Ethernet connectivity, it’s designed for 24/7 operation.
Touch IT is your trusted source for genuine Tiandy TC-R3240 40 Channel NVR. We offer competitive prices, expert support for CCTV solutions, and dependable after-sales service. When you buy from Touch IT, you get authentic products, warranty assurance, and professional guidance to build a reliable, long-lasting security system.
The latest price of Tiandy TC-R3240 40 Channel NVR in Bangladesh is 24,500৳. You can buy the Tiandy TC-R3240 40 Channel NVR at best price from our website or visit any of our showrooms.
