In Stock
| System | ||
| Main Processor | Industrial-grade embedded processor | |
| Operating System | Embedded Linux system | |
| Audio and Video | ||
| IP Camera Input | 32-channel IP camera input | |
| Two-Way Talk | 1-channel, RCA (audio input/output supported) | |
| Display | ||
| Interface | HDMI & VGA simultaneous output | |
| Resolution | HDMI: 4K (3840×2160) @30Hz, 1920×1080p @60/50Hz, 1600×1200 @60Hz, 1280×1024 @60Hz, 1280×720 @60Hz, 1024×768 @60Hz VGA: 1920×1080p @60/50Hz, 1280×1024 @60Hz, 1280×720 @60Hz, 1024×768 @60Hz |
|
| Decoding Capacity | 2 × 4K@30, 3 × 5MP@30, 4 × 4MP@30, 5 × 3MP@30, 8 × 1080p@30, 16 × 720p@30, 32 × D1 | |
| Multi-Screen Display | 3/4/5/7/9/10/12/16/32 split screen modes | |
| OSD | Camera title, time, date, and status overlay | |
| Recording | ||
| Compression | Ultra265 / H.265 / H.264 | |
| Resolution | 8MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / 960H / D1 / 2CIF / CIF | |
| Record Rate | Up to 30 fps per channel (depending on resolution) | |
| Bit Rate | Adaptive bit rate based on stream and resolution | |
| Record Mode | Manual, scheduled, motion detection, alarm trigger | |
| Record Interval | Configurable pre-record and post-record | |
| Others | ANR technology for enhanced storage reliability during network disconnection | |
| Video Detection And Alarm | ||
| Trigger Event | Motion detection, video loss, tampering, alarm input | |
| Video Detection | Intelligent video analytics supported (camera-dependent) | |
| Alarm Input | 1-channel, RCA | |
| Playback And Backup | ||
| Sync Playback | 32-channel synchronous playback | |
| Search Mode | Time, event, alarm, motion, and smart search | |
| Playback Function | Play, pause, fast forward, rewind, frame-by-frame, instant playback | |
| Backup Mode | USB backup, network backup | |
| Third Party Support | ||
| Third Party Support | ONVIF conformant – Profile S, Profile G, Profile T | |
| Network | ||
| Interface | 2 × RJ-45 | |
| Ethernet Port | 10M / 100M / 1000M self-adaptive Ethernet interfaces | |
| Network Function | P2P, UPnP, NTP, DHCP, PPPoE | |
| Maximum User Access | 128 remote users | |
| Smart Phone | Supported via Uniview mobile applications | |
| Interoperability | Compatible with third-party IP cameras via ONVIF | |
| Storage | ||
| HDD Mode | Up to 10TB per HDD (maximum total capacity 40TB) | |
| Internal HDD | 4 × SATA interfaces | |
| Auxiliary Interface | ||
| USB | Rear panel: 1 × USB 2.0, 1 × USB 3.0 Front panel: 1 × USB 2.0 |
|
| Power | ||
| Power Supply | 12V DC | |
| Power Consumption | ≤ 15W (without HDD) | |
| Component Environment | ||
| Operational Conditions | -10°C ~ +55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) | |
| Storage Conditions | Standard indoor storage conditions | |
| Construction | ||
| Dimensions | 440 × 344 × 44 mm (17.3" × 13.5" × 1.7") | |
| Net Weight | Approx. 3.15 kg | |
| Warranty | ||
| Manufacturing Warranty | 1 Year | |

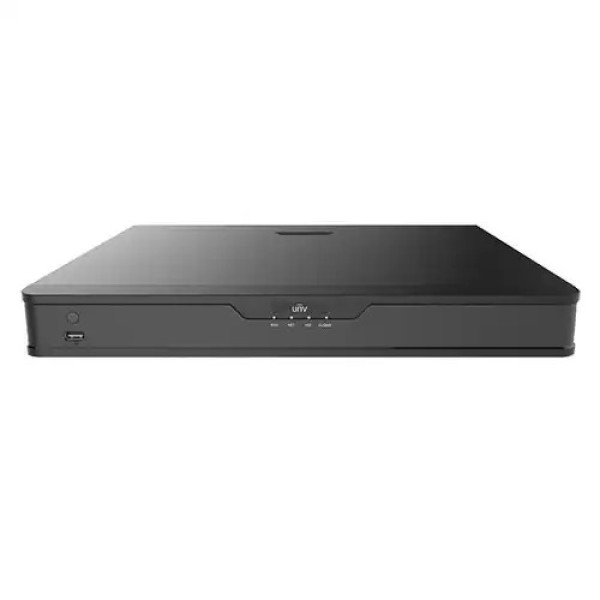

The Uniview NVR304-32S 32 Channel 4K NVR is a high-performance, enterprise-grade surveillance solution designed for large homes, offices, factories, shopping complexes, and commercial buildings. Powered by a stable Linux operating system, this advanced 32-channel NVR delivers ultra-clear 4K recording, smooth playback, intelligent video analytics, and massive storage capacity with support for four hard drives.
This professional Uniview NVR304-32S 32 Channel 4K NVR supports up to 32 IP cameras with recording resolutions up to 8MP (4K Ultra HD). With powerful decoding performance, it can handle multiple high-resolution streams simultaneously, ensuring smooth live view and playback even in demanding surveillance environments.
The Uniview NVR304-32S 32 Channel 4K NVR is equipped with intelligent video detection features including intrusion detection, cross-line detection, enter/leave area detection, people flow counting, crowd density monitoring, auto tracking, behavior search, and more. These smart functions help minimize false alarms while improving overall security efficiency.
Supporting both HDMI and VGA outputs, this Uniview NVR304-32S 32 Channel 4K NVR display at 30Hz and Full HD output at up to 60Hz. With 32-channel synchronous playback, security operators can easily review multiple camera feeds at the same time for faster investigations and better control.
Designed for long-term recording, the Uniview NVR304-32S 32 Channel 4K NVR features 4 SATA HDD interfaces supporting up to 8TB per hard drive. Dual Gigabit Ethernet ports ensure stable, high-speed network connectivity, while comprehensive ONVIF Profile S, G, C, Q, A, and T support allows seamless integration with a wide range of IP cameras.
At Touch IT , we deliver 100% genuine Uniview products with official warranty and reliable after-sales support. Our experienced team helps you select the right CCTV solution for your project needs, ensuring performance, reliability, and value for money. With competitive pricing, fast nationwide delivery, and trusted service, Touch IT is your dependable partner for professional security systems. Order the Uniview NVR304-32S 32 Channel 4K NVR from Touch IT today and upgrade your security with smart monitoring, powerful performance, and scalable storage.
The latest price of Uniview NVR304-32S 32 Channel 4K NVR in Bangladesh is 24,500৳. You can buy the Uniview NVR304-32S 32 Channel 4K NVR at best price from our website or visit any of our showrooms.
