| System & Smart Features | ||
| Product Type | 32-Channel AI Network Video Recorder (NVR) | |
| Processor | Industrial-Grade Processor | |
| Operating System | Embedded Linux | |
| User Interface / GUI Language | Web, Local GUI | |
| AI Analytics | Face Detection, Face Recognition, Perimeter Protection, SMD, ANPR, People Counting, Stereo Analysis, Heat Map | |
| Smart Motion Detection | SMD Plus by Recorder: 4 Channels; SMD by Camera: All Channels | |
| Human / Vehicle Detection | Supported through SMD Plus | |
| Perimeter Protection | AI by Recorder: 2 Channels, 10 IVS Rules per Channel; AI by Camera: All Channels | |
| Face Detection / Recognition | Face Detection and Face Recognition Supported; Up to 10 Face Databases with 20,000 Images | |
| Video & Audio Input | ||
| IP Camera Input | 32 Channels | |
| Maximum IP Camera Input | 32 Channels | |
| Supported Camera Types | Dahua IP Camera, ONVIF, Panasonic, Sony, Hanwha, Axis, Pelco, Arecont, Canon | |
| Camera Resolution Support | 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, 960p, D1, CIF | |
| Audio Input | 1-Channel RCA | |
| Two-Way Audio | Supported via RCA Audio Input and Output | |
| Video & Audio Output | ||
| HDMI Output | 1 HDMI; 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 | |
| VGA Output | 1 VGA; 1920 × 1080, 1280 × 1024, 1280 × 720 | |
| Audio Output | 1-Channel RCA | |
| Live View / Multi-Screen Display | 1st Screen: 1/4/8/9/16/25/36; 2nd Screen: 1/4/8/9/16 | |
| Recording & Decoding | ||
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG | |
| Audio Compression | G.711a, G.711u, PCM, G.726 | |
| Recording Resolution | 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, 960p, D1, CIF | |
| Frame Rate | Up to 30fps, Depending on Resolution and AI Status | |
| Decoding Capability | AI Disabled: Up to 2ch 16MP / 4ch 8MP / 8ch 4MP / 16ch 1080p / 32ch 720p @ 30fps; AI Enabled: Up to 1ch 16MP / 3ch 8MP / 6ch 4MP / 12ch 1080p / 32ch D1 @ 30fps | |
| Playback Channel | Up to 16 Channels | |
| Recording Modes | General, Motion Detection, Intelligent, Alarm | |
| Backup Methods | USB Device and Network | |
| Storage & Network | ||
| SATA Interface | 2 SATA Ports | |
| Maximum HDD Capacity | Up to 20TB | |
| Network Interface | 1 × RJ45 10/100/1000 Mbps Ethernet Port | |
| Incoming Bandwidth | AI Disabled: 256 Mbps; AI Enabled: 180 Mbps | |
| Outgoing Bandwidth | AI Disabled: 256 Mbps; AI Enabled: 180 Mbps | |
| Network Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UPnP, SNMP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search, P2P, Auto Registration | |
| ONVIF / RTSP Support | ONVIF 23.12 Profile T/S/G, RTSP, CGI, SDK | |
| Web / Mobile App Support | Browser: Chrome, IE9 and Later, Firefox; Mobile: iOS, Android | |
| Alarm & Event | ||
| Motion Detection | Supported | |
| Video Loss / Tampering | Video Loss, Video Tampering, Camera Offline | |
| Alarm Input / Output | 4 Alarm Inputs, 2 Alarm Outputs | |
| Alarm Input | 4 Channels | |
| Alarm Output | 2 Channels | |
| System / Exception Alarm | No Disk, Disk Error, Low Space, Low Quota Space, Abnormal Disk Health, Network Disconnection, IP Conflict, MAC Conflict, Audio Detection | |
| External Interface | ||
| USB Port | 2 Ports: 1 Front USB 2.0, 1 Rear USB 2.0 | |
| Audio Interface | 1 RCA Audio Input, 1 RCA Audio Output | |
| Alarm Interface | 4 Alarm Inputs, 2 Alarm Outputs | |
| Physical Specification | ||
| Power Supply | 12V DC, 4A | |
| Power Consumption | <10W, Without HDD | |
| Working Temperature | -10°C to +55°C | |
| Working Humidity | 10%–93% RH, Non-Condensing | |
| Dimensions | 375 × 284.3 × 53 mm | |
| Net Weight | 1.51 kg | |
| Certifications | FCC Part 15 Class A; CE-EMC; CE-LVD: EN 62368-1:2014 | |
| Warranty | ||
| Warranty | 1 Year | |

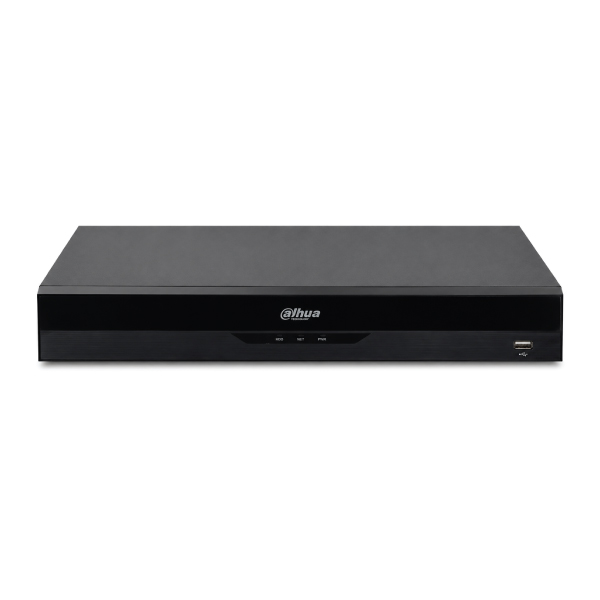

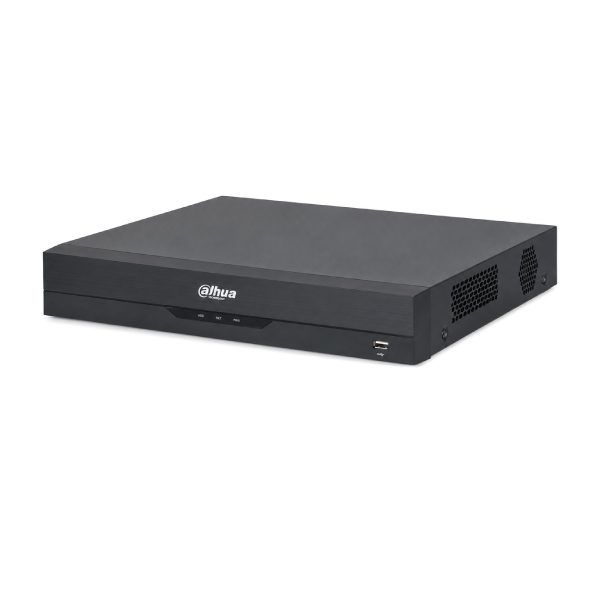

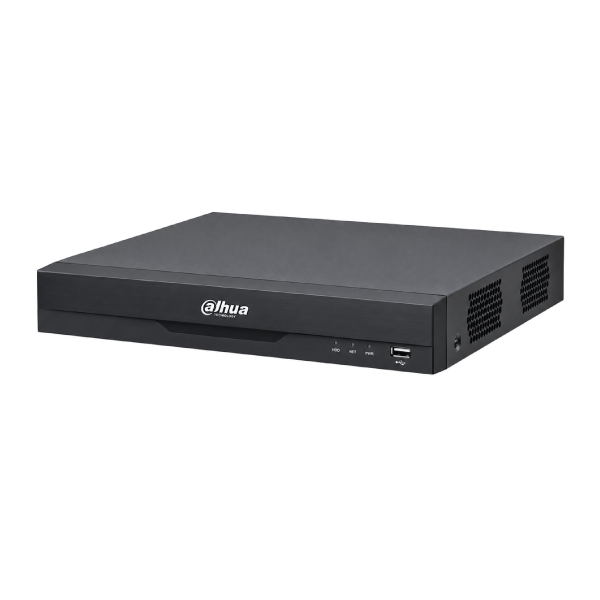

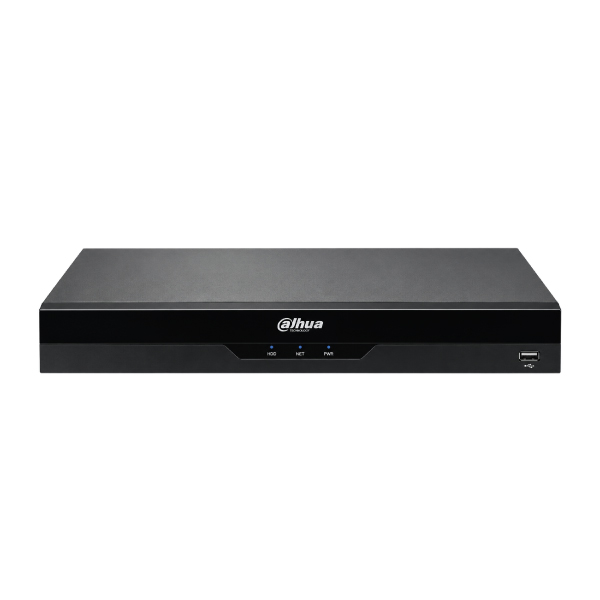

The Dahua DHI-NVR4232-EI is a 32-channel WizSense network video recorder for offices, factories, apartments, retail sites and multi-camera security projects. It combines 256Mbps bandwidth, 16MP IP camera support, 4K display output, two HDD bays and recorder-based AI in a compact 1U chassis.
For buyers comparing the Dahua DHI-NVR4232-EI price in Bangladesh, the current Touch IT price is ৳23,000. This professional 32-channel NVR supports Smart H.265+ compression, face detection and recognition, perimeter protection, SMD Plus, remote viewing and broad ONVIF camera compatibility.
This NVR offers central recording for medium and large IP surveillance systems. Its combination of 32 channels, intelligent event filtering and expandable storage suits organisations that need scalable monitoring without moving to a larger four- or eight-disk recorder.
The recorder connects up to 32 network cameras at resolutions through 16MP, supporting mixed-resolution coverage of entrances, interiors, parking and perimeters.
Incoming, recording and outgoing bandwidth each reach 256Mbps with AI off or 180Mbps with AI on. Calculate camera bitrates, frame rates, remote streams and analytics before installation.
Recorder AI supports one-channel face detection and recognition, two-channel perimeter protection and four-channel SMD Plus. SMD Plus classifies people and vehicles to reduce false alarms. Ten face databases hold up to 20,000 images.
Compatible cameras can supply face analytics, perimeter rules, SMD, ANPR, people counting, stereo analysis and heat maps. Availability depends on camera model and firmware.
With AI off, decoding reaches 16 × 1080p or 4 × 8MP at 30fps. HDMI displays up to 4K, while VGA reaches 1080p for control-room monitoring.
Two SATA bays accept compatible surveillance HDDs up to 20TB each, subject to temperature and compatibility. Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG balance quality and storage.

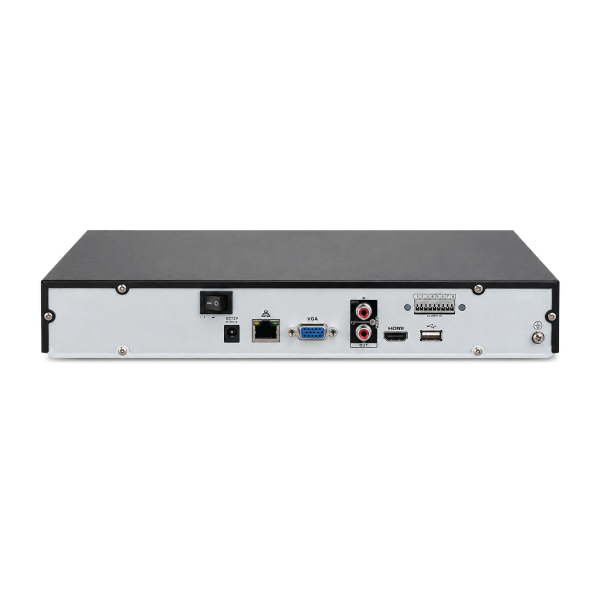

Gigabit Ethernet enables camera and remote access. ONVIF Profiles S, G and T aid third-party integration. Four alarm inputs, two outputs and RCA audio strengthen a CCTV surveillance system.
| Brand | Dahua |
|---|---|
| Model | DHI-NVR4232-EI |
| Recorder Type | 32-channel 1U 2HDD WizSense NVR |
| Operating System | Embedded Linux; local GUI and web interface |
| IP Camera Input | 32 channels; up to 16MP |
| Network Bandwidth | 256/256/256Mbps AI off; 180/180/180Mbps AI on |
| Maximum Decoding | 16 × 1080p or 4 × 8MP at 30fps with AI off |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG |
| Recorder AI | 1-channel face detection/recognition, 2-channel perimeter, 4-channel SMD Plus |
| Video Outputs | 1 HDMI up to 4K; 1 VGA up to 1080p |
| Playback | Up to 16 channels |
| Storage | 2 SATA ports; up to 20TB per compatible HDD |
| Network | 1 × RJ45 Gigabit Ethernet; ONVIF S/G/T, CGI and SDK |
| Alarm and Audio | 4 inputs, 2 outputs; 1 RCA input and 1 RCA output |
| Power | 12V DC, 4A; under 10W without HDD |
| Dimensions and Weight | 375 × 284.3 × 53mm; net 1.51kg |
The NVR has no built-in PoE switch; cameras need an external PoE switch or separate power. HDDs may be sold separately. Confirm approved drives, camera firmware, AI compatibility, bandwidth and warranty.
AI and decoding share processing resources. Third-party cameras may provide video while some Dahua-specific analytics, audio or configuration functions remain unavailable.
Choose this model when 32-channel capacity, two-disk storage and practical WizSense analytics are required in a compact recorder. It balances intelligent event search, 4K monitoring, high-resolution camera support and professional alarm integration.
| Model | Channels | Storage | Best For |
|---|---|---|---|
| DHI-NVR4232-EI | 32 | 2 HDD | Balanced 32-camera WizSense deployments |
| DHI-NVR4216-EI | 16 | 2 HDD | Smaller systems needing the EI feature set |
| DHI-NVR5232-EI | 32 | 2 HDD | Higher bandwidth, resolution and AI performance |
| DHI-NVR4432-EI | 32 | 4 HDD | Longer retention with additional drive bays |
It supports 32 IP cameras, subject to bandwidth and decoding limits.
Compatible network cameras up to 16MP are supported.
No. Use an external PoE switch or separately powered network cameras.
Two SATA surveillance HDDs can be fitted. Confirm drive compatibility before installation.
Recorder AI includes face detection and recognition, perimeter protection and SMD Plus with defined channel limits.
Yes. ONVIF and several named manufacturers are supported, but advanced functions should be tested for compatibility.
Yes. Remote viewing is available through supported iOS, Android, browser and Dahua client applications after secure network configuration.
Touch IT supplies original Dahua products and professional security equipment in Bangladesh. The team can help calculate camera bandwidth, HDD retention, PoE switching, display requirements and AI compatibility before deployment.
