DAHUA DH XVR4232AN-I 32 Channel Penta-brid 1080N/720P 1U 2HDDs WizSense Digital Video Recorder

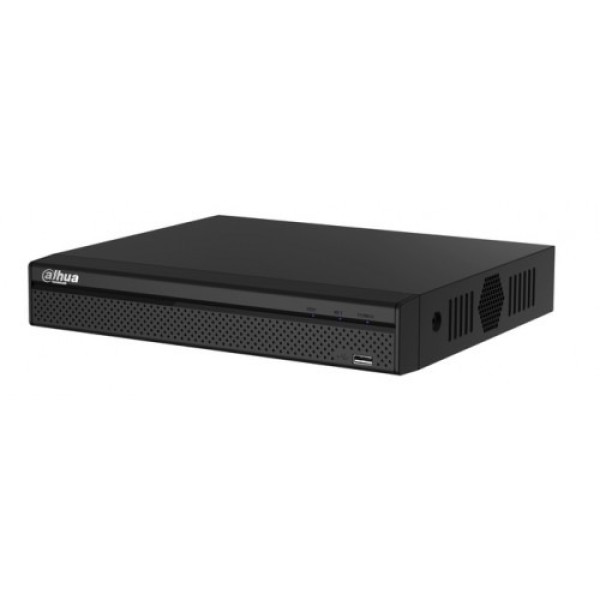

Dahua DH-XVR4232AN-I 32 Channel Penta-brid WizSense Digital Video Recorder

The Dahua DH-XVR4232AN-I is a 32-channel digital video recorder for factories, offices, warehouses and apartments. It combines Penta-brid compatibility, WizSense human and vehicle filtering, AI Coding and dual-HDD storage.

For buyers comparing the Dahua DH-XVR4232AN-I price in Bangladesh, the current Touch IT price is ৳24,800. This 32 channel DVR supports HDCVI, AHD, TVI, CVBS and IP video, 1080N/720p encoding, Smart H.265+ and mobile viewing. Confirm stock and warranty before ordering.

Quick Highlights

• Analog Inputs: 32 BNC channels with automatic format detection
• Penta-brid Support: HDCVI, AHD, TVI, CVBS and IP cameras
• WizSense AI: 32-channel recorder-side SMD Plus for human and vehicle filtering
• AI Coding: Supported on eight channels to reduce storage and bandwidth use
• IP Expansion: Up to 20 IP channels, each supporting up to 6MP
• Storage: Two SATA bays supporting up to 16TB per compatible HDD
• Connectivity: HDMI, VGA, TV output, Gigabit Ethernet, USB 2.0/3.0 and RS-485

Dahua DH-XVR4232AN-I Overview

This DVR lets businesses retain coaxial cameras while adding IP cameras during an upgrade. Its industrial-grade processor, embedded Linux platform and 32-camera capacity suit larger security installations.

Key Features and Benefits

32-Channel Penta-brid Camera Compatibility

The 32 BNC inputs automatically recognise HDCVI, AHD, TVI and CVBS signals, while IP access completes the Penta-brid design. This flexibility can reduce upgrade costs at mixed-camera sites. Browse the Dahua DVR camera range for other recording options.

WizSense SMD Plus Human and Vehicle Filtering

SMD Plus filters motion events for human and motor-vehicle targets, reducing alerts from rain, leaves or lighting changes. Recorder-side SMD Plus covers 32 analog channels; compatible camera-side intelligence supports up to 36 channels. Results depend on positioning and configuration.

Eight-Channel AI Coding and Smart Compression

Eight-channel AI Coding preserves target detail while lowering bandwidth and storage demand. Smart H.265+, H.265, Smart H.264+ and H.264 provide additional choices. Retention depends on resolution, bitrate, activity and recording schedule.

Flexible Analog and IP Camera Expansion

Four IP channels are available by default. Converting analog channels raises the maximum to 20 IP cameras at up to 6MP, with 128Mbps bandwidth. Added IP channels replace analog channels, and expansion beyond the default allocation disables recorder-side SMD.

Dual-HDD Storage for Longer Recording

Two SATA interfaces accept compatible hard drives up to 16TB each. General, alarm and motion recording modes organise footage. Instant, event, tag and smart playback aid investigation, with backup through USB or network.

Full HD Display and Remote CCTV Monitoring

HDMI and VGA support displays up to 1920 × 1080 with layouts up to 36 windows. Gigabit Ethernet, browser and Android or iOS access enable remote viewing. ONVIF Profiles S, G and T help integrate compatible IP cameras into a CCTV surveillance system.

Recommended Applications

• Factories, warehouses and distribution facilities
• Office buildings, corporate floors and commercial complexes
• Apartments, schools, hospitals and campuses
• Existing analog CCTV systems requiring intelligent upgrades

Technical Specifications

Verification Note

These specifications apply to hardware version 2.0. Dahua labels the model EOL, although Touch IT lists stock. HDDs are normally separate. Confirm revision, firmware, drive compatibility, adapter and warranty.

Why Choose This Dahua 32 Channel DVR?

Choose this model when a large analog installation needs human and vehicle filtering, efficient recording and gradual IP migration. It adds capacity without requiring an immediate move to an all-IP system.

Product Comparison and Related Products

Frequently Asked Questions

How many analog cameras can the XVR4232AN-I connect?

It has 32 BNC inputs for compatible HDCVI, AHD, TVI and CVBS cameras.

How many IP cameras does it support?

It provides four IP channels by default and up to 20 after analog-channel conversion, at up to 6MP each.

What does SMD Plus do?

It filters motion events for human and motor-vehicle targets, reducing environmental false alerts.

What is the maximum HDD capacity?

Two SATA bays support compatible drives up to 16TB each. HDDs are excluded unless stated otherwise.

Can I view cameras remotely?

Yes. It supports browser access and compatible iOS and Android mobile access over a configured network.

Does it support two-way audio?

Yes. Two-way talk shares the audio input with channel one. Camera and audio-device compatibility must be checked.

Does it provide 4K HDMI output?

No. HDMI and VGA output reach 1920 × 1080. Consider the related XVR5232AN-I3 when 4K monitor output is required.
