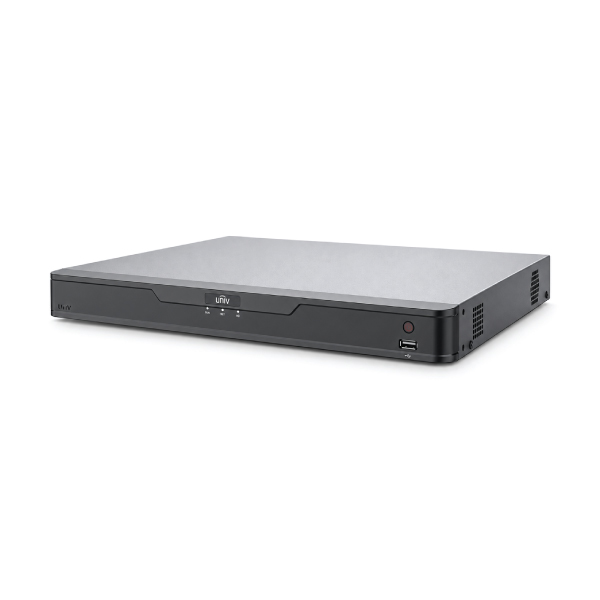

Uniview NVR304-32B-IQ 32-Channel 12MP 4-HDD NVR

Uniview NVR304-32B-IQ 32-Channel 12MP 4-HDD NVR

The Uniview NVR304-32B-IQ brings up to 32 compatible IP camera feeds into one network video recorder. Four HDD bays support a planned footage retention period across a large building.

Comparing the Uniview NVR304-32B-IQ price in Bangladesh? Touch IT lists it at ৳27,800. It records up to 12MP and provides 4K HDMI output. Plan separate camera power; this model has no built-in PoE ports.

Quick Highlights

• Camera input: Up to 32 compatible IP channels
• Recording: Supports resolutions up to 12MP per stream
• Storage: Four SATA hard-drive interfaces
• Bandwidth: 160Mbps incoming and 128Mbps outgoing
• Display: 4K HDMI plus simultaneous Full HD VGA
• Compression: Ultra 265, H.265 and H.264
• Local playback: Up to 16 channels synchronously
• Networking: Dual Gigabit LAN; no integrated PoE

Product Overview

This network video recorder centralises live feeds, event searches and recordings. Four bays offer more storage options than a two-bay NVR. Its Ethernet connections are network interfaces, not powered camera sockets; plan an external PoE switch or other camera power. For multi-floor sites, map each camera to a switch and calculate the combined video bitrate before installation.

Key Features and Benefits

32 IP Inputs with Practical Decoding Limits

Record up to 32 supported cameras within 160Mbps total incoming bandwidth. Maximum 12MP recording does not mean 32 high-resolution windows decode together. With smart analysis off, Uniview specifies two 12MP streams at 30fps, twenty 720p streams at 30fps or 32 D1 streams. Plan bitrates accordingly.

Four Bays for a Planned Recording Period

Four SATA interfaces provide room for a retention plan. Older reseller listings specify 10TB per HDD; Uniview's newer series sheet lists up to 24TB, subject to drive and temperature conditions. Confirm the supplied revision before buying large disks. Recording days depend on bitrates, schedules and activity.

4K Monitoring and Fast Local Review

HDMI reaches 3840 × 2160 at 30Hz; VGA reaches 1080p at 60Hz, with simultaneous output. A 32-window live view surveys the property. Local synchronous playback handles sixteen channels. Ultra 265 or H.265 can reduce storage demand with compatible streams.

Useful Analytics with Defined Conditions

Supported cameras contribute face, vehicle, intrusion and motion events. Recorder-side Smart Intrusion Prevention (SIP) handles up to two ordinary 2MP streams; Ultra Motion Detection (UMD) handles up to four in its mode. AcuSearch/AcuTrack needs suitable Uniview SIP/UMD cameras. Analyzer modes cannot all run simultaneously.

Connectivity, Audio and Recovery

Dual Gigabit LAN and RTSP aid network integration. Third-party video support does not guarantee smart events. RCA input and output support one-channel two-way audio. Configured ANR can fill a network recording gap after reconnection when compatible cameras have local storage.

Recommended Applications

• Monitoring entrances, lifts and parking across a Dhaka apartment building
• Recording gates, corridors and classrooms at a school or campus
• Covering factory production areas, stores and loading points
• Managing cameras across office floors, retail spaces and warehouses

Explore CCTV surveillance solutions and plan camera placement, PoE switching and retention together.

Technical Specifications

Before ordering: Confirm whether HDDs are included, the exact compatible drive sizes and the warranty for the supplied unit.

Uniview 32-Channel NVR Product Comparison

Compare Uniview NVR models by camera count, resolution, drive space and power requirements.

Frequently Asked Questions

How many IP cameras can the NVR304-32B-IQ record?

Up to 32 compatible IP cameras, provided their combined streams fit within 160Mbps incoming bandwidth.

Does it power cameras through PoE?

No. Use an appropriately sized external PoE switch or another supported camera power arrangement.

Can it display 32 cameras in 12MP at once?

No. It accepts up to 12MP recording streams, but simultaneous decoding is more limited. A 32-window view uses lower-resolution streams.

How many hard drives fit inside?

Four SATA HDDs. Confirm the included drives, if any, and compatibility before installation.

What is the maximum capacity per HDD?

Older listings specify 10TB. Uniview's newer series sheet lists up to 24TB under conditions, including an ambient temperature no warmer than 40°C for that maximum. Verify the supplied revision.

Can I review all 32 channels together?

Local synchronous playback supports up to sixteen channels. Select another group for further review.

Do smart searches work with every camera?

No. Available events depend on the camera, firmware and selected analyzer mode; AcuSearch/AcuTrack requires suitable Uniview cameras.

Can I watch the system remotely?

Remote viewing requires network access and a configured, compatible viewing application. Secure the recorder with strong credentials.

Why Buy from Touch IT?

Touch IT serves Dhaka and customers across Bangladesh. Share your camera list and retention target to check bandwidth and HDD sizing. Browse matching Uniview products for your installation.

Order the Uniview NVR304-32B-IQ

Bring a larger installation under one recording system with the Uniview NVR304-32B-IQ 32-Channel NVR. Confirm stock, supported HDD capacity, separate camera power and warranty with Touch IT before checkout.
