| Main Features | ||
| Display | N/A | |
| LED Indicator | Supported (Status indication for passage and operation) | |
| Audio Indicator | Supported (Basic buzzer alerts) | |
| Visual Indicator | Supported (LED directional signals) | |
| Lane Type | Flap Barrier Lane (Retracting type) | |
| Lane Height | Standard waist height design (~980 mm) | |
| Barrier Material | Acrylic | |
| Barrier Movement | Retracting | |
| Motor | High-performance DC motor | |
| Movement Speed | 0.8 seconds opening time | |
| Movement Accuracy | High precision controlled movement | |
| Cabinet Material | SUS304 Stainless Steel | |
| Clutch | Mechanical anti-collision clutch system | |
| Lid Material | SUS304 Stainless Steel | |
| Lid Options Authentication Methods | Supports integration with RFID / Fingerprint / QR / Face Recognition (optional external devices) | |
| IR Sensors | Multiple infrared sensors for anti-tailgating & safety detection | |
| Chassis Material | SUS304 Stainless Steel | |
| Chassis Color | Standard Stainless Steel Finish | |
| Emergency Mode | Supported (Barrier retracts automatically during emergency or power failure) | |
| Motherboard Function | Access control management, passage authorization, alarm control | |
| Motherboard Communication | RS485 / TCP/IP (depending on controller integration) | |
| Controller | Integrated access controller compatible with third-party systems | |
| Credential Options | Card / Fingerprint / Face / QR Code (optional integration) | |
| Flow Rate | Up to 30 people per minute | |
| Accessibility | Up to 30 people per minute | |
| MCBF | 2 Million cycles | |
| Accessories | Optional card reader, biometric devices, QR scanner | |
| Physical Specification | ||
| Power Supply | AC100 ~ 120V / 200 ~ 240V, 50/60Hz | |
| Power Rating | Standard operational power consumption (low energy design) | |
| Fire Signal | Supported (Auto open/retract on fire alarm signal) | |
| Noise Level | ≤30 dB | |
| MTTR | Low (modular design for easy maintenance) | |
| Lane Width (mm) | 600 mm | |
| Footprint (mm*mm) | 1360 × 280 mm | |
| Dimensions ( L*W*H ) | 1360 × 280 × 980 mm | |
| Dimensions of Product Parts with Packaging ( L*W*H ) | Approx. 1500 × 400 × 1100 mm | |
| Net Weight (kg) | Approx. 70–80 kg (estimated) | |
| Weight with Packing (kg) | Approx. 90–100 kg (estimated) | |
| Operating Temperature | -20°C ~ 70°C | |
| Operating Humidity | 5% ~ 90% (non-condensing) | |
| Ingress Protection Rating | IPX4 (sheltered outdoor use) | |
| Operating Environment | Indoor / Outdoor (under shelter) | |
| Speed of Throughput | 30 persons per minute | |
| Supported Software | ZKTeco Access Control Software / Third-party integration | |
| Safety Features | Anti-pinch, anti-tailgating, emergency auto-open | |
| Security Features | Unauthorized access alarm, direction control, intrusion detection | |
| Product Delivery | Standard factory packaging with accessories | |
| Application Environment | Office buildings, banks, airports, factories, metro stations | |
| Site Preparation | Flat surface, power supply, network connectivity (if integrated) | |
| Certifications | CE, FCC (typical for ZKTeco devices) | |
| Packing Material | Wooden case / reinforced carton | |
| Manufacture Warranty | ||
| Warranty | 1-Year | |

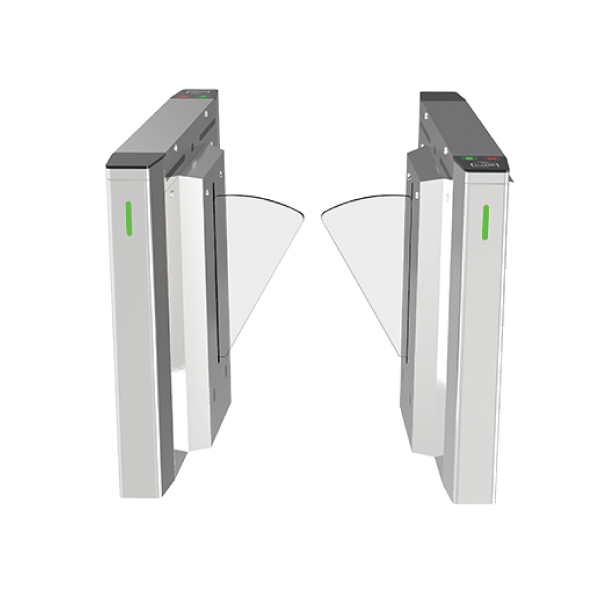

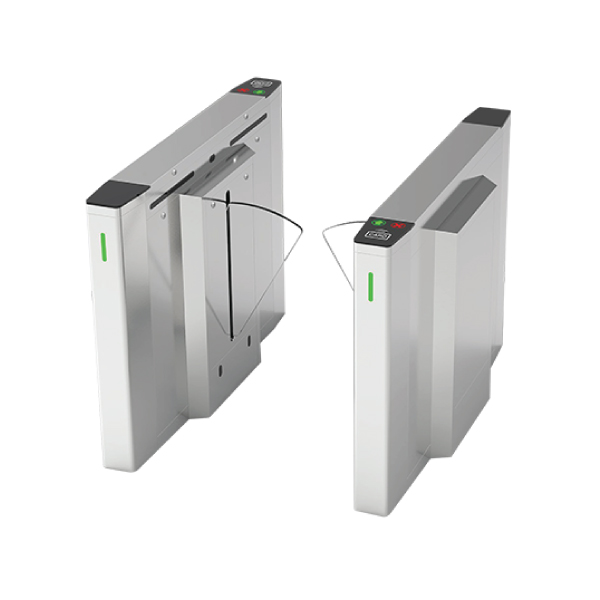

The ZKTeco FBL500 Single Lane Flap Barrier Turnstile is a modern and reliable Security System, Time Attendance & Access Control solution designed to manage pedestrian access efficiently in high-traffic environments. Built with premium SUS304 stainless steel, this turnstile ensures long-lasting durability and stable performance, making it ideal for offices, banks, factories, government buildings, metro stations, and corporate facilities across Bangladesh.
The ZKTeco FBL500 features a retractable acrylic barrier system that provides smooth and fast operation with an opening time of just 0.8 seconds. With a throughput capacity of up to 30 people per minute, it ensures efficient crowd management while maintaining a secure Time Attendance & Access Control system. The intelligent barrier mechanism reduces congestion and improves user flow, making it perfect for busy entry points.
Constructed with SUS304 stainless steel cabinet and lid material, the FBL500 offers exceptional durability and resistance to wear and tear. It is equipped with high-quality electrical components and boasts an impressive MCBF (Mean Cycles Between Failures) of 2 million cycles, ensuring long-term reliability. This robust design makes it a dependable Security System for both indoor and sheltered outdoor environments.
The FBL500 is designed with advanced safety features to ensure user protection. The barriers automatically retract during emergencies and power outages (when backup battery is installed), allowing free passage and preventing accidents. With low operating noise (≤30dB) and smooth movement, it provides a safe and comfortable user experience while maintaining high security standards.
This flap barrier turnstile supports built-in reader integration and is compatible with RFID, biometric, and card-based systems, enabling seamless connection with your existing Security System, Time Attendance & Access Control infrastructure. Factory-tested components ensure true plug-and-play installation, reducing deployment time and overall operational cost.
The ZKTeco FBL500 supports a lane width of 600mm and includes LED indicators for clear access status. It operates efficiently within a wide temperature range of -20°C to 70°C and humidity levels of 5% to 90% (non-condensing). With flexible power requirements (AC100–120V / 200–240V), it delivers stable performance in various environments, making it a versatile and scalable access control solution.
