In Stock
| Main Features | ||
| LED Indicator | Supported | |
| Visual Indicator | LED Indicator Supported | |
| Lane Type | Flap Barrier Lane | |
| Lane Width | 600 mm, Optional 920 mm | |
| Lane Height | 1010 mm | |
| Barrier Material | Acrylic | |
| Barrier Movement | Retracting | |
| Cabinet Material | SUS304 Stainless Steel | |
| Lid Material | SUS304 Stainless Steel | |
| Lid Options Authentication Methods | RFID / Fingerprint, Configuration Dependent | |
| Chassis Material | SUS304 Stainless Steel | |
| Emergency Mode | Supported | |
| Security Level | Medium | |
| Credential Options | RFID Card / Fingerprint | |
| Flow Rate | RFID: Max. 30 Users/Minute; Fingerprint: Max. 25 Users/Minute | |
| Accessibility | Standard 600 mm Lane; Optional 920 mm Wider Lane | |
| MCBF | 2 Million Cycles | |
| Physical Specification | ||
| Power Supply | AC 100–120V / 200–240V, 50/60Hz | |
| Lane Width (mm) | 600 mm, Optional 920 mm | |
| Footprint (mm*mm) | 1350 × 840 mm, Optional 1350 × 1175 mm | |
| Dimensions ( L*W*H ) | 1350 × 300 × 1010 mm, Optional 1350 × 480 × 1010 mm | |
| Dimensions of Product Parts with Packaging ( L*W*H ) | 1500 × 840 × 1100 mm, Optional 1500 × 1160 × 1100 mm | |
| Net Weight (kg) | 72 kg, Optional 115 kg | |
| Weight with Packing (kg) | 106 kg, Optional 135 kg | |
| Operating Temperature | -28°C to 60°C | |
| Operating Humidity | 5% to 80% RH | |
| Operating Environment | Indoor / Outdoor, If Sheltered | |
| Speed of Throughput | RFID: Max. 30/Minute; Fingerprint: Max. 25/Minute | |
| Application Environment | Entrance Control, Office, Commercial and Secured Access Areas | |
| Manufacture Warranty | ||
| Warranty | 1 Year | |

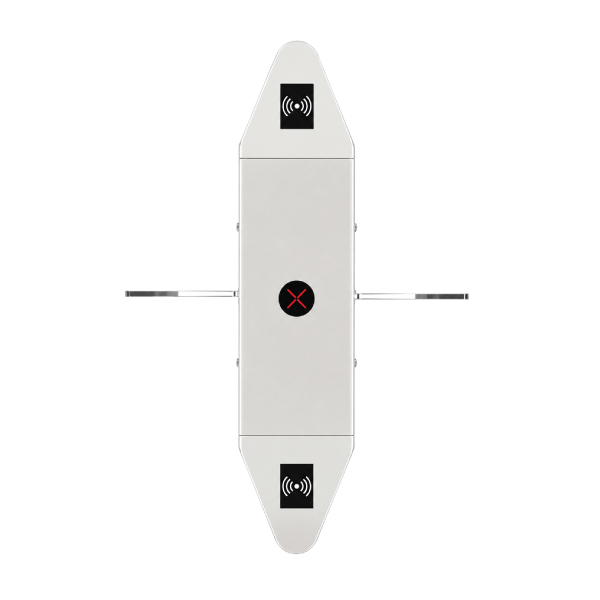

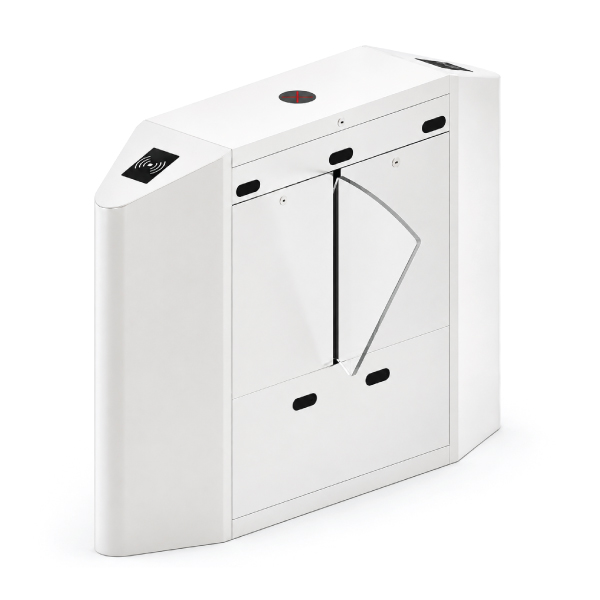

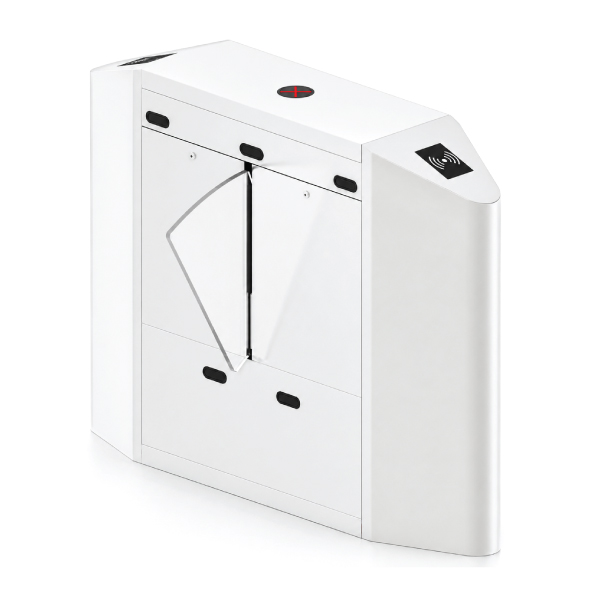

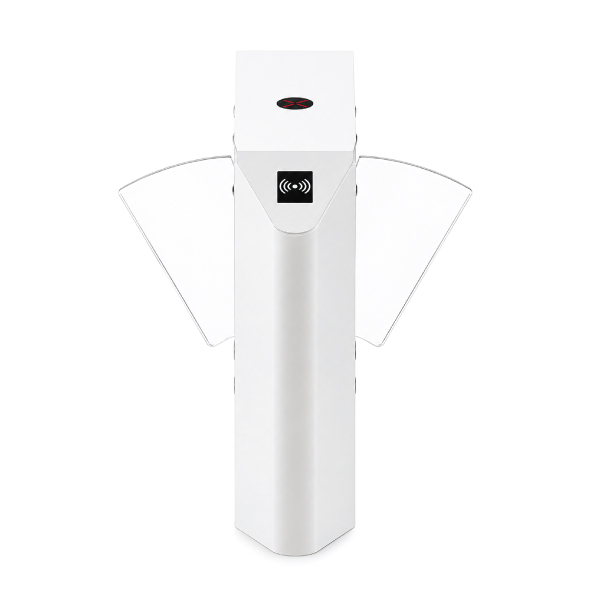

The ZKTeco FBL4200 Pro Additional Lane Series Flap Barrier expands a compatible FBL4000 Pro installation with another pedestrian passage. Suitable for offices, factories, banks, educational institutions and government buildings, it combines a retracting acrylic barrier, stainless-steel construction and LED guidance in a compact lane-building unit.
Organizations comparing the ZKTeco FBL4200 Pro price in Bangladesh should note that this is an additional-lane model rather than a complete standalone entrance. The current price at Touch IT is ৳190,000. Confirm the main gate, reader and controller configuration, required lane width, power-failure arrangement, civil work and installation scope before ordering.
The FBL4200 Pro works beside a compatible main gate to create another passage in a multi-lane layout. After the access system approves a user, the barrier retracts and returns to its controlled position. Its narrower footprint suits lane expansion rather than standalone operation.
The FBL4200 Pro extends the FBL4000 Pro series when more than one passage is needed. It adds pedestrian capacity while maintaining a consistent entrance appearance. Browse compatible options in the Flap Barrier category.
ZKTeco publishes throughput of up to 30 people per minute with RFID authentication and 25 people per minute with fingerprint verification. These rates describe a correctly configured system with the relevant reader. Actual movement depends on credential type, user familiarity, lane arrangement and access-control settings.
The cabinet and lid use SUS304 stainless steel for dependable daily operation and a professional appearance in modern reception areas. The standard acrylic flap retracts smoothly to clear the passage after authorization. Explore the ZKTeco Products page for related readers, controllers and entrance-control equipment.
Emergency mode supports unrestricted passage when the system is triggered. Automatic barrier retraction during a power outage requires the appropriate capacitor-board configuration, which must be planned with the installer. The LED indicator gives users a clear visual guide. See broader integrated options under Security System Solutions.
The published standard lane width is 600mm, while an optional 920mm configuration is available for projects requiring additional clearance. The unit supports indoor or sheltered outdoor installation and should not be left directly exposed to weather. For layered entrance screening, visit the Security Inspection section.
| Product Name | ZKTeco FBL4200 Pro Additional Lane Flap Barrier |
|---|---|
| Configuration | Additional-lane unit for the FBL4000 Pro series |
| Power Requirement | AC 100–120V or 200–240V, 50/60Hz |
| Throughput | RFID: maximum 30/minute; fingerprint: maximum 25/minute |
| Lane Width | 600mm standard; 920mm optional |
| Footprint | 1350 × 840mm; optional 1350 × 1175mm |
| Product Dimensions | 1350 × 300 × 1010mm; optional 1350 × 480 × 1010mm |
| Net Weight | 72kg; optional configuration 115kg |
| Cabinet and Lid | SUS304 stainless steel |
| Barrier Material | Acrylic |
| Barrier Movement | Retracting |
| LED Indicator | Supported |
| Emergency Mode | Supported |
| Reliability | MCBF of two million cycles |
| Operating Environment | -28°C to 60°C; 5%–80% humidity; indoor or sheltered outdoor |
Verification note: FBL4200 Pro is the base additional-lane model and does not list an included access controller or authentication reader. FBL4211 adds a controller and RFID reader, while FBL4222 adds a controller with fingerprint and RFID readers. The main FBL4000-series gate, readers, controller, software, capacitor board, optional 920mm configuration, cabling, civil work and installation depend on the ordered project package.
This model is a practical choice for expanding an FBL4000 Pro installation without buying another complete single-lane gate. Its compact footprint, matching SUS304 construction, retracting barrier, emergency support and two-million-cycle MCBF help create a consistent multi-lane entrance. Correct compatibility and layout planning remain essential before purchase.
| Model | Configuration | Best For |
|---|---|---|
| FBL4200 Pro | Base additional-lane unit | Expanding a compatible FBL4000 Pro layout |
| ZKTeco FBL4000 Pro | Base complete single-lane gate | Starting a new entrance lane |
| ZKTeco FBL4022 Pro | Single lane with controller, fingerprint and RFID | Integrated biometric entrance projects |
| ZKTeco FBL720 | FBL700-series lane builder | Expanding a compatible FBL700 installation |
No. It is an additional-lane component intended to work with a compatible FBL4000 Pro-series installation.
No reader is specified for the base model. FBL4211 includes RFID, while FBL4222 includes fingerprint and RFID readers.
The standard passage is 600mm. ZKTeco also publishes an optional 920mm configuration.
The published maximum is 30 users with RFID or 25 users with fingerprint verification per minute.
It supports indoor or sheltered outdoor use. Direct weather exposure requires suitable protection and professional assessment.
Emergency mode retracts the barrier. Power-outage operation requires the appropriate capacitor-board configuration.
Professional installation is strongly recommended for correct alignment, floor preparation, power, controller integration and emergency operation.
Touch IT supplies entrance-control solutions in Bangladesh with site planning, installation and after-sales support. The team can verify the main gate, lane quantity, reader package, controller, power and accessories before deployment.
Expand your pedestrian entrance with the ZKTeco FBL4200 Pro Additional Lane Series Flap Barrier. Order from Touch IT, visit ECS Computer City Center, Level 3, Shop 312, New Elephant Road, Dhaka-1205, or call 01711664030 for project consultation.
The latest price of ZKTeco FBL4200 Pro Flap Barrier in Bangladesh is 190,000৳. You can buy the ZKTeco FBL4200 Pro Flap Barrier at best price from our website or visit any of our showrooms.
