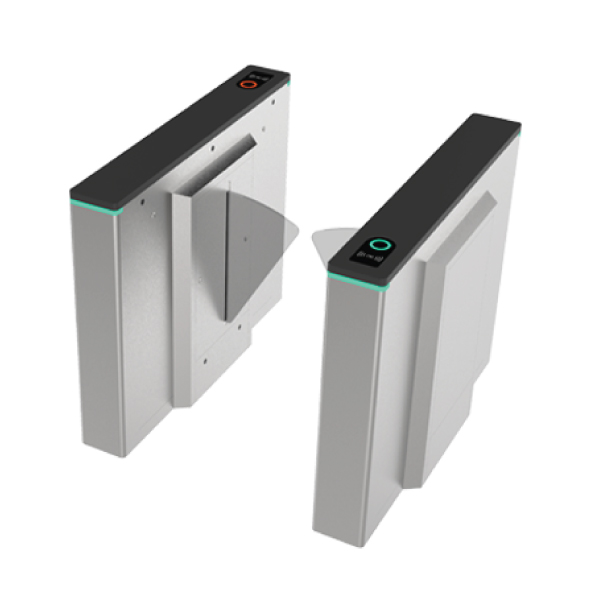

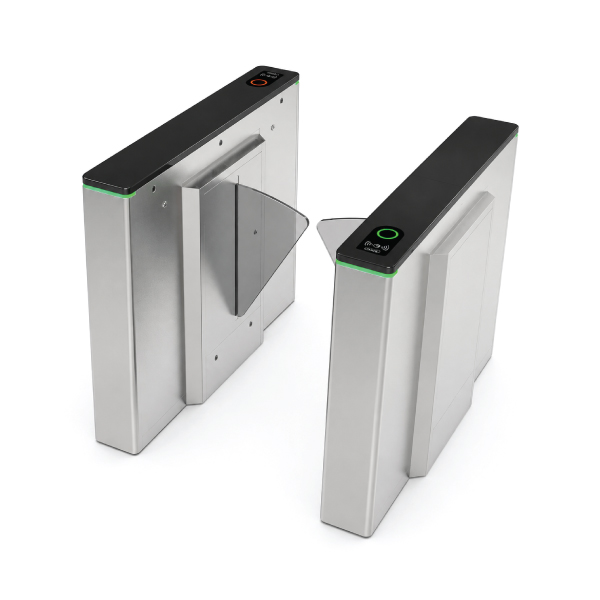

ZKTeco FBL700 Single Lane Flap Barrier

ZKTeco FBL700 Single Lane Flap Barrier

The ZKTeco FBL700 Single Lane Flap Barrier is a professional pedestrian turnstile for offices, factories, banks, educational institutions, gyms and government facilities. Its retracting acrylic barriers, 600 mm passage and stainless-steel cabinet provide orderly access management with a modern appearance.

For buyers comparing the ZKTeco FBL700 price in Bangladesh, the current price at Touch IT is ৳210,000. This model supports up to 30 people per minute, quiet operation, emergency retraction and integration with selected RFID card or fingerprint readers. Confirm the supplied reader, controller, backup battery, software, installation and warranty before ordering.

Quick Highlights

• Model: ZKTeco FBL700
• Configuration: Single-lane flap barrier turnstile
• Lane Width: 600 mm
• Throughput: Up to 30 people per minute
• Opening Time: 0.8 second
• Construction: SUS304 cabinet with retracting acrylic barriers
• Operation: LED indicator, LCD control board and emergency mode
• Reader Options: RFID card or fingerprint, configuration-dependent

ZKTeco FBL700 Overview Summary

The FBL700 keeps its flaps closed until a connected reader or controller validates a user. Its compact cabinet, direction indicator and quiet movement suit receptions and customer-facing entrances.

Key Features & Benefits

Fast Single-Lane Pedestrian Flow

A 600 mm lane and throughput of 30 people per minute support staff and visitor movement. The 0.8-second opening helps reduce queues. Browse other configurations in the Flap Barrier category.

Durable Stainless-Steel Cabinet

The cabinet uses SUS304 stainless steel, while the lid is SPCC with black baking paint. Retracting acrylic wings create a modern profile, and smooth surfaces with concealed fasteners support safer interaction.

Emergency and Power-Failure Operation

ZKTeco states that the barriers retract automatically during an emergency. They can also retract during a power outage when the appropriate battery is installed. Emergency behaviour, fire-alarm connection and backup-power duration must be tested during commissioning for the actual project configuration.

Card or Fingerprint Reader Integration

The FBL700 integrates with a selected RFID card or fingerprint reader. Reader capacities, controller functions and software depend on the package. Explore compatible equipment on the ZKTeco Products page.

Quiet and User-Friendly Control

Opening noise is rated at no more than 30 dB, helping the gate fit reception areas and indoor lobbies. An LED indicator guides pedestrians, while the LCD on the turnstile control board assists authorized technicians with setup, diagnostics and operating adjustments.

Safety-Oriented Passage Management

The user manual describes infrared sensing, anti-pinch settings, unauthorized-entry alarms and direction indication. Correct positioning, access permissions and regular testing remain important. Combine the gate with suitable Security Inspection Solutions or plan a broader deployment under Security System Solutions.

Business & Industry Applications

• Corporate offices and commercial-building receptions
• Factories, warehouses and employee entrances
• Banks, financial institutions and data centres
• Universities, colleges and training centres
• Gyms, clubs and membership-based facilities
• Government offices and controlled public buildings

Technical Specifications

Verification note: The ZKTeco India product page and product datasheet publish an MCBF of 5 million cycles, while the 2022 FBL700 Series user manual lists 2 million. Confirm the supplied production version before treating either figure as contractual. RFID or fingerprint readers, controller, battery, software, mounting hardware, installation and warranty depend on the Touch IT package.

Why Choose the ZKTeco FBL700?

This model balances pedestrian flow, access restriction and modern styling. Its slim 300 mm cabinet, 600 mm lane, quiet operation and reader flexibility suit controlled entrances. Wider accessible lanes may require another model.

Product Comparison

Frequently Asked Questions

How wide is the FBL700 passage?

The published lane width is 600 mm. Confirm user-accessibility requirements and available floor space during planning.

How many people can pass per minute?

ZKTeco lists a maximum throughput of 30 people per minute under suitable operating conditions.

Does the FBL700 include an RFID or fingerprint reader?

The series supports selected card or fingerprint reader integration, but the included reader depends on the ordered configuration.

What happens during an emergency?

The barriers support automatic emergency retraction. Fire-alarm integration and release behaviour must be configured and tested on site.

Can it open during a power failure?

Yes, when the appropriate backup battery is installed. Confirm whether the battery is included in the supplied package.

Is the FBL700 suitable for outdoor installation?

The specification lists indoor/outdoor operation, but shelter, drainage and environmental exposure should be reviewed for the installation site.

Can it connect with access-control software?

Yes, through the selected reader and controller. Available users, events and software functions depend on those connected components.
