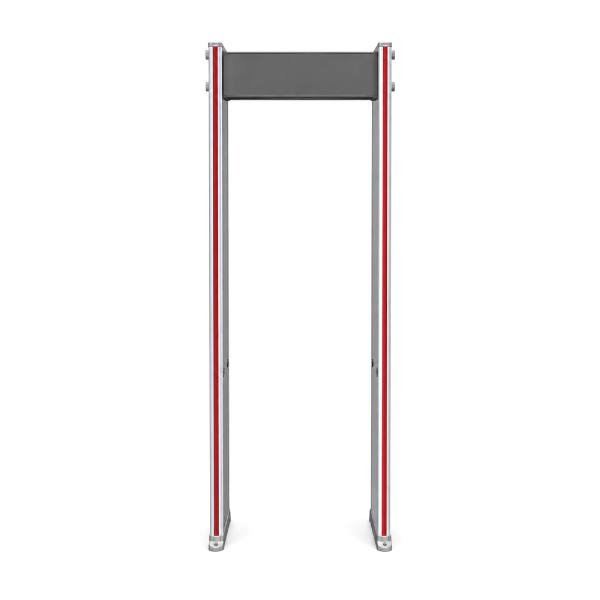

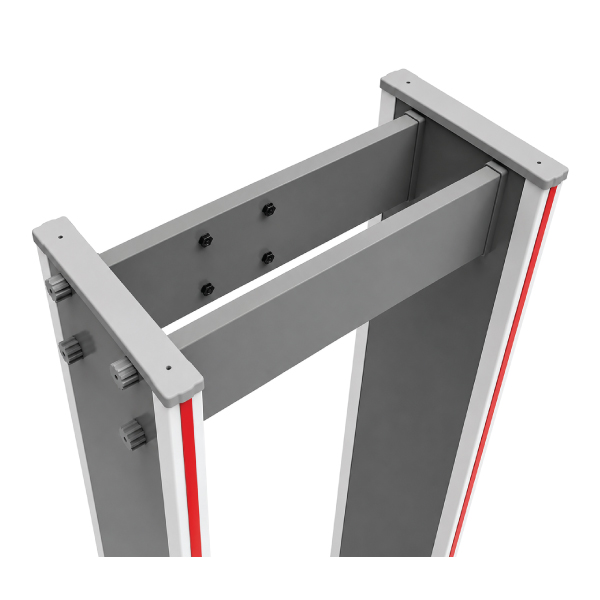

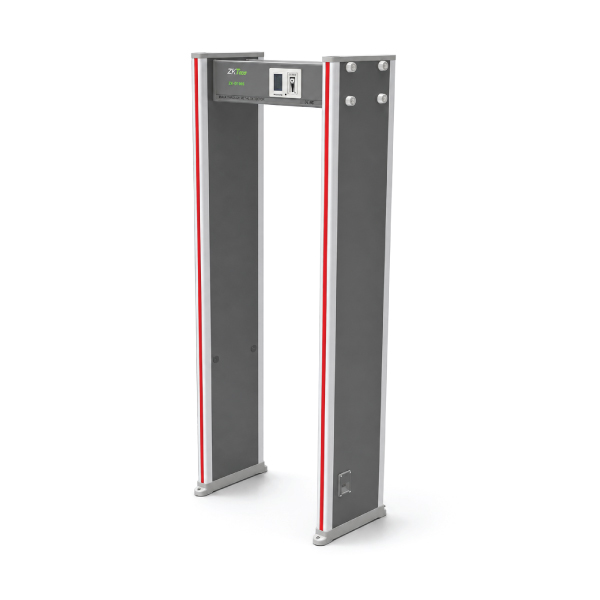

ZKTeco ZK-D1065 6-Zone Walk-Through Metal Detector

ZKTeco ZK-D1065 6-Zone Walk-Through Metal Detector

The ZKTeco ZK-D1065 6-Zone Walk-Through Metal Detector is an indoor screening gate for offices, factories, schools, hospitals, government facilities and event venues. It combines multi-zone detection, adjustable sensitivity, visual indicators, audible alerts and people counting in an easy-to-operate archway system.

For organizations comparing the ZKTeco ZK-D1065 price in Bangladesh, the current Touch IT price is ৳68,000. The latest manufacturer specification supports selectable 6, 12 or 18-zone modes, 500 sensitivity levels and throughput above 40 people per minute. Confirm the supplied version, installation and warranty before ordering.

Quick Highlights

• Model: ZKTeco ZK-D1065
• Product Type: Walk-through metal detector gate
• Detection Zones: Selectable 6, 12 or 18-zone modes
• Sensitivity: 500 adjustable levels
• Channels: 100 operating channels
• Display and Control: Colour display with four physical keys
• Alarm: Synchronous sound and bilateral red LED indication
• Throughput: More than 40 people per minute
• Operation: Designed for continuous 24/7 indoor use

ZKTeco ZK-D1065 Overview Summary

The ZK-D1065 creates a structured screening point at a controlled entrance. It detects ferrous and non-ferrous metallic objects and indicates the relevant vertical area through LEDs on both panels. Infrared detection supports passage counting, while configurable zones suit different site policies. Explore other models in the Metal Detector category.

Key Features & Benefits

Selectable Multi-Zone Detection

The current specification allows 6, 12 or 18-zone operation. Multiple vertical zones indicate the approximate position of a detected metallic item, helping personnel conduct more focused follow-up screening.

500 Sensitivity Levels and 100 Channels

Five hundred sensitivity levels support different screening policies, while 100 channels help reduce interference when compatible detectors operate nearby. Settings should be tested under the site’s approved procedures. Browse more equipment on the ZKTeco Products page.

Clear Sound and LED Alarm Guidance

Red LEDs on both door panels indicate the detection area. Six alarm tones and volume levels from 0 to 6 provide audible notification up to a published 80dB maximum.

High-Throughput Entrance Screening

Published throughput exceeds 40 people per minute. Two infrared groups support passage detection and separate entry and exit counting. Actual performance depends on queue management and screening procedures.

Automatic Setup and Self-Diagnosis

Automatic sensitivity and channel configuration simplify setup, while self-diagnosis helps check system status. Detection choices include automatic and infrared modes. For checkpoint planning, visit Security Inspection Solutions.

Efficient Continuous Indoor Operation

The detector consumes 16W and accepts AC 100–240V through its DC power arrangement. ZKTeco lists continuous 24/7 capability. Its flame-retardant ABS polymer, fibreboard and PVC enclosure supports indoor deployment.

Business & Industry Applications

• Corporate offices and commercial buildings
• Factories, warehouses and industrial entrances
• Schools, universities and examination venues
• Hospitals and diagnostic facilities
• Government offices and financial institutions
• Hotels, exhibitions and organized events

Technical Specifications

Verification note: Older regional literature describes a fixed six-zone version with 100 sensitivity levels and different dimensions. ZKTeco’s current page and 2025 datasheet specify selectable 6/12/18-zone modes, 500 sensitivity levels and the values above. Confirm the supplied configuration before purchase.

Why Choose the ZKTeco ZK-D1065?

The ZK-D1065 balances configurable detection, clear alerts and high pedestrian throughput. It suits organizations needing more location detail than a single-zone gate. Explore coordinated entrance protection under Security System Solutions.

Product Comparison

Frequently Asked Questions

Is the ZK-D1065 limited to six detection zones?

The current global specification supports selectable 6, 12 and 18-zone modes. Older regional versions may be fixed at six zones, so verify the supplied unit.

How many sensitivity levels are available?

The current model provides 500 sensitivity levels. Configuration should follow the organization’s approved screening policy.

How quickly can people pass through the detector?

ZKTeco publishes throughput exceeding 40 people per minute, although real performance depends on local screening procedures.

Does it count people entering and leaving?

Yes. The infrared detection system supports separate counting of incoming and outgoing passages.

Can it operate continuously?

Yes. ZKTeco specifies estimated 24/7 operating capability when the detector is correctly installed and maintained.

Is the ZK-D1065 suitable for outdoor installation?

No. The current manufacturer specification identifies it as an indoor product and does not publish an IP protection rating.

Does it support network monitoring or remote control?

No. The current standard specification lists no network interface and no remote control. Consider a higher model if centralized monitoring is required.

Why Buy from Touch IT?

Touch IT supplies professional security inspection products in Bangladesh with product consultation, site planning, installation guidance, configuration assistance and after-sales technical support. The team can help confirm the correct detector version, power requirements and entrance layout before deployment.

Order the ZKTeco ZK-D1065 Today

Improve entrance screening with selectable multi-zone detection, clear sound and LED alerts, people counting and efficient continuous operation. Order the ZKTeco ZK-D1065 6-Zone Walk-Through Metal Detector from Touch IT, visit Room 312, Level 3, ECS Computer City Center (Multiplan Center), 69–71 New Elephant Road, Dhaka-1205, or call 01711664030.
