| Main Features | ||
| Display | N/A | |
| LED Indicator | Blue: Standby Green: Access Granted Red: Alarm / Error |
|
| Audio Indicator | Buzzer | |
| Visual Indicator | LED status indicator (Blue / Green / Red) | |
| Lane Type | Single lane (Bi-directional entry/exit supported) | |
| Lane Width | 550 mm | |
| Barrier Material | SUS304 Stainless Steel (Tripod Arms) | |
| Barrier Movement | SUS304 Stainless Steel (Tripod Arms) | |
| Movement Speed | N/A | |
| Movement Accuracy | N/A | |
| Cabinet Material | Cold-rolled SPCC Steel (GB700) with powder coating finish | |
| Clutch | N/A | |
| Lid Material | Polycarbonate + 2.5D tempered glass | |
| Lid Options Authentication Methods | RFID Facial Recognition QR Code (Dynamic / Static) |
|
| IR Sensors | N/A | |
| Chassis Material | Cold-rolled SPCC Steel (GB700) | |
| Chassis Color | Pearl White (PWH) | |
| Emergency Mode | Drop arm during power outage or fire alarm | |
| Security Level | Middle | |
| Tripod Rod Material | SUS304 Stainless Steel | |
| Motherboard Function | System mode configuration, Access mode configuration | |
| Motherboard Communication | Fire alarm relay port ×1, RS485 port ×1 | |
| Controller | Compatible with C3 Series, InBio Series Third-party controllers (depends on chassis space) |
|
| Credential Options | Post-mount Facial Device: G4 Pro Under-mount QR Reader: QR500 Under-mount RFID Reader: ProID10 |
|
| Flow Rate | Face: 15 passengers/min RFID: 25 passengers/min QR Code: 25 passengers/min |
|
| Accessibility | N/A | |
| Physical Specification | ||
| Power Supply | AC 110V–220V, 50/60Hz DC 12V |
|
| Power Rating | Operating: 40W Standby: 10W |
|
| Fire Signal | Input for voltage-free contact | |
| Noise Level | < 65 dB | |
| Dimensions ( L*W*H ) | 1200 × 734 × 1020 mm | |
| Dimensions of Product Parts with Packaging ( L*W*H ) | 1300 × 305 × 1106 mm | |
| Net Weight (kg) | 25 kg | |
| Security Level | Middle | |
| Operating Temperature | -20°C to 70°C | |
| Operating Humidity | 20% to 80% RH (Non-condensing) | |
| Ingress Protection Rating | Equivalent to IPX4 (self-laboratory tested) | |
| Operating Environment | Indoor / Outdoor (If sheltered) | |
| Speed of Throughput | Face: 15 PPM, RFID: 25 PPM, QR Code: 25 PPM | |
| Supported Software | ZKBio CVAccess ZKBio CVSecurity (Compatible only when paired with a control panel) |
|
| Safety Features | Auto drop arm during power failure Emergency response alarm |
|
| Security Features | Anti-tailgating | |
| Product Delivery | Pre-assembled | |
| Application Environment | Indoor / Outdoor (sheltered) | |
| Site Preparation | Flat & level finished floor Optional base plate for unfinished floor |
|
| Certifications | CE, FCC | |
| Packing Material | Carton box | |
| Manufacture Warranty | ||
| Warranty | 1 Year | |

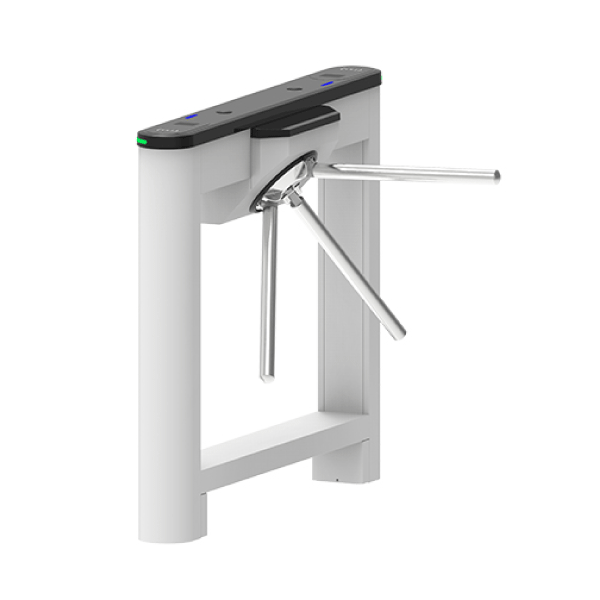

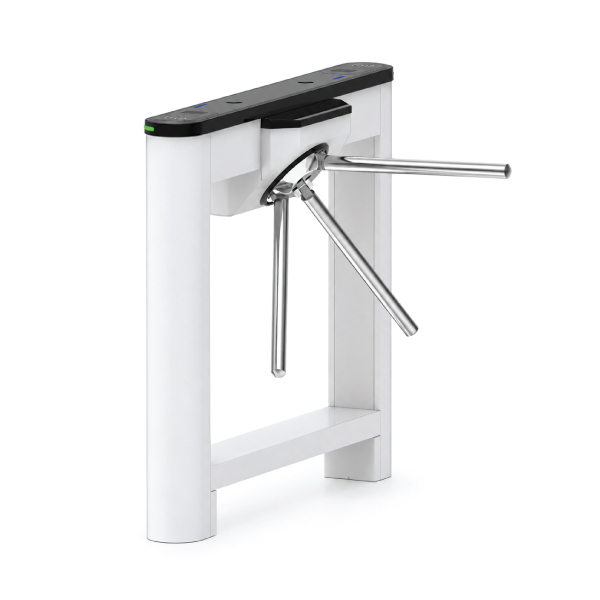

The ZKTeco Saturn-T1000 Drop-Arm Tripod Turnstile is a value-focused pedestrian entrance control solution for offices, factories, educational institutions, commercial buildings and transport facilities. Its single-lane, bi-directional rotating mechanism organizes entry and exit while supporting access controllers and optional authentication readers.
For organizations comparing the ZKTeco Saturn-T1000 price in Bangladesh, the current price at Touch IT is ৳72,000. It offers a 550mm passage, powder-coated steel cabinet, SUS304 stainless-steel arm, LED and buzzer indicators, anti-tailgating support and automatic drop-arm operation during power or fire-alarm emergencies.
The Saturn-T1000 creates a controlled pedestrian passage in a compact and modern format. After receiving an approved signal from a connected access controller, the tripod allows one person to pass before returning to its controlled position. Configurable direction modes support entry-only, exit-only or bi-directional movement for different employee and visitor workflows.

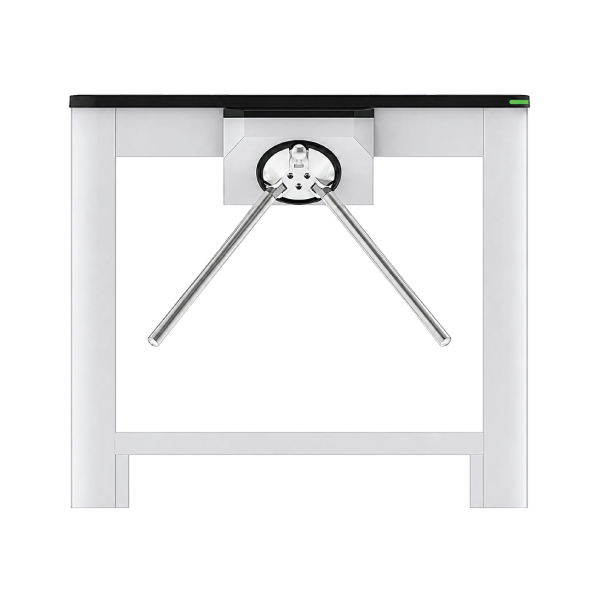

The rotating three-arm mechanism supports controlled entry and exit through one 550mm lane. This layout helps organize pedestrian movement, reduce unauthorized passage and manage queues at reception areas, factory entrances and other monitored locations.
With suitable optional readers, ZKTeco publishes throughput rates of up to 25 persons per minute for RFID cards, 25 persons per minute for QR codes and 15 persons per minute for face recognition. Actual performance depends on user behaviour, reader placement and system configuration. Browse compatible terminals and controllers under ZKTeco Access Control.
During a power failure or connected fire-alarm event, the tripod arm drops automatically to open the passage for evacuation. A voltage-free fire-signal input supports integration with a compatible emergency system. The drop-arm response and evacuation path should be tested during commissioning.
The cabinet is manufactured from GB700 cold-rolled SPCC steel with a powder-coated pearl-white finish. Its tripod rod uses SUS304 stainless steel for durability, while the polycarbonate and 2.5D tempered-glass lid provides a clean appearance for modern entrances. Explore other pedestrian entrance solutions in the Access Control and Time Attendance category.

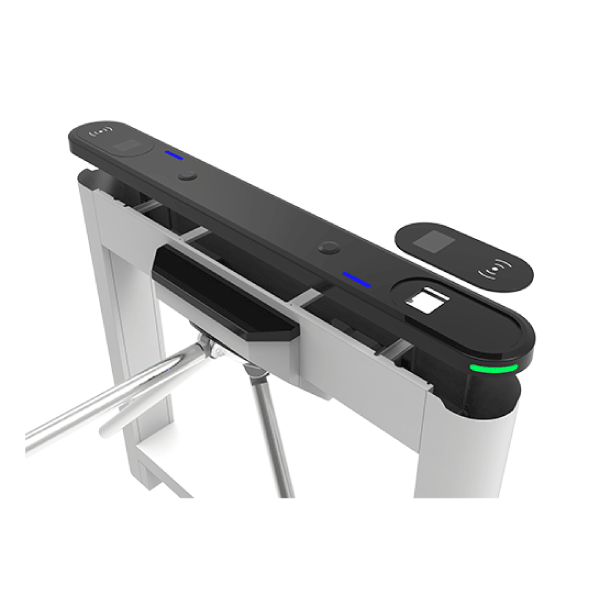

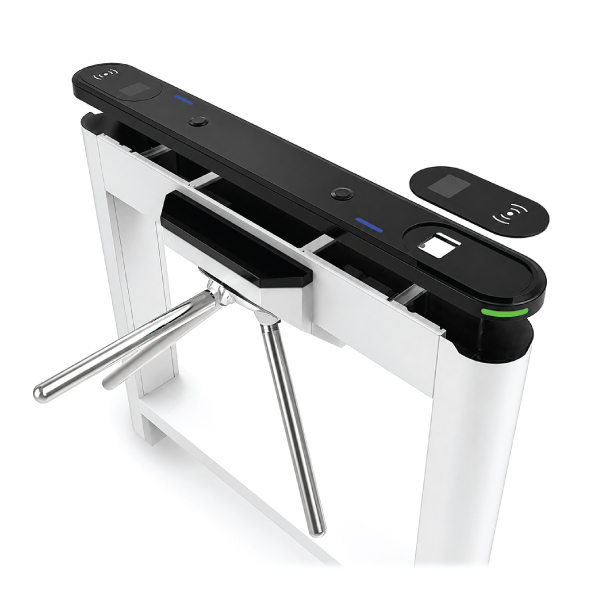

The official configuration options include a post-mounted ZKTeco G4 Pro face recognition terminal, an under-mounted QR500 QR code reader and an under-mounted ProID10 RFID reader. This flexibility allows organizations to select card, face or static and dynamic QR authentication according to their security requirements.
ZKTeco lists C3 and InBio series access controllers as compatible options. Suitable third-party controllers may also be used, subject to available chassis space and interface compatibility. When connected through a supported control panel, the turnstile can operate with ZKBio CVAccess or ZKBio CVSecurity. Explore broader protection technologies under Security System Solutions.
The integrated LED indicator displays blue for standby, green for access granted and red for alarm or error conditions. A built-in buzzer provides audible feedback, helping users understand the turnstile status during everyday operation.
For projects combining pedestrian control with baggage or personnel screening, explore related Security Inspection equipment for coordinated entrance planning.
| Brand and Model | ZKTeco Saturn-T1000 Series |
|---|---|
| Product Type | Drop-arm tripod turnstile |
| Lane Configuration | Single lane with bi-directional entry and exit |
| Lane Width | 550mm |
| Flow Rate | Face: 15; RFID: 25; QR: 25 persons per minute |
| Authentication Options | Face, RFID and static or dynamic QR code |
| Materials | Powder-coated SPCC steel cabinet and SUS304 arm |
| Indicators | LED status indicator and buzzer |
| Communication | One fire-alarm relay port and one RS485 port |
| Power | AC 110–220V, 50/60Hz; DC 12V |
| Power Rating | 40W operating and 10W standby |
| Safety and Security | Emergency auto drop-arm and anti-tailgating |
| Dimensions and Weight | 1200 × 734 × 1020mm; 25kg |
| Operating Conditions | -20°C to 70°C; 20%–80% RH, non-condensing |
| Protection and Certification | Equivalent to IPX4 by self-laboratory test; CE and FCC |
Verification note: ZKTeco identifies face recognition, RFID and QR as configurable authentication options; every base unit may not include these readers. Controller, reader, software licence, network equipment, floor base, cabling, freight, installation and commissioning depend on the ordered package. Confirm the supplied configuration, warranty and complete bill of materials before ordering.
The Saturn-T1000 is suitable for projects requiring an affordable, modern tripod gate with controlled two-way movement, clear status feedback and emergency release. Its pre-assembled delivery and flexible controller or reader options simplify entrance planning. Published operating noise below 65dB also makes it appropriate for reception areas and indoor commercial environments.
| Model | Construction or Lane | Recommended Application |
|---|---|---|
| Saturn-T1000 | SPCC cabinet; 550mm lane | Value-focused modern entrance control |
| ZKTeco TS2000 Plus | SUS304 cabinet; 550mm lane | Projects requiring stainless-steel housing |
| ZKTeco TS2022 Pro | SUS304 cabinet; 505mm lane | Integrated attendance configurations |
| ZKTeco TS2000 Pro | Classic stainless-steel design | Established commercial installations |
Yes. It is a single-lane tripod turnstile that supports bi-directional entry and exit.
They are optional configurations. Confirm the readers, controller and mounting accessories included in the supplied package.
The tripod arm drops automatically to open the passage during a power outage or compatible fire-alarm event.
ZKTeco publishes up to 25 persons per minute for RFID or QR and 15 persons per minute for face recognition.
It may be installed outdoors only in a properly sheltered location. ZKTeco reports protection equivalent to IPX4 through a self-laboratory test.
ZKBio CVAccess and ZKBio CVSecurity are supported when the turnstile is connected through a compatible access control panel.
A flat and level finished floor is required. An optional base plate may be needed when installation is planned on an unfinished floor.
Touch IT supplies professional entrance control and security systems in Bangladesh with product consultation, site planning, installation, commissioning and after-sales support. The team can help determine the correct controller, authentication reader, software and installation accessories for your project.
Improve pedestrian access management with a durable bi-directional tripod gate. Order the ZKTeco Saturn-T1000 Drop-Arm Tripod Turnstile from Touch IT, visit Room 312, Level 3, ECS Computer City Center (Multiplan Center), 69–71 New Elephant Road, Dhaka-1205, or call 01711664030.
