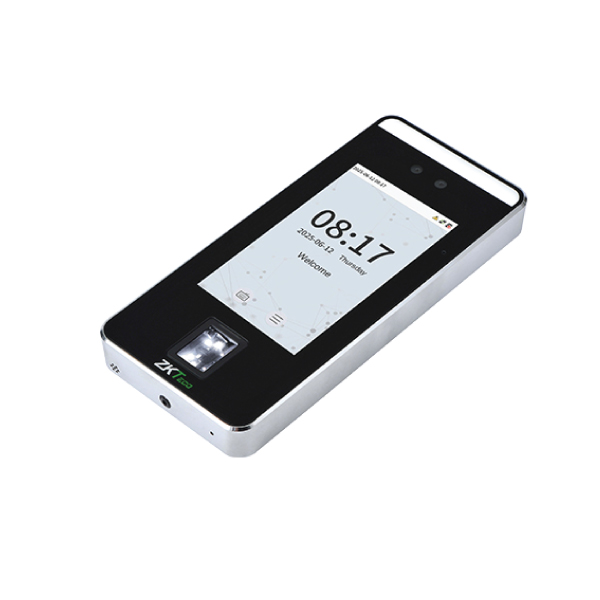

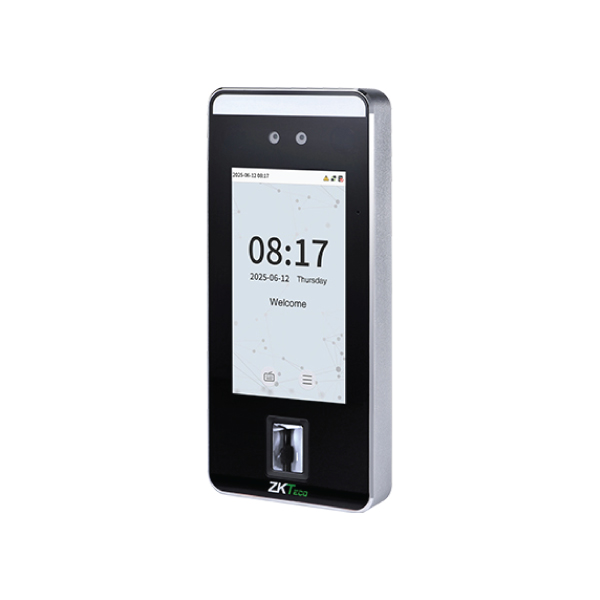

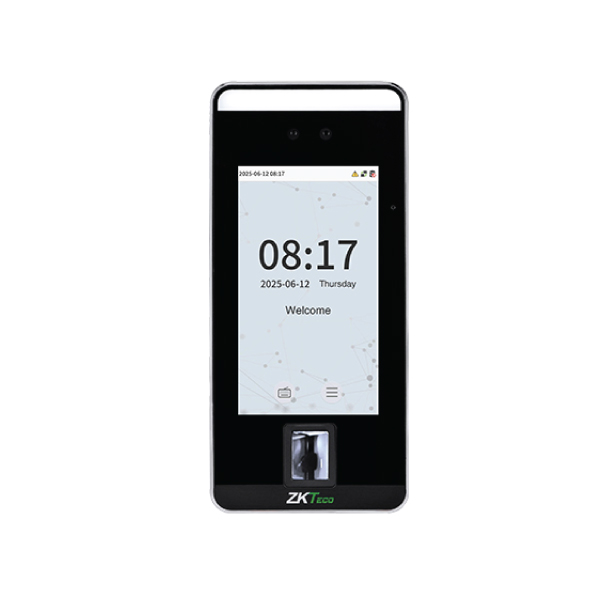

ZKTeco SpeedFace V5L Multi-Biometric Access Control Terminal

ZKTeco SpeedFace V5L Multi-Biometric Access Control Terminal

The ZKTeco SpeedFace V5L is a Linux-based multi-biometric access control and attendance terminal for offices, factories, schools, hospitals and commercial buildings. Its 5-inch touchscreen, 2MP WDR binocular camera and visible-light facial recognition support fast, contactless verification. Users can authenticate by face, fingerprint, compatible card or password, with optional palm recognition.

Available for ৳27,500, the SpeedFace V5L is a professional Access Control solution in Bangladesh for organizations that need employee attendance and secure door management from one terminal. The current configuration supports up to 10,000 users, 10,000 face templates, 10,000 fingerprints, 10,000 cards and 200,000 transaction records, making it suitable for growing workplaces and busy entrances.

Quick Highlights

• 5-inch touchscreen: 720 × 1280 colour display for enrolment and operation
• Multi-biometric access: Face, fingerprint, card and password authentication
• High capacity: 10,000 users and up to 200,000 transaction records
• Fast recognition: Facial authentication in less than 0.35 second
• Professional integration: TCP/IP, Wiegand input/output, RS485 and door interfaces
• Smart security: Anti-spoofing, mask detection and multiple verification methods

Fast Multi-Biometric Authentication for Secure Workplaces

This ZKTeco Access Control terminal combines face, fingerprint, card and PIN authentication. Administrators can assign single or combined verification methods by department, role or security level. Centralized software supports attendance reporting and entrance control.

Visible-Light Face Recognition and Anti-Spoofing

The 2MP WDR binocular camera and supplementary light support changing indoor lighting. Facial authentication takes under 0.35 second from approximately 30cm to 170cm. Anti-spoofing helps defend against photo and video attempts, while mask detection supports workplace policies.

Face, Fingerprint, Card and Password Access

Employees can verify by face, fingerprint, compatible card or an eight-digit password. Optional palm authentication adds another touchless method when the correct module is supplied. Multiple verification rules can require two or more credentials in sensitive areas, helping reduce unauthorized entry and proxy attendance.

Large User and Attendance Log Capacity

The latest series configuration stores 10,000 users, faces, fingerprints and cards, plus 200,000 transactions. This capacity supports offices, industrial facilities, campuses and multi-department organizations with frequent attendance events.

Complete Door Access Control Integration

Dedicated interfaces support a compatible electric lock, door sensor, exit button, alarm output and auxiliary input/output. Wiegand input/output and RS485 assist integration with readers and security hardware. Features such as access levels, groups, holidays, anti-passback and tamper alarms help administrators create structured entrance policies.

Network and Software Management

Standard TCP/IP connectivity enables centralized enrolment, monitoring and record transfer. Optional Wi‑Fi depends on the ordered version. Published software options include ZKBio CVAccess for access management, ZKBio Time for attendance and ZKBio Zlink for supported cloud-based operation. Software licences and available functions must be confirmed separately.

Responsive Hardware and Slim Design

A quad-core A55 processor, 1GB RAM and 8GB ROM support responsive daily operation. The slim 202.93 × 91.93 × 21.5mm body suits indoor wall installation near controlled doors. A 12V DC 3A supply is required, and the terminal should be protected from rain, direct sunlight and unsuitable environmental conditions.

Recommended Applications

The SpeedFace V5L suits offices, factories, schools, hospitals, laboratories, banks, warehouses and restricted areas. It can manage attendance, door access and multi-factor verification. Explore wider protection options under Touch IT’s Security System solutions.

Technical Specifications

Specification note: ZKTeco’s latest series page lists 10,000 face and fingerprint templates, while older SpeedFace V5L revisions and retailer listings commonly show 6,000. Palm, Wi‑Fi, card type, QR code, SIP and ONVIF functions are configuration-dependent. Confirm the exact order code, modules, software licence and included power adapter before purchase.

ZKTeco SpeedFace V5L Product Comparison

Choose the SpeedFace V5L for a balanced 5-inch interface, high biometric capacity and professional door-control integration. The SpeedFace V3L is more compact, the SenseFace 7A offers a larger screen and higher overall user scale, and the SenseFace 2A is a cost-effective option for smaller deployments.

Frequently Asked Questions

Which authentication methods does SpeedFace V5L support?

It supports face, fingerprint, compatible card and password authentication. Palm recognition is optional.

How many users can the terminal store?

The latest series specification supports up to 10,000 users. Confirm the supplied hardware revision before ordering.

Can it control an electric door lock?

Yes. It supports compatible locks, door sensors, exit buttons, alarms and auxiliary access-control equipment.

Is Wi‑Fi included as standard?

No. TCP/IP is standard, while Wi‑Fi depends on the selected configuration.

Does it work as a time attendance device?

Yes. It stores attendance transactions and supports compatible ZKTeco attendance software, subject to licensing.

Can the terminal identify masked users?

ZKTeco lists mask detection as a supported function. Behaviour depends on configuration and access rules.

Why Buy from Touch IT?

Browse genuine ZKTeco Products and receive guidance on compatible locks, exit buttons, software and installation accessories. Touch IT serves businesses across Bangladesh with project consultation and technical support. Confirm stock, warranty, modules, licence costs and installation scope when ordering.

Order the ZKTeco SpeedFace V5L in Bangladesh

Upgrade attendance and entrance security with fast facial authentication, fingerprint verification, high user capacity and professional door integration. Order the ZKTeco SpeedFace V5L from Touch IT with suitable software and access-control hardware for your workplace.
