In Stock
| Camera | ||
| Image Sensor | 1/3" CMOS | |
| Max Resolution | 2MP, 1920 × 1080 | |
| Min. Illumination | 0.02 Lux @ F2.0, AGC On; 0 Lux with IR On | |
| Signal System | PAL / NTSC | |
| Shutter Speed | PAL: 1/25s to 1/50,000s; NTSC: 1/30s to 1/50,000s | |
| Day/Night | Auto / Day / Night | |
| Lens & Illuminator | ||
| Lens Type | Fixed Lens | |
| Field of View | 2.8mm: H 90.5°, V 49.6°, D 109.5°; | |
| Aperture | F2.0 | |
| Lens Mount | M12 | |
| Light Type | IR | |
| IR Distance | Up to 20 m | |
| Video & Audio | ||
| Video Output | BNC, Supports TVI / AHD / CVI / CVBS | |
| Max Frame Rate | TVI/AHD/CVI: 1080P@25/30fps, 720P@25/30fps; CVBS: PAL / NTSC | |
| Resolution Support | 1080P 1920 × 1080; 720P 1280 × 720 | |
| WDR | DWDR | |
| Image & Smart Functions | ||
| Image Enhancement | Global Exposure, BLC, HLC, DWDR, 2D Digital Noise Reduction | |
| White Balance | Auto / Manual | |
| AGC | Supported | |
| Image Control | Smart IR, Exposure Mode, Day/Night Mode | |
| Smart Light / Smart IR | Smart IR Supported | |
| Mirror / Image Adjustment | 180° Horizontal Flip and 180° Vertical Flip Supported | |
| Physical Specification | ||
| Power Supply | DC 12V ±25%, Reverse Polarity Protection and Surge Protection | |
| Power Consumption | Max. 2.88W | |
| Operating Temp | -30°C to 60°C; Humidity ≤95% RH, Non-Condensing | |
| Material | Plastic | |
| Weatherproof | IP67 | |
| Installation | Surface Mount Default, Optional Backbox and Wall Mount Bracket | |
| Dimensions | Φ118 × 96 mm | |
| Weight | 182 g | |
| Certifications | CB, CE, FCC, IP67 | |
| Warranty | ||
| Warranty | 1 Year | |

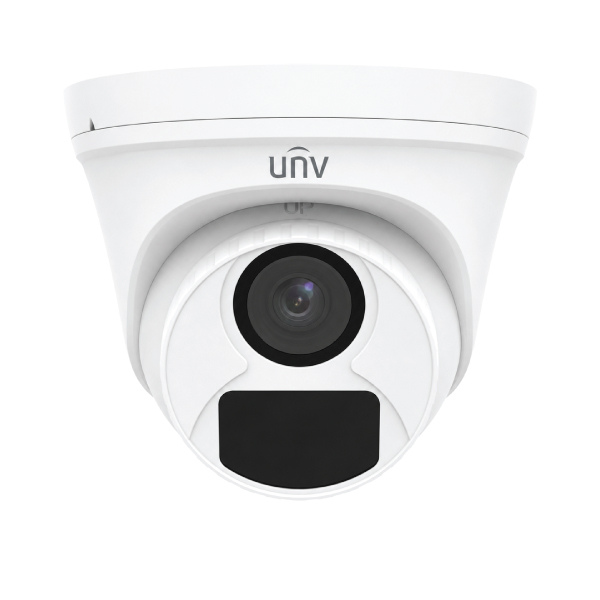

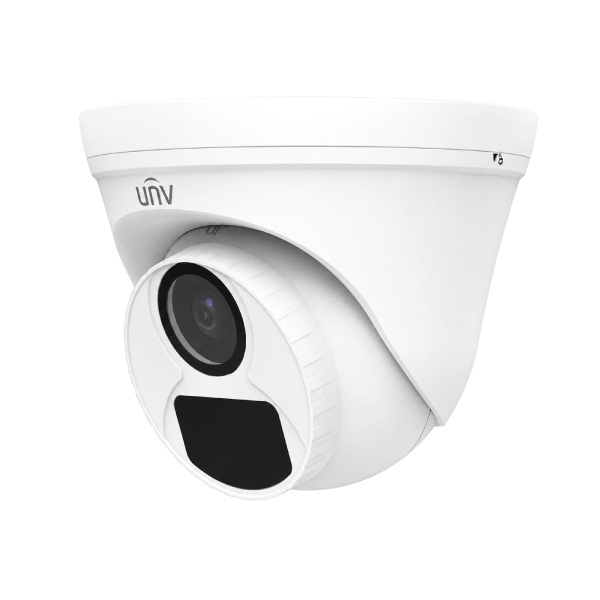

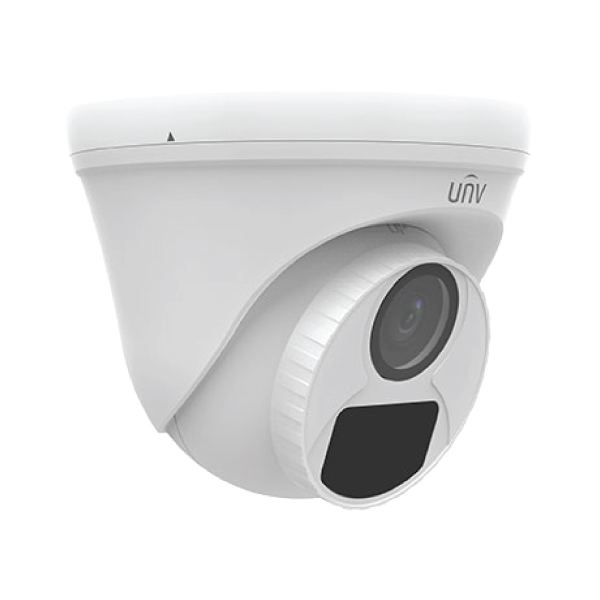

The Uniview UAC-T112-F28 is a cost-effective 2MP turret analog camera for dependable day-and-night surveillance. It delivers Full HD 1080p footage, a wide 2.8mm view, 20-metre Smart IR and four-in-one video output in an IP67-rated housing.
For buyers checking the Uniview UAC-T112-F28 price in Bangladesh, the current Touch IT price is ৳1,350. This affordable Uniview CCTV camera suits homes, shops, offices and small commercial sites using coaxial cable. Confirm stock, warranty, DVR compatibility and installation requirements before ordering.
This fixed turret CC camera can upgrade or expand a conventional DVR-based system without moving to an IP network. Its four selectable signal modes improve compatibility with common analog HD recorders.
The 1/3-inch CMOS sensor captures 1920 × 1080 video at 25fps or 30fps in compatible TVI, AHD and CVI modes. Full HD provides useful everyday detail while keeping recorder and storage requirements economical.
The 2.8mm M12 lens covers a 90.5° horizontal, 49.6° vertical and 109.5° diagonal view. This broad perspective suits rooms, receptions, storefronts, entrances and short driveways. Browse the Uniview CC Camera collection for more options.
When light falls, the automatic IR-cut filter changes daytime colour to black-and-white night imaging. Smart IR reaches up to 20 metres and helps control illumination on nearby subjects. Minimum illumination is 0.02 lux with AGC enabled and 0 lux with IR.
A BNC connection supports TVI, AHD, CVI and CVBS output. It suits new installations and replacements, but the selected resolution, frame rate and signal mode must match the connected XVR or DVR.
Global, BLC, HLC and DWDR exposure modes help manage backlight, strong highlights and uneven illumination. The camera also offers 2D digital noise reduction, automatic or manual white balance, and 180° horizontal and vertical image flip. An 11-language OSD menu allows compatible recorder-side configuration.
The IP67 enclosure resists dust and water ingress when correctly installed. A -30°C to 60°C range and 4kV protection on power and video add reliability. Its three-axis structure supports accurate aiming.
| Brand | Uniview |
|---|---|
| Model | UAC-T112-F28 |
| Camera Type | 2MP HD fixed IR turret analog camera |
| Image Sensor | 1/3-inch CMOS |
| Maximum Resolution | 1920 × 1080 at up to 30fps |
| Lens | 2.8mm fixed, M12 mount |
| Field of View | H 90.5°, V 49.6°, D 109.5° |
| Minimum Illumination | 0.02 lux (F2.0, AGC on); 0 lux with IR |
| Night Vision | One Smart IR illuminator; up to 20m |
| Video Output | BNC; TVI, AHD, CVI and CVBS |
| Image Features | DWDR, BLC, HLC, 2D DNR, Smart IR and image flip |
| Power | 12V DC ±25%; maximum 2.88W |
| Protection | IP67; 4kV surge protection for power and video |
| Operating Conditions | -30°C to 60°C; ≤95% RH, non-condensing |
| Dimensions and Weight | Φ118 × 96mm; 182g |
This page describes the UAC-T112-F28 infrared model. It is different from UAC-T112-F28-W or AF28-W ColourHunter versions, which use white light for colour night imaging. A built-in microphone, PoE, Wi-Fi and network functions are not listed for this camera. Use a compatible DVR/XVR, 12V DC power supply, BNC cabling and suitable connectors.
Choose this Uniview 2MP analog camera when value, broad coverage and infrared monitoring matter. It combines 1080p video, multi-format DVR support and weather resistance at an accessible Bangladesh price.
| Model | Resolution | Night Imaging | Best For |
|---|---|---|---|
| Uniview UAC-T112-F28 | 2MP | 20m Smart IR, black and white | Affordable general surveillance |
| Uniview UAC-T112-AF28-DL | 2MP | IR and white-light dual illumination | Flexible night monitoring |
| Uniview UAC-T112-AF28-W | 2MP | 20m white light, colour images | ColourHunter surveillance |
| Uniview UAC-T122-AF28M-W | 2MP | 40m white light, colour images | Longer-range colour monitoring |
It supports Full HD 1920 × 1080 video at up to 30 frames per second with a compatible DVR and signal mode.
Yes. Smart IR provides black-and-white monitoring up to a published distance of 20 metres.
No. It records colour during the day and switches to infrared black-and-white imaging at night. Select a ColourHunter model if full-colour night video is required.
The BNC output supports TVI, AHD, CVI and CVBS. Confirm the chosen mode and resolution with your DVR or XVR.
It has an IP67 dust- and water-resistant rating. Proper sealing, mounting and weather-protected connections remain essential outdoors.
No. It requires separate coaxial video cabling and 12V DC power; it is not a PoE or wireless IP camera.
No built-in microphone is listed for this model. Choose an audio-capable camera if sound recording is required.
Touch IT supplies original Uniview products and security equipment in Bangladesh. The team can help confirm camera placement, DVR compatibility, power supply, cabling, storage and installation accessories for a complete system.
Build a reliable and affordable HD CCTV setup with 2MP video, Smart IR and IP67 protection. Order online from Touch IT or visit ECS Computer City Center (Multiplan Center), Level 03, Room 312, New Elephant Road, Dhaka-1205. Call 01711664030 for stock and installation support.
The latest price of Uniview UAC-T112-F28 2MP Turret Analog Camera in Bangladesh is 1,350৳. You can buy the Uniview UAC-T112-F28 2MP Turret Analog Camera at best price from our website or visit any of our showrooms.
