In Stock
| Camera | ||
| Image Sensor | 2 MP CMOS | |
| Max Resolution | 1920 (H) × 1080 (V) | |
| Min. Illumination | Progressive | |
| Signal System | PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s |
|
| Shutter Speed | 0.02 [email protected] (Color, 30 IRE) 0.002 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
|
| Day/Night | 65 dB | |
| Lens & Illuminator | ||
| Lens Type | Fixed-focal lens | |
| Field of View | M12 | |
| Aperture | 2.8 mm / 3.6 mm | |
| Lens Mount | F2.0 | |
| Light Type | 2.8 mm: H: 100°, V: 54°, D: 117° 3.6 mm: H: 80°, V: 43°, D: 94° |
|
| IR Distance | Fixed | |
| White/Warm Light Distance | 2.8 mm: 0.5 m (1.64 ft) 3.6 mm: 0.8 m (2.62 ft) |
|
| Video & Audio | ||
| Video Output | 1080p (1920 × 1080) 960H (960 × 576 / 960 × 480) |
|
| Max Frame Rate | CVI: 1080p@25/30 fps (PAL/NTSC) AHD: 1080p@25/30 fps (PAL/NTSC) TVI: 1080p@25/30 fps (PAL/NTSC) CVBS: 960H (PAL/NTSC) |
|
| Resolution Support | CVI / TVI / AHD / CVBS selectable via one BNC port | |
| WDR | Auto (ICR) / Color / B/W | |
| Audio | BLC / HLC / DWDR | |
| Pickup Distance | Auto / Manual | |
| Audio Over Coax | 2D Noise Reduction (2D NR) | |
| Interface | ||
| Audio Interface | One channel built-in microphone | |
| Video Interface | 1 × BNC video output port | |
| Physical Specification | ||
| Power Supply | Plastic | |
| Power Consumption | Φ85.0 mm × 77.1 mm (Φ3.35" × 3.04") | |
| Operating Temp | Net weight: 0.11 kg (0.24 lb) Gross weight: 0.12 kg (0.26 lb) |
|
| Material | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
|
| Weatherproof | Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Humidity: <95% RH, non-condensing |
|
| Installation | Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Humidity: <95% RH, non-condensing |
|
| Dimensions | 12 VDC ± 30% | |
| Weight | Maximum 2.1 W (12 VDC, LED on) | |
| Warranty | ||
| Warranty | 1 Year Warranty | |

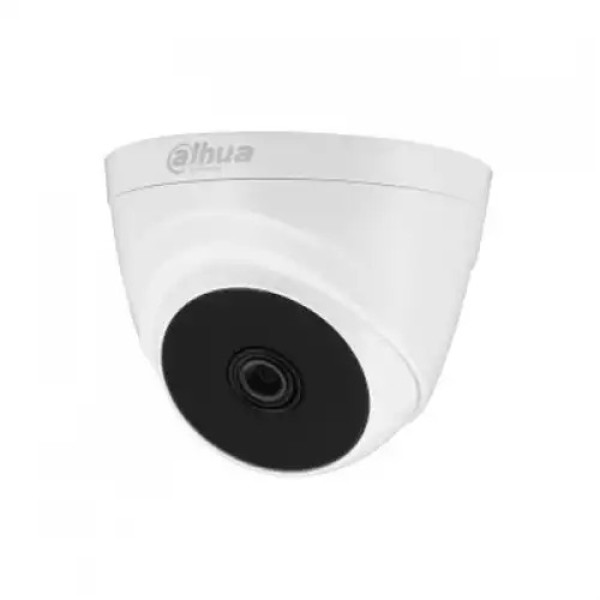

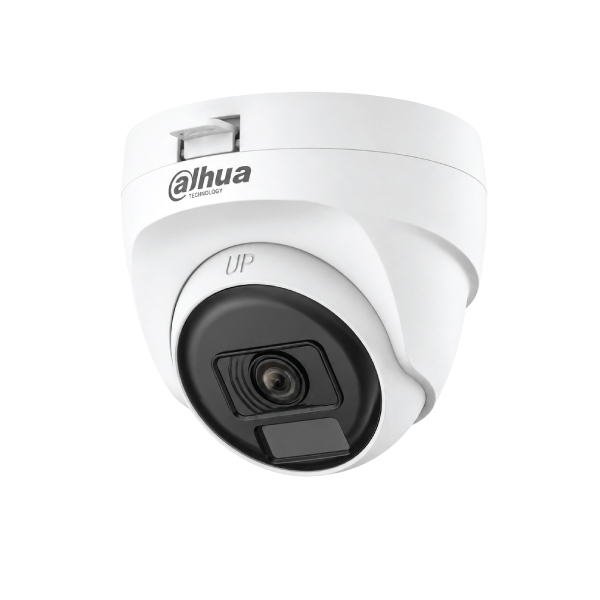

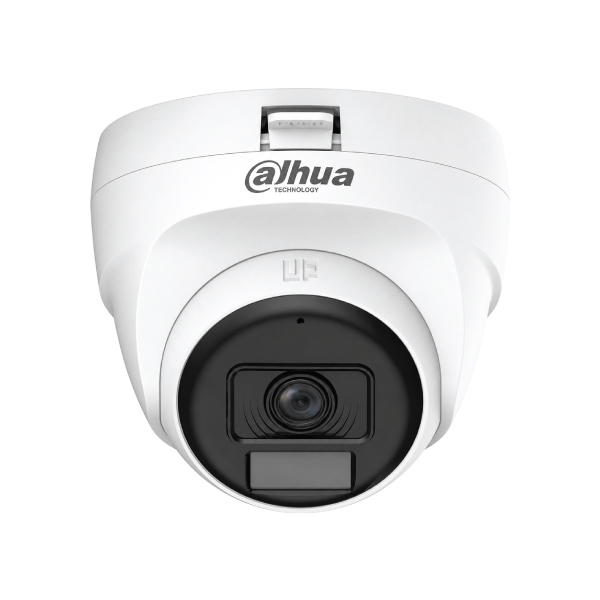

The Dahua DH-HAC-T1A21P-U-IL-A 2MP IR Smart Dual Light Eyeball CC Camera is a compact HD analog camera for homes, offices, shops, schools and warehouses. It combines Full HD video, infrared and warm light, a built-in microphone and flexible DVR compatibility.
For buyers comparing the Dahua DH-HAC-T1A21P-U-IL-A price in Bangladesh, this model offers 2MP resolution, up to 30fps video, Smart Dual Light, a 2.8mm fixed lens and audio over a compatible HDCVI system. The current price at Touch IT is ৳1,600. Confirm stock, lens version, recorder compatibility, power supply and warranty before ordering.
This Dahua 2MP CC camera is a practical upgrade for a coaxial CCTV system. Smart Dual Light provides IR and warm-light modes, while the microphone adds audio through supported equipment. Four analog formats support compatible Dahua and third-party recorders.
A 2MP CMOS sensor produces 1920 × 1080 video at up to 25fps in PAL or 30fps in NTSC, suitable for entrances, counters, rooms and corridors.
The camera combines infrared and warm white illumination. Dahua publishes up to 25 metres for IR and 20 metres for warm light, supporting monochrome or colour-assisted night monitoring.
The -A version includes a microphone, allowing a compatible HDCVI recorder to receive video and audio. Follow applicable audio-recording requirements.
The 2.8mm lens provides a published 100° horizontal view for rooms and wide entrances. A 3.6mm option provides an 80° view. Confirm the supplied lens.
One BNC output switches between HDCVI, TVI, AHD and CVBS, helping installers match a compatible DVR. Browse the Dahua CC Camera collection.
DWDR, BLC, HLC, automatic white balance and 2D noise reduction improve visibility in uneven light. Explore CCTV Surveillance Solutions.
| Brand and Model | Dahua DH-HAC-T1A21P-U-IL-A |
|---|---|
| Product Type | Smart Dual Light HDCVI fixed-focal eyeball CC camera |
| Image Sensor | 2MP CMOS, progressive scanning |
| Maximum Resolution | 1920 × 1080 |
| Frame Rate | PAL: 1080p at 25fps; NTSC: 1080p at 30fps |
| Minimum Illumination | 0.02 lux colour; 0.002 lux B/W; 0 lux with illuminator on |
| Illumination | IR up to 25m; warm light up to 20m |
| Lens | M12 fixed-focal, 2.8mm; 3.6mm optional, F2.0 |
| Field of View | 2.8mm: H 100°, V 54°, D 117°; 3.6mm: H 80°, V 43°, D 94° |
| Day and Night | Auto ICR, colour and black-and-white |
| Image Functions | DWDR, BLC, HLC, 2D NR, mirror and privacy masking |
| Video Output | One BNC; CVI, TVI, AHD or CVBS switchable |
| Audio | One-channel built-in microphone |
| Power and Environment | 12VDC ±30%; -40°C to +60°C; less than 95% RH |
| Construction | Plastic housing; wall or ceiling installation; IP67 listed for P/0280B retail configuration |
Verification note: Dahua’s HAC-T1A21-U-IL(-A) page specifies 25m IR, 20m warm light, a 2.8mm lens with 3.6mm option, 2.1W maximum consumption and an 85 × 77.1mm body. Bangladesh P/0280B listings sometimes publish 20m illumination, other lenses, 2.3W and 85.4 × 68.8mm dimensions. Confirm the exact part number, lens, IP rating, adapter and warranty.
The DH-HAC-T1A21P-U-IL-A suits buyers needing Full HD monitoring, night illumination, audio and broad DVR compatibility. Its compact eyeball design allows flexible angle adjustment. Explore Security System Solutions.
| Model | Best For | Main Difference |
|---|---|---|
| DH-HAC-T1A21P-U-IL-A | Compact 2MP eyeball monitoring | Smart Dual Light and built-in microphone |
| Dahua HAC-B1A21P-U-IL-A | Visible directional coverage | Bullet housing with similar 2MP dual-light positioning |
| Dahua DH-HAC-HDW1209CLQP-IL-A | Traditional dome installations | Different dome-style body and lens configuration |
| Dahua HAC-HDW1549X-A-PRO | Higher-detail surveillance | 5MP resolution and advanced low-light imaging |
No. It is an HD analog HDCVI camera that connects to a compatible DVR through coaxial cable and a BNC connector.
Yes. The -A model has a built-in microphone, but the connected recorder must support compatible audio reception and recording.
Warm-light mode supports colour-assisted night footage. Results depend on lighting, settings and recorder compatibility.
Dahua publishes up to 25 metres for infrared and up to 20 metres for warm light on the official series page.
The official series page lists 2.8mm as standard and 3.6mm as optional. Confirm the exact lens code before ordering.
The camera supports switchable HDCVI, TVI, AHD and CVBS output through one BNC port.
Exact-model Bangladesh listings publish IP67 protection. Confirm the supplied unit and protect cable joints, connectors and the power source from direct exposure.
Touch IT supplies CCTV cameras in Bangladesh with consultation, installation planning and after-sales support. The team can confirm DVR, lens, cabling, storage and power requirements.
Upgrade your HD analog surveillance system with Full HD video, Smart Dual Light and built-in audio. Order the Dahua DH-HAC-T1A21P-U-IL-A 2MP IR Smart Dual Light Eyeball CC Camera from Touch IT, visit 312 (3rd Floor), Multiplan Center, 69–71 New Elephant Road, Dhaka-1205, or call 01711664030.
The latest price of Dahua DH-HAC-T1A21P-U-IL-A Eyeball CC Camera in Bangladesh is 1,600৳. You can buy the Dahua DH-HAC-T1A21P-U-IL-A Eyeball CC Camera at best price from our website or visit any of our showrooms.
