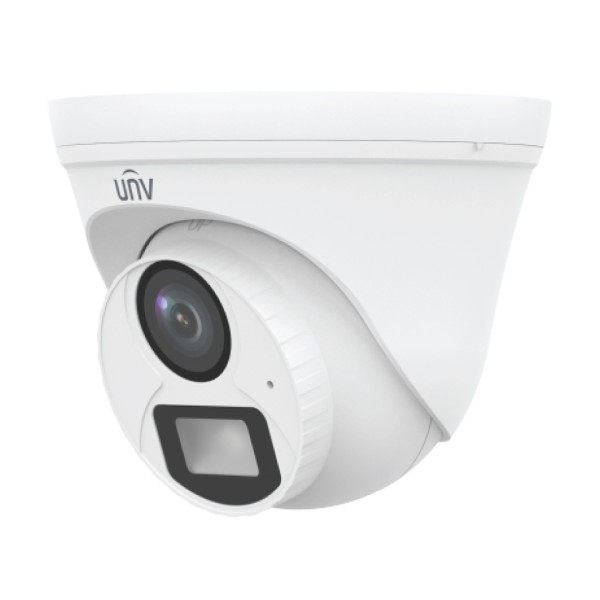

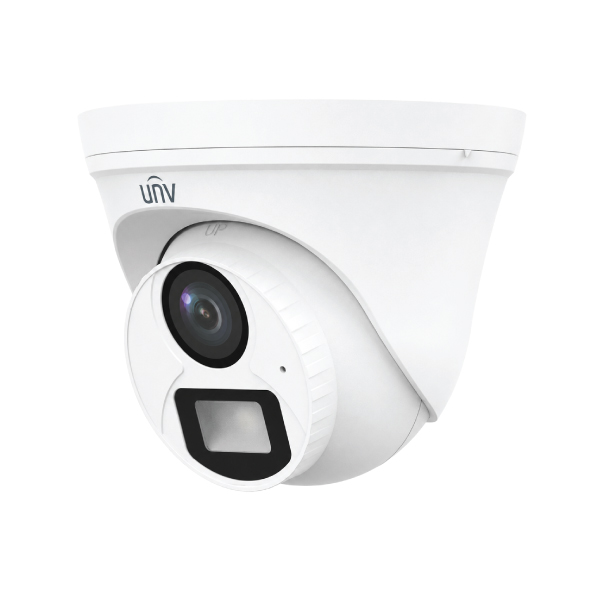

Uniview UAC-T112-AF28-W 2MP ColourHunter HD Fixed Turret Analog Camera

Uniview UAC-T112-AF28-W 2MP ColourHunter HD Fixed Turret Analog Camera

The Uniview UAC-T112-AF28-W is a compact 2MP ColourHunter turret analog camera for full-colour day-and-night security. It combines Full HD video, a wide 2.8mm F1.6 lens, 20m white light, built-in audio and 4-in-1 video output.

For buyers checking the Uniview UAC-T112-AF28-W price in Bangladesh, the current Touch IT price is ৳1,700. This full-colour CCTV camera records 1080p video at up to 30fps and includes a microphone, IP67 protection and 4kV surge protection. Confirm stock and DVR compatibility before ordering.

Quick Highlights

• Image Sensor: 1/3-inch CMOS with 2MP resolution
• Video Quality: Full HD 1920 × 1080 at up to 30fps
• Wide Lens: 2.8mm F1.6 lens with 100.9° horizontal view
• ColourHunter: 24/7 colour imaging with 20m white light
• Audio: Built-in microphone with compatible audio over coax
• Video Output: TVI, AHD, CVI and CVBS through BNC
• Protection: IP67 housing and 4kV surge protection

Product Overview

This fixed turret CC Camera provides full-colour monitoring through coaxial infrastructure. Its wide view, visible night illumination and audio capture add useful context without requiring an IP-camera network.

Key Features and Benefits

2MP Full HD Video at Up to 30fps

The 1/3-inch CMOS sensor produces 1920 × 1080 video. TVI, AHD and CVI support 1080p or 720p at 25/30fps, while CVBS supports PAL and NTSC. Full HD balances image detail, recorder bandwidth and storage use.

ColourHunter Monitoring with 20m White Light

One white-light illuminator supports colour imaging up to 20 metres, including at zero lux when active. Colour footage can make clothing, objects and vehicle colours easier to distinguish than monochrome IR footage. The visible light should be positioned carefully.

Wide 2.8mm F1.6 Fixed Lens

The 2.8mm M12 lens provides a 100.9° horizontal, 56.5° vertical and 121.8° diagonal view. It suits entrances, reception areas, retail floors and open rooms where broad coverage matters. Browse more Uniview CC Camera models for narrower lenses or longer illumination.

Built-In Microphone and Audio over Coax

The microphone transmits synchronised sound through coaxial cable. Uniview specifies audio for TVI and CVI at 1080p 25/30fps. Recording depends on the output format, DVR support and configuration.

Image Controls for Challenging Lighting

Global, BLC, HLC and DWDR modes help manage backlight, highlights and mixed lighting. White balance supports natural colour, while 2D/3D noise reduction reduces grain. Horizontal and vertical 180° flip options assist orientation within a planned CCTV surveillance system.

4-in-1 Compatibility for Analog Systems

The BNC interface supports TVI, AHD, CVI and CVBS for many compatible DVR and XVR models. It suits new coaxial installations or upgrades retaining existing cabling. Recorder format, resolution and audio support must be verified.

IP67 Protection and Low Power Consumption

The graphene-and-plastic housing is IP67 rated and operates from -30°C to 60°C. Power and video interfaces have 4kV surge protection. The camera uses 12V DC, consumes up to 2.3W and includes reverse-polarity protection. Outdoor cable joints should be sealed.

Recommended Applications

• Home entrances, garages and covered outdoor areas
• Retail shops, cash counters and storerooms
• Office receptions, corridors and common spaces
• Restaurants, clinics, schools and small businesses
• Locations needing visible full-colour night monitoring

Technical Specifications

Verification Note

This model uses visible white light for 24/7 colour imaging; it has no infrared or Smart Dual Light. Uniview classifies it as a fixed turret. It has no Wi-Fi, Ethernet, PoE or microSD storage and requires a compatible DVR/XVR plus 12V DC power.

Why Choose the UAC-T112-AF28-W?

Choose this model for affordable Full HD colour monitoring, a wide 100.9° view, audio and weather protection. Its compact turret body suits broad indoor and short-range outdoor scenes where visible 20m lighting is acceptable.

Product Comparison with Related Products

Frequently Asked Questions

Does this camera produce colour video at night?

Yes. Its visible white-light illuminator supports full-colour monitoring at night up to the published 20m range.

Does the UAC-T112-AF28-W have infrared?

No. This model uses white light rather than infrared. Choose a dual-light model if both IR and white light are required.

Does it record audio?

Yes. It has a built-in microphone with audio over coax in compatible TVI and CVI 1080p modes.

Does the camera require a DVR?

Yes. Connect it to a compatible DVR or XVR for live viewing, storage, playback and remote access.

How wide is the camera's viewing angle?

The 2.8mm lens provides a 100.9° horizontal view for broad short-to-medium-distance coverage.

Can it be installed outdoors?

Yes. It is IP67 rated, provided the camera and all cable connections are mounted and weather-sealed correctly.

Does it support Wi-Fi or PoE?

No. Video uses a BNC coaxial connection, and the camera requires a separate 12V DC power supply.

Why Buy from Touch IT?

Touch IT supplies Uniview products for security projects across Bangladesh. The team can help confirm DVR format, audio support, camera coverage, storage, cabling, power adapters and mounting accessories before installation.

Order the Uniview UAC-T112-AF28-W Today

Add wide-angle Full HD colour monitoring and audio capture to a compatible analog security system. Order from Touch IT, visit ECS Computer City Center (Multiplan Center), Level 03, Room 312, New Elephant Road, Dhaka-1205, or call 01711664030.
