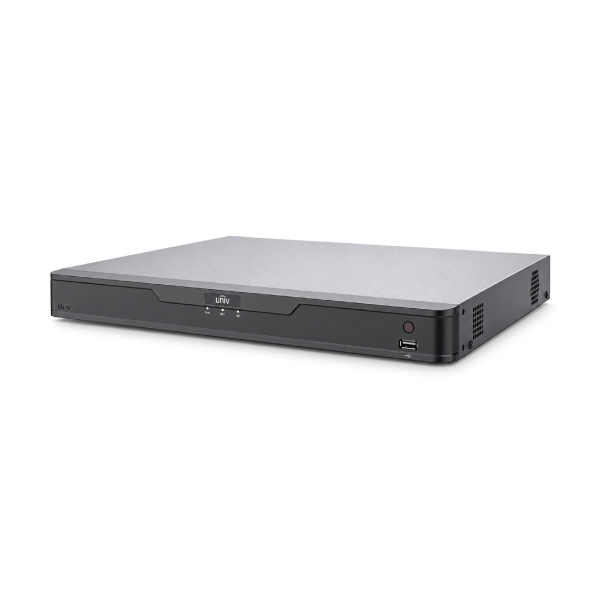

Uniview NVR302-32B-IQ 32-Channel 12MP 2-HDD NVR

Uniview NVR302-32B-IQ 32-Channel 12MP 2-HDD NVR

The Uniview NVR302-32B-IQ brings cameras across entrances, floors and outdoor areas into one recorder. It accepts up to 32 compatible IP feeds, records up to 12MP and has two SATA bays for surveillance drives.

Comparing the Uniview NVR302-32B-IQ price in Bangladesh? Touch IT lists it at ৳18,800. It offers 4K HDMI, dual Gigabit network ports and intelligent search options. Cameras need separate power because this model has no built-in PoE ports.

Quick Highlights

• IP camera input: Up to 32 channels, with recording resolution up to 12MP
• Network bandwidth: 160Mbps incoming and 128Mbps outgoing
• Storage: Two SATA hard-drive bays
• Video compression: Ultra 265, H.265 and H.264
• Local display: 4K HDMI and simultaneous Full HD VGA
• Playback: Up to 16 channels synchronously at the recorder
• Connectivity: Two Gigabit LAN ports; no integrated PoE

Product Overview

This 32-channel NVR stores IP camera footage for central viewing, searching and export. It suits an apartment complex, school or warehouse that needs more than sixteen inputs. Its Ethernet sockets are network ports, not powered camera ports. Plan an external PoE switch or suitable camera power supplies.

Key Features and Benefits

32 Camera Inputs with 12MP Recording Support

Connect up to 32 compatible IP cameras within 160Mbps combined incoming bandwidth. The 12MP figure is maximum supported recording resolution per stream, not simultaneous 12MP decoding on every channel. With smart analysis off, Uniview rates decoding at two 12MP streams at 30fps, twenty 720p streams or thirty-two D1 streams.

Two Bays and a Realistic Retention Plan

Two SATA bays support a planned footage retention period. Touch IT lists up to 10TB per drive; Uniview's newer series specification lists up to 24TB, subject to drive, environment and hardware conditions. Confirm support before buying larger disks. Recording days depend on camera count, bitrate and schedule.

4K Display and 16-Channel Playback

HDMI reaches 3840 × 2160 at 30Hz, while VGA reaches 1080p at 60Hz; both can run together. A 32-window live view scans the property, while local synchronous playback covers sixteen channels. Ultra 265 and H.265 can reduce storage demand with compatible streams.

Smart Events That Match the Cameras

Supported cameras can contribute face, vehicle, intrusion and motion events. Recorder-side Smart Intrusion Prevention (SIP) handles up to two ordinary 2MP streams; Ultra Motion Detection (UMD) handles up to four in its mode. AcuSearch/AcuTrack needs suitable Uniview SIP/UMD cameras. Analyzer modes cannot all operate simultaneously.

Network Recovery and Audio Options

Dual Gigabit interfaces and RTSP help network integration. Third-party video support does not guarantee smart events. ANR can fill a network recording gap when compatible cameras have local storage and the feature is configured. RCA input and output support one-channel two-way audio.

Recommended Applications

• Covering entrances, lifts, corridors and parking across a Dhaka apartment building
• Reviewing classrooms, gates and common areas at a school or campus
• Monitoring shop floors, stock rooms and delivery zones in a large retail site
• Centralising warehouse, office and perimeter cameras at a security desk

Explore CCTV surveillance solutions and calculate camera power, bandwidth and recording days.

Technical Specifications

Before ordering: Confirm HDD inclusion, maximum compatible drive size, camera support, warranty and the exact supplied revision.

Uniview NVR302-32B-IQ Product Comparison

Browse more Uniview NVR models if your project prioritises drive count, different recording resolution support or fewer camera inputs.

Frequently Asked Questions

How many cameras can the NVR302-32B-IQ connect?

It accepts up to 32 compatible IP camera channels, within its 160Mbps total incoming bandwidth.

Can it show all 32 cameras at 12MP simultaneously?

No. It supports recording streams up to 12MP, while simultaneous decoding has lower limits. A 32-window view uses lower-resolution streams.

Does this NVR include PoE ports?

No. Power cameras through a correctly sized external PoE switch or their supported power supplies.

How many hard drives does it hold?

Two SATA drives. Confirm whether any HDD is included with the quoted unit.

Is the per-drive limit 10TB or 24TB?

Touch IT lists 10TB per HDD; Uniview's newer specification lists up to 24TB with conditions, including ambient temperature at or below 40°C. Verify the supplied revision.

Can I play back all 32 channels together?

Local synchronous playback supports up to sixteen channels. You can select other channels for a separate review.

Will third-party cameras and smart alerts work?

Compatible cameras can supply video through supported protocols. Confirm codecs and smart-event integration for each third-party model.

Can I monitor the system remotely?

Remote monitoring requires a configured network and supported viewing application. Protect access with strong account credentials.

Why Buy from Touch IT?

Touch IT serves Dhaka and customers across Bangladesh. Share your camera list and retention target to check compatibility. Browse other Uniview products for your installation.

Order the Uniview NVR302-32B-IQ

Plan your larger IP camera installation around the Uniview NVR302-32B-IQ 32-Channel NVR. Confirm stock, drive compatibility, separate camera power and the supplied hardware revision with Touch IT before checkout.
