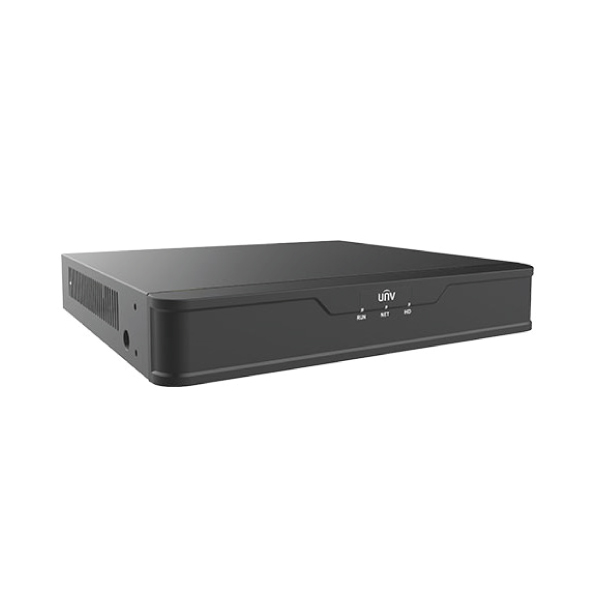

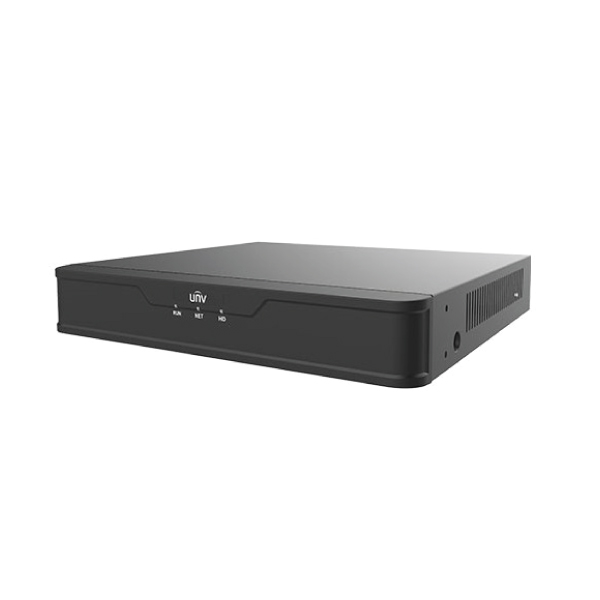

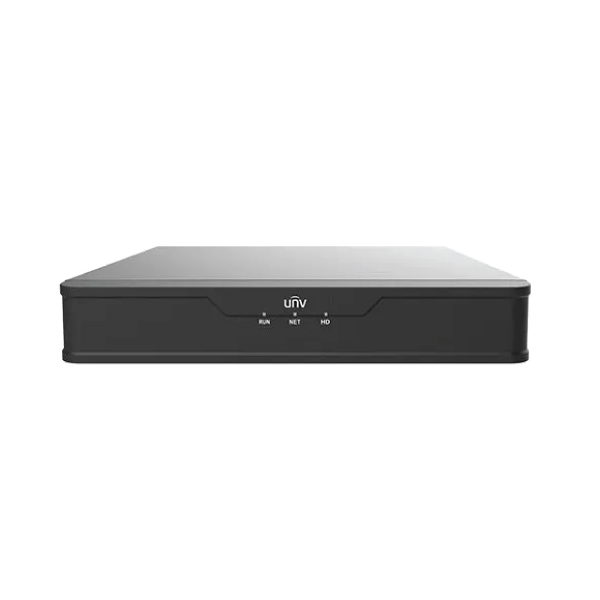

Uniview NVR301-08S3-P8 8-Channel 4K 8 Port PoE 1-SATA NVR

Uniview NVR301-08S3-P8 8-Channel 4K 8 Port PoE 1-SATA NVR

Eight cameras can cover a shop without eight separate power adapters. The Uniview NVR301-08S3-P8 combines eight IP camera channels, eight built-in PoE ports and 4K recording support. Connect compatible cameras by Ethernet, add a hard drive and configure recording.

Looking for the Uniview NVR301-08S3-P8 price in Bangladesh? Touch IT lists it at ৳10,800. Check the P8 label: the similarly named NVR301-08S3 has no built-in PoE.

Quick Highlights

• Camera capacity: Eight IP video channels and eight independent PoE camera ports
• PoE power: 75W shared across ports; up to 30W on one port
• Recording: Up to 8MP/4K with compatible cameras and adequate bandwidth
• Display: HDMI up to 3840 × 2160 at 30Hz plus simultaneous VGA
• Storage: One SATA HDD bay; up to 10TB in Uniview's current specification
• Video formats: Ultra 265, H.265 and H.264
• Network capacity: 64Mbps incoming and 48Mbps outgoing

Product Overview

Run a cable from each compatible PoE camera to the recorder, attach a display and connect its separate LAN port to your network. The PoE ports carry camera data and power. Size the cameras, drive and power backup for your site.

This 8-channel NVR records IP cameras. Eight channels means eight feeds; 4K recording and output do not imply eight simultaneous 4K decoding windows. Explore the Uniview NVR range if you may need more capacity.

Key Features and Benefits

Eight PoE Connections with a Planned Power Budget

Each 10/100Mbps port supports IEEE 802.3af/at and up to 30W. All eight share 75W, so eight 30W cameras cannot run from the recorder at once. Add each camera's peak draw, including night lighting. Use external power if the total exceeds 75W.

4K Recording and Clear Monitor Output

Compatible 8MP cameras can record at up to 4K. HDMI outputs 4K at 30Hz; VGA reaches 1080p at 60Hz. Both can operate simultaneously. Uniview specifies local decoding of one 4K stream at 30fps or eight 720p streams at 30fps. All camera streams share 64Mbps incoming bandwidth.

Efficient Storage on One Drive

Ultra 265, H.265 and H.264 handle compatible streams. One SATA slot supports up to 10TB in Uniview's current specification, subject to conditions and revision. Retention depends on bitrate, recording hours and activity. The listing does not establish whether an HDD is included.

Playback, Alerts and Remote Access

Review up to eight channels in synchronized playback, within decoding limits. Compatible cameras can supply intrusion, line-crossing or face-detection events on up to four smart IPC channels. These features depend on the camera. P2P supports remote viewing after network and app setup.

Camera Compatibility

Uniview documents ONVIF Profiles S, G and T plus RTSP for suitable third-party cameras. Video compatibility does not guarantee smart events or audio. Test the camera and firmware before rollout. Browse Uniview products for a coordinated system.

Recommended Applications

• Covering a Dhaka shop's entrance, checkout, aisles and stockroom
• Monitoring office receptions, corridors and parking entrances
• Managing IP cameras in a clinic, school or small warehouse
• Replacing a separate PoE switch in an appropriately sized eight-camera installation

For a complete CCTV surveillance plan, account for cabling, wattage, recording days and backup power. Keep the NVR secure and ventilated.

Technical Specifications

Before ordering: Confirm HDD, adapter, revision and warranty. Check high-capacity drive compatibility against the actual unit.

Uniview NVR301-08S3-P8 Product Comparison

Compare camera count, PoE draw and recording days together.

Frequently Asked Questions

Does the NVR301-08S3-P8 have eight PoE ports?

Yes. It provides eight powered camera ports, subject to 75W shared across all ports and 30W maximum on any one port.

Can it record eight 4K cameras at once?

It supports 8MP recording, provided streams fit 64Mbps incoming bandwidth. Multi-camera display has separate decoding limits.

Is the hard drive included?

The current product page does not specify a bundled HDD. Confirm package contents and choose a surveillance drive based on your retention target.

What is the maximum HDD capacity?

Uniview currently specifies one SATA drive up to 10TB, subject to conditions and revision.

Will other brands of IP camera work?

Compatible ONVIF or RTSP cameras may provide video. Verify codec, PoE demand and any required audio or smart events with the specific model.

Can I watch the cameras from outside the property?

Yes, after secure network and remote-viewing setup. Local recording can continue during an internet outage if the NVR, cameras and local connections stay powered.

What is the difference between the P8 and standard 08S3?

The P8 adds eight built-in PoE camera ports and uses a different power supply. The standard 08S3 needs another way to power its cameras.

Why Buy from Touch IT?

Touch IT lists the P8 for buyers in Dhaka and across Bangladesh. Share camera models, peak wattages and recording days to check power and storage together.

Order the Uniview NVR301-08S3-P8

Build an eight-camera IP security setup with the Uniview NVR301-08S3-P8 8-Channel PoE NVR. Confirm stock, accessories, HDD and camera compatibility with Touch IT before checkout.
