| Video & Audio Performance | ||
| Video Compression: | 6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Recording & Playback | ||
| Recording Modes | Ultra 265/H.265/H.264 | |
| Playback Mode: | 4-ch | |
| Storage & Interfaces | ||
| Internal Storage | 1 SATA interface | |
| USB Ports: | up to 6TB for each disk | |
| Network & Remote Access | ||
| Remote Access | 4 RJ45 10M/100M self-adaptive Ethernet Interface | |
| Physical Specifications | ||
| Power Supply: | 48V DC Power Consumption: ≤10 W (without HDD) |
|
| Operating Temperature | -10°C ~ + 55°C (+14°F ~ +131°F) | |
| Operating Humidity | ≤ 90% RH (non-condensing) | |
| Mounting Type | 205mm × 205mm × 46mm (8.1"×8.1"×1.8") | |
| Compliance & Warranty | ||
| Certifications: | 1 Year | |

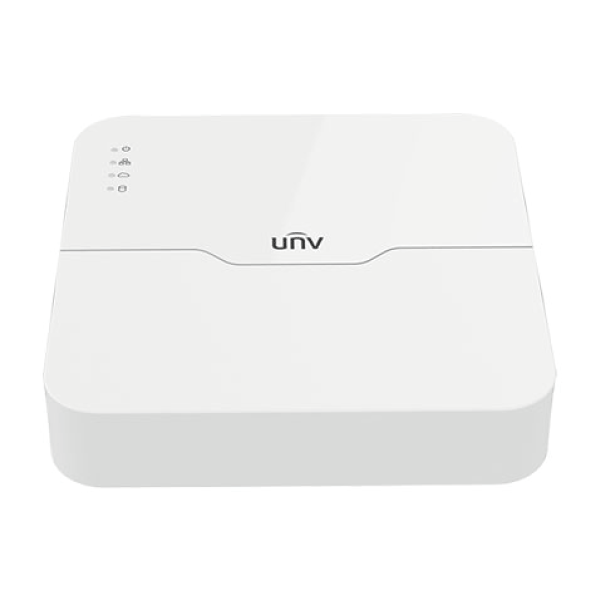

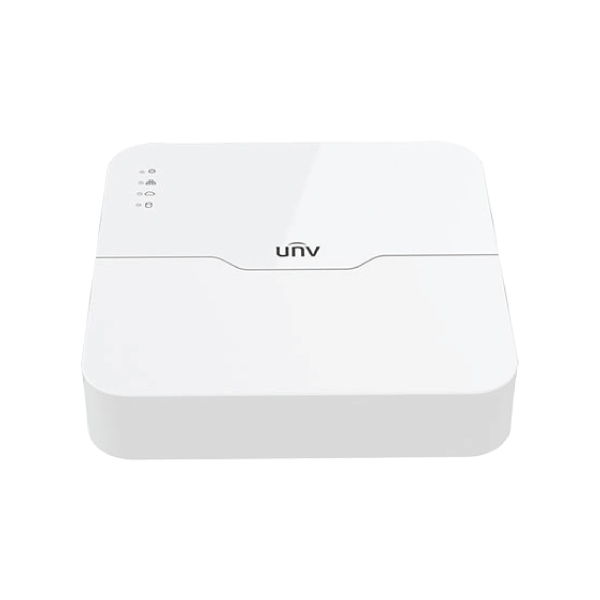

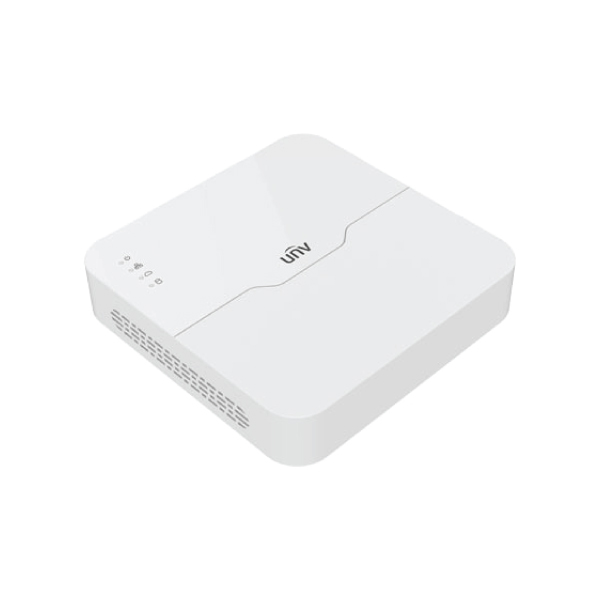

The Uniview NVR301-04LS2-P4 records four IP camera channels and provides four built-in PoE ports. Compatible cameras receive power and data through one network cable. Recording, playback and display outputs fit into a compact unit.
For buyers searching for the Uniview NVR301-04LS2-P4 price in Bangladesh, Touch IT lists this 4 channel PoE NVR at ৳6,800. It fits homes, shops, clinics and small offices. Check HDD inclusion when budgeting.
Connect compatible cameras to the PoE ports, add a surveillance HDD, and attach a monitor through HDMI or VGA. A separate LAN port joins your network. This can reduce individual camera adapters. In a Dhaka shop, the four channels could cover the entrance, counter, sales floor and stockroom.
“P4” identifies the four-port PoE version. A similarly named model without P4 may need an external switch. Explore other NVR models and the Uniview NVR range for larger installations.
Each IEEE 802.3af/at port can deliver up to 30W, but all four share 54W total. Four 30W cameras cannot run simultaneously from this NVR. Add camera power draws, including night lighting or heaters, before installation. High-power devices may need another supply.
The recorder accepts streams up to 6MP. HDMI and VGA operate simultaneously at up to 1920 × 1080; 6MP recording does not mean 4K monitor output. Decoding depends on the streams: Uniview lists four 1080p channels at 25fps or one 6MP channel at 20fps.
Ultra 265, H.265 and H.264 support compatible camera streams. Compression can reduce storage use, but retention depends on bitrate, recording hours and activity. One SATA bay accepts an HDD up to 6TB. Choose capacity based on the days of footage you need.
Four-channel playback helps review entrances and counters together. Two rear USB 2.0 ports support a mouse and footage export. P2P networking enables configured remote access; cloud firmware upgrades are supported. The four camera streams share a 40Mbps incoming limit.
ONVIF Profiles S, G and T support compatible third-party IP cameras. A video connection does not guarantee every audio function, event or smart alert across brands. Check camera models and firmware before rollout. Browse Uniview products for a coordinated system.
Place the recorder in a ventilated, secure area. Plan power backup where outages interrupt surveillance.
| Model | Uniview NVR301-04LS2-P4 |
|---|---|
| IP camera input | 4 channels; up to 6MP recording |
| Video formats | Ultra 265, H.265, H.264 |
| PoE ports | 4 × 10/100Mbps; IEEE 802.3af/at |
| PoE power | 54W total; maximum 30W on one port |
| Network bandwidth | 40Mbps incoming; 40Mbps outgoing |
| Video output | 1 × HDMI and 1 × VGA; simultaneous, up to 1080p |
| Playback | Up to 4 channels synchronously |
| Storage | 1 × SATA HDD interface; up to 6TB |
| Other ports | 1 × RJ45 LAN; 2 × rear USB 2.0 |
| Power and size | 48V DC; 205 × 205 × 46mm |
Before ordering: Confirm HDD inclusion, camera compatibility, the supplied power adapter and warranty terms. Match the combined PoE draw to 54W rather than multiplying the per-port maximum by four.
| Model | Main difference | Best fit |
|---|---|---|
| NVR301-04LS2-P4 | 4 channels, 4 PoE ports, one 6TB HDD bay | Compact Uniview system with direct camera power |
| Tiandy TC-R3104 | Alternative 4-channel PoE recorder | Comparing camera ecosystem and installation requirements |
| Uniview NVR301-08S3 | Eight camera channels and 4K HDMI output | Sites expecting more cameras or a 4K monitor |
The NVR301-08S3 listing covers a different recorder configuration; confirm its exact PoE variant if you need powered camera ports.
It has four IP video channels for up to four compatible camera feeds.
Yes, if the cameras support its PoE standard and their combined power demand stays within 54W.
No. Recording can reach 6MP, while HDMI and VGA display output tops out at 1080p.
The single SATA interface supports one HDD up to 6TB. Confirm whether a drive is supplied.
ONVIF Profiles S, G and T support interoperability, but check video, audio and event compatibility for each camera.
P2P networking supports remote access after the recorder is connected and configured securely.
Do not assume that. Four-channel playback is supported, but decoding capacity falls at higher stream resolutions.
Touch IT can help buyers in Dhaka and across Bangladesh select cameras, storage and network accessories for this four-channel NVR. Share your camera models and intended recording duration so the team can check the PoE budget, disk size and installation plan.
Build a manageable four-camera IP security system with the Uniview NVR301-04LS2-P4 4 Channel PoE NVR. Contact Touch IT to confirm stock, HDD and power accessories, camera compatibility and installation support before checkout.
