In Stock
| System & Smart Features | ||
| Product Type | 4-Channel PoE Network Video Recorder (NVR) | |
| Processor | Industrial Built-in CPU | |
| Operating System | Embedded Linux OS | |
| User Interface / GUI Language | Web, Local GUI | |
| Video & Audio Input | ||
| IP Camera Input | 4 Channels | |
| Maximum IP Camera Input | 4 Channels | |
| Supported Camera Types | ONVIF / RTSP Compatible IP Cameras | |
| Camera Resolution Support | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, CIF, QCIF | |
| Audio Input | 1 × RCA | |
| Two-Way Audio | Supported via RCA Audio Input / Output | |
| Video & Audio Output | ||
| HDMI Output | 1 × HDMI, Up to 1080p | |
| VGA Output | 1 × VGA, Up to 1080p | |
| Audio Output | 1 × RCA | |
| Live View / Multi-Screen Display | 1 / 4 Screen Layout | |
| Recording & Decoding | ||
| Video Compression | H.265+, H.265, H.264+, H.264 | |
| Audio Compression | PCM, G.711a, G.711μ, G.726 | |
| Recording Resolution | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, CIF, QCIF | |
| Frame Rate | Up to 25fps | |
| Decoding Capability | 1ch 8MP / 6MP / 5MP @ 25fps; 2ch 4MP @ 25fps; 4ch 1080p @ 25fps | |
| Playback Channel | Up to 4 Channels | |
| Recording Modes | Manual, Alarm Input, Motion Detection, Schedule | |
| Backup Methods | USB Device | |
| Storage & Network | ||
| SATA Interface | 1 × SATA 2.0 | |
| Maximum HDD Capacity | Up to 8TB | |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet; 4 × RJ45 10/100 Mbps PoE | |
| Incoming Bandwidth | 80 Mbps | |
| Outgoing Bandwidth | 60 Mbps | |
| Network Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P | |
| ONVIF / RTSP Support | ONVIF Profile S/G/T, RTSP, CGI, SDK | |
| Web / Mobile App Support | Chrome, Internet Explorer 9+, Firefox; iOS and Android | |
| Alarm & Event | ||
| Motion Detection | Supported | |
| Video Loss / Tampering | Video Loss, Lens Coverage, Scene Change | |
| System / Exception Alarm | IP Camera Disconnected, Recording Error, Storage Full, IP Conflict, MAC Conflict, Account Locked, Network Security Alert | |
| PoE Features | ||
| PoE Support | Supported | |
| PoE Ports | 4 × RJ45 PoE Ports | |
| PoE Power Output Per Port | Max. 25.5W per Port | |
| Total PoE Power Budget | 36W | |
| External Interface | ||
| USB Port | 2 × USB 2.0: 1 Front, 1 Rear | |
| Audio Interface | 1 × RCA Input, 1 × RCA Output | |
| Power Interface | 48V DC / 53V DC Input | |
| Physical Specification | ||
| Power Supply | 48V DC, 1.25A / 53V DC, 1.22A | |
| Power Consumption | ≤10W Without HDD; PoE Budget: 36W | |
| Working Temperature | -10°C to +45°C | |
| Working Humidity | 10%–93% RH | |
| Dimensions | 260 × 232.5 × 47.6 mm | |
| Net Weight | 0.84 kg | |
| Mounting Type | Desktop | |
| Certifications | CE, FCC | |
| Warranty | ||
| Warranty | 1 Year | |

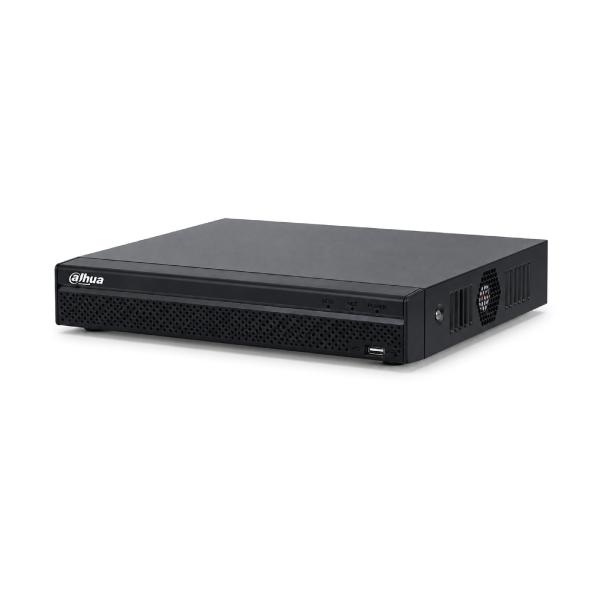

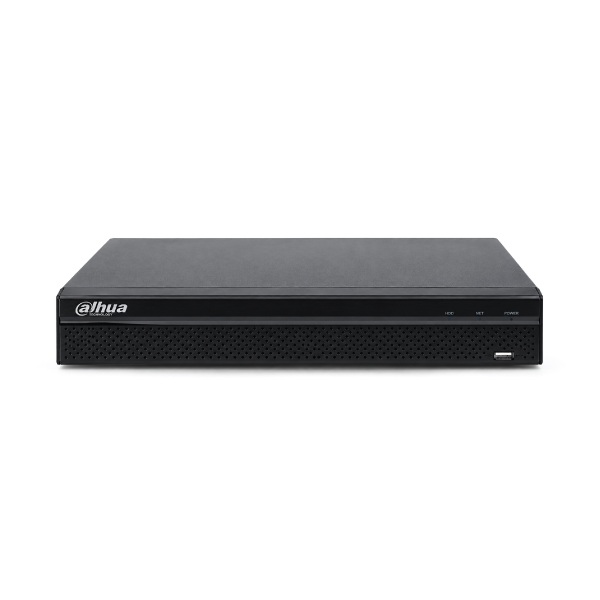

The DAHUA DHI-NVR1104HS-P-S3/H is a compact four-channel recorder with four built-in PoE ports. It sends power and receives video through the same Ethernet cables, simplifying IP camera installation in homes, shops and offices.
The current Dahua DHI-NVR1104HS-P-S3/H price in Bangladesh is ৳10,000 at Touch IT. It supports 8MP camera input, H.265+, 80Mbps bandwidth, four-channel playback and one HDD up to 8TB. Confirm stock and compatibility before ordering.
This Dahua PoE NVR combines camera power, recording, playback and remote access. Its integrated switch replaces a separate four-port PoE switch in a simple installation, while a dedicated LAN port connects the recorder to the wider network.
Each camera can carry power and data over one Ethernet cable. The ports share 36W, with up to 25.5W on one port. Keep the combined camera load within the total budget and use compatible cabling.
The NVR accepts streams up to 8MP. V2.0 decoding reaches one 8MP, 6MP or 5MP channel, two 4MP channels, or four 1080p channels at 25fps. Input resolution and simultaneous decoding are different limits.
Capacity is 80Mbps incoming, 80Mbps recording and 60Mbps outgoing. Combined camera bitrate still depends on resolution, frame rate, compression and scene activity, so sensible configuration helps maintain stable recording and remote access.
Smart H.265+ can reduce storage demand compared with conventional H.264 on compatible cameras. One SATA interface accepts an HDD up to 8TB. Retention varies by settings and activity; use a surveillance HDD, sold separately unless stated.
Review four channels synchronously and use pause, fast, slow, reverse, frame-step and digital zoom controls. Two USB 2.0 ports—one front and one rear—support a mouse and footage export.

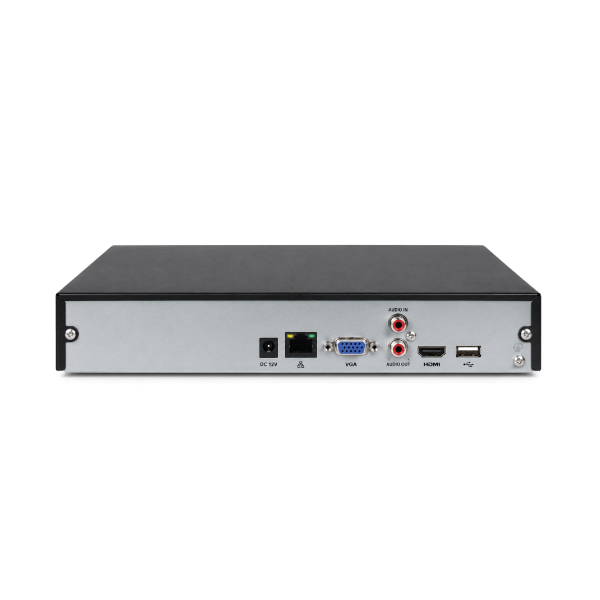

HDMI and VGA operate simultaneously at up to 1080p with one- or four-camera layouts. RCA audio input and output support compatible audio arrangements. The display limit remains 1080p despite 8MP camera input.
P2P supports compatible web, iOS and Android access. ONVIF Profiles S, G and T plus RTSP, CGI and SDK improve interoperability. Audio, events and configuration can vary by camera, so verify advanced functions before mixing brands.
| Brand | Dahua |
|---|---|
| Model | DHI-NVR1104HS-P-S3/H (V2.0 reference) |
| Recorder Type | 4-channel compact 1U PoE NVR |
| Supported Resolution | 8MP to QCIF |
| Network Bandwidth | 80Mbps incoming, 80Mbps recording and 60Mbps outgoing |
| Video Compression | Smart H.265+, H.265, Smart H.264+ and H.264 |
| PoE | 4 ports; 36W total; 25.5W maximum per port |
| Playback | Up to 4-channel synchronized playback |
| Video Output | HDMI and VGA, simultaneous, up to 1080p |
| Storage | 1 × SATA 2.0; up to 8TB |
| Network | 1 × RJ45 10/100Mbps; ONVIF S/G/T and RTSP |
| Interfaces | RCA audio input/output; 2 × USB 2.0 |
| Power | 48V DC, 1.25A or 53V DC, 1.22A; recorder ≤10W without HDD |
| Operating Conditions | -10°C to +45°C; 10%–93% relative humidity |
| Dimensions and Weight | 260 × 232.5 × 47.6mm; 0.84kg net |
This differs from the non-PoE DHI-NVR1104HS-S3/H. It has no Wi-Fi, physical alarm I/O or listed recorder-side AI. The 36W PoE budget is shared, not 25.5W on every port simultaneously. Confirm hardware, firmware, HDD and camera power requirements.
Choose this model for four direct camera connections without an external PoE switch. It combines 8MP input, efficient compression, local storage and remote access. Browse other Dahua NVR models for more channels, higher display output or recorder analytics.
| Model | Channels / PoE | Key Difference | Recommended Use |
|---|---|---|---|
| Dahua DHI-NVR1104HS-P-S3/H | 4 / 4 PoE | 8MP input, 80Mbps bandwidth and 36W PoE budget | Compact Dahua systems with direct camera connections |
| Dahua DHI-NVR1104HS-S3/H | 4 / No PoE | Similar recording platform without integrated camera power | Sites already using an external PoE switch |
| Tiandy TC-R3104 | 4 / 4 PoE | Up to 6MP input and 60Mbps incoming bandwidth | Alternative four-camera PoE installations |
| Hikvision DS-7604NI-Q1 | 4 / No PoE | Up to 8MP input and 4K HDMI output | Hikvision systems requiring higher monitor resolution |
It records up to four compatible IP camera channels.
Yes. Four PoE ports deliver network data and power to compatible cameras.
The four ports share 36W, with a published maximum of 25.5W on one port.
Yes. It accepts and decodes one compatible 8MP stream at up to 25fps.
The single SATA 2.0 interface supports one hard drive up to 8TB.
Yes. Compatible iOS and Android clients support remote viewing after secure network configuration.
ONVIF and RTSP improve compatibility, but video, audio and event functions should be checked individually.
