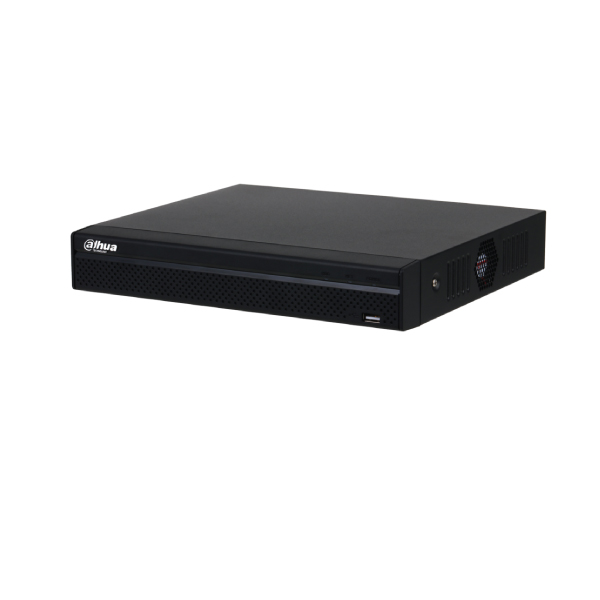

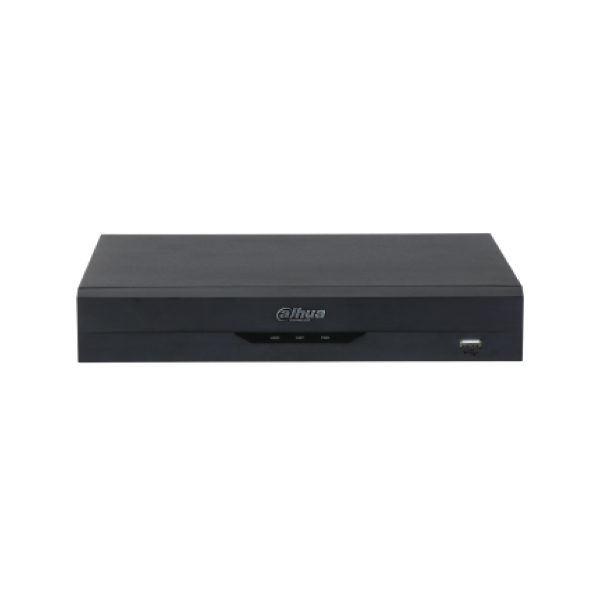

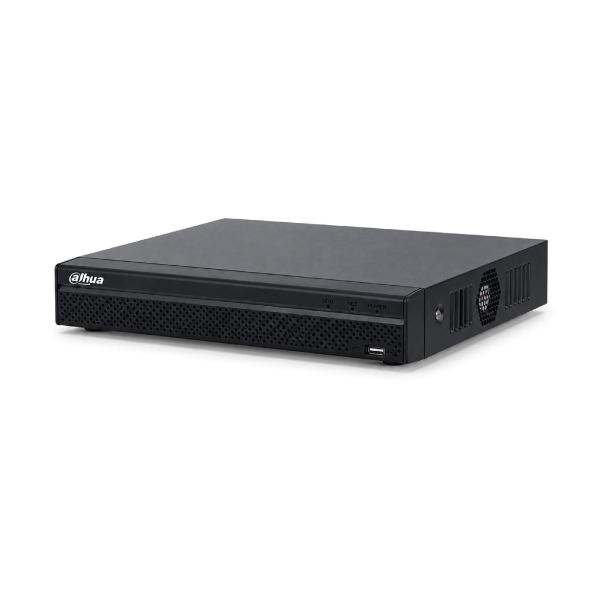

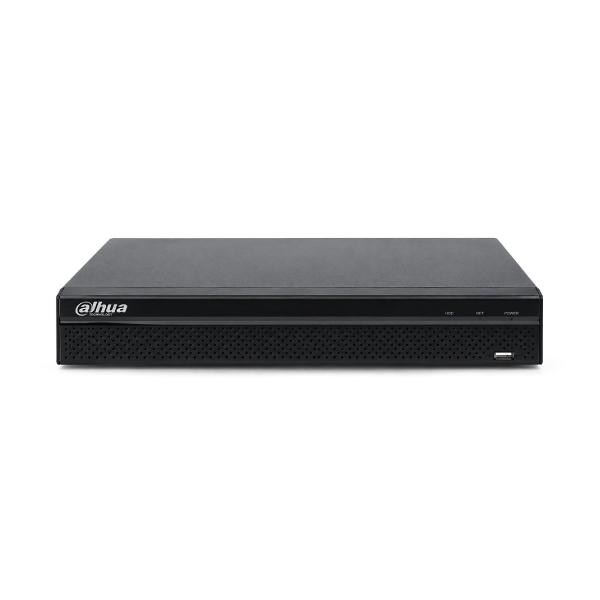

DAHUA DHI-NVR1108HS-S3/H 8 Channel Compact 1U 1HDD NVR

Dahua DHI-NVR1108HS-S3/H 8 Channel Compact 1U 1HDD NVR

The Dahua DHI-NVR1108HS-S3/H is an eight-channel network video recorder for homes, shops, offices and clinics. It combines high-resolution IP camera support, H.265+ compression, HDD recording, remote monitoring and flexible playback in a compact metal enclosure.

For buyers comparing the Dahua DHI-NVR1108HS-S3/H price in Bangladesh, the current Touch IT price is ৳6,100. This 8-channel NVR accepts up to 8MP streams, offers 80Mbps incoming bandwidth and supports one 8TB HDD. It has no PoE or Wi-Fi, so confirm camera-power requirements before ordering.

Quick Highlights

• Channels: Eight IP camera inputs for multi-area surveillance
• Camera Resolution: Supports streams up to 8MP
• Bandwidth: 80Mbps incoming, 80Mbps recording and 60Mbps outgoing
• Decoding: Up to 4 × 1080p or 8 × 720p at 25/30fps
• Compression: Smart H.265+, H.265, Smart H.264+ and H.264
• Storage: One SATA 2.0 bay supporting up to an 8TB HDD
• Display: Simultaneous HDMI and VGA output up to 1080p
• Integration: ONVIF S/G/T, RTSP, CGI and SDK support

Product Overview

This compact NVR centralizes eight-camera recording without larger enterprise hardware. Its Linux platform and web/local interface handle live view, recording, search, playback and backup. The non-PoE design suits cameras connected through an external PoE switch or LAN.

Key Features and Benefits

Eight IP Camera Channels for Wider Coverage

Eight channels cover entrances, sales floors, counters, corridors, storerooms and outdoor approaches. Operators can select 1, 4, 8 or 9-window layouts. This capacity is more expandable than a four-channel recorder while remaining manageable.

Up to 8MP Input with 80Mbps Bandwidth

The recorder accepts up to 8MP with 80Mbps incoming, 80Mbps recording and 60Mbps outgoing bandwidth. Decoding includes one 8MP or 5MP, two 4MP or 3MP, four 1080p or eight 720p channels. Regional limits are 25/30fps.

Smart Compression for Longer Retention

Smart H.265+, H.265, Smart H.264+ and H.264 control bandwidth and storage. Compatible encoding can extend retention while maintaining practical quality. Actual duration depends on resolution, bitrate, frame rate, activity and recording schedule.

Single-HDD Storage up to 8TB

One SATA 2.0 interface accepts a compatible HDD up to 8TB. Recording can be manual, scheduled, motion-based or alarm-linked. Use a surveillance-grade drive for continuous workloads. An HDD should not be assumed to be included unless stated.

Convenient Display, Playback and Backup

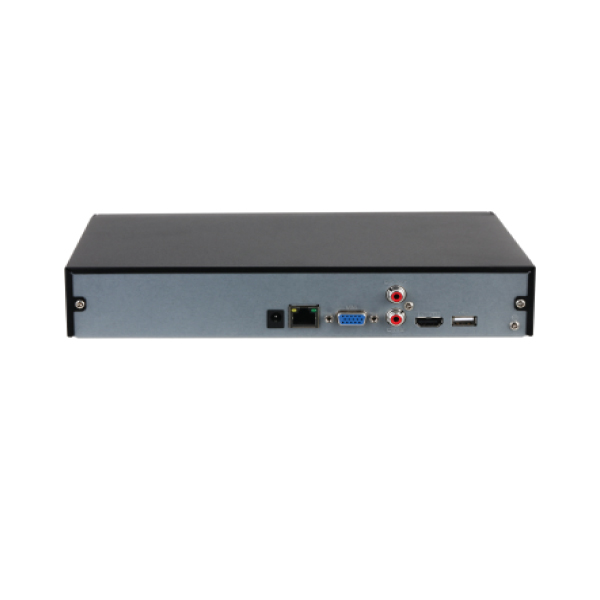

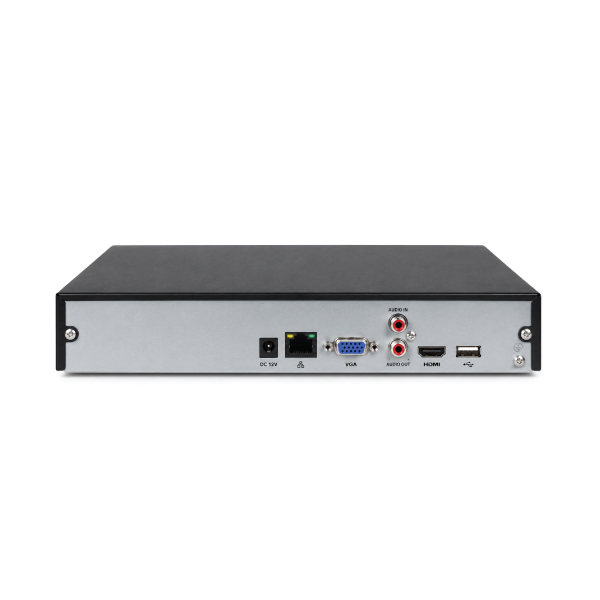

Simultaneous HDMI and VGA outputs reach 1080p. Playback offers pause, fast forward, reverse, frame-by-frame review, digital enlargement and clip export. Front and rear USB 2.0 ports support a mouse and backup device.

Remote Viewing and Third-Party Camera Access

P2P supports remote live view and playback on compatible iOS and Android devices. ONVIF Profiles S, G and T plus RTSP improve third-party integration. Audio, events and remote configuration remain camera- and firmware-dependent.

Compact and Energy-Efficient Hardware

The recorder uses 12V DC, 1.5A and consumes no more than 10W without an HDD. Its compact footprint fits protected shelves, counters and cabinets, while the embedded processor and Linux support dedicated surveillance operation.

Recommended Applications

• Homes, apartments and residential buildings
• Retail shops, showrooms and supermarkets
• Small offices, clinics and educational centres
• Restaurants, pharmacies and service counters
• Eight-camera systems using an external PoE switch

Technical Specifications

Verification Note

This is the non-PoE NVR1108HS-S3/H. The NVR1108HS-8P-S3/H is a different model with eight built-in PoE ports. Local HDMI output is limited to 1080p even though camera input reaches 8MP. Published decoding, synchronous playback and dimensions can vary slightly by hardware revision or regional standard. Confirm the product label, firmware, HDD, power adapter and warranty before purchase.

Why Choose This Dahua 8-Channel NVR?

Choose this model for affordable eight-camera recording, 8MP input support, efficient compression and straightforward remote access. Browse more Dahua NVR models or explore all Dahua products for compatible cameras and system components.

Product Comparison

Frequently Asked Questions

How many IP cameras can this NVR record?

It can connect and record up to eight compatible network camera channels.

Does it have built-in PoE ports?

No. Cameras require power adapters, PoE injectors or a suitable external PoE switch.

Can it work with an 8MP IP camera?

Yes. It accepts and decodes one 8MP stream, subject to camera and firmware compatibility.

How much HDD storage does it support?

Dahua lists one SATA HDD up to 8TB, subject to the supported-drive list and operating conditions.

Can users monitor cameras remotely?

Yes. P2P and network access enable compatible mobile and browser viewing after secure configuration.

Does it support third-party IP cameras?

ONVIF and RTSP are supported, but video, audio, events and configuration functions should be tested.

Does the recorder have human and vehicle AI?

No recorder-based SMD or human/vehicle analytics are listed. Intelligent events depend on compatible cameras.

Why Buy from Touch IT?

Touch IT supplies original recorders and professional CCTV surveillance equipment in Bangladesh. The team can verify camera compatibility, PoE-switch capacity, bandwidth, HDD retention, cabling and installation accessories.

Order the Dahua DHI-NVR1108HS-S3/H Today

Build a dependable eight-camera IP security system with efficient recording and convenient remote access. Order from Touch IT, visit Multiplan Center, Level 03, Room 312, New Elephant Road, Dhaka-1205, or call 01711664030.
