| System & AI Capabilities | ||
| Privacy Protection | Privacy masking supported (camera-dependent) | |
| Processor | Embedded high-performance video decoding processor | |
| Operating System | Embedded Linux | |
| User Interface | Local GUI, web interface, mouse control | |
| AI Analytics | Human and vehicle classification analytics | |
| Smart Motion Detection (SMD+) | Motion Detection 2.0 with human/vehicle filtering (1–4 channels) | |
| Video & Audio Performance | ||
| Video Input Channels | IP: 4 channels | |
| Supported Resolution | Up to 8 MP input resolution | |
| Video Compression: | H.265+, H.265, H.264+, H.264 | |
| Decoding Performance: | 1-ch @ 8 MP (30 fps) 3-ch @ 4 MP (30 fps) 6-ch @ 1080p (30 fps) |
|
| IP Camera Support | Supports multi-resolution IP cameras up to 8 MP | |
| Video Output: | HDMI: Up to 4K (4096 × 2160 @ 30 Hz) VGA: Up to 1920 × 1080 @ 60 Hz |
|
| Audio Support: | 1-ch RCA audio output | |
| Multi-Screen Display: | HDMI and VGA simultaneous output | |
| Third-Party Camera Integration | ONVIF-compatible IP cameras | |
| Recording & Playback | ||
| Recording Modes | Continuous, scheduled, event-based recording | |
| Playback Mode: | Synchronous playback up to 4 channels | |
| Stream Type | Video / Video & Audio | |
| Frame Rate: | Up to 30 fps (resolution dependent) | |
| Video Bit Rate | Configurable (system managed) | |
| Backup Methods | USB backup, network backup | |
| Alarm Types: | Motion detection–based alarms | |
| Storage & Interfaces | ||
| Maximum Storage Capacity | 1 × SATA HDD, up to 8 TB | |
| USB Ports: | 2 × USB 2.0 | |
| Network Interface | 1 × RJ45 10/100 Mbps self-adaptive Ethernet | |
| Network & Remote Access | ||
| Network Protocol | TCP/IP, DHCP, IPv4/IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS | |
| Remote Access | Up to 32 concurrent connections | |
| Bandwidth Management | Incoming: 40 Mbps Outgoing: 80 Mbps |
|
| Camera Access Protocos | ONVIF, RTSP | |
| Physical Specifications | ||
| Power Supply: | DC 12 V, 1.5 A | |
| Power Consumption | ≤ 10 W (without HDD) | |
| Operating Temperature | –10 °C to +55 °C | |
| Operating Humidity | 10% to 90% RH (non-condensing) | |
| Cooling System | Passive cooling (fanless) | |
| Material | Metal chassis | |
| Dimensions | 320 × 240 × 48 mm (W × D × H) | |
| Net Weight: | ≤ 1 kg (without HDD) | |
| Compliance & Warranty | ||
| Certifications: | CE, FCC | |
| Warranty | 1-Year manufacturer warranty | |

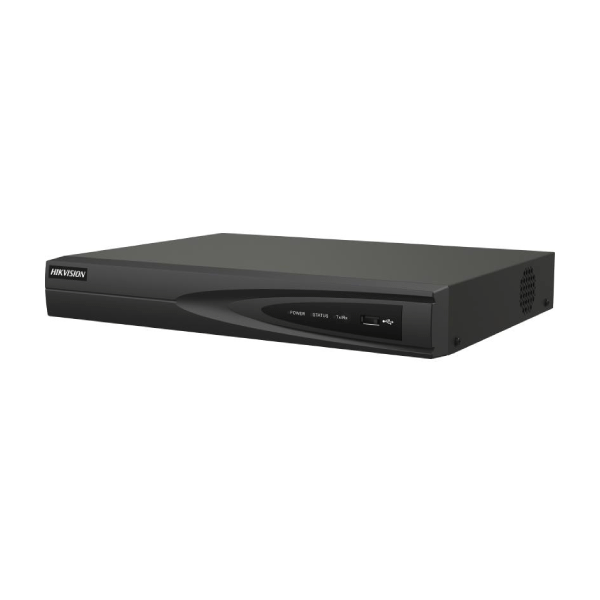

The Hikvision DS-7604NI-Q1 4 Channel 1U 4K NVR is a compact yet powerful network video recorder designed for high-resolution IP surveillance systems in Bangladesh. Supporting up to 4 IP cameras with advanced 4K Ultra HD recording, this NVR delivers reliable performance for homes, offices, retail stores, and small commercial facilities. With support for modern video compression formats and intelligent analytics, the DS-7604NI-Q1 ensures efficient storage, smooth playback, and crystal-clear video monitoring.
The DS-7604NI-Q1 supports high-resolution recording up to 8 MP (4K), delivering exceptional image clarity for detailed surveillance. It offers strong decoding capability of 1-channel @ 8 MP, 3-channel @ 4 MP, or 6-channel @ 1080p at 30 fps, ensuring smooth live view and playback. This makes it ideal for security setups that require sharp visuals for identification and evidence.
Equipped with H.265+, H.265, H.264+, and H.264 video formats, the Hikvision DS-7604NI-Q1 significantly reduces storage consumption and network bandwidth without compromising video quality. This efficient compression allows longer recording durations on a single hard drive while maintaining excellent image performance—perfect for cost-effective CCTV deployment in Bangladesh.
The NVR supports Motion Detection 2.0 with human and vehicle classification on supported channels, helping minimize false alarms triggered by irrelevant motion such as rain, shadows, or animals. This intelligent detection enhances security accuracy and allows users to focus on real threats, improving overall monitoring efficiency.
With up to 40 Mbps incoming bandwidth and 80 Mbps outgoing bandwidth, the DS-7604NI-Q1 ensures stable video streaming and recording even when multiple high-resolution cameras are connected. It supports up to 32 remote connections, allowing secure live viewing and playback from multiple devices simultaneously.
The Hikvision DS-7604NI-Q1 features simultaneous HDMI and VGA output, supporting resolutions up to 4K (3840 × 2160) @ 30Hz and 1080p @ 60Hz. This allows flexible display options for control rooms, monitoring desks, or large security screens without additional hardware.
This 4-channel NVR supports audio output and two-way audio through RCA interfaces, enabling real-time communication when paired with compatible IP cameras and microphones. This feature is particularly useful for offices, reception areas, and entry monitoring systems.
The DS-7604NI-Q1 supports one SATA hard drive up to 8 TB, providing ample storage for high-resolution video footage. With a low power consumption of ≤ 10 W (without HDD) and reliable operation in temperatures from -10°C to +55°C, this NVR is built for continuous 24/7 surveillance in Bangladesh’s diverse environments.
Housed in a slim 1U compact chassis measuring 320 × 240 × 48 mm, the Hikvision DS-7604NI-Q1 is easy to install in space-constrained locations. Its lightweight design and intuitive interface make it suitable for both new CCTV installations and system upgrades.
When you purchase the Hikvision DS-7604NI-Q1 4 Channel 4K NVR from Touch IT, you receive a 100% genuine Hikvision product backed by official warranty, expert technical support, and dependable after-sales service. Touch IT offers the best Hikvision NVR price in Bangladesh with nationwide delivery and professional installation support. Choose Touch IT for trusted Hikvision IP surveillance solutions that deliver performance, reliability, and long-term value.
The latest price of Hikvision DS-7604NI-Q1 4 Channel NVR in Bangladesh is 6,500৳. You can buy the Hikvision DS-7604NI-Q1 4 Channel NVR at best price from our website or visit any of our showrooms.
