In Stock
| System & AI Capabilities | ||
| Processor | Industrial-grade embedded processor | |
| Operating System | Embedded Linux | |
| User Interface / GUI Language | Web interface & Local GUI | |
| AI Analytics | N/A | |
| Smart Motion Detection | N/A | |
| Human / Vehicle Detection | N/A | |
| Face Detection & Recognition | N/A | |
| Perimeter Protection | Privacy masking supported | |
| Video & Audio Performance | ||
| Video Input Channels | 4 Channels | |
| Supported Resolution | 8MP; 5MP; 4MP; 3MP; 1080p; 720p; D1; CIF | |
| Video Compression: | Smart H.265+; H.265; Smart H.264+; H.264 | |
| Decoding Performance: | 1-ch@8MP (30fps) / 1-ch@5MP (30fps) / 2-ch@4MP (30fps) / 2-ch@3MP (30fps) / 4-ch@1080p (30fps) | |
| Analog Video Support | RCA Input supported | |
| IP Camera Support | Up to 4 IP channels | |
| Video Output: | 1 HDMI & 1 VGA (simultaneous output, up to 1080p) | |
| Audio Support: | PCM; G711A; G711U; G726 | |
| Multi-Screen Display: | 1 / 4 Split | |
| Third-Party Camera Integration | ONVIF; RTSP | |
| Recording & Playback | ||
| Recording Modes | Manual > Alarm > Motion Detection > Scheduled | |
| Playback Mode: | Play, Pause, Stop, Fast Forward, Rewind, Frame-by-frame | |
| Stream Type | Main Stream / Sub Stream | |
| Frame Rate: | Up to 30 fps | |
| Video Bit Rate | Adaptive (based on bandwidth up to 80 Mbps) | |
| Backup Methods | USB Backup | |
| Alarm Types: | Motion Detection, Video Loss, Privacy Masking, PIR Alarm, IPC Alarm, Network Anomalies | |
| Storage & Interfaces | ||
| Internal Storage | 1 SATA 2.0 HDD | |
| Maximum Storage Capacity | Up to 8 TB | |
| USB Ports: | 1 × Front USB 2.0, 1 × Rear USB 2.0 | |
| Alarm I/O | N/A | |
| Serial Communication | N/A | |
| Network Interface | 1 × RJ-45 (10/100 Mbps) | |
| PoE (If Applicable) | ||
| PoE Standard | N/A | |
| PoE Interface | N/A | |
| PoE Power Output | N/A | |
| Network & Remote Access | ||
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; P2P | |
| Remote Access | Web Browser (Chrome, IE9+, Firefox) | |
| Mobile App Support | iDMSS (iOS), gDMSS (Android) | |
| Bandwidth Management | 80 Mbps (Access), 80 Mbps (Storage), 60 Mbps (Forwarding) | |
| Camera Access Protocos | ONVIF (Profile S/G/T); RTSP; CGI; SDK | |
| Physical Specifications | ||
| Power Supply: | 12V DC, 1.5A | |
| Power Consumption | ≤ 10W (without HDD) | |
| Operating Temperature | -10°C to 45°C | |
| Operating Humidity | 10%–93% | |
| Cooling System | Passive Cooling | |
| Material | Metal Housing | |
| Dimensions | 260 × 225 × 47.6 mm | |
| Net Weight: | 0.81 kg | |
| Compliance & Warranty | ||
| Certifications: | CE, FCC | |
| Warranty | 1 Year Standard Warranty | |

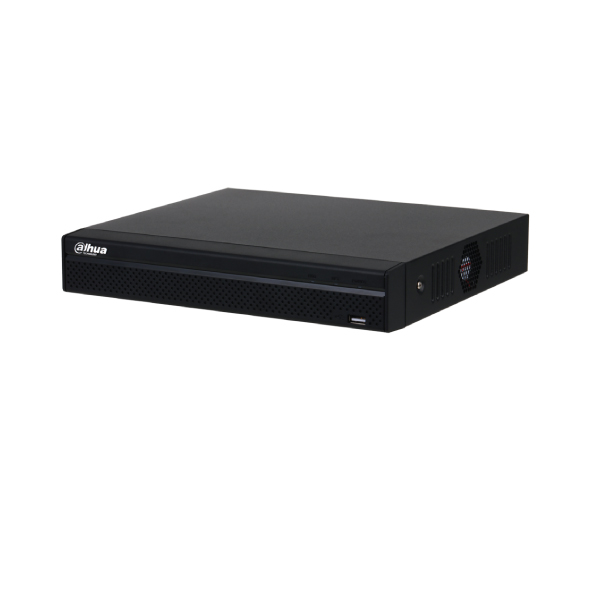

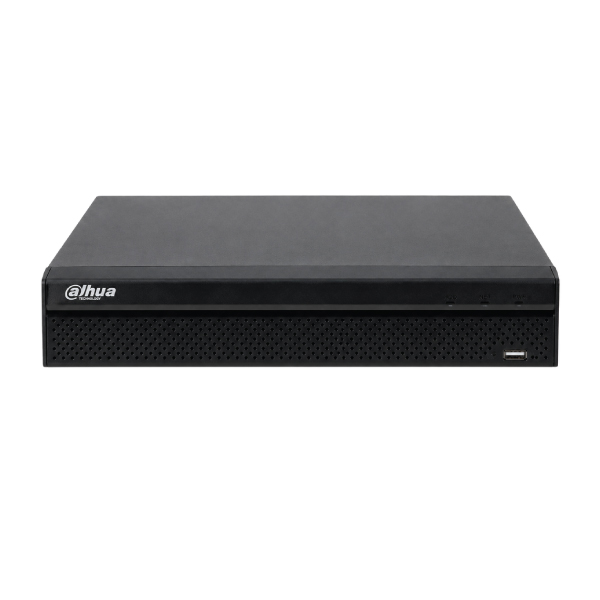

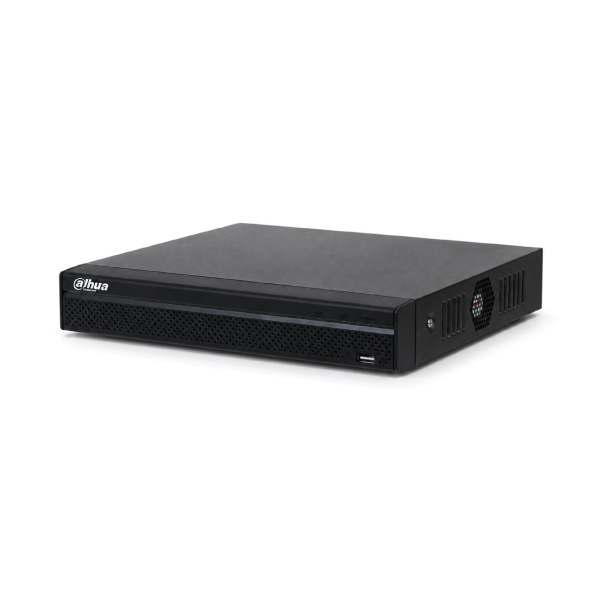

The Dahua DHI-NVR1104HS-S3/H is a compact four-channel network video recorder for homes, shops, small offices and clinics. It combines high-resolution camera support, H.265+ compression, local HDD storage, remote monitoring and convenient playback in a space-saving metal enclosure.
For customers comparing the Dahua DHI-NVR1104HS-S3/H price in Bangladesh, the current Touch IT price is ৳5,400. This 4-channel NVR supports up to 8MP streams, 80Mbps incoming bandwidth and one 8TB HDD. It has no built-in PoE, so confirm camera-power requirements before ordering.
This compact NVR provides four-camera recording without unnecessary enterprise hardware. Its Linux platform and web/local interface handle live view, recording, search, playback and backup. The non-PoE design suits cameras connected through an external PoE switch or local network.
The recorder manages four IP camera channels for a flat, small shop, reception, storeroom or clinic. Users can display one or four channels and synchronously play back all four, keeping smaller surveillance systems manageable.
The NVR accepts resolutions up to 8MP with 80Mbps incoming, 80Mbps recording and 60Mbps outgoing bandwidth. Decoding includes one 8MP or 5MP channel, two 4MP or 3MP channels, or four 1080p channels. Regional limits can be 25/30fps.
Smart H.265+, H.265, Smart H.264+ and H.264 balance image quality, bandwidth and storage. Compatible smart compression can extend retention, although duration depends on resolution, bitrate, frame rate, activity and recording schedule.
One SATA 2.0 interface accepts an HDD up to 8TB. Recording can be continuous, scheduled, motion-based or alarm-linked. Verify drive compatibility and use a surveillance-grade HDD for continuous workloads. An HDD should not be assumed to be included.

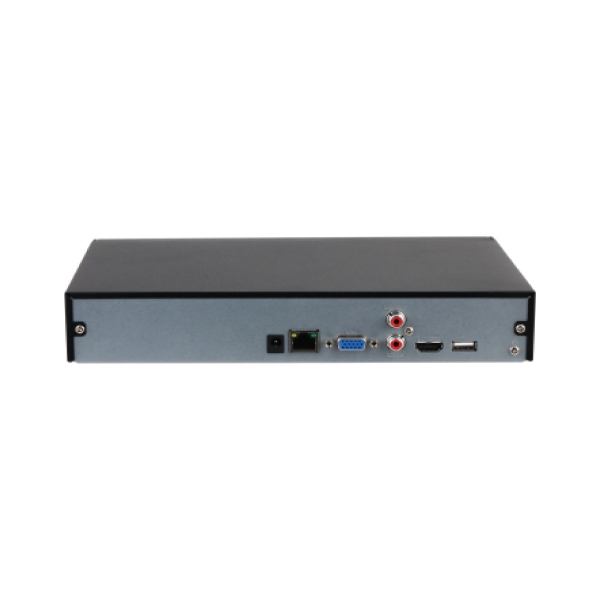

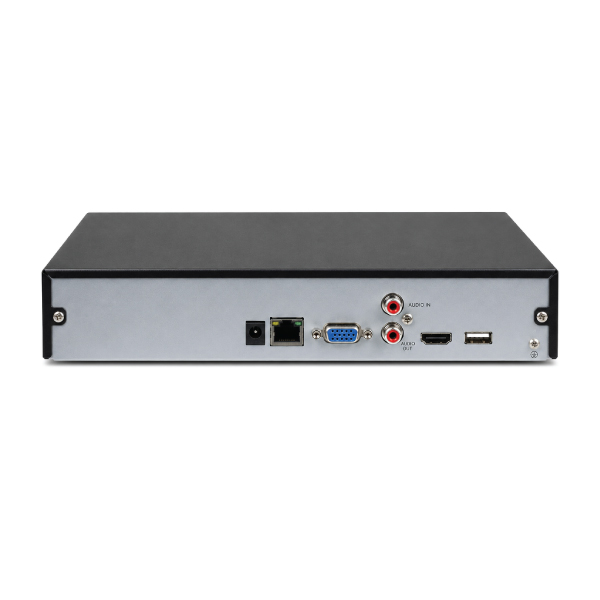

HDMI and VGA output simultaneously at up to 1080p. Playback offers pause, fast forward, reverse, frame-by-frame review, digital enlargement and clip backup. Two USB 2.0 ports support a mouse and removable storage.
P2P supports remote live view and playback on compatible iOS and Android devices. ONVIF Profiles S, G and T plus RTSP improve third-party integration. Audio, events and remote configuration remain camera- and firmware-dependent.
The recorder uses a 12V DC, 1.5A supply and consumes no more than 10W without an HDD. Its compact footprint suits counters, shelves and protected cabinets, while embedded Linux supports dedicated surveillance operation.
| Brand and Model | Dahua DHI-NVR1104HS-S3/H |
|---|---|
| Recorder Type | 4-channel compact 1U network video recorder |
| Processor and OS | Industrial-grade embedded processor; embedded Linux |
| Supported Resolution | Up to 8MP |
| Network Bandwidth | 80/80/60Mbps incoming/recording/outgoing |
| Video Compression | Smart H.265+, H.265, Smart H.264+ and H.264 |
| Storage | 1 SATA 2.0 port; up to 8TB |
| Display Output | 1 HDMI and 1 VGA; simultaneous output up to 1080p |
| Audio | 1 RCA input and 1 RCA output |
| Network | 1 RJ45 10/100Mbps; ONVIF S/G/T and RTSP |
| PoE Ports | None |
| Power | 12V DC, 1.5A; ≤10W without HDD |
| Dimensions and Weight | Approximately 260 × 225–232.4 × 47.6mm; 0.81kg |
This is the non-PoE NVR1104HS-S3/H; the NVR1104HS-P-S3/H has four PoE ports. HDMI output is limited to 1080p although camera input reaches 8MP. Dimensions and 25/30fps figures can vary by revision and region. Confirm the label, firmware, HDD, adapter and warranty.
Choose it for affordable four-camera recording, 8MP input, efficient compression and remote monitoring. Browse Dahua NVR models or all Dahua products for compatible components.
| Model | Channels / PoE | Maximum Camera Resolution | Recommended Use |
|---|---|---|---|
| Dahua NVR1104HS-S3/H | 4 / No PoE | Up to 8MP | Small systems using an external PoE switch |
| Dahua NVR1108HS-S3/H | 8 / No PoE | Up to 8MP | Sites needing room for more cameras |
| Tiandy TC-R3104 | 4 / 4 PoE | Up to 6MP | Direct-connect four-camera PoE installation |
| Hikvision DS-7604NI-Q1 | 4 / No PoE | Up to 8MP | Hikvision-focused 4K display systems |
It can connect and record up to four compatible IP camera channels.
No. Cameras require suitable power adapters, PoE injectors or an external PoE switch.
Yes. It accepts and decodes up to one 8MP stream, subject to camera and firmware compatibility.
Dahua lists one SATA HDD up to 8TB, with capacity subject to the supported-drive list and environment.
Yes. P2P and network access support compatible mobile and browser-based remote monitoring after secure configuration.
ONVIF and RTSP are supported, but video, audio, events and configuration functions should be tested.
No recorder-based SMD or human/vehicle AI is listed. Available intelligent events depend on compatible cameras.
Touch IT supplies original NVRs and professional CCTV surveillance equipment in Bangladesh. The team can verify camera compatibility, PoE-switch capacity, HDD retention, cabling and installation accessories.
Build a dependable four-camera IP security system with efficient storage and remote access. Order from Touch IT, visit Multiplan Center, Level 03, Room 312, New Elephant Road, Dhaka-1205, or call 01711664030.
