In Stock
| System | ||
| Main Processor | Embedded processor for stable 24/7 NVR operation | |
| Operating System | Embedded Linux operating system | |
| Audio and Video | ||
| IP Camera Input | Up to 4 IP camera channels, supports resolutions up to 6MP | |
| Display | ||
| Interface | 1× HDMI, 1× VGA simultaneous video output | |
| Resolution | HDMI & VGA up to 1920×1080 (Full HD) | |
| Decoding Capacity | 6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×4 | |
| Multi-Screen Display | 1/2/3/4 channel split screen on both HDMI and VGA | |
| OSD | Camera title, time, recording status, and alarm information display | |
| Recording | ||
| Compression | S+265 / H.265 / S+264 / H.264 | |
| Resolution | Recording up to 6MP per channel | |
| Record Rate | Up to 30fps per channel (resolution dependent) | |
| Bit Rate | Incoming bandwidth 60 Mbps, outgoing 40 Mbps | |
| Record Mode | Manual, Schedule, Motion Detection, Alarm | |
| Record Interval | Continuous, scheduled, or event-based recording | |
| Others | Supports audio recording with G.711A / G.711U / ADPCM_D | |
| Video Detection And Alarm | ||
| Trigger Event | Motion detection, smart alarm (via camera), human/vehicle classification | |
| Video Detection | Motion detection, video loss, camera mask alarm | |
| Alarm Input | Alarm input via IPC (camera) | |
| Playback And Backup | ||
| Sync Playback | 4-channel synchronous playback | |
| Search Mode | Search by time, event, and alarm | |
| Playback Function | Play, Pause, Stop, Slow, Fast, Step, Digital Zoom, Instant Replay, Video Clip Backup | |
| Backup Mode | USB backup (video export) | |
| Third Party Support | ||
| Third Party Support | ONVIF (Profile S/T), RTSP compatible IP cameras | |
| Network | ||
| Interface | 1× RJ-45 (10/100 Mbps self-adaptive Ethernet port) | |
| Ethernet Port | 10/100 Mbps network interface | |
| PoE | 4× PoE ports, IEEE 802.3af/at, total PoE budget 32W, max 30W per port | |
| Network Function | DHCP, DDNS, DNS, NTP, RTSP, RTP, SMTP, HTTPS, UPnP, IPv4/IPv6, P2P, and more | |
| Maximum User Access | Multi-user access supported (web & client) | |
| Smart Phone | EasyLive Plus mobile app (Android & iOS) | |
| Interoperability | CGI, SDK, P2P support | |
| Storage | ||
| HDD Mode | Local HDD storage | |
| Internal HDD | 1× SATA interface, supports up to 8TB HDD | |
| Auxiliary Interface | ||
| USB | 2× USB 2.0 ports | |
| Power | ||
| Power Supply | DC 48V power adapter | |
| Power Consumption | <10W (without HDD and PoE load) | |
| Component Environment | ||
| Operational Conditions | -10°C to +55°C, 10%–90% RH (non-condensing) | |
| Storage Conditions | -20°C to +60°C | |
| Construction | ||
| Dimensions | 201 × 202 × 43 mm | |
| Net Weight | 0.44 kg | |
| Gross Weight | 0.81 kg | |
| Warranty | ||
| Manufacturing Warranty | 1 Yaer | |

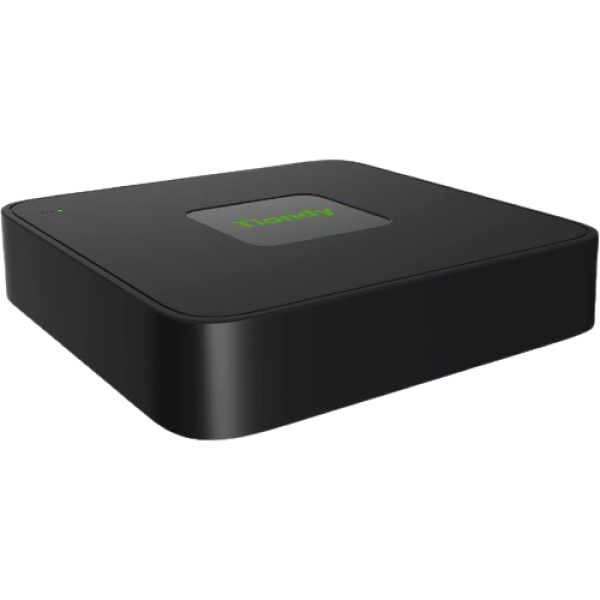

Secure your home or business with the powerful and compact Tiandy TC-R3104 4 Channel PoE NVR — a smart, reliable, and easy-to-manage network video recorder built for modern IP camera surveillance systems. Perfect for small offices, retail shops, and residential security, this PoE NVR delivers sharp video recording, remote monitoring, and efficient storage in one sleek device.
Smart 4-Channel PoE Recording, Crystal-Clear HD & 5MP Playback, and Reliable Remote Surveillance for Home & Business — the Tiandy TC-R3104 is designed to give you professional security performance without complicated setup.
The Tiandy TC-R3104 4 Channel PoE NVR supports up to 4 IP cameras, making it ideal for complete small-area coverage. With support for 5MP, 4MP, 3MP, and Full HD 1080P cameras, your footage stays sharp, detailed, and reliable. The HDMI output ensures clear live viewing and playback on monitors for real-time security monitoring.
This Tiandy TC-R3104 4 Channel PoE NVR provides strong decoding performance for both live preview and playback. You can monitor multiple HD camera feeds smoothly, while playback remains responsive when reviewing incidents. Whether you’re checking a single 5MP stream or multiple 1080P channels, performance stays stable and clear.
Never miss important events with built-in motion detection and mask alarm features. The Tiandy TC-R3104 4 Channel PoE NVR automatically records when activity is detected, saving storage space and making it easier to locate footage. Flexible schedule recording and alarm recording modes give you full control over how your surveillance system operates.
Finding footage is quick using smart search by date, channel, or recording type. Playback controls include fast forward, rewind, zoom, snapshot, and audio on/off. You can back up video easily via USB device or network. With support for iOS and Android mobile apps, you can view live cameras and recordings anytime, anywhere — perfect for business owners and homeowners on the go.
The Tiandy TC-R3104 4 Channel PoE NVR features a space-saving design while supporting up to 6TB HDD storage for long-term video retention. Dual USB ports allow easy mouse control and backup, while the low power consumption keeps your system energy-efficient. Its lightweight build makes installation simple in control rooms, counters, or wall-mounted cabinets.
At Touch IT, we provide 100% genuine Tiandy TC-R3104 4 Channel PoE NVR with official warranty support. You get competitive pricing, expert guidance on choosing the right CCTV surveillance system, and dependable after-sales service. Whether you are upgrading your shop security or installing a new home camera system, Touch IT ensures trusted products, fast support, and a smooth buying experience.
The latest price of Tiandy TC-R3104 4 Channel PoE NVR in Bangladesh is 4,000৳. You can buy the Tiandy TC-R3104 4 Channel PoE NVR at best price from our website or visit any of our showrooms.
