| System & Smart Features | ||
| Product Type | 16-Channel XVR / Digital Video Recorder | |
| Processor | Industrial-Grade Processor | |
| Operating System | Embedded Linux | |
| User Interface / GUI Language | Web, Local GUI | |
| AI Analytics | SMD Plus, SMD by Camera, Irregular Black Block Masking | |
| Smart Motion Detection | SMD Plus by Recorder: 16 Channels; SMD by Camera: 18 Channels | |
| Human / Vehicle Detection | Secondary Filtering for Human and Vehicle | |
| Video & Audio Input | ||
| Analog Video Input | 16 BNC Ports, Supports HDCVI / AHD / TVI / CVBS Auto-Detect | |
| IP Camera Input | 2 IP Channels by Default + 16 Analog Channels Convertible to IP | |
| Maximum IP Camera Input | Up to 18 Channels | |
| Supported Camera Types | HDCVI / AHD / TVI / CVBS / IP Camera | |
| Camera Resolution Support | CVI / TVI / AHD: 1080p@25/30fps, 720p@25/30fps | |
| Audio Input | 1-Channel RCA; 16-Channel BNC Coaxial Audio | |
| Two-Way Audio | Coaxial Two-Way Talk: 16-Channel BNC; Local and Network Two-Way Talk Shared with First Audio Input | |
| Video & Audio Output | ||
| HDMI Output | 1 HDMI, Supports 1920 × 1080, 1280 × 1024, 1280 × 720 | |
| VGA Output | 1 VGA, Supports 1920 × 1080, 1280 × 1024, 1280 × 720 | |
| Audio Output | 1-Channel RCA | |
| Live View / Multi-Screen Display | Without IP Extension: 1 / 4 / 8 / 9 / 16; With IP Extension: 1 / 4 / 8 / 9 / 16 / 25 | |
| Recording & Decoding | ||
| Video Compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 | |
| Audio Compression | G.711a, G.711u, PCM | |
| Recording Resolution | 1080N / 720p / 960H / D1 / CIF | |
| Frame Rate | Main Stream: 1st Channel 1080N / 720p @ 1–25/30fps; Other Channels 1080N / 720p @ 1–15fps; 960H / D1 / CIF @ 1–25/30fps; Sub Stream: CIF @ 1–7fps | |
| Playback Channel | 1 / 4 / 9 / 16 | |
| Recording Modes | General, Alarm, Motion Detection | |
| Backup Methods | USB Device and Network | |
| Storage & Network | ||
| SATA Interface | 1 SATA Port | |
| Maximum HDD Capacity | Up to 16TB | |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet Port | |
| Incoming Bandwidth | 64Mbps | |
| Outgoing Bandwidth | 64Mbps | |
| Network Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Registration, IP Search | |
| ONVIF / RTSP Support | ONVIF 25.06 Profile T / S / G / M, RTSP, CGI, SDK | |
| Web / Mobile App Support | Browser: Chrome, IE, Safari, Edge, Firefox; Mobile: iOS, Android | |
| Alarm & Event | ||
| Motion Detection | Supported | |
| Video Loss / Tampering | Video Loss and Video Tampering Supported | |
| Alarm Input / Output | HDCVI Alarm, Camera External Alarm, Network Alarm, PIR Alarm, IPC External Alarm Output | |
| Alarm Input | HDCVI Alarm, Camera External Alarm, Network Alarm, PIR Alarm | |
| Alarm Output | IPC External Alarm Output, Audio, Buzzer, Log, Preset, Email | |
| System / Exception Alarm | No Disk, Disk Error, Low Space, Low Quota Space, Network Disconnection, IP Conflict, MAC Conflict, Camera Offline | |
| External Interface | ||
| USB Port | 2 × Rear USB 2.0 Ports | |
| Audio Interface | 1-Channel RCA Audio Input, 1-Channel RCA Audio Output, 16-Channel BNC Coaxial Audio | |
| Physical Specification | ||
| Power Supply | 12V DC, 2A | |
| Power Consumption | <10W, Without HDD | |
| Working Temperature | -10°C to +45°C | |
| Working Humidity | 10%–90% RH, Non-Condensing | |
| Dimensions | 260.0 × 231.6 × 47.6 mm | |
| Net Weight | 0.96 kg | |
| Certifications | CE-LVD: IEC 62368-1:2014; CE-EMC Standards Supported | |
| Warranty | ||
| Warranty | 1 Year | |

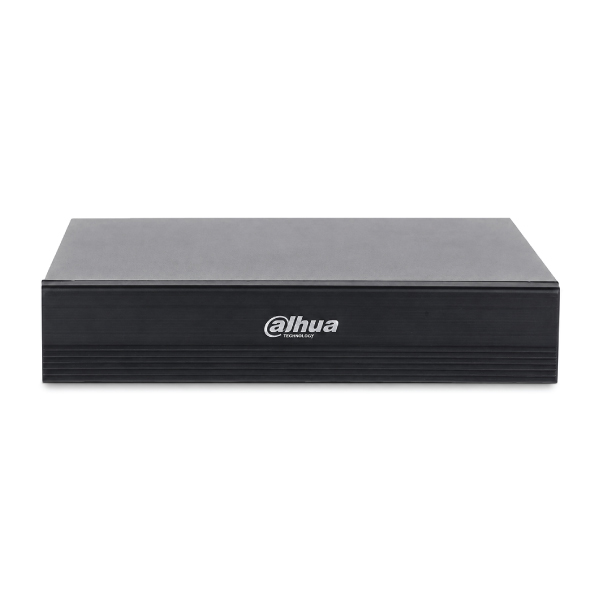

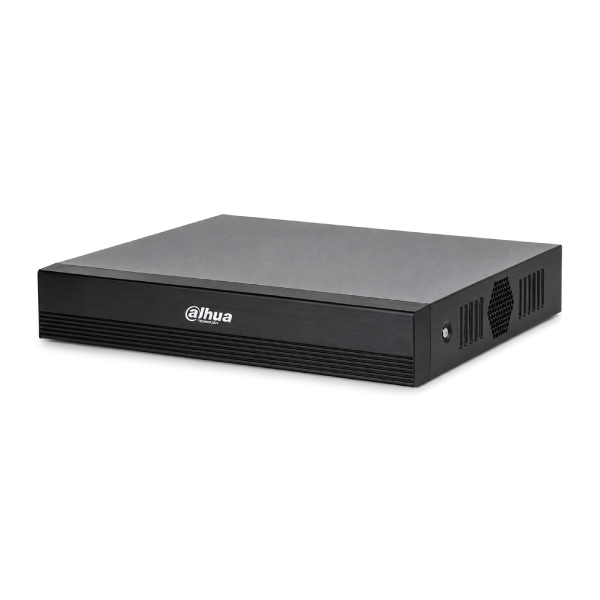

The Dahua DH-XVR1B16-I/T is a 16-channel WizSense digital video recorder for homes, offices, shops, warehouses and commercial CCTV projects. It combines multi-format support, human and vehicle filtering, efficient compression and two-way communication over compatible coaxial cameras.
For buyers checking the Dahua DH-XVR1B16-I/T price in Bangladesh, the Touch IT price is ৳7,500. This recorder accepts 16 analog cameras, includes two IP channels and supports up to 18 IP channels through conversion. Confirm stock and compatibility before ordering.
This flexible DVR suits a new 16-camera analog system or an upgrade retaining existing coaxial cabling. Its industrial-grade processor, embedded Linux platform and web or local GUI simplify recording and management.

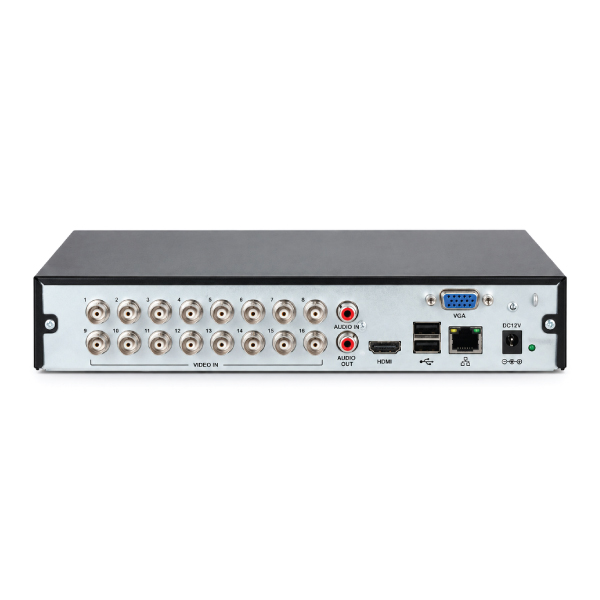

Sixteen BNC inputs automatically detect supported HDCVI, AHD, TVI and CVBS formats. IP compatibility completes the five-format design, helping users combine technologies without replacing the entire system. Compatible analog inputs accept 1080p or 720p signals.
Recorder-side SMD Plus filters human and vehicle targets across 16 channels. It reduces unwanted alarms caused by leaves, rain and changing light, helping operators find incidents faster. Compatible cameras provide up to 18-channel camera-side SMD.
The “/T” version supports two-way talk through all 16 BNC channels with compatible cameras. Staff can communicate between camera, recorder and client without a separate audio cable. One RCA audio input and output are also available.
Sixteen-channel AI Coding prioritises target detail while reducing bandwidth and storage demand. Smart H.265+, H.265, Smart H.264+ and H.264 suit different retention plans. Recording time depends on settings, activity and HDD capacity.
Two IP channels are available by default. Conversion raises the maximum to 18 IP cameras at up to 6MP, with 64Mbps bandwidth. Converted channels replace analog channels; this is not 16 analog plus 18 IP cameras simultaneously.
One SATA interface accepts a surveillance HDD up to 16TB. HDMI and VGA display up to 1920 × 1080, while USB and network backup support export. Browser, P2P, iOS and Android access enable monitoring within a secured CCTV surveillance system.
| Brand and Model | Dahua DH-XVR1B16-I/T |
|---|---|
| Recorder Type | 16-channel Penta-brid 1080N/720p WizSense DVR |
| Operating System | Embedded Linux; web and local GUI |
| Analog Inputs | 16 BNC; HDCVI/AHD/TVI/CVBS auto-detect |
| IP Camera Support | 2 default; maximum 18 through conversion; up to 6MP |
| AI Functions | 16-channel SMD Plus, 18-channel SMD by camera and 16-channel AI Coding |
| Encoding | Channel 1: 1080N/720p up to 25/30fps; others up to 15fps |
| Compression | AI Coding, Smart H.265+, H.265, Smart H.264+ and H.264 |
| Two-Way Talk | 16-channel BNC coaxial talk; one RCA audio input/output |
| Storage | 1 SATA port; compatible HDD up to 16TB |
| Video Output | 1 HDMI and 1 VGA; up to 1920 × 1080 |
| Network and USB | RJ45 10/100Mbps; 2 rear USB 2.0 ports |
| Power | 12V DC, 2A; below 10W without HDD |
| Dimensions and Weight | 260 × 231.6 × 47.6mm; 0.96kg net |
The recorder accepts compatible 1080p analog camera signals, but Dahua lists 1080N/720p encoding and lower frame rates on channels 2–16. Maximum IP mode converts analog inputs and disables recorder-side SMD. No built-in HDD, PoE switch or built-in Wi-Fi is specified; compatible wireless adapters are optional.
Choose this recorder for 16 analog inputs, human and vehicle filtering, efficient storage and interactive audio. Browse Dahua DVR Camera models for other channel counts and resolutions.
| Model | Camera Capacity | Key Difference | Recommended Use |
|---|---|---|---|
| DH-XVR1B16-I/T | 16 analog; maximum 18 IP | 16-channel coaxial talk, SMD Plus and 16TB HDD | Cost-effective 16-camera smart surveillance |
| DH-XVR1B08-I/T | 8 analog; maximum 10 IP | Smaller eight-channel model | Homes, shops and small offices |
| XVR1B16H-I/T | 16 analog; maximum 24 IP | Higher analog resolution and bandwidth | Projects needing greater image detail |
| XVR4232AN-I/T | 32 analog; maximum 20 IP | 32 BNC inputs and dual-HDD storage | Large commercial installations |
The current Touch IT price is ৳7,500. Price and availability may change, so confirm before ordering.
It provides 16 BNC inputs for compatible HDCVI, AHD, TVI and CVBS cameras.
Yes. It supports 16-channel coaxial two-way talk with compatible cameras and client software.
Two IP channels are available by default; conversion raises the maximum to 18 IP channels.
Yes. Dahua specifies one SATA bay supporting a compatible surveillance HDD up to 16TB.
Yes. It supports compatible web browsers, P2P and mobile access from iOS and Android devices.
No built-in HDD is specified. Select the drive capacity according to cameras, bitrate and retention needs.
Touch IT supplies original Dahua products and professional security equipment in Bangladesh. The team can help confirm camera formats, coaxial audio support, HDD capacity, cabling, power and installation accessories before deployment.
Upgrade a 16-camera CCTV system with Penta-brid flexibility, WizSense detection, smart compression and two-way talk. Order from Touch IT, visit Multiplan Center, Level 03, Room 312, New Elephant Road, Dhaka-1205, or call 01711664030.
