| System & AI Capabilities | ||
| Privacy Protection | Supports user authentication, role-based access control, and secure network protocols | |
| Processor | Industrial-grade embedded processor | |
| Operating System | Embedded Linux | |
| User Interface | Web interface and local GUI | |
| AI Analytics | AI-powered video analytics with smart event filtering | |
| Smart Motion Detection (SMD+) | SMD Plus by Recorder on up to 8 channels with human and motor vehicle classification, reducing false alarms | |
| Video & Audio Performance | ||
| Video Input Channels | 16-channel analog video input (BNC) | |
| Supported Resolution | 1080p, 720p, 1080N, 960H, D1, CIF | |
| Video Compression: | AI Coding, H.265+, H.265, H.264+, H.264 | |
| Decoding Performance: | Main stream: 1080N/720p up to 25/30 fps (first channel), others up to 15 fps Sub stream: CIF up to 7 fps |
|
| Analog Video Support | HDCVI, AHD, TVI, CVBS (PAL/NTSC) | |
| IP Camera Support | Up to 18 IP channels (2 default + 16 converted analog channels) | |
| Video Output: | 1 × HDMI, 1 × VGA (up to 1920 × 1080) | |
| Audio Support: | Two-way audio, 1-channel RCA input/output, coaxial audio over BNC | |
| Multi-Screen Display: | 1 / 4 / 8 / 9 / 16 split display modes | |
| Third-Party Camera Integration | ONVIF, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung | |
| Recording & Playback | ||
| Recording Modes | General recording, motion detection, alarm-triggered recording | |
| Playback Mode: | Instant playback, general playback, event playback, tag playback | |
| Stream Type | Dual-stream recording | |
| Frame Rate: | 1–25/30 fps depending on resolution and channel | |
| Video Bit Rate | 32 kbps – 6144 kbps | |
| Audio Compression | G.711a, G.711u, PCM | |
| Backup Methods | USB storage device and network backup | |
| Alarm Types: | Motion detection, video loss, tampering, disk error, low disk space, IP/MAC conflict | |
| Storage & Interfaces | ||
| Internal Storage | 1 × SATA interface | |
| Maximum Storage Capacity | Up to 16 TB (capacity may vary with temperature) | |
| USB Ports: | 2 × USB 2.0 ports | |
| Alarm I/O | Alarm linkage via recording, snapshot, buzzer, email, preset, log | |
| Network Interface | 1 × RJ-45 (10/100 Mbps Ethernet) | |
| Network & Remote Access | ||
| Network Protocol | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P | |
| Remote Access | Web browser and mobile remote access | |
| Mobile App Support | iOS and Android | |
| Bandwidth Management | Incoming, recording, and outgoing bandwidth up to 64 Mbps | |
| Camera Access Protocos | ONVIF 21.06, CGI conformant | |
| Physical Specifications | ||
| Power Supply: | 12 VDC, 2 A | |
| Power Consumption | Less than 10 W | |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) | |
| Operating Humidity | 0%–90% RH | |
| Cooling System | Passive cooling (fanless design) | |
| Surge & Lightning Protection | Basic surge protection compliant with certification standards | |
| Material | Metal and high-quality industrial-grade components | |
| Dimensions | 260.0 × 231.4 × 47.6 mm (W × D × H) | |
| Net Weight: | 0.89 kg (1.96 lb) | |
| Mounting Type | Desktop installation | |
| Compliance & Warranty | ||
| Certifications: | FCC Part 15 Subpart B CE-LVD (EN 60950-1 / IEC 60950-1) CE-EMC (EN 61000 series, EN 55032, EN 50130) |
|
| Warranty | 1 Year | |

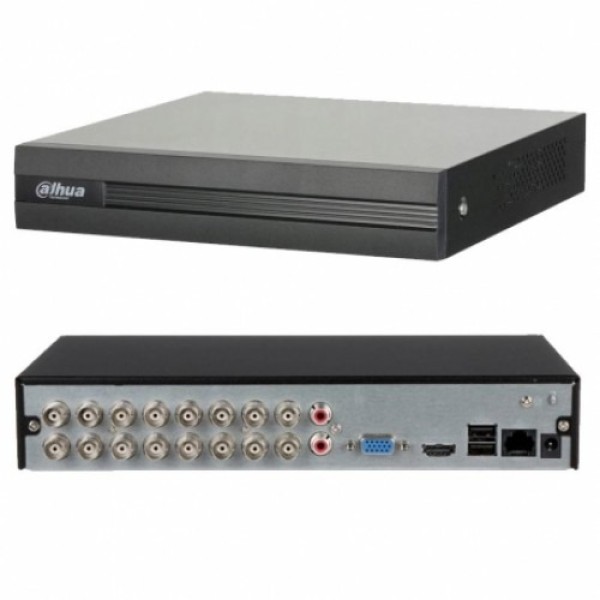

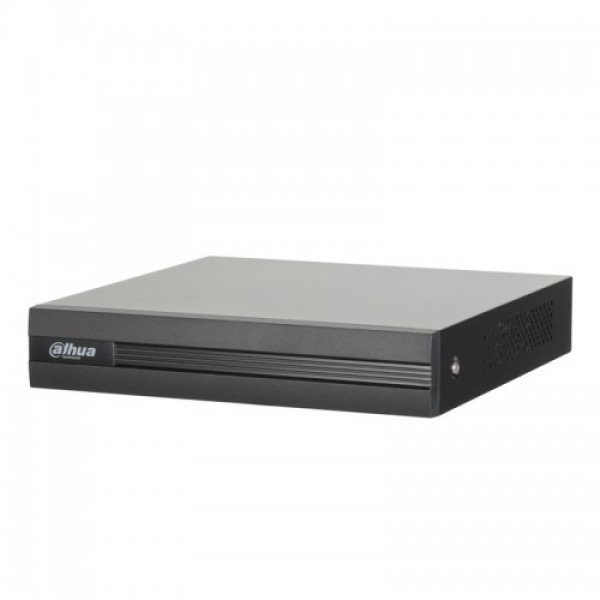

The Dahua XVR1B16-I 16-Channel Penta-brid Compact Digital Video Recorder is a powerful and reliable CCTV DVR designed for modern security systems. Built with an industrial-grade processor and Embedded Linux OS, this compact Dahua XVR delivers stable performance, smart AI features, and flexible camera compatibility—making it an excellent choice for homes, offices, retail stores, and commercial surveillance projects in Bangladesh.
Equipped with SMD Plus by Recorder, the Dahua XVR1B16-I 16-Channel Digital Video Recorder offers intelligent human and motor vehicle detection on up to 8 channels. This advanced AI feature minimizes false alarms triggered by rain, leaves, or lighting changes, ensuring accurate alerts and efficient monitoring. It’s ideal for users who want dependable AI-powered CCTV surveillance without unnecessary notifications.
This Dahua XVR1B16-I 16-Channel Digital Video Recorder supports HDCVI, AHD, TVI, CVBS, and IP cameras, allowing seamless integration with both existing and new CCTV systems. It supports up to 16 analog cameras and can be expanded to 18 IP cameras, offering flexibility for future upgrades. Full HD 1080p recording ensures clear and detailed video footage.
The Dahua XVR1B16-I 16-Channel Digital Video Recorder uses AI Coding, H.265+, and H.264+ video compression to deliver high-quality video while reducing bandwidth and storage usage. Dual-stream technology enables smooth remote viewing and efficient playback. HDMI and VGA outputs support up to 1080p resolution with multi-screen display options up to 16 channels.
Monitor your security system anytime with iOS and Android mobile access, along with web viewing via Chrome and Firefox browsers. The DVR supports ONVIF-compatible third-party cameras and offers up to 16TB SATA HDD storage for long-term recording. Its compact, low-power design ensures 24/7 stable operation in demanding environments.
Buying the Dahua XVR1B16-I 16-Channel Digital Video Recorder from Touch IT means you get 100% genuine Dahua products, competitive pricing, and trusted after-sales support. Touch IT is your reliable destination for CCTV DVRs and professional security solutions in Bangladesh—ensuring quality, authenticity, and complete peace of mind.
The latest price of Dahua XVR1B16-I 16-Channel Digital Video Recorder in Bangladesh is 12,860৳. You can buy the Dahua XVR1B16-I 16-Channel Digital Video Recorder at best price from our website or visit any of our showrooms.
