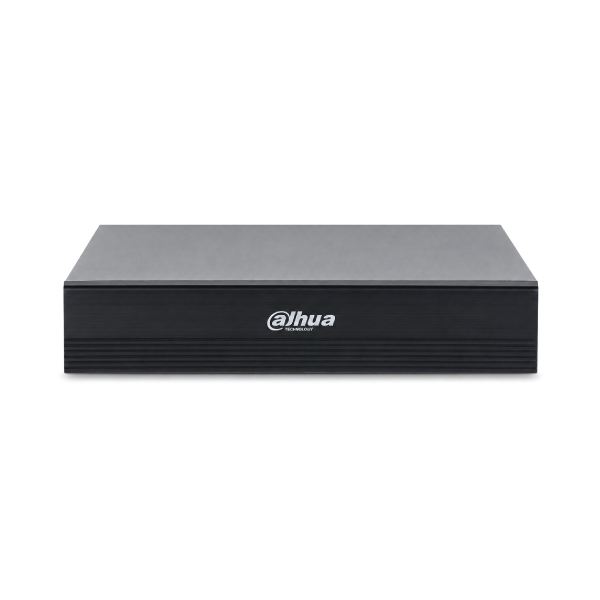

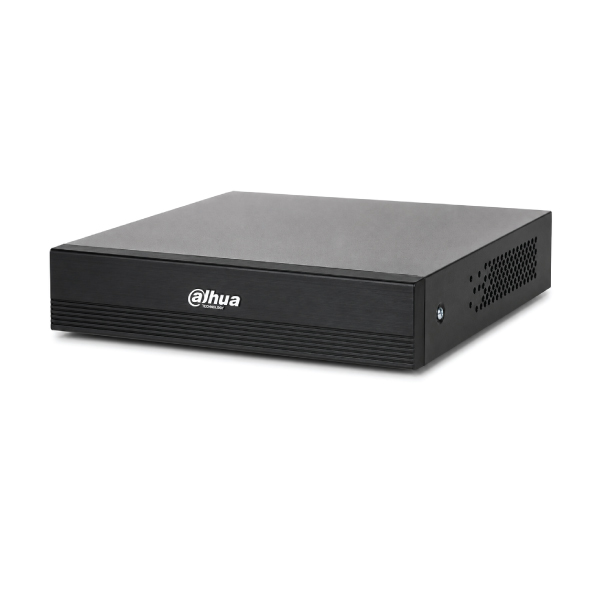

Dahua DH-XVR1B08H-I/T 8 Channel Penta-brid 5MP WizSense DVR

Dahua DH-XVR1B08H-I/T 8 Channel Penta-brid 5MP WizSense DVR

The Dahua DH-XVR1B08H-I/T is an 8 channel WizSense recorder for homes, offices, stores and warehouses. It combines 5MP camera compatibility, Penta-brid flexibility, human and vehicle filtering, efficient compression and coaxial two-way communication.

For buyers comparing the Dahua DH-XVR1B08H-I/T price in Bangladesh, the Touch IT price is ৳8,500. This 8-channel DVR supports 5M-N/1080p encoding, eight-channel SMD Plus, eight-channel coaxial two-way talk, up to 12 IP cameras and a compatible storage drive up to 16TB. Confirm stock, HDD and camera compatibility before ordering.

Quick Highlights

• Analog Inputs: Eight BNC ports with automatic format detection
• Penta-brid Support: HDCVI, AHD, TVI, CVBS and IP cameras
• Encoding: Up to 5M-N at 12fps or 1080p at 15fps
• WizSense AI: Eight-channel SMD Plus human and vehicle filtering
• Two-Way Talk: Eight-channel communication over compatible coaxial cameras
• IP Expansion: Four IP channels by default; maximum 12 through conversion
• Storage: One SATA bay for a compatible drive up to 16TB
• Compression: AI Coding, Smart H.265+ and Smart H.264+

Product Overview

This DVR suits new eight-camera systems and upgrades retaining coaxial cabling. Its industrial-grade processor, embedded Linux system and web or local GUI simplify recording and management while providing more detail than basic 1080N models.

Key Features and Benefits

Eight-Channel Penta-brid Compatibility

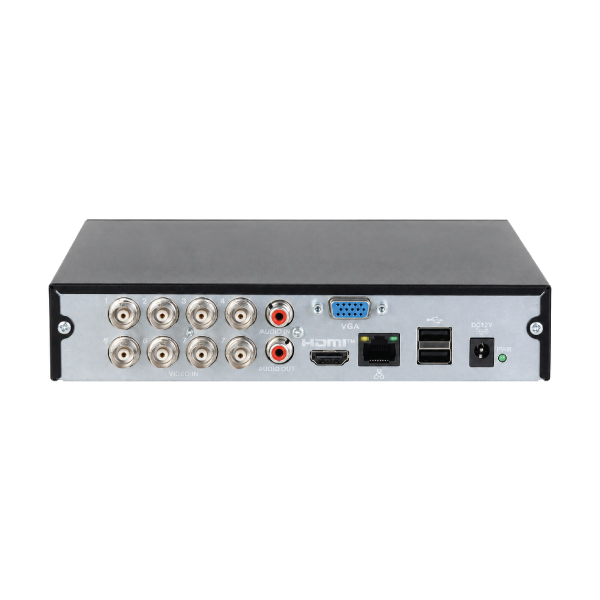

Eight BNC inputs automatically detect HDCVI, AHD, TVI and CVBS formats. IP support completes the five-format design, helping businesses modernise an analog system without replacing every camera and cable.

5M-N and 1080p Recording Options

The recorder accepts analog signals up to 5MP. It encodes 5M-N up to 12fps and 4M-N/1080p up to 15fps. A separate 5MP mode records four channels at up to 6fps; lower resolutions can reach 25/30fps.

WizSense SMD Plus Detection

SMD Plus filters human and vehicle targets across all eight analog channels. It reduces alerts caused by rain, leaves and changing light, helping operators find events faster. Compatible cameras provide SMD on up to 12 channels.

Eight-Channel Two-Way Talk over Coax

The “/T” model supports two-way communication through all eight BNC channels when paired with compatible coaxial-audio cameras. Users can speak between the camera, recorder and supported client without separate audio wiring. One RCA audio input and output are also included.

Flexible IP Camera Expansion

Four IP channels are available by default. Converting analog channels raises the maximum to 12 IP cameras, each supporting up to 6MP, with 64Mbps incoming, recording and outgoing bandwidth. Converted channels replace analog inputs; this is not eight analog plus twelve IP cameras simultaneously.

Efficient Storage and Remote Access

AI Coding, Smart H.265+, H.265, Smart H.264+ and H.264 balance image quality, storage and bandwidth. One SATA bay supports a compatible HDD or SSD up to 16TB. HDMI/VGA display, USB or network backup and browser, iOS or Android access support a secured CCTV surveillance system.

Recommended Applications

• Retail stores, supermarkets and restaurants
• Offices, clinics and educational facilities
• Warehouses, workshops and small factories
• Apartment buildings and residential properties
• Sites requiring compatible two-way audio cameras

Technical Specifications

Verification Note

5MP describes compatible camera input, not full-frame recording on every channel. Dahua lists 5M-N at up to 12fps, 1080p at up to 15fps and four-channel 5MP mode at up to 6fps. Twelve-IP mode converts analog inputs and disables recorder-side SMD. No built-in HDD, PoE switch or Wi-Fi is specified.

Why Choose This Dahua 8-Channel 5MP DVR?

Choose this recorder for eight-camera coverage, higher analog detail, intelligent target filtering and active voice communication. Browse the Dahua DVR collection for alternative channel counts, resolutions and storage options.

Product Comparison

Frequently Asked Questions

What is the Dahua DH-XVR1B08H-I/T price in Bangladesh?

The Touch IT price is ৳8,500. Price and stock may change, so confirm before ordering.

How many analog cameras can it connect?

It provides eight BNC inputs for compatible HDCVI, AHD, TVI and CVBS cameras.

Does this DVR support 5MP cameras?

Yes. It accepts compatible 5MP analog signals, with recording frame rates depending on the selected mode.

Does it support two-way talk?

Yes. It supports eight-channel coaxial two-way talk with compatible cameras and clients.

How many IP cameras are supported?

Four IP channels are available by default; conversion raises the maximum to 12.

Is a hard drive included?

No built-in drive is specified. One compatible HDD or SSD up to 16TB can be installed.

Can CCTV footage be viewed remotely?

Yes. Compatible browser, P2P, iOS and Android access is supported after secure network configuration.

Why Buy from Touch IT?

Touch IT supplies original Dahua products and security equipment in Bangladesh. The team can verify camera formats, coaxial audio compatibility, storage, cabling, power and installation accessories before deployment.

Order the Dahua DH-XVR1B08H-I/T Today

Upgrade eight-camera CCTV with 5M-N recording, WizSense filtering, Penta-brid compatibility and two-way talk. Order from Touch IT, visit Multiplan Center, Level 03, Room 312, New Elephant Road, Dhaka-1205, or call 01711664030.
