| System & AI Capabilities | ||
| Privacy Protection | Privacy masking supported | |
| Processor | Industrial-grade processor | |
| Operating System | Embedded Linux | |
| User Interface | Web interface & Local GUI | |
| AI Analytics | Smart Motion Detection (SMD+), Irregular Black Block Masking | |
| Smart Motion Detection (SMD+) | 16 channels (Recorder-based human & vehicle filtering) + 24 channels via camera | |
| Perimeter Protection: | N/A | |
| Face Detection & Recognition | N/A | |
| Video & Audio Performance | ||
| Video Input Channels | 16 Analog Channels + Up to 24 IP Channels | |
| Supported Resolution | 5MP; 4MP; 1080p; 720p; 960H; D1; CIF | |
| Video Compression: | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 | |
| Decoding Performance: | Multi-channel real-time decoding (up to 5MP depending on channel configuration) | |

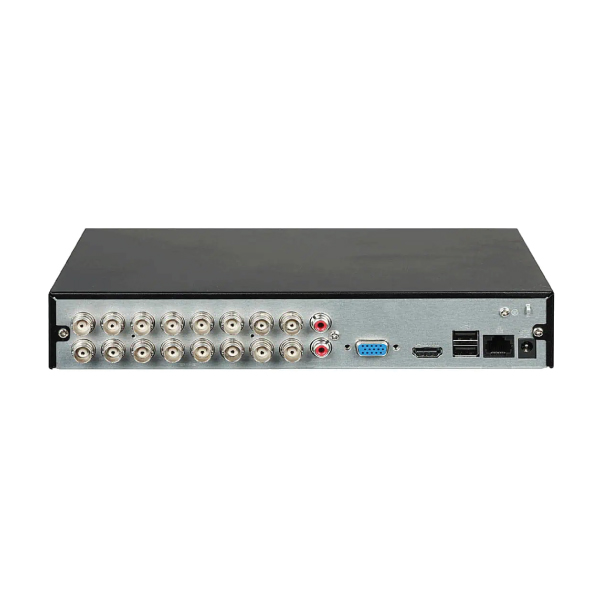

| Analog Video Support | 16 BNC (HDCVI / AHD / TVI / CVBS auto-detect) | |
| IP Camera Support | Up to 24 IP channels | |
| Video Output: | 1 HDMI (up to 4K) + 1 VGA | |
| Audio Support: | G.711a; G.711u; PCM | |
| Multi-Screen Display: | 1 / 4 / 8 / 9 / 16 (up to 25 in IP extension mode) | |
| Third-Party Camera Integration | ONVIF; Panasonic; Sony; Hanwha; Axis; Arecont | |
| Recording & Playback | ||
| Recording Modes | General, Motion Detection, Alarm | |
| Playback Mode: | Instant playback, General playback, Event playback, Tag playback, Smart playback | |
| Stream Type | Dual Stream | |
| Frame Rate: | Up to 30 fps | |
| Video Bit Rate | 32 kbps – 6144 kbps | |
| Backup Methods | USB device & Network backup | |
| Alarm Types: | Motion detection, HDCVI alarm, External alarm, PIR alarm, Network alarm, Video loss, Tampering, System anomalies | |
| Storage & Interfaces | ||
| Internal Storage | 1 × SATA HDD | |
| Maximum Storage Capacity | Up to 16 TB | |
| USB Ports: | 2 × USB 2.0 (Rear) | |
| Alarm I/O | Supported (via IPC & external alarm integration) | |
| Network Interface | 1 × RJ-45 (10/100/1000 Mbps) | |
| Network & Remote Access | ||
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; FTP; SNMP; DDNS; P2P | |
| Remote Access | Web Browser (Chrome, Edge, Safari, Firefox, IE) | |
| Mobile App Support | iOS & Android | |
| Bandwidth Management | 128 Mbps (incoming / recording / outgoing) | |
| Camera Access Protocos | ONVIF (Profile T/S/G); CGI; SDK | |
| Physical Specifications | ||
| Power Supply: | 12V DC, 2A | |
| Power Consumption | < 12W (without HDD) | |
| Operating Temperature | -10°C to +45°C | |
| Operating Humidity | 10%–90% (non-condensing) | |
| Cooling System | Passive Cooling | |
| Surge & Lightning Protection | Basic Protection | |
| Material | Metal Housing | |
| Dimensions | 260 × 231.6 × 47.6 mm | |
| Net Weight: | 0.99 kg | |
| Compliance & Warranty | ||
| Certifications: | CE-EMC, CE-LVD | |
| Warranty | 1 Year Standard Warranty | |

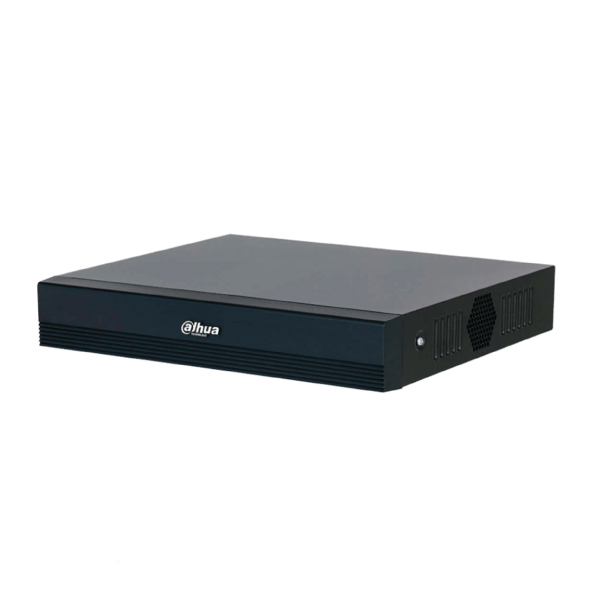

The DAHUA XVR1B16H-I/T 16 Channel DVR is a powerful and cost-effective solution designed for modern CCTV Surveillance systems. Built with advanced WizSense technology, this Dahua DVR supports multiple video formats, including HDCVI, AHD, TVI, CVBS, and IP, making it highly flexible for both new installations and upgrades. Whether you are using a traditional Dahua CC Camera system or integrating IP cameras, this DVR delivers reliable performance and seamless compatibility for professional security applications.
Equipped with intelligent SMD Plus technology, the DAHUA XVR1B16H-I/T 16 Channel DVR ensures accurate detection of humans and vehicles while minimizing false alarms caused by environmental factors. It supports up to 16-channel AI-based detection on analog cameras and 24-channel SMD via IP cameras, making it a smart choice for efficient CCTV Surveillance. With AI Coding technology, this Dahua DVR optimizes storage usage and bandwidth while preserving important video details.
The DAHUA XVR1B16H-I/T 16 Channel DVR supports 16 analog channels and can expand up to 24 IP camera inputs, allowing users to build scalable CCTV Surveillance systems. It is fully compatible with various Dahua CC Camera models as well as third-party IP cameras via ONVIF protocol. This flexibility ensures smooth integration across different camera technologies, making it suitable for offices, retail shops, warehouses, and residential security systems.
With support for Smart H.265+ and H.264 compression technologies, this Dahua DVR significantly reduces storage requirements while maintaining high-quality video output. The device features a 1 HDD slot supporting up to 16TB storage, ensuring long-term recording capability. Dual-stream video encoding and optimized bitrate control enhance playback performance, making the DAHUA XVR1B16H-I/T 16 Channel DVR a reliable choice for continuous CCTV Surveillance.
Designed for convenience, this Dahua DVR offers an intuitive web interface and local GUI for easy setup and management. It supports mobile access through iOS and Android apps, allowing users to monitor their CCTV Surveillance system anytime, anywhere. Multi-screen display, smart playback, and instant video retrieval features ensure efficient monitoring and control of your Dahua CC Camera network.
Touch IT is your reliable source for the original DAHUA XVR1B16H-I/T 16 Channel DVR in Bangladesh, offering competitive pricing and guaranteed authenticity. If you are searching for the latest DAHUA XVR1B16H-I/T 16 Channel DVR price in Bangladesh, Touch IT provides the best value along with expert consultation, professional installation, and dedicated after-sales support. We ensure seamless integration with your Dahua CC Camera and complete CCTV Surveillance solution, making Touch IT the trusted choice for quality security systems in Bangladesh.
The latest price of DAHUA XVR1B16H-I/T 16 Channel Digital Video Recorder in Bangladesh is 11,900৳. You can buy the DAHUA XVR1B16H-I/T 16 Channel Digital Video Recorder at best price from our website or visit any of our showrooms.
