| System & Smart Features | ||
| Product Type | 8-Channel XVR / Digital Video Recorder | |
| Processor | Industrial-Grade Processor | |
| Operating System | Embedded Linux | |
| User Interface / GUI Language | Web, Local GUI | |
| AI Analytics | SMD Plus by Recorder and SMD by Camera | |
| Smart Motion Detection | SMD Plus by Recorder: 8 Channels; SMD by Camera: 10 Channels | |
| Human / Vehicle Detection | Secondary Filtering for Human and Vehicle | |
| Video & Audio Input | ||
| Analog Video Input | 8 BNC Ports, Supports HDCVI / AHD / TVI / CVBS Auto-Detect | |
| IP Camera Input | 2 IP Channels by Default + 8 Analog Channels Convertible to IP | |
| Maximum IP Camera Input | Up to 10 Channels | |
| Supported Camera Types | HDCVI / AHD / TVI / CVBS / IP Camera | |
| Camera Resolution Support | CVI / TVI / AHD: 1080p@25/30fps, 720p@25/30fps | |
| Audio Input | 1-Channel RCA; 8-Channel BNC Coaxial Audio | |
| Two-Way Audio | Coaxial Two-Way Talk: 8-Channel BNC; Local and Network Two-Way Talk Shared with First Audio Input | |
| Video & Audio Output | ||
| HDMI Output | 1 HDMI, Supports 1920 × 1080, 1280 × 1024, 1280 × 720 | |
| VGA Output | 1 VGA, Supports 1920 × 1080, 1280 × 1024, 1280 × 720 | |
| Audio Output | 1-Channel RCA | |
| Live View / Multi-Screen Display | Without IP Extension: 1 / 4 / 8 / 9; With IP Extension: 1 / 4 / 8 / 9 / 16 | |
| Recording & Decoding | ||
| Video Compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 | |
| Audio Compression | G.711a, G.711u, PCM | |
| Recording Resolution | 1080N / 720p / 960H / D1 / CIF | |
| Frame Rate | Main Stream: 1st Channel 1080N / 720p @ 1–25/30fps; Other Channels 1080N / 720p @ 1–15fps; 960H / D1 / CIF @ 1–25/30fps; Sub Stream: CIF @ 1–7fps | |
| Playback Channel | 1 / 4 / 9 | |
| Recording Modes | General, Alarm, Motion Detection | |
| Backup Methods | USB Device and Network | |
| Storage & Network | ||
| SATA Interface | 1 SATA Port | |
| Maximum HDD Capacity | Up to 6TB | |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet Port | |
| Incoming Bandwidth | 40Mbps | |
| Outgoing Bandwidth | 40Mbps | |
| Network Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Registration, IP Search | |
| ONVIF / RTSP Support | ONVIF 25.06 Profile T / S / G / M, RTSP, CGI, SDK | |
| Web / Mobile App Support | Browser: Chrome, IE, Safari, Edge, Firefox; Mobile: iOS, Android | |
| Alarm & Event | ||
| Motion Detection | Supported | |
| Video Loss / Tampering | Video Loss and Video Tampering Supported | |
| Alarm Input / Output | Camera External Alarm, IPC External Alarm Output | |
| Alarm Input | HDCVI Alarm, Camera External Alarm, Network Alarm, PIR Alarm | |
| Alarm Output | IPC External Alarm Output, Audio, Buzzer, Log, Preset, Email | |
| System / Exception Alarm | No Disk, Disk Error, Low Space, Low Quota Space, Network Disconnection, IP Conflict, MAC Conflict, Camera Offline | |
| External Interface | ||
| USB Port | 2 × Rear USB 2.0 Ports | |
| Audio Interface | 1-Channel RCA Audio Input, 1-Channel RCA Audio Output, 8-Channel BNC Coaxial Audio | |
| Physical Specification | ||
| Power Supply | 12V DC, 1.5A | |
| Power Consumption | <7W, Without HDD | |
| Working Temperature | -10°C to +45°C | |
| Working Humidity | 10%–90% RH, Non-Condensing | |
| Dimensions | 197.0 × 204.3 × 41.5 mm | |
| Net Weight | 0.57 kg | |
| Certifications | CE-LVD: IEC 62368-1:2014; CE-EMC Standards Supported | |
| Warranty | ||
| Warranty | 1 Year | |

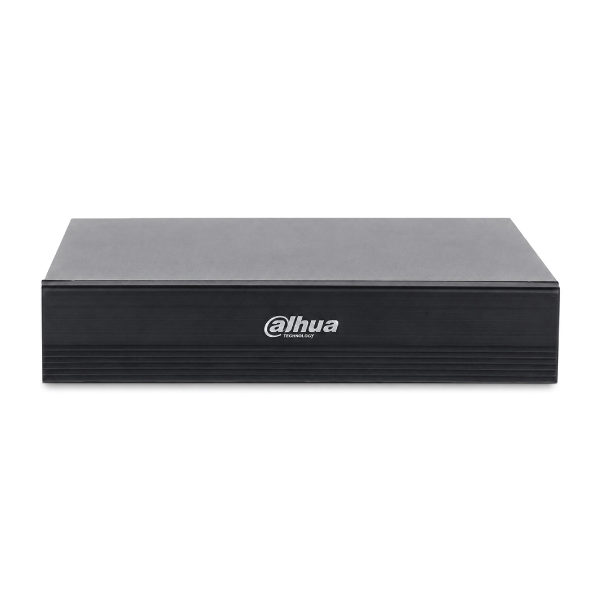

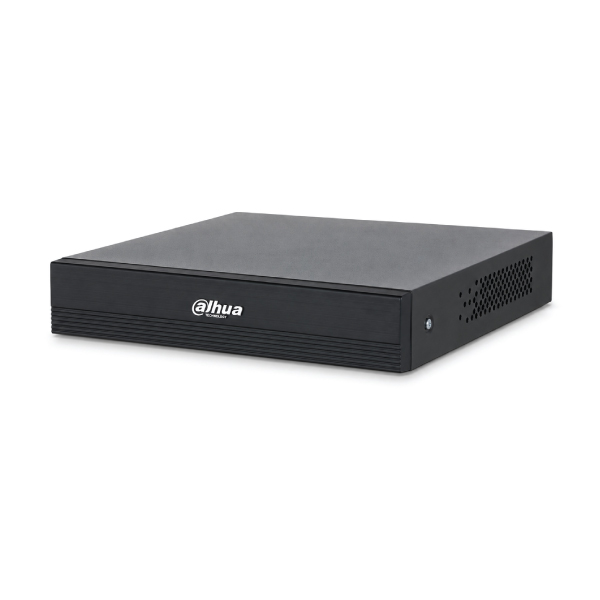

The Dahua DH-XVR1B08-I/T is a compact eight-channel WizSense recorder for homes, shops, offices and growing businesses. It combines Penta-brid camera compatibility, SMD Plus, AI Coding, eight-channel coaxial two-way talk, IP expansion and single-HDD storage in a Cooper 1U desktop enclosure.
For buyers comparing the Dahua DH-XVR1B08-I/T price in Bangladesh, the current Touch IT price is ৳3,800. This 8 channel DVR accepts HDCVI, AHD, TVI, CVBS and IP video, supports 1080N/720p recording, remote monitoring and one compatible surveillance HDD up to 6TB. Confirm stock, HDD, camera and audio compatibility before ordering.
This affordable DVR is designed for an eight-camera analog CCTV installation or a gradual move toward IP surveillance. Its industrial-grade processor, embedded Linux operating system and web or local interface provide reliable recording while helping users retain compatible coaxial cameras and cabling.
Eight BNC inputs automatically recognise supported HDCVI, AHD, TVI and CVBS signals. IP support completes the Penta-brid design, making mixed-camera upgrades easier. The analog inputs accept compatible 1080p and 720p camera signals.
The “/T” version supports two-way talk across eight BNC channels when paired with compatible coaxial-audio cameras. Communication can pass between the camera, recorder and supported client. One RCA audio input and one RCA output are also provided.
Recorder-side SMD Plus filters all eight analog channels for human and vehicle targets. It helps reduce unwanted motion alerts caused by rain, leaves and lighting changes, making event review more efficient. Results depend on camera position, scene conditions and configuration.
Eight-channel AI Coding prioritises target detail while lowering storage and bandwidth demand. Smart H.265+, H.265, Smart H.264+ and H.264 offer flexible compression choices. Actual recording retention depends on bitrate, frame rate, activity and installed HDD capacity.
Two IP channels are available by default. Converting analog channels raises the maximum to ten IP cameras, each up to 6MP, with 40Mbps incoming, recording and outgoing bandwidth. Converted IP channels replace analog channels; this is not eight analog plus ten IP cameras simultaneously.

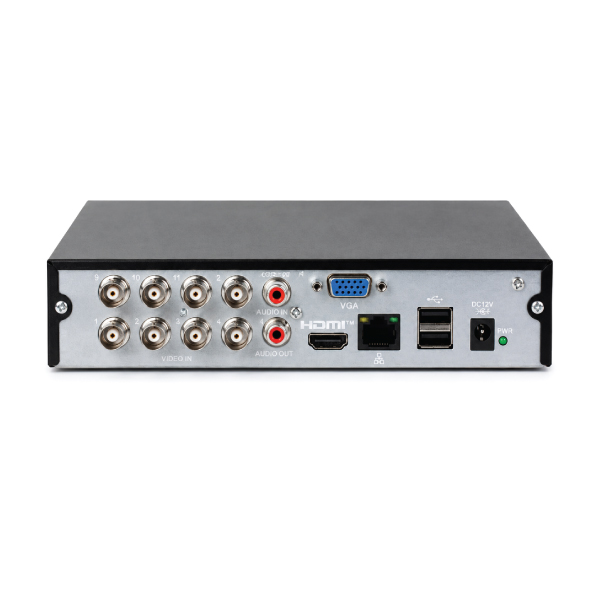

One SATA interface supports a surveillance HDD up to 6TB. HDMI and VGA display up to 1920 × 1080, while USB and network backup simplify footage export. Browser, P2P, iOS and Android access enable remote viewing within a properly secured CCTV surveillance system.
| Brand and Model | Dahua DH-XVR1B08-I/T |
|---|---|
| Recorder Type | 8-channel Penta-brid 1080N/720p WizSense DVR |
| Operating System | Embedded Linux; web and local GUI |
| Analog Inputs | 8 BNC; HDCVI/AHD/TVI/CVBS auto-detect |
| IP Camera Support | 2 default; maximum 10 through conversion; up to 6MP |
| Encoding | Channel 1: 1080N/720p up to 25/30fps; others up to 15fps |
| AI Functions | 8-channel SMD Plus, 10-channel SMD by camera and 8-channel AI Coding |
| Compression | AI Coding, Smart H.265+, H.265, Smart H.264+ and H.264 |
| Two-Way Talk | 8-channel BNC coaxial talk; local/network talk shares first audio input |
| Storage | 1 SATA port; compatible HDD up to 6TB |
| Video Output | 1 HDMI and 1 VGA; display up to 1920 × 1080 |
| Network and USB | RJ45 10/100Mbps; 2 rear USB 2.0 ports |
| Power | 12V DC, 1.5A; below 7W without HDD |
| Operating Environment | –10°C to +45°C; 10%–90% RH |
| Dimensions and Weight | 197 × 204.3 × 41.5mm; 0.57kg net |
The DVR accepts 1080p analog camera input, but published encoding is 1080N/720p and frame rate varies by channel. Ten-IP mode converts analog inputs. It has no PoE, built-in HDD or built-in Wi-Fi. Confirm coaxial audio, optional wireless adapter, HDD, firmware, mobile-app and warranty requirements.
Choose this Dahua CCTV recorder for broad camera compatibility, eight-channel human and vehicle filtering, efficient storage and active communication. Compared with the older XVR1B08-I, the “/T” edition adds eight-channel coaxial two-way talk. Browse Dahua DVR Camera options for other resolutions and channel counts.
| Model | Camera Capacity | Key Difference | Recommended Use |
|---|---|---|---|
| DH-XVR1B08-I/T | 8 analog; maximum 10 IP | 8-channel coaxial two-way talk | Interactive eight-camera WizSense surveillance |
| DH-XVR1B08-I | 8 analog; maximum 10 IP | Older version without 8-channel coaxial talk | Budget eight-camera recording |
| DH-XVR1B08H-I | 8 analog; maximum 12 IP | Higher analog resolution and larger storage support | Projects needing greater image detail |
| Hikvision iDS-7108HQHI-M1/T | 8 analog; maximum 12 IP | AcuSense, 5MP/3K input and up to 10TB HDD | Higher-resolution hybrid installations |
It provides eight BNC inputs for compatible HDCVI, AHD, TVI and CVBS cameras.
Yes. It supports eight-channel coaxial two-way talk with compatible cameras and clients.
Two IP channels are available by default; channel conversion raises the maximum to ten.
It accepts compatible 1080p camera signals, but Dahua lists 1080N and 720p recording.
No built-in HDD is specified. One compatible surveillance drive up to 6TB can be installed.
Yes. The recorder supports browser, P2P and compatible iOS or Android access.
Touch IT supplies original Dahua products and security equipment in Bangladesh. The team can confirm camera formats, coaxial audio, storage, power and installation accessories.
Upgrade an eight-camera CCTV system with WizSense filtering, Penta-brid flexibility and two-way talk. Order online from Touch IT or call 01711664030 for compatibility information.
