| System & Smart Features | ||
| Product Type | 4-Channel XVR / Digital Video Recorder with SSD Storage | |
| Processor | Industrial-Grade Processor | |
| Operating System | Embedded Linux | |
| User Interface / GUI Language | Web, Local GUI | |
| AI Analytics | SMD Plus by Recorder | |
| Smart Motion Detection | 4-Channel SMD Plus | |
| Human / Vehicle Detection | Secondary Filtering for Human and Motor Vehicle | |
| Video & Audio Input | ||
| Analog Video Input | 4 BNC Ports, CVI Access by Default, Supports HDCVI / AHD / TVI / CVBS Auto-Detect | |
| IP Camera Input | 2 IP Channels by Default + 4 Analog Channels Convertible to IP | |
| Maximum IP Camera Input | Up to 6 Channels | |
| Supported Camera Types | HDCVI / AHD / TVI / CVBS / IP Camera | |
| Camera Resolution Support | CVI: 5MP, 4MP, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps; TVI/AHD: 5MP, 4MP, 1080p@25/30fps, 720p@25/30fps; CVBS: PAL / NTSC | |
| Audio Input | 1-Channel RCA; 4-Channel BNC Coaxial Audio | |
| Two-Way Audio | Supported, Shares Same Audio Input with First Channel | |
| Video & Audio Output | ||
| HDMI Output | 1 HDMI, Supports 1920 × 1080, 1280 × 1024, 1280 × 720 | |
| VGA Output | 1 VGA, Supports 1920 × 1080, 1280 × 1024, 1280 × 720 | |
| Audio Output | 1-Channel RCA | |
| Live View / Multi-Screen Display | Without IP Extension: 1 / 4; With IP Extension: 1 / 4 / 6 | |
| Recording & Decoding | ||
| Video Compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 | |
| Audio Compression | G.711a, G.711u, PCM | |
| Recording Resolution | 5M-N / 4M-N / 1080p / 1080N / 720p / 960H / D1 / CIF | |
| Frame Rate | Main Stream: 5M-N@1–10fps, 4M-N / 1080p@1–15fps, 1080N / 720p / 960H / D1 / CIF@1–25/30fps; Sub Stream: D1 / CIF@1–15fps | |
| Playback Channel | 1 / 4 | |
| Recording Modes | General, Motion Detection, Alarm, POS | |
| Backup Methods | USB Device and Network | |
| Storage & Network | ||
| SATA Interface | 1 SSD Interface | |
| Maximum HDD Capacity | 1TB SSD Included, Replaceable with 256GB or 512GB SSD | |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet Port | |
| Incoming Bandwidth | 32Mbps | |
| Outgoing Bandwidth | 32Mbps | |
| Network Protocols | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P | |
| ONVIF / RTSP Support | ONVIF 21.06, CGI Conformant, RTSP | |
| Web / Mobile App Support | Browser: Chrome, IE9 or Later, Firefox; Mobile: iOS, Android | |
| Alarm & Event | ||
| Motion Detection | Supported | |
| Video Loss / Tampering | Video Loss and Tampering Supported | |
| Alarm Input / Output | IPC External Alarm Output, Access Controller Linkage | |
| Alarm Input | Motion Detection, Video Loss, Tampering | |
| Alarm Output | Record, Snapshot, Voice Prompt, Buzzer, Log, Preset, Email | |
| System / Exception Alarm | No Disk, Disk Error, Low Space, Offline, IP Conflict, MAC Conflict | |
| External Interface | ||
| USB Port | 2 × USB 2.0 Ports | |

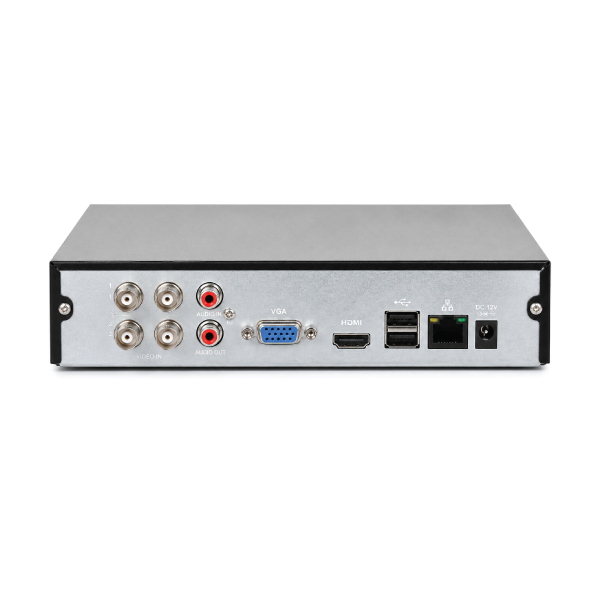

| Audio Interface | 1-Channel RCA Audio Input, 1-Channel RCA Audio Output, 4-Channel BNC Coaxial Audio | |
| Physical Specification | ||
| Power Supply | 12V DC, 1.5A | |
| Power Consumption | <6W, with SSD | |
| Working Temperature | -10°C to +55°C | |
| Working Humidity | 0%–90% RH | |
| Dimensions | 197.0 × 203.4 × 41.5 mm | |
| Net Weight | 0.55 kg | |
| Certifications | FCC Part 15 Subpart B; CE-LVD; CE-EMC | |
| Warranty | ||
| Warranty | 1 Year | |

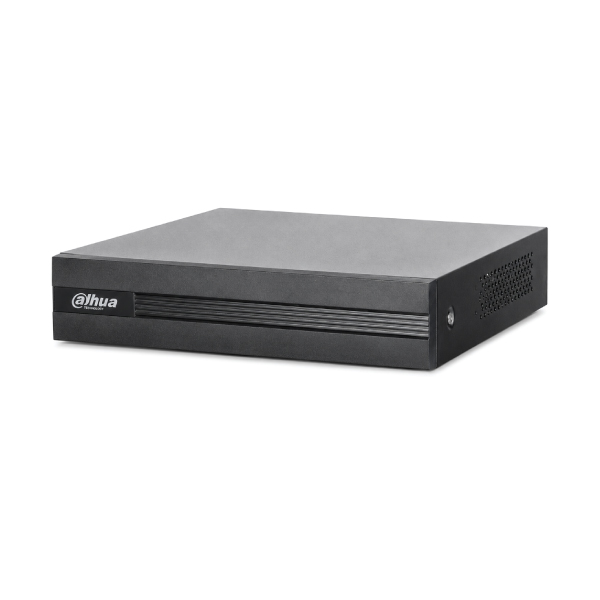

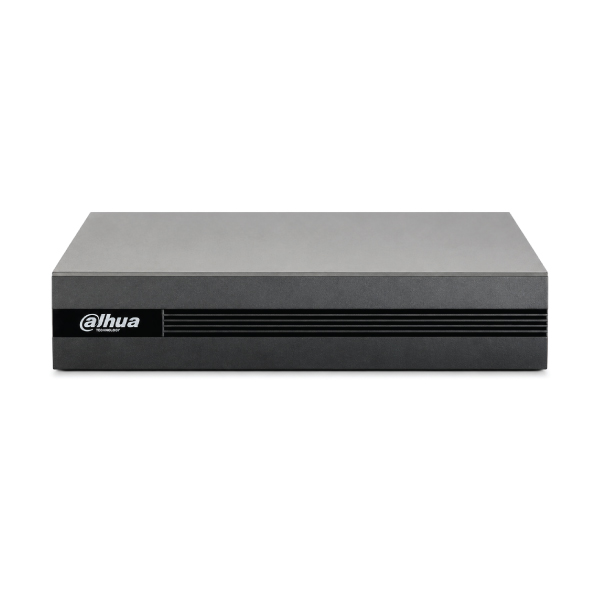

The Dahua DH-XVR1B04H-I/T is a four-channel WizSense DVR for homes, shops, offices and small CCTV systems. It combines 5MP camera compatibility, human and vehicle filtering, Penta-brid flexibility, coaxial two-way talk and SSD storage.
For buyers comparing the Dahua DH-XVR1B04H-I/T price in Bangladesh, the Touch IT price is ৳6,500 with a 1TB SSD. This hybrid DVR supports five camera formats, 5M-N/1080p encoding, smart compression and remote monitoring. Confirm availability before ordering.
This DVR suits buyers needing more detail than an entry-level 1080N model. Its industrial-grade processor, embedded Linux system and local or web interface simplify management, while the installed SSD provides immediate storage.
The recorder accepts compatible analog camera signals up to 5MP. It encodes 5M-N up to 12fps and 4M-N/1080p up to 15fps; lower resolutions can reach 25/30fps. It suits sites prioritising detail over full-frame high-resolution recording.
SMD Plus filters human and vehicle targets on all four analog channels, reducing alerts caused by rain, leaves and lighting changes. Compatible cameras provide SMD on up to six channels and one channel of camera-side face detection.
The “/T” edition supports four-channel coaxial two-way talk with compatible cameras. Users can communicate between camera, recorder and client without separate audio wiring. One RCA input and output are also provided.
Touch IT supplies this configuration with a 1TB SSD for immediate, quiet storage. One SATA interface supports a compatible drive up to 16TB. Retention depends on resolution, bitrate, frame rate, schedule and scene activity.
Four BNC inputs automatically recognise HDCVI, AHD, TVI and CVBS signals. Two IP channels are included; conversion increases the maximum to six IP cameras at up to 6MP. Converted channels replace analog inputs.
AI Coding, Smart H.265+, H.265, Smart H.264+ and H.264 balance quality, storage and bandwidth. HDMI/VGA display, USB or network backup and browser, iOS or Android access support a secured CCTV surveillance system.
| Brand and Model | Dahua DH-XVR1B04H-I/T |
|---|---|
| Recorder Type | 4-channel Penta-brid 5MP Value/1080p WizSense DVR |
| Operating System | Embedded Linux; web and local GUI |
| Analog Inputs | 4 BNC; HDCVI/AHD/TVI/CVBS auto-detect |
| IP Camera Support | 2 default; maximum 6 through conversion; up to 6MP |
| Encoding Capacity | 5M-N up to 12fps; 4M-N/1080p up to 15fps |
| AI Functions | 4-channel SMD Plus, 6-channel SMD by camera, 1-channel face detection by camera |
| Compression | AI Coding, Smart H.265+, H.265, Smart H.264+ and H.264 |
| Two-Way Talk | 4-channel BNC coaxial talk; 1 RCA input and output |
| Storage | 1TB SSD in Touch IT configuration; 1 SATA port supports up to 16TB |
| Video Output | 1 HDMI and 1 VGA; up to 1920 × 1080 |
| Bandwidth | 32Mbps incoming, recording and outgoing |
| Network and USB | RJ45 10/100Mbps; 2 rear USB 2.0 ports |
| Power | 12V DC, 1.5A; below 4W without storage |
| Dimensions | 197 × 204.3 × 41.5mm |
Dahua’s standard XVR1B04H-I/T has one SATA bay up to 16TB; the 1TB SSD is the Touch IT configuration. Six-IP mode converts analog channels and disables recorder-side SMD. High-resolution frame rates vary by mode.
Choose this recorder when you need 5MP camera compatibility, ready storage, smart filtering and coaxial two-way talk in a compact system. Explore more Dahua DVR Camera models for other channel counts and storage requirements.
| Model | Camera Capacity | Key Difference | Recommended Use |
|---|---|---|---|
| DH-XVR1B04H-I/T 1TB SSD | 4 analog; maximum 6 IP | 5M-N, four-channel talk and included SSD | High-detail four-camera systems |
| DH-XVR1B04-I/T | 4 analog; maximum 5 IP | Entry 1080N/720p model without included storage | Budget home and shop CCTV |
| XVR1B08H-I | 8 analog; maximum 12 IP | Eight channels with 5MP Value recording | Larger high-resolution installations |
| DH-XVR1B08-I/T | 8 analog; maximum 10 IP | Eight-channel coaxial talk at lower resolution | Growing shops and offices |
The Touch IT price is ৳6,500 for the listed 1TB SSD configuration. Confirm availability before ordering.
Yes. This Touch IT product configuration includes a 1TB SSD. Confirm the delivered storage specification with the sales team.
Yes. It accepts compatible 5MP analog inputs and records 5M-N at up to 12fps.
Yes. Four-channel coaxial two-way talk is supported with compatible cameras and clients.
Two IP channels are available by default; channel conversion increases the maximum to six.
Yes. Compatible iOS and Android access is supported after correct network and security configuration.
Touch IT supplies original Dahua products and professional security equipment in Bangladesh. The team can verify the SSD, camera format, audio compatibility, cabling, power and installation accessories before deployment.
Build a smarter four-camera system with 5M-N recording, 1TB SSD storage, WizSense filtering and two-way talk. Order from Touch IT, visit Multiplan Center, Level 03, Room 312, New Elephant Road, Dhaka-1205, or call 01711664030.
