| Camera | ||
| Image Sensor | 2 MP CMOS | |
| Shutter Speed | 20 m illumination distance. | |
| Lens & Illuminator | ||
| Lens Type | Fixed-focal |
|
| Field of View | M12 |
|
| Aperture | 2.8 mm;3.6 mm | |
| Lens Mount | F2.0 |
|
| Light Type | 2.8 mm: H: 102°; V: 60°; D: 129° 3.6 mm: H: 83°; V: 48°; D: 105° |
|
| IR Distance | Fixed | |
| White/Warm Light Distance | 2.8 mm: 0.5 m (1.64 ft) 3.6 mm: 0.7 m (2.30 ft) |
|
| Video & Audio | ||
| Video Output | 1920 (H) × 1080 (V) | |
| Max Frame Rate | CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960H |
|
| Resolution Support | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) | |
| WDR | Auto(ICR)/Color/B/W | |
| Audio | BLC; HLC; DWDR |
|
| Pickup Distance | Auto |
|
| Audio Over Coax | 3D NR |
|
| Interface | ||
| Audio Interface | 1 channel |
|
| Video Interface | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | |
| Physical Specification | ||
| Power Supply | Plastic | |
| Power Consumption | 97.1 mm x93.8 mm |
|
| Operating Temp | 180 gm | |
| Dimensions | Max 2.6W (12 VDC, IR on) | |
| Warranty | ||
| Warranty | 1 year | |

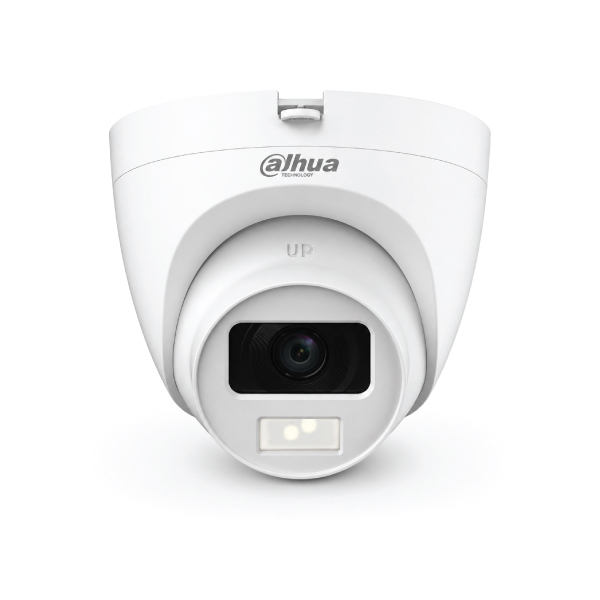

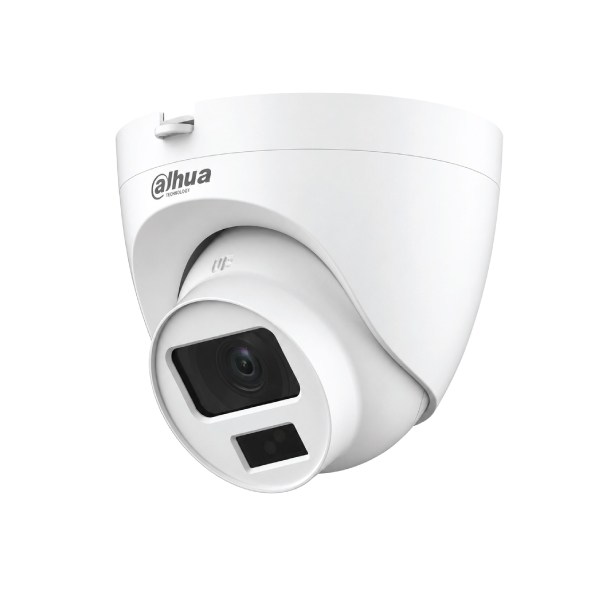

The Dahua HAC-HDW1200CLQP-IL-A 2MP Smart Dual Light Fixed Eyeball Camera is an HDCVI model for homes, offices, shops and warehouses. It combines Full HD video, dual illumination, a microphone and multi-format output.
For buyers comparing the Dahua HAC-HDW1200CLQP-IL-A price in Bangladesh, this model provides practical day-and-night monitoring without IP-camera network requirements. The current price at Touch IT is ৳1,650. Confirm stock, lens, XVR compatibility and warranty before ordering.
This Dahua 2MP CC camera delivers 1080p surveillance over coaxial cabling. Smart Dual Light lets a compatible XVR coordinate infrared monitoring with warm-light activation, while the adjustable eyeball and quick-install base simplify positioning.
The camera produces 1920 × 1080 video at 25 fps PAL or 30 fps NTSC. Progressive scanning and an S/N ratio above 65dB support clear monitoring.
Two infrared and two warm lights illuminate up to 20 metres. With a compatible AI XVR, Smart Dual Light can use infrared routinely and activate warm light after a supported target event to capture useful colour detail.
The microphone adds audio where local regulations permit recording. Audio-over-coax lets compatible systems carry video and audio to the recorder through the coaxial connection. Browse other models on the Dahua CC Camera page.
One BNC port can output HDCVI, TVI, AHD or CVBS for compatible recorders. As an analogue HD camera, it does not use an RJ-45 connection. Explore cameras and recorders in CCTV Surveillance.
Super Adapt adjusts imaging parameters automatically. BLC, HLC, DWDR and 3D NR help manage backlight, highlights, contrast and low-light noise. Auto ICR and eight privacy-mask areas add practical control.
The standard 3.6mm lens offers an 83° horizontal view; the optional 2.8mm lens widens it to 102°. Pan, tilt and rotation adjustment helps frame the target area.
| Product Name | Dahua 2MP Smart Dual Light HDCVI Fixed-focal Eyeball Camera |
|---|---|
| Model | DH-HAC-HDW1200CLQP-IL-A |
| Camera Type | HDCVI fixed-focal eyeball camera |
| Image Sensor and Resolution | 2MP CMOS; 1920 × 1080 maximum |
| Frame Rate | PAL: 1080p at 25 fps; NTSC: 1080p at 30 fps |
| Minimum Illumination | 0.01 lux colour; 0.001 lux B/W; 0 lux with illuminator on |
| Lens | M12 fixed-focal, F2.0; 3.6mm standard and 2.8mm optional |
| Field of View | 2.8mm: H 102°, V 60°, D 129°; 3.6mm: H 83°, V 48°, D 105° |
| Illumination | Smart IR and warm light, up to 20m each |
| Image Functions | Super Adapt, BLC, HLC, DWDR, 3D NR, Auto ICR and privacy masking |
| Video Output | CVI, TVI, AHD or CVBS selectable through one BNC port |
| Audio | Built-in microphone; one audio channel |
| Power | 12V DC ±30%; maximum 2.6W with IR on |
| Environment and Protection | –40°C to +60°C; below 95% RH, non-condensing; IP67 |
| Construction and Size | Plastic casing; Φ97.1 × 93.8mm; 0.18kg; wall, ceiling or pole mounting |
Verification note: Dahua lists 3.6mm as standard and 2.8mm as optional. Its official download filename references HDW1200, while the embedded datasheet heading and ordering table identify HDW1209; Touch IT and local listings use HDW1200 with the same specifications. Confirm the physical label and lens for project orders. Smart Dual Light requires compatible recorder support; accessories and warranty are package-dependent.
This model suits projects needing 1080p HDCVI video, audio, dual illumination and outdoor protection. It works for new coaxial systems or compatible upgrades. Explore Security System Solutions.
| Model | Best For | Main Difference |
|---|---|---|
| HAC-HDW1200CLQP-IL-A | General 1080p eyeball surveillance | 20m dual light, built-in mic and quick-install body |
| Dahua HAC-HFW1200CLP-IL-A | Directional outdoor coverage | Comparable 2MP functions in a bullet body |
| Dahua HAC-T1A21P-U-IL-A | Compact entry-level monitoring | Alternative 2MP Smart Dual Light eyeball design |
| Dahua DH-HAC-HDW1500CLQP-IL-A | Locations needing more image detail | Higher 5MP resolution with a similar eyeball format |
It is an HDCVI analogue camera connecting to a compatible DVR or XVR through BNC coaxial cable, not RJ-45.
Yes. The “-A” version includes a microphone and supports one audio channel over a compatible HDCVI system.
Dahua specifies up to 20 metres for infrared and warm light. Results depend on the scene, mounting angle and settings.
The 3.6mm lens is standard and 2.8mm is optional. Confirm the supplied version before ordering.
Yes. It has IP67 protection and a published –40°C to +60°C operating range when correctly installed.
It supports CVI, TVI, AHD and CVBS, but resolution, audio and Smart Dual Light depend on recorder compatibility.
No PoE input is specified. It requires 12V DC power and uses BNC coaxial video output.
