| General Specification | ||
| Casing | Plastic | |
| Dimensions | Φ97.1 mm × 93.8 mm (Φ3.82" × 3.69") | |
| Weight | Net: 0.18 kg (0.40 lb) Gross: 0.29 kg (0.64 lb) |
|
| Pan/Tilt/Rotation | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
|
| Operating Conditions | Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Humidity: <95% RH, non-condensing |
|
| Storage Conditions | –40 °C to +60 °C (–40 °F to +140 °F) | |
| Power Supply | 12 VDC ±30% | |
| Power Consumption | Max. 2.6 W (12 VDC, IR on) | |
| Camera | ||
| Image Sensor | 2 MP CMOS | |
| Effective Pixels | 2 MP | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | PAL: 1/25 s – 1/100,000 s NTSC: 1/30 s – 1/100,000 s |
|
| Minimum Illumination | 0.01 lux @ F2.0 (Color, 30 IRE) 0.001 lux @ F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
|
| S/N Ratio | 65 dB | |
| IR Distance | Up to 20 m (65.62 ft) | |
| IR On/Off Control | Auto | |
| IR LEDs | 2 IR LEDs + 2 Warm Light LEDs | |
| Lens | ||
| Lens Type | Fixed-focal | |
| Mount Type | M12 | |
| Focal Length | 2.8 mm / 3.6 mm | |
| Max Aperture | F2.0 | |
| Angle of View | 2.8 mm: H: 102°; V: 60°; D: 129° 3.6 mm: H: 83°; V: 48°; D: 105° |
|
| Focus Control | Fixed | |
| Close Focus Distance | 2.8 mm: 0.5 m (1.64 ft) 3.6 mm: 0.7 m (2.30 ft) |
|
| Video | ||
| Resolution | 1080p (1920 × 1080) 960H (960 × 576 / 960 × 480) |
|
| Frame Rate | CVI: • PAL: 1080p @25 fps • NTSC: 1080p @30 fps AHD: • PAL: 1080p @25 fps • NTSC: 1080p @30 fps TVI: • PAL: 1080p @25 fps • NTSC: 1080p @30 fps CVBS: • PAL/NTSC: 960H |
|
| Video Output | CVI / TVI / AHD / CVBS (switchable via one BNC port) | |
| Day/Night | Auto (ICR) / Color / B/W | |
| BLC Mode | BLC / HLC / DWDR | |
| Gain Control | Auto | |
| Noise Reduction | 3D NR | |
| Interface | ||
| Audio Interface | 1-channel audio input | |
| Video Interface | 1 × BNC output | |
| Special Features | ||
| Other Features | Smart IR & Warm Light Warm Light Mode / IR Mode Privacy Masking (8 areas, rectangular) Mirror Mode (On/Off) DWDR Auto & Area White Balance IP67 Weatherproof Protection Wall, ceiling, and pole mounting supported |
|
| Warranty Information | ||
| Warranty | 1 Year | |

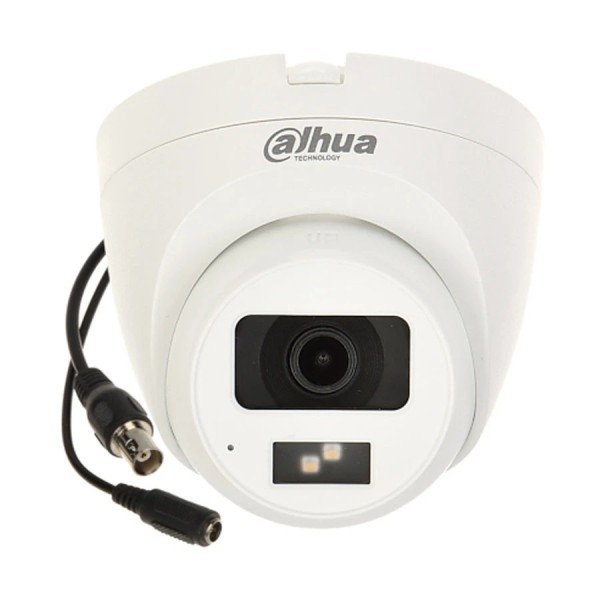

The Dahua DH-HAC-HDW1209CLQP-IL-A is a reliable and cost-effective 2MP HDCVI dome CC camera designed for modern CCTV surveillance systems. Built with Smart Dual Light technology and Full HD 1080p resolution, this camera delivers sharp, clear, and colorful video day and night. Available at Touch IT, it is an ideal solution for homes, shops, offices, warehouses, and commercial security installations.
Equipped with a high-performance 2MP CMOS image sensor, this Dahua dome camera records video at a maximum resolution of 1920 × 1080. The progressive scanning system and high S/N ratio (>65 dB) ensure detailed images with reduced noise, even in low-light conditions. Smooth video output at up to 1080p@30fps makes monitoring accurate and reliable.
The camera features Smart IR and Warm Light illumination that automatically adjusts based on the environment. In darkness, it can switch between IR mode for discreet black-and-white monitoring or warm light mode for full-color night video. With up to 20 meters illumination range for both IR and warm light, this camera ensures round-the-clock visibility.
Available in 2.8mm and 3.6mm fixed-focal lens options, the camera offers flexible viewing angles. The 2.8mm lens provides a wide field of view, perfect for open areas, while the 3.6mm lens offers more focused monitoring. The F2.0 aperture helps capture brighter images in low-light environments.
This Dahua camera includes essential image enhancement technologies such as DWDR, 3D Noise Reduction, BLC, and HLC. These features optimize image clarity in challenging lighting conditions. Added functions like privacy masking (up to 8 zones) and automatic day/night switching make it suitable for both residential and commercial use.
The camera supports CVI, TVI, AHD, and CVBS video output through a single BNC port. This multi-format compatibility allows easy integration with existing DVR systems, making it a smart upgrade choice without replacing the entire surveillance setup.
Designed for long-term performance, the camera comes with an IP67-rated housing that protects it from dust, rain, and harsh weather conditions. It operates efficiently in extreme temperatures ranging from -40°C to +60°C. The compact dome design supports wall, ceiling, and pole mounting for flexible installation.
Touch IT offers genuine Dahua CCTV cameras with dependable after-sales support and competitive pricing in Bangladesh. The Dahua DH-HAC-HDW1209CLQP-IL-A 2MP Smart Dual Light HDCVI Fixed-focal Dome CC Camera is an excellent choice for users looking for high-quality video, smart night vision, and durable performance at an affordable cost. Order today from Touch IT and secure your property with trusted Dahua surveillance technology.
The latest price of Dahua DH-HAC-HDW1209CLQP-IL-A Dome CC Camera in Bangladesh is 4,170৳. You can buy the Dahua DH-HAC-HDW1209CLQP-IL-A Dome CC Camera at best price from our website or visit any of our showrooms.
