Call for Price
| Main Features | ||
| LED Indicator | Supports | |
| Barrier Material | SUS304 Stainless Steel | |
| Barrier Movement | Rotating | |
| Cabinet Material | SUS304 Stainless Steel | |
| Lid Material | SUS304 Stainless Steel | |
| Emergency Mode | Supports | |
| Security Level | Medium | |
| MCBF | 1 million | |
| Accessories | Counter, SUS316 Cabinet and Lid, Remote Control | |
| Physical Specification | ||
| Power Supply | AC110V/220V, 50/60Hz | |
| Power Rating | Starting: 82W Standby: 29W Unlock: 76W |
|
| Lane Width (mm) | 520 | |
| Footprint (mm*mm) | 1120*1355 | |
| Dimensions ( L*W*H ) | L=1120, W=315, H=985 mm | |
| Dimensions of Product Parts with Packaging ( L*W*H ) | L=1200, W=440, H=1080 mm | |
| Net Weight (kg) | 65 | |
| Weight with Packing (kg) | 75 | |
| Operating Temperature | -28℃~60℃ | |
| Operating Humidity | 5%~80% | |
| Operating Environment | Indoor/ Outdoor (if sheltered) | |
| Speed of Throughput | RFID: Maximum 30/ minute Fingerprint: Maximum 25/ minute |
|
| Packing Material | Counter, SUS316 Cabinet and Lid, Remote Control | |
| Manufacture Warranty | ||
| Warranty | 1 Year | |

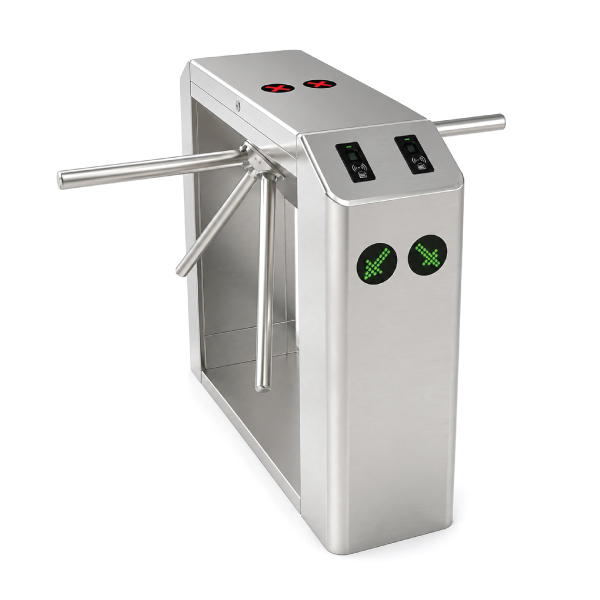

The ZKTeco TS2222 Dual-Lane Advanced Tripod Turnstile Access Control system is designed for busy offices, factories, educational institutions, commercial buildings, transport facilities and other managed entrances. It combines two controlled pedestrian lanes, fingerprint and RFID authentication, an integrated access controller and durable stainless-steel construction in one professional entrance solution.
For organizations checking the ZKTeco TS2222 price in Bangladesh, the current Touch IT listing is available on a Call for Price basis. Final pricing depends on the supplied controller, reader revision, software, installation accessories, cabling and project requirements. Contact Touch IT for an itemized quotation and site-specific configuration.

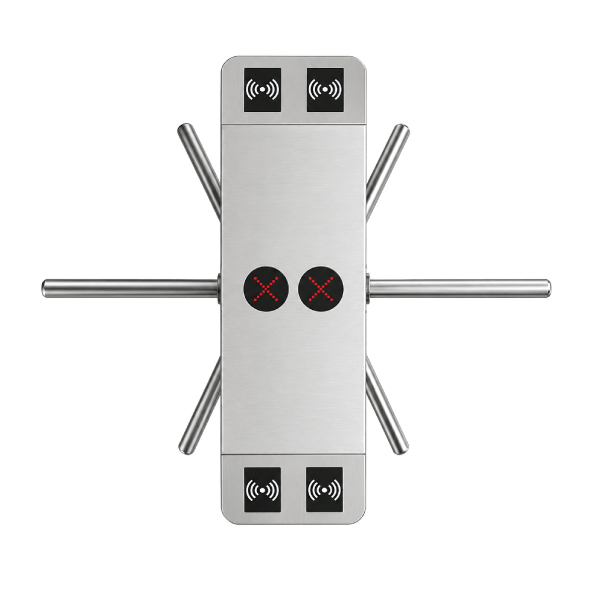

The TS2222 creates two adjacent pedestrian channels within one casework, making it more space-efficient than installing two separate single-lane cabinets. When a registered fingerprint or RFID credential is accepted, the corresponding tripod mechanism unlocks for one person. Bi-directional electronic control supports managed entry and exit according to the selected access rules.
Two 520mm passages help separate incoming and outgoing traffic or process users through both lanes during busy periods. The dual-lane layout is suitable for locations where a single turnstile may create queues. Explore related biometric controllers and readers under ZKTeco Access Control.
ZKTeco identifies TS2222 as the TS2200-series variant supplied with an InBio460 controller and four fingerprint/RFID readers. This arrangement supports authentication from both sides of two lanes. Credential capacity, reader model and management software should be confirmed for the supplied regional configuration.
The casework and tripod arms use SUS304 stainless steel, while an alloy-steel tripod hub helps resist mechanical wear. This combination supports long-term use in busy commercial environments. Browse additional entrance products in the Access Control and Time Attendance category.
During a power loss or compatible emergency signal, the horizontal arms drop to provide free passage. The design also supports anti-tailgating and visual access indication. Emergency release behaviour must be integrated and tested during commissioning according to the approved evacuation plan.
LED way-mode indicators show access permission and movement direction, helping users understand which lane and direction are available. This visual guidance improves flow at employee entrances, reception areas and other controlled checkpoints.
The TS2200 platform provides standard electrical interfaces and space for integrated access-control components. Optional accessories published for the series include a passage counter, remote control and SUS316 cabinet or lid. For complete project planning, explore Security System Solutions.
| Brand and Model | ZKTeco TS2222 |
|---|---|
| Product Type | Dual-lane biometric tripod turnstile |
| Authentication | Fingerprint and RFID card |
| Controller | InBio460 |
| Reader Configuration | Four fingerprint and RFID readers; regional model varies |
| Lane Width | 520mm per passage |
| Flow Rate | Manufacturer brochure lists 25–48 passages per minute |
| Movement | Rotating, electronically controlled bi-directional arms |
| Materials | SUS304 stainless-steel casework and tripod arms |
| Safety | Emergency drop-arm and anti-tailgating support |
| Indicators | LED access and direction pictograms |
| Power Supply | AC 110V/220V, 50/60Hz |
| Dimensions and Weight | Approximately 1120 × 315 × 985mm; 65kg net |
| Operating Temperature | -28°C to 60°C |
| Reliability | Medium security level; MCBF of one million cycles |
Verification note: ZKTeco documents vary by region and product generation. A legacy brochure identifies four FR1200 readers, while another regional page lists four F12-based readers. Published power consumption ranges from 18W running and 6W standby to older listing figures of 82W starting, 29W standby and 76W unlocked. Confirm the reader revision, power rating, humidity range, software, credential capacity, outdoor suitability, accessories and warranty before ordering.
The TS2222 is a practical choice when a project requires two controlled passages with fingerprint and RFID authentication. Its integrated controller, reader coverage on both sides, stainless-steel construction and emergency arm release reduce the need to assemble a dual-lane solution from unrelated components.
| Model | Lane and Authentication | Best For |
|---|---|---|
| TS2222 | Dual lane; fingerprint and RFID | High-volume biometric access |
| ZKTeco TS2022 Pro | Single lane; fingerprint and RFID | Compact biometric entrances |
| ZKTeco TS2000 Plus | Single lane; configurable readers | Modern customized projects |
| ZKTeco Saturn-T1000 | Single lane; optional authentication | Value-focused installations |
Yes. It provides two electronically controlled pedestrian passages within one casework.
The verified TS2222 configuration supports fingerprint and RFID card authentication through four readers.
Yes. ZKTeco documentation identifies the InBio460 controller for the TS2222 configuration.
The tripod arms drop to create free passage during power loss or a properly connected emergency event.
Each pedestrian lane has a published width of 520mm.
Yes. Entry and exit directions are electronically controlled according to the configured access rules.
Regional documents differ. Confirm sheltered-outdoor suitability and environmental protection for the exact supplied revision before installation.
Touch IT supplies ZKTeco entrance control systems in Bangladesh with consultation, site planning, installation, configuration and after-sales technical support. The team can confirm the controller, readers, software, cabling and optional accessories required for your project.
Plan a faster dual-lane entrance with integrated fingerprint and RFID authentication. Request the ZKTeco TS2222 Dual-Lane Advanced Tripod Turnstile Access Control from Touch IT, visit Room 312, Level 3, ECS Computer City Center (Multiplan Center), 69–71 New Elephant Road, Dhaka-1205, or call 01711664030.
The latest price of ZKTeco TS2222 Tripod Turnstile Access Control in Bangladesh is 230,000৳. You can buy the ZKTeco TS2222 Tripod Turnstile Access Control at best price from our website or visit any of our showrooms.
