In Stock
| Main Features | ||
| LED Indicator | Suppots | |
| Barrier Material | Acrylic (optional: tempered glass) | |
| Barrier Movement | Retracting | |
| Cabinet Material | SUS304 Stainless Steel | |
| Lid Material | SUS304 Stainless Steel | |
| Emergency Mode | Supports | |
| Security Level | Medium | |
| MCBF | 2 million | |
| Physical Specification | ||
| Power Supply | AC 100 ~ 120V/200 ~ 240V, 50/60Hz | |
| Lane Width (mm) | 600 (optional 920) | |
| Footprint (mm*mm) | 1350*1200 (optional 1350*1880) | |
| Dimensions ( L*W*H ) | 1350*300*1010(optional 1350*480*1010) | |
| Dimensions of Product Parts with Packaging ( L*W*H ) | 1500*840*1100 (optional 1500*1160*1100) | |
| Net Weight (kg) | 116 (optional 200) | |
| Weight with Packing (kg) | 169 (optional 260) | |
| Operating Temperature | -28°C ~ 60°C | |
| Operating Humidity | 5% ~ 80% | |
| Operating Environment | Indoor/outdoor (if sheltered) | |
| Speed of Throughput | RFID: Maximum 30/minute Fingerprint: Maximum 25/minute |
|
| Manufacture Warranty | ||
| Warranty | 1 year | |

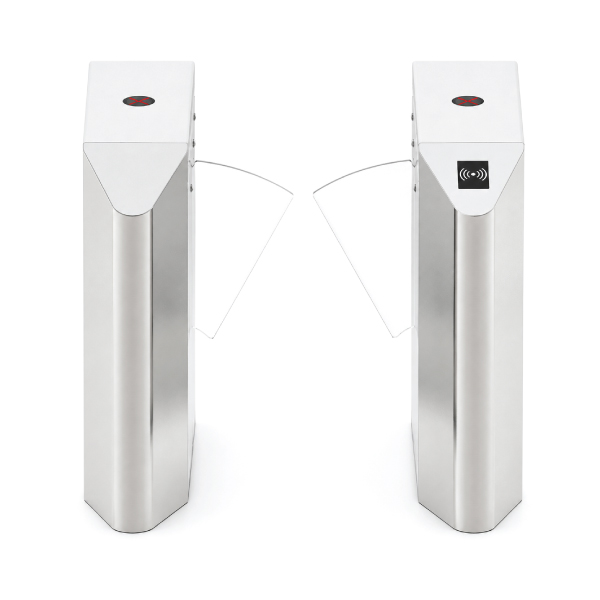

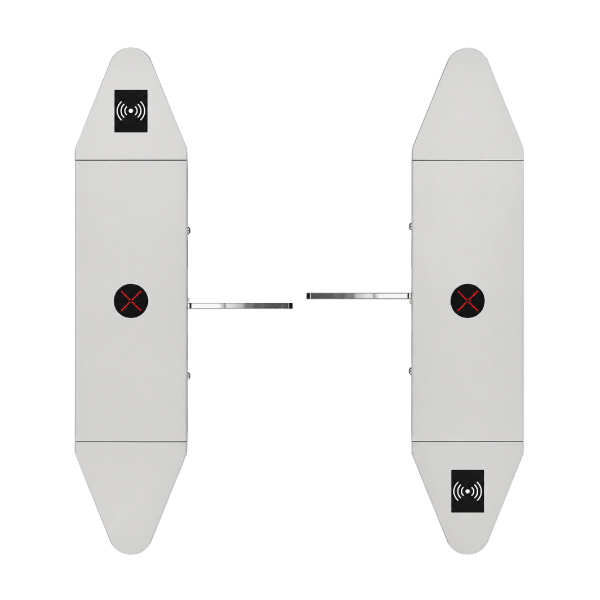

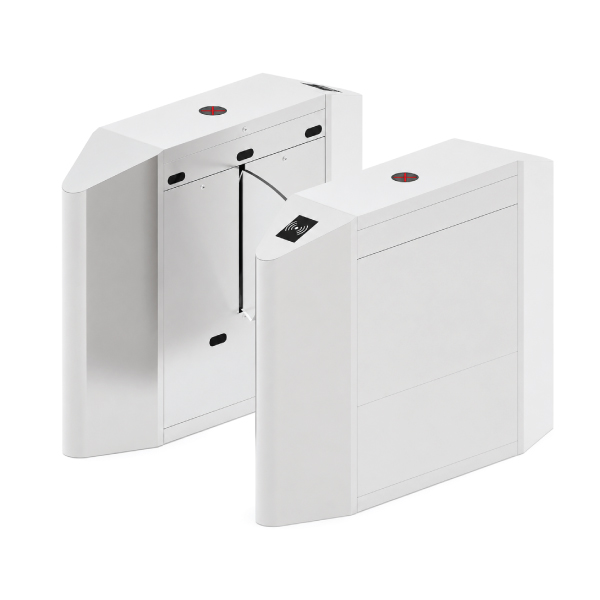

The ZKTeco FBL4022 Pro Single Lane Flap Barrier is an integrated biometric entrance gate for offices, factories, banks, educational institutions and government facilities. It combines a retracting barrier with an access controller, fingerprint reader and RFID card reader to manage authorized entry through one professional lane.
Businesses comparing the ZKTeco FBL4022 Pro price in Bangladesh can consider this model for its built-in authentication package, SUS304 stainless-steel body, 600mm standard passage, LED guidance and emergency mode. The current price at Touch IT is ৳255,000. Confirm reader capacity, software compatibility, optional lane configuration, installation work and warranty coverage before ordering.
The FBL4022 Pro keeps its barrier controlled until the integrated reader verifies a fingerprint or RFID card. The acrylic flap then retracts for passage and returns to secure the lane. This combined design removes the need to select separate readers.
Unlike the base FBL4000 Pro, the FBL4022 package includes a controller with fingerprint and RFID readers. Registered users verify their credential before the lane opens, simplifying projects requiring biometric and card access. Explore more pedestrian gates in the Flap Barrier category.
ZKTeco publishes a maximum throughput of 30 people per minute using RFID and 25 people per minute using fingerprint verification. Actual flow varies with enrollment quality, user familiarity and entrance layout, but the published rates support routine staff movement during shift changes and office peak hours.
The cabinet and lid use SUS304 stainless steel, creating a durable body with a clean appearance for reception areas and controlled entrances. The retracting acrylic barrier keeps the passage visually open when access is approved. Browse the ZKTeco Products page for related authentication and entrance-control equipment.
Emergency mode retracts the barrier to provide unobstructed passage. Automatic retraction during a power failure requires the applicable capacitor-board configuration and should be confirmed during system design. An integrated LED indicator guides users through the lane. See additional integrated options under Security System Solutions.
The standard 600mm lane suits normal pedestrian access, while ZKTeco publishes an optional 920mm configuration for wider passage requirements. The gate is intended for indoor or sheltered outdoor use rather than direct exposure. Organizations planning layered screening can also review the Security Inspection section.
| Product Name | ZKTeco FBL4022 Pro Single Lane Flap Barrier |
|---|---|
| Included Authentication | Fingerprint and RFID card readers |
| Access Controller | Included with FBL4022 configuration |
| Power Requirement | AC 100–120V or 200–240V, 50/60Hz |
| Throughput | RFID: maximum 30/minute; fingerprint: maximum 25/minute |
| Lane Width | 600mm standard; 920mm optional |
| Footprint | 1350 × 1200mm; optional 1350 × 1880mm |
| Product Dimensions | 1350 × 300 × 1010mm; optional 1350 × 480 × 1010mm |
| Cabinet and Lid | SUS304 stainless steel |
| Barrier | Retracting acrylic; tempered glass optional |
| LED Indicator | Yes |
| Emergency Mode | Yes |
| Reliability | MCBF of two million cycles |
| Operating Conditions | -28°C to 60°C; 5%–80% humidity |
| Installation Environment | Indoor or sheltered outdoor |
Verification note: The FBL4022 model designation identifies the FBL4000 Pro-series gate supplied with a controller plus fingerprint and RFID readers. The official family page does not publish fingerprint capacity, card capacity, event capacity, controller model or included software licence. Capacitor board, optional 920mm lane, tempered-glass barrier, cabling, civil work and installation depend on the ordered package.
This model is appropriate when a project needs a complete single-lane gate with fingerprint and RFID verification rather than a bare turnstile cabinet. Its integrated authentication, stainless-steel construction, published two-million-cycle MCBF, emergency operation and optional wider lane create a practical entrance solution for medium-security environments.
| Model | Configuration | Best For |
|---|---|---|
| FBL4022 Pro | Controller, fingerprint and RFID readers included | Integrated biometric access projects |
| ZKTeco FBL4000 Pro | Base single-lane gate | Projects selecting separate readers |
| ZKTeco FBL700 | Alternative single-lane flap barrier | Compact entrance-control deployments |
| ZKTeco FBL720 | Lane-builder unit | Compatible multi-lane expansion |
Yes. ZKTeco identifies FBL4022 as the configuration supplied with a controller, fingerprint reader and RFID reader.
The standard lane is 600mm wide. An optional 920mm configuration is published for wider passage requirements.
The published maximum is 30 users per minute with RFID and 25 users per minute with fingerprint verification.
It supports indoor or sheltered outdoor installation. Direct rain and weather exposure require suitable site protection.
Emergency mode retracts the barrier. Power-failure retraction depends on the appropriate capacitor-board configuration.
The official family specifications do not identify a bundled software licence. Confirm software and integration requirements before ordering.
Yes. Correct floor preparation, alignment, power, networking and emergency integration are important for safe, reliable operation.
Touch IT supplies entrance-control products in Bangladesh with layout planning, installation guidance and after-sales support. The team can confirm reader capacity, software, lane dimensions, power and accessories before deployment.
Upgrade your entrance with integrated fingerprint and RFID verification using the ZKTeco FBL4022 Pro Single Lane Flap Barrier. Order from Touch IT Solutions, visit ECS Computer City Center, Level 3, Shop 312, New Elephant Road, Dhaka-1205, or call 01711664030 for project consultation.
The latest price of ZKTeco FBL4022 Pro Flap Barrier in Bangladesh is 255,000৳. You can buy the ZKTeco FBL4022 Pro Flap Barrier at best price from our website or visit any of our showrooms.
