| Camera | ||
| Image Sensor | 1/2.7" CMOS | |
| Max Resolution | 5MP; 2880 × 1620 / 2592 × 1944 | |
| Min. Illumination | 0.005 Lux @ F1.4, AGC On; 0 Lux with White Light On | |
| Signal System | PAL / NTSC | |
| Shutter Speed | PAL: 1/25s to 1/50,000s; NTSC: 1/30s to 1/50,000s | |
| Day/Night | 24/7 Color Images | |
| Lens & Illuminator | ||
| Lens Type | Fixed Lens | |
| Field of View | 2.8mm: H 111.5°, V 58.9°, D 134.8° | |
| Aperture | F1.4 | |
| Lens Mount | M12 | |
| Light Type | White Light | |
| White/Warm Light Distance | Up to 40 m | |
| Video & Audio | ||
| Video Output | BNC, Supports TVI / AHD / CVI / CVBS | |
| Max Frame Rate | TVI: 5MP@20fps Default, [email protected], 4MP@25/30fps, 1080P@25/30fps; AHD: 5MP@20fps, 4MP@25/30fps, 1080P@25/30fps; CVI: 5MP@25fps, 4MP@25/30fps, 1080P@25/30fps; CVBS: PAL / NTSC | |
| Resolution Support | 5MP 2880 × 1620; 5MP 2592 × 1944; 4MP 2560 × 1440; 1080P 1920 × 1080 | |
| WDR | DWDR | |
| Audio | Built-in Microphone | |
| Audio Over Coax | Supported via TVI / CVI | |
| Image & Smart Functions | ||
| Image Enhancement | Global Exposure, BLC, HLC, DWDR, 2D Digital Noise Reduction | |
| White Balance | Auto / Manual | |
| AGC | Supported | |
| Image Control | 24/7 Color Image, Exposure Mode, OSD Menu | |
| Smart Light / Smart IR | White Light Supported | |
| Mirror / Image Adjustment | 180° Horizontal Flip and 180° Vertical Flip Supported | |
| Physical Specification | ||
| Power Supply | DC 12V ±25%, Reverse Polarity Protection | |
| Power Consumption | Max. 3.28W | |
| Operating Temp | -30°C to 60°C; Humidity ≤95% RH, Non-Condensing | |
| Material | Metal + Plastic | |
| Weatherproof | IP67 | |
| Installation | Surface Mount Default, Optional Junction Box and Wall Mount Bracket | |
| Dimensions | Φ111 × 96 mm | |
| Weight | 356 g | |
| Certifications | CB, CE, FCC, UL, IP67 | |
| Warranty | ||
| Warranty | 1 Year | |

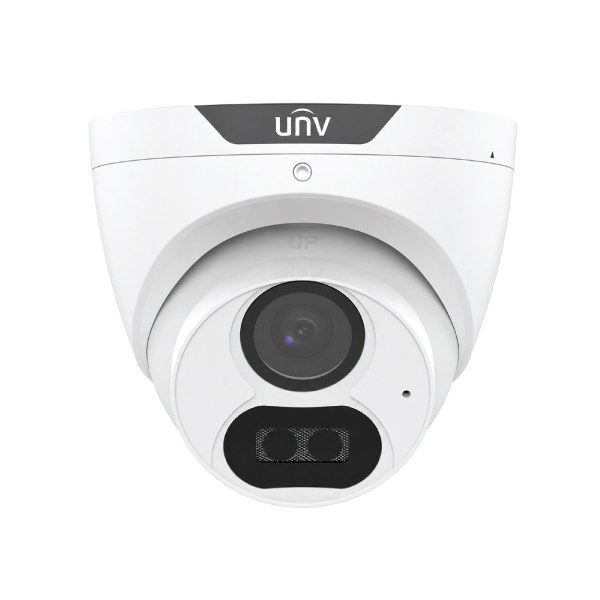

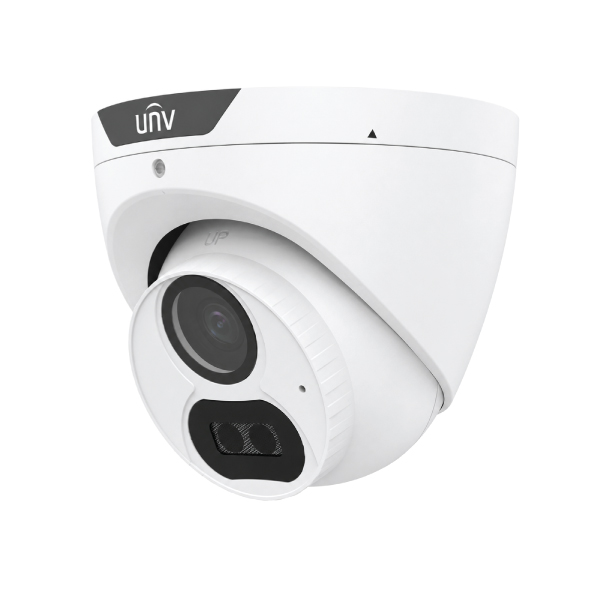

The Uniview UAC-T125-AF28M-W is a 5MP ColorHunter turret analog camera that preserves colour details day and night. It combines high-resolution video, a wide 2.8mm F1.4 lens, 40-metre warm light and a microphone in an IP67-rated enclosure.
For buyers comparing the Uniview UAC-T125-AF28M-W price in Bangladesh, the current Touch IT price is ৳3,250. This wired 5MP CCTV camera suits homes, shops, offices, warehouses and parking areas. Confirm stock, DVR and audio compatibility, cabling and installation requirements before ordering.
This high-resolution CC camera brings colour night monitoring to a coaxial surveillance system. Four-in-one output supports many analog HD and hybrid recorders, making it practical for new installations or upgrades.
The 1/2.7-inch CMOS sensor supports 5MP, 4MP and 1080p output. CVI provides 2880 × 1620 at up to 25fps, while TVI and AHD provide 5MP at up to 20fps. Higher resolution helps reveal faces, clothing and vehicles more clearly than 2MP.
Two white-light illuminators provide colour imaging in darkness up to 40 metres. Colour footage can preserve details that infrared black-and-white video may lose, including vehicle and clothing colours. Visible light may also signal that the area is monitored.
The 2.8mm M12 lens provides a 111.5° horizontal, 58.9° vertical and 134.8° diagonal view. Its F1.4 aperture and 0.005-lux minimum illumination support low-light performance. Browse the Uniview CC Camera range for more options.
The microphone adds sound without a separate camera-side audio cable. Audio over coax works in specified TVI and CVI modes, but the recorder, format and channel must support it. The camera does not provide two-way conversation.
The BNC connection supports TVI, AHD, CVI and CVBS across common DVR and XVR platforms. Because resolution, frame rate and audio vary by signal, check the intended mode before installation.
Global, BLC, HLC and DWDR exposure modes help manage backlight and strong highlights. The camera also includes 2D digital noise reduction, automatic or manual white balance, 180° horizontal and vertical image flip, and an OSD configuration menu in 11 languages.
The metal-and-plastic housing carries an IP67 rating. A -30°C to 60°C range and 4kV surge protection improve reliability. Its three-axis design supports accurate positioning.
| Brand | Uniview |
|---|---|
| Model | UAC-T125-AF28M-W |
| Camera Type | 5MP ColorHunter fixed warm-light turret analog camera |
| Image Sensor | 1/2.7-inch CMOS |
| Maximum Resolution | 2880 × 1620 at up to 25fps, mode-dependent |
| Lens | 2.8mm F1.4 fixed lens; M12 mount |
| Field of View | H 111.5°, V 58.9°, D 134.8° |
| Minimum Illumination | 0.005 lux (F1.4, AGC on); 0 lux with white light |
| Illumination | Two white-light illuminators; up to 40m |
| Video Output | BNC; TVI, AHD, CVI and CVBS |
| Audio | Built-in microphone; compatible audio over coax |
| Image Features | DWDR, BLC, HLC, 2D DNR, white balance and image flip |
| Power | 12V DC ±25%; maximum 3.28W |
| Protection | IP67; 4kV surge protection for power and video |
| Dimensions and Weight | Φ111 × 96mm; 356g |
This is the 2.8mm model; AF40M-W uses a narrower 4mm lens. The letter “W” identifies white light, not Wi-Fi. This wired analog camera requires BNC video, 12V DC power and a compatible DVR/XVR. Confirm 5MP input, audio over coax, power and warranty.
Choose this model when colour detail, wide coverage, audio and higher-than-1080p resolution matter. Its 40m illumination, four-format output and protected body suit residential and commercial surveillance.
| Model | Resolution | Night Imaging | Recommended Use |
|---|---|---|---|
| Uniview UAC-T125-AF28M-W | 5MP | 40m full-colour warm light | Higher detail with audio and wide coverage |
| Uniview UAC-T122-AF28M-W | 2MP | 40m full-colour white light | Lower-cost long-range colour monitoring |
| Uniview UAC-T112-AF28-W | 2MP | 20m full-colour white light | Compact colour surveillance |
| Uniview UAC-T112-F28 | 2MP | 20m infrared, black and white | Budget day-and-night monitoring |
The camera supports up to 2880 × 1620. Maximum frame rate depends on the selected video format and compatible recorder.
Yes. Its two visible-light illuminators support 24/7 colour imaging up to a published distance of 40 metres.
Yes. It has a built-in microphone, but audio over coax requires a compatible DVR, signal mode and channel configuration.
No. It is a wired analog camera. The “W” refers to white-light illumination, not wireless connectivity.
It supports TVI, AHD, CVI and CVBS through its BNC video output.
Yes. Its IP67-rated body supports outdoor use when the camera, cable joints and power connections are installed correctly.
Use an XVR or DVR that supports the selected analog format, 5MP input and required audio-over-coax mode.
Touch IT supplies original Uniview products and professional security equipment in Bangladesh. The team can help confirm camera coverage, compatible DVR, storage, power, connectors, cabling and installation accessories before deployment.
Capture wider, more detailed colour video with audio by choosing this 5MP ColorHunter camera. Order from Touch IT, visit ECS Computer City Center (Multiplan Center), Level 03, Room 312, New Elephant Road, Dhaka-1205, or call 01711664030 for stock and installation support.
