| Camera | ||
| Image Sensor | 1/3" CMOS | |
| Max Resolution | 2MP, 1920 × 1080 | |
| Min. Illumination | 0.003 Lux @ F1.6, AGC On; 0 Lux with Illuminator On | |
| Signal System | PAL / NTSC | |
| Shutter Speed | PAL: 1/25s to 1/50,000s; NTSC: 1/30s to 1/50,000s | |
| Day/Night | Auto / Day / Night | |
| Lens & Illuminator | ||
| Lens Type | Fixed Lens | |
| Field of View | 2.8mm: H 100.9°, V 56.5°, D 121.8° | |
| Aperture | F1.6 | |
| Lens Mount | M12 | |
| Light Type | Dual Light, IR + White Light | |
| IR Distance | Up to 40 m | |
| White/Warm Light Distance | Up to 40 m | |
| Video & Audio | ||
| Video Output | BNC, Supports TVI / AHD / CVI / CVBS | |
| Max Frame Rate | TVI/AHD/CVI: 1080P@25fps Default TVI, 1080P@30fps, 720P@25/30fps; CVBS: PAL / NTSC | |
| Resolution Support | 1080P 1920 × 1080; 720P 1280 × 720 | |
| WDR | DWDR | |
| Audio | Built-in Microphone | |
| Audio Over Coax | Supported via TVI / CVI | |
| Image & Smart Functions | ||
| Image Enhancement | Global Exposure, BLC, HLC, DWDR, 2D/3D Digital Noise Reduction | |
| White Balance | Auto / Manual | |
| AGC | Supported | |
| Image Control | Dual Light Mode, Infrared Mode, White Light Mode, OSD Menu | |
| Smart Light / Smart IR | Dual Light, IR and White Light Supported | |
| Mirror / Image Adjustment | 180° Horizontal Flip and 180° Vertical Flip Supported | |
| Interface | ||
| Audio Interface | Built-in Mic | |
| Video Interface | BNC, Supports TVI / AHD / CVI / CVBS | |
| Physical Specification | ||
| Power Supply | DC 12V ±25%, Reverse Polarity Protection | |
| Power Consumption | Max. 3.6W | |
| Operating Temp | -30°C to 60°C; Humidity ≤95% RH, Non-Condensing | |
| Material | Metal + Plastic | |
| Weatherproof | IP67 | |
| Installation | 3D Bracket Supplied, Surface Mount Default, Optional Backbox and Pole Mount Bracket | |
| Dimensions | 198 × 74 × 74 mm | |
| Weight | 227 g | |
| Certifications | CE-EMC, FCC, CE-LVD, CE-RoHS, WEEE, IP67 | |
| Warranty | ||
| Warranty | 1 Year | |

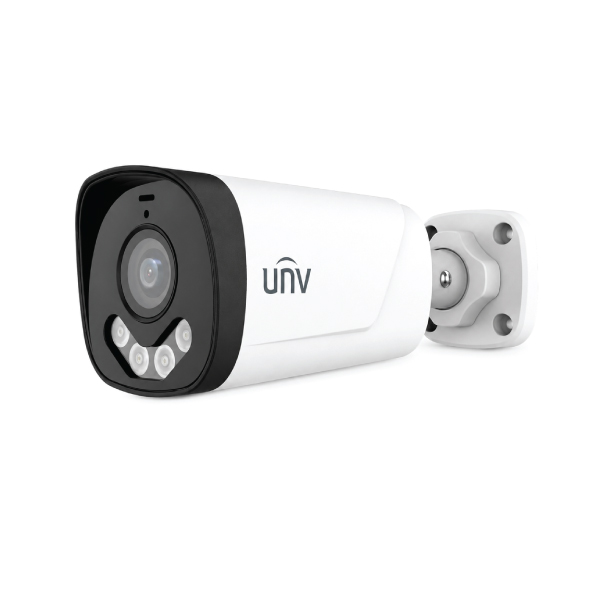

The Uniview UAC-B142-AF28LM-DL is a wide-angle 2MP ColorHunter bullet analog camera for day-and-night security. It combines Full HD video, a 2.8mm F1.6 lens, 40m dual illumination, audio over coax and flexible 4-in-1 output.
For buyers comparing the Uniview UAC-B142-AF28LM-DL price in Bangladesh, the current Touch IT price is ৳2,350. This Uniview CCTV camera records 1080p video at up to 30fps and includes Smart Dual Light, a microphone, IP67 protection and 4kV surge protection. Confirm stock and compatibility before ordering.
This fixed bullet CC Camera suits coaxial systems needing broad coverage and long night illumination. Selectable TVI, AHD, CVI and CVBS output supports many compatible DVR and XVR platforms for new projects or upgrades.
The 1/3-inch CMOS sensor captures 1920 × 1080 video. TVI, AHD and CVI support 1080p or 720p at 25/30fps, while CVBS supports PAL and NTSC. Full HD balances practical detail and storage demand.
The 2.8mm M12 lens offers a 100.9° horizontal, 56.5° vertical and 121.8° diagonal view. Its broad perspective suits shop floors, entrances, parking areas and open rooms. Explore the Uniview CC Camera collection for 4mm lenses, turret housings or higher resolutions.
Two infrared and two white-light illuminators reach up to 40 metres. Infrared supports discreet monochrome monitoring, while white light helps capture colour details. Dual-light, infrared and white-light modes offer flexibility. Smart Dual Light requires TVI mode and compatible recorder configuration.
The microphone can transmit synchronised sound through coaxial cable. Uniview specifies audio in TVI and CVI at 1080p 25/30fps. Recording and playback depend on the output format, DVR channel and firmware.
Global, BLC, HLC and DWDR modes help manage backlight, highlights and uneven brightness. White balance supports natural colour, while 2D/3D noise reduction cleans darker footage. An IR-cut filter handles day/night switching, and 180° flip assists installation within a planned CCTV surveillance system.
The metal-and-plastic housing is IP67 rated and operates from -30°C to 60°C. Power and video interfaces receive 4kV surge protection. The camera uses 12V DC, consumes up to 3.6W and includes reverse-polarity protection. Outdoor cable joints should be sealed.
| Brand | Uniview |
|---|---|
| Model | UAC-B142-AF28LM-DL |
| Camera Type | 2MP ColorHunter smart dual-light bullet analog camera |
| Image Sensor | 1/3-inch CMOS |
| Maximum Resolution | 1920 × 1080 at up to 30fps |
| Lens | 2.8mm F1.6 fixed M12 lens |
| Field of View | H 100.9°, V 56.5°, D 121.8° |
| Minimum Illumination | 0.003 lux at F1.6; 0 lux with illuminator on |
| Illumination | Two IR and two white lights; up to 40m each |
| Video Output | BNC; TVI, AHD, CVI and CVBS |
| Image Functions | BLC, HLC, DWDR, 2D/3D DNR, white balance and flip |
| Audio | Built-in microphone; supported TVI/CVI audio over coax |
| Power | 12V DC ±25%; maximum 3.6W |
| Protection | IP67 and 4kV surge protection |
| Dimensions and Weight | 198 × 74 × 74mm; 227g |
This content applies specifically to the 2.8mm UAC-B142-AF28LM-DL. The UAC-B142-AF40LM-DL uses a narrower 4mm lens with an 82.5° horizontal view. This wired analog camera has no Wi-Fi, Ethernet, PoE or microSD storage. It requires a compatible DVR/XVR, coaxial connection and separate 12V DC power.
Choose this model when wide 100.9° coverage, 40m dual illumination, audio capture and weather protection are required without changing to an IP system. It is especially useful where existing coaxial cabling can be retained while improving night visibility and scene coverage.
| Model | Resolution and Lens | Illumination | Recommended Use |
|---|---|---|---|
| UAC-B142-AF28LM-DL | 2MP, 2.8mm, 100.9° | 40m IR and white light | Wide, long-range dual-light coverage |
| UAC-B142-AF40LM-DL | 2MP, 4mm, 82.5° | 40m IR and white light | More focused long-range monitoring |
| UAC-B112-AF40-DL | 2MP, 4mm, 75.1° | 20m IR and white light | Lower-cost short-range coverage |
| UAC-T112-AF28-DL | 2MP, 2.8mm, 91.5° | 20m IR and white light | Compact wide-angle turret coverage |
It can retain colour information when white-light mode is active. Infrared mode provides conventional black-and-white night footage.
Both the infrared and white-light systems have a published maximum distance of 40 metres.
Yes. It has a built-in microphone with audio-over-coax support in compatible TVI and CVI 1080p modes.
Yes. A compatible DVR or XVR is needed for live viewing, storage, playback and remote access.
The 2.8mm lens provides a 100.9° horizontal view for broad short-to-medium-distance monitoring.
Yes. It is IP67 rated, provided the camera and all cable connections are correctly installed and weather-sealed.
No. It sends video through BNC coaxial cable and requires a separate 12V DC power supply.
Touch IT supplies professional Uniview products for residential, commercial and institutional security projects across Bangladesh. The team can help confirm DVR format, audio compatibility, lens coverage, recording storage, cabling, power adapters and mounting accessories before installation.
