In Stock
| Camera | ||
| Image Sensor | 1/3" CMOS | |
| Max Resolution | 2MP, 1920 × 1080 | |
| Min. Illumination | 0.003 Lux @ F1.6, AGC On; 0 Lux with Illuminator On | |
| Signal System | PAL / NTSC | |
| Shutter Speed | PAL: 1/25s to 1/50,000s; NTSC: 1/30s to 1/50,000s | |
| Day/Night | Auto / Day / Night | |
| Lens & Illuminator | ||
| Lens Type | Fixed Lens | |
| Field of View | 4.0mm: H 82.5°, V 42.1°, D 98.6° | |
| Aperture | F1.6 | |
| Lens Mount | M12 | |
| Light Type | Dual Light, IR + White Light | |
| IR Distance | Up to 40 m | |
| White/Warm Light Distance | Up to 40 m | |
| Video & Audio | ||
| Video Output | BNC, Supports TVI / AHD / CVI / CVBS | |
| Max Frame Rate | TVI/AHD/CVI: 1080P@25/30fps, 720P@25/30fps; CVBS: PAL / NTSC | |
| Resolution Support | 1080P 1920 × 1080; 720P 1280 × 720 | |
| WDR | DWDR | |
| Audio | Built-in Microphone | |
| Audio Over Coax | Supported via TVI / CVI | |
| Image & Smart Functions | ||
| Image Enhancement | BLC, HLC, DWDR, 2D/3D Digital Noise Reduction | |
| White Balance | Auto / Manual | |
| Image Control | Dual Light Mode, Infrared Mode, White Light Mode, OSD Menu | |
| Smart Light / Smart IR | Dual Light, Infrared, White Light | |
| Mirror / Image Adjustment | 180° Horizontal Flip and 180° Vertical Flip | |
| Physical Specification | ||
| Power Supply | DC 12V ±25%, Reverse Polarity Protection | |
| Power Consumption | Max. 3.6W | |
| Operating Temp | -30°C to 60°C; Humidity ≤95% RH, Non-Condensing | |
| Material | Metal + Plastic | |
| Weatherproof | IP673D Bracket Supplied, Surface Mount Default, Optional Backbox and Pole Mount Bracket | |
| Installation | 3D Bracket Supplied, Surface Mount Default, Optional Backbox and Pole Mount Bracket | |
| Dimensions | 198 × 74 × 74 mm | |
| Weight | 227 g | |
| Certifications | CE-EMC, FCC, CE-LVD, CE-RoHS, WEEE, IP67 | |
| Warranty | ||
| Warranty | 1 Year | |

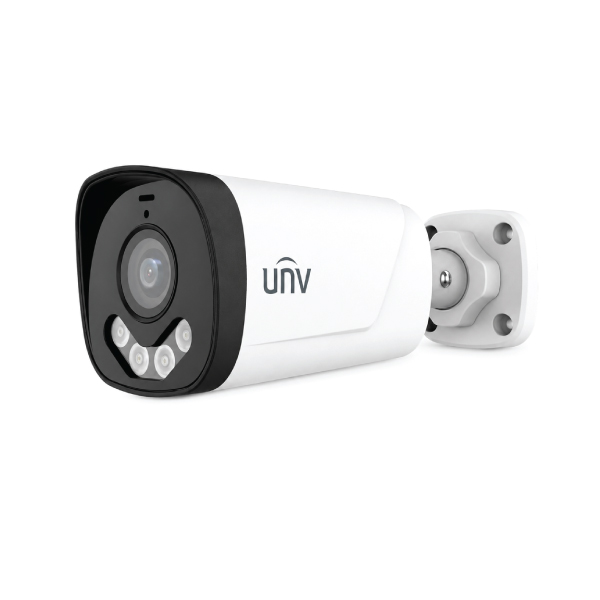

The Uniview UAC-B142-AF40LM-DL is a 2MP ColorHunter bullet analog camera for reliable day-and-night surveillance. It combines Full HD video, a 4mm lens, 40m infrared and white-light illumination, audio over coax and 4-in-1 output for homes, shops, offices and warehouses.
For buyers comparing the Uniview UAC-B142-AF40LM-DL price in Bangladesh, the current Touch IT price is ৳2,350. This affordable Uniview CCTV camera records 1080p video at up to 30fps and includes Smart Dual Light, a built-in microphone, IP67 protection and 4kV surge protection. Confirm stock, DVR compatibility and installation requirements before ordering.
This fixed bullet CC Camera suits coaxial systems requiring longer night coverage than entry-level 20m models. TVI, AHD, CVI and CVBS output supports many compatible DVR and XVR platforms for new installations or upgrades.
The 1/3-inch CMOS sensor captures up to 1920 × 1080. TVI, AHD and CVI support 1080p or 720p at 25/30fps, while CVBS supports PAL and NTSC. Full HD balances practical detail with manageable storage requirements.
The 4mm M12 lens provides an 82.5° horizontal, 42.1° vertical and 98.6° diagonal view. It suits gates, corridors, driveways, counters and warehouse approaches. Browse the Uniview CC Camera range for wider lenses, turret designs or higher resolutions.
Two infrared and two white-light illuminators reach up to 40 metres. Infrared supports discreet monochrome monitoring, while white light helps retain colour information. Dual-light, infrared and white-light modes suit different scenes. Smart Dual Light is specified for TVI, so verify recorder configuration.
The microphone transmits synchronised sound through coaxial cable. Uniview specifies audio in TVI and CVI at 1080p 25/30fps. Recording and playback depend on output format, DVR channel and firmware.
Global, BLC, HLC and DWDR modes manage backlight, highlights and mixed lighting. Auto/manual white balance supports natural colour, while 2D/3D noise reduction reduces grain. An IR-cut filter manages day/night switching, and 180° flip assists orientation.
The metal-and-plastic housing is IP67 rated and operates from -30°C to 60°C. Power and video receive 4kV surge protection. A 12V DC input and 3.6W maximum consumption suit a planned CCTV surveillance system. Outdoor connectors must be sealed.
| Brand | Uniview |
|---|---|
| Model | UAC-B142-AF40LM-DL |
| Camera Type | 2MP ColorHunter smart dual-light bullet analog camera |
| Image Sensor | 1/3-inch CMOS |
| Maximum Resolution | 1920 × 1080 at up to 30fps |
| Lens | 4mm F1.6 fixed M12 lens |
| Field of View | H 82.5°, V 42.1°, D 98.6° |
| Minimum Illumination | 0.003 lux at F1.6; 0 lux with illuminator on |
| Illumination | Two IR and two white lights; up to 40m each |
| Video Output | BNC; TVI, AHD, CVI and CVBS |
| Image Functions | BLC, HLC, DWDR, 2D/3D DNR, white balance and image flip |
| Audio | Built-in microphone; audio over coax in supported TVI/CVI modes |
| Power | 12V DC ±25%; maximum 3.6W |
| Protection | IP67 and 4kV surge protection |
| Dimensions and Weight | 198 × 74 × 74mm; 227g |
This content applies specifically to the 4mm UAC-B142-AF40LM-DL. The UAC-B142-AF28LM-DL uses a wider 2.8mm lens with a 100.9° horizontal view. This is a wired analog camera without Wi-Fi, Ethernet, PoE or microSD storage. It requires a compatible DVR/XVR, coaxial connection and separate 12V DC power.
This model is a strong choice when 40m dual illumination, focused 4mm coverage, audio recording and outdoor protection are required without moving to an IP system. It provides a useful upgrade over shorter-range analog cameras while retaining familiar coaxial infrastructure.
| Model | Resolution and Lens | Illumination | Recommended Use |
|---|---|---|---|
| UAC-B142-AF40LM-DL | 2MP, 4mm, 82.5° | 40m IR and white light | Long-range dual-light bullet coverage |
| UAC-B112-AF40-DL | 2MP, 4mm, 75.1° | 20m IR and white light | Lower-cost short-range monitoring |
| UAC-B122-AF40M-W | 2MP, 4mm, 83.8° | 40m white light | Continuous colour-focused monitoring |
| UAC-T122-AF28M-W | 2MP, 2.8mm, 101.5° | 40m white light | Wide turret-camera coverage |
It can retain colour information when white-light mode is active. Infrared mode produces conventional monochrome night footage.
Both the infrared and white-light systems have a published maximum distance of 40 metres.
Yes. It has a built-in microphone with audio-over-coax support in compatible TVI and CVI 1080p modes.
Yes. Connect it to a compatible DVR or XVR for live viewing, recording and playback.
Yes. It is IP67 rated, provided the body and all cable connections are correctly mounted and sealed.
No. Video uses a BNC coaxial connection, and the camera requires separate 12V DC power.
Not automatically. Confirm the recorder's supported video format, resolution, frame rate and audio-over-coax capability.
Touch IT supplies professional Uniview products for residential, commercial and institutional security projects in Bangladesh. The team can help verify DVR compatibility, lens coverage, storage, cabling, power adapters and mounting accessories before installation.
Upgrade a compatible analog security system with Full HD video, 40m Smart Dual Light, built-in audio and IP67 protection. Order from Touch IT, visit ECS Computer City Center (Multiplan Center), Level 03, Room 312, New Elephant Road, Dhaka-1205, or call 01711664030.
The latest price of Uniview UAC-B142-AF40LM-DL 2MP Bullet Analog Camera in Bangladesh is 2,350৳. You can buy the Uniview UAC-B142-AF40LM-DL 2MP Bullet Analog Camera at best price from our website or visit any of our showrooms.
